6-01 — FRONT BUMPER (#72271) — 31 parça

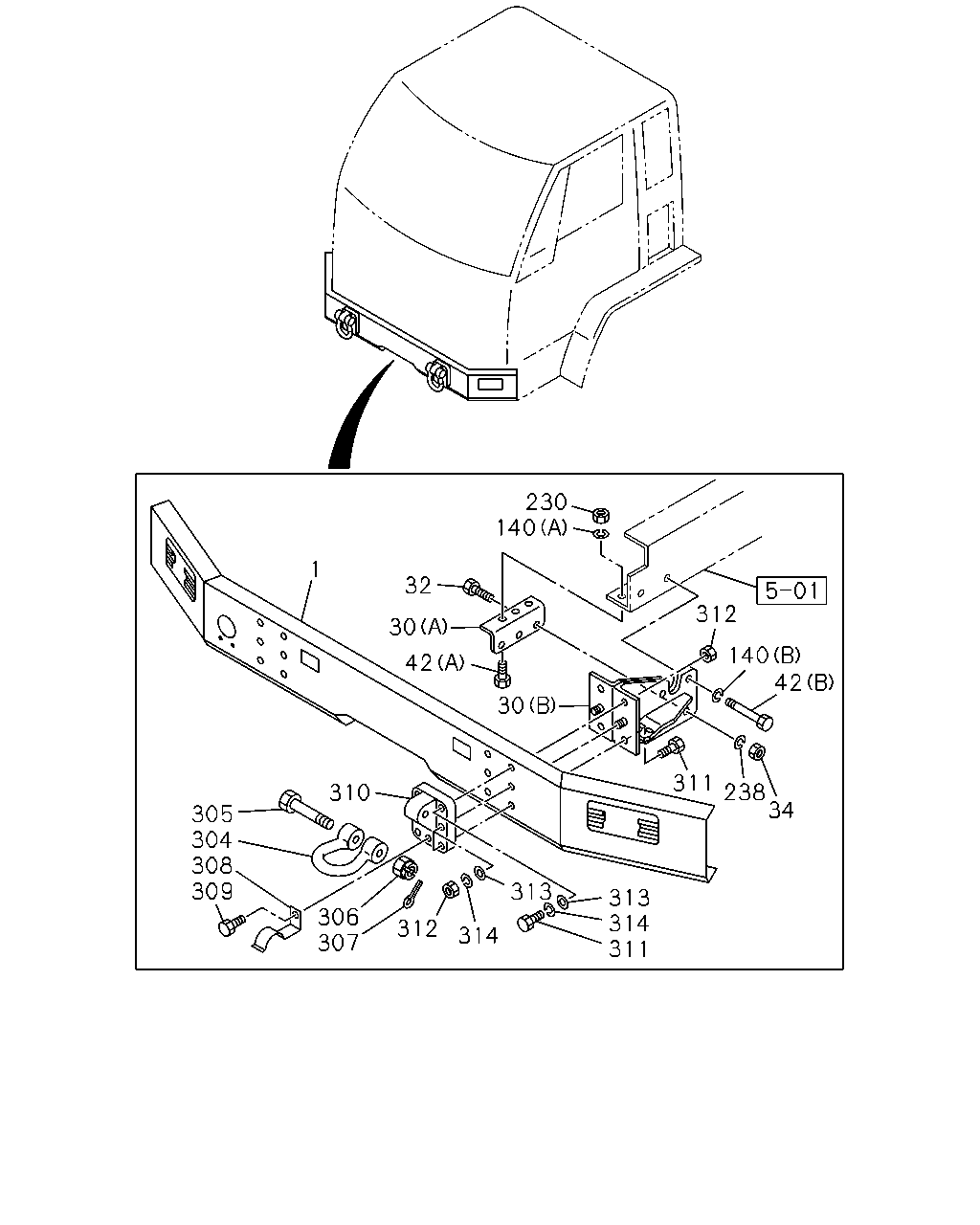

çizim 125840
230 140 1 32 312 30 140 42 42 30 311 238 34 310 305 304 308 309 313 313 314 311 306 307 312 314
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
MAL 		1-71210-947-1 01 1 0602-
30 BRACKET; FRT BUMPER
(B) 		1-53497-638-1 01 1 0602-
30 BRACKET; FRT BUMPER
(B) 		1-53497-639-1 01 1 0602-
30 BRACKET; FRT BUMPER
(A) 		1-53497-583-0 01 1 0602-
30 BRACKET; FRT BUMPER
(A) 		1-53497-584-0 01 1 0602-
32 BOLT; BRKT,BUMPER
M14X40 		0-20851-440-0 06 1 0602-
34 NUT; BRKT,BUMPER
M14 MAL 		0-91110-514-0 06 1 0602-
42 BOLT; BUMPER
(A) M14X40 		0-20851-440-0 06 1 0602-
42 BOLT; BUMPER
(B) M16X40 		0-20851-640-0 04 1 0602-
140 WASHER; LK,BRKT
(A) ID=14.2 		9-09150-514-0 06 1 0602-0603
140 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-514-0 06 1 0604-
140 WASHER; LK,BRKT
(B) ID=16.2 		9-09150-516-0 04 1 0602-0603
140 WASHER; LK,BRKT
(B) ID=16.2 MAL 		0-91510-516-0 04 1 0604-
230 NUT; BRK,HD LAMP,LWR
M14 MAL 		0-91110-514-0 06 1 0602-
238 WASHER; LK,BUMPER BRKT
ID=14.2 		9-09150-514-0 06 1 0602-0603
238 WASHER; LK,BUMPER BRKT
ID=14.2 		0-91510-514-0 06 1 0604-
304 LOOP; FRT 1-57181-023-1 02 1 0602-
305 BOLT; LOOP
M24X124.5 		1-09042-026-1 02 1 0602-
306 NUT; LOOP
M24 SLOTTED 		1-09442-020-0 02 1 0602-0805
306 NUT; LOOP
M24 		1-09442-032-0 02 1 0806-
307 PIN; SPLIT,LOOP
OD=4.6 L=35 		9-08115-035-0 02 1 0602-0606
307 PIN; SPLIT,LOOP
OD=4.6 L=35 		0-81125-035-0 02 1 0607-
308 CLIP; LOOP 1-09700-971-0 02 1 0602-
309 BOLT; CLIP
M8X16 FLANGE MAL 		0-28050-816-0 02 1 0602-
310 BRACKET; LOOP 1-57189-177-3 02 1 0602-
311 BOLT; BRKT
M14X50 		0-10856-450-0 08 1 0602-
312 NUT; BRKT
M14 MAL 		0-91110-514-0 12 1 0602-
313 WASHER; PL BRKT
ID=15 		9-09160-514-0 12 1 0602-0605
313 WASHER; PL BRKT
ID=15 		0-91610-514-0 12 1 0606-
314 WASHER; LK BRKT
ID=14.2 		9-09150-514-0 12 1 0602-0603
314 WASHER; LK BRKT
ID=14.2 		0-91510-514-0 12 1 0604-
