5-15 — CAB MOUNTING; CAB SIDE (#72268) — 71 parça

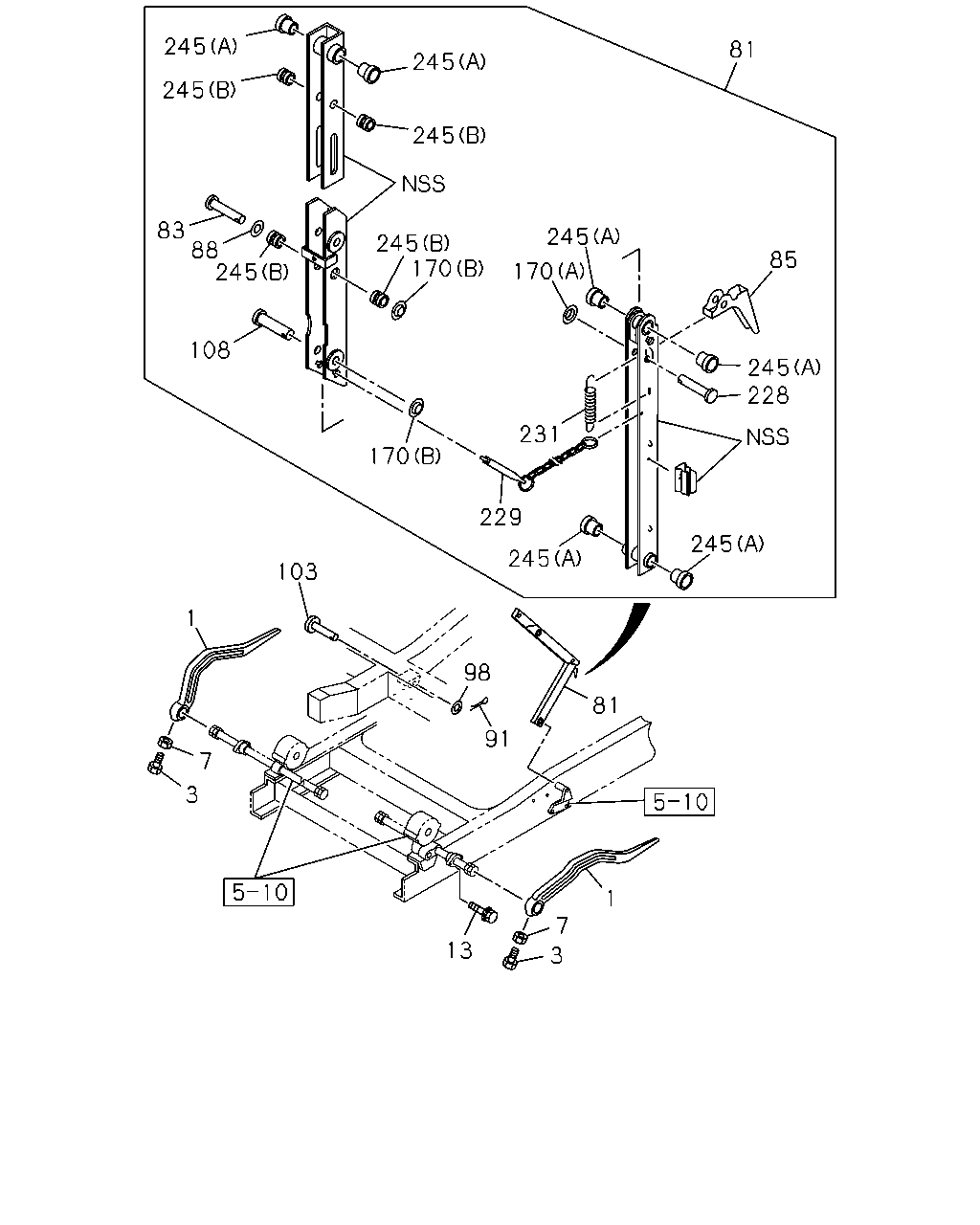

çizim 126011
245 81 245 245 245 83 88 245 245 245 170 85 170 108 245 228 231 170 229 245 245 103 1 98 81 91 7 3 1 7 13 3
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR 1-53458-283-0 01 1 0602-
1 LEVER; TORSION BAR 1-53458-284-0 01 1 0602-
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 0602-
7 NUT; LK,LEVER
M10 MAL 		0-91110-510-0 04 1 0602-
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE MAL 		0-28050-612-0 02 1 0602-
81 STAY ASM; CAB TILT 1-62500-760-0 01 1 0602-1406
81 STAY ASM; CAB TILT 8-98278-115-0 01 1 1407-
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0602-
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 0602-
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 01 1 0602-
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0602-
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 0602-
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 0602-
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0602-
170 NUT
(A) ID=7.9 PUSH NUT MAL 		8-97022-565-0 01 1 0602-
170 NUT
(B) ID=9.9 PUSH NUT MAL 		8-97022-566-0 02 1 0602-
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 0602-
229 PIN ASM; SAFETY 1-62500-517-1 01 1 0602-
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 0602-
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 0602-
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 0602-

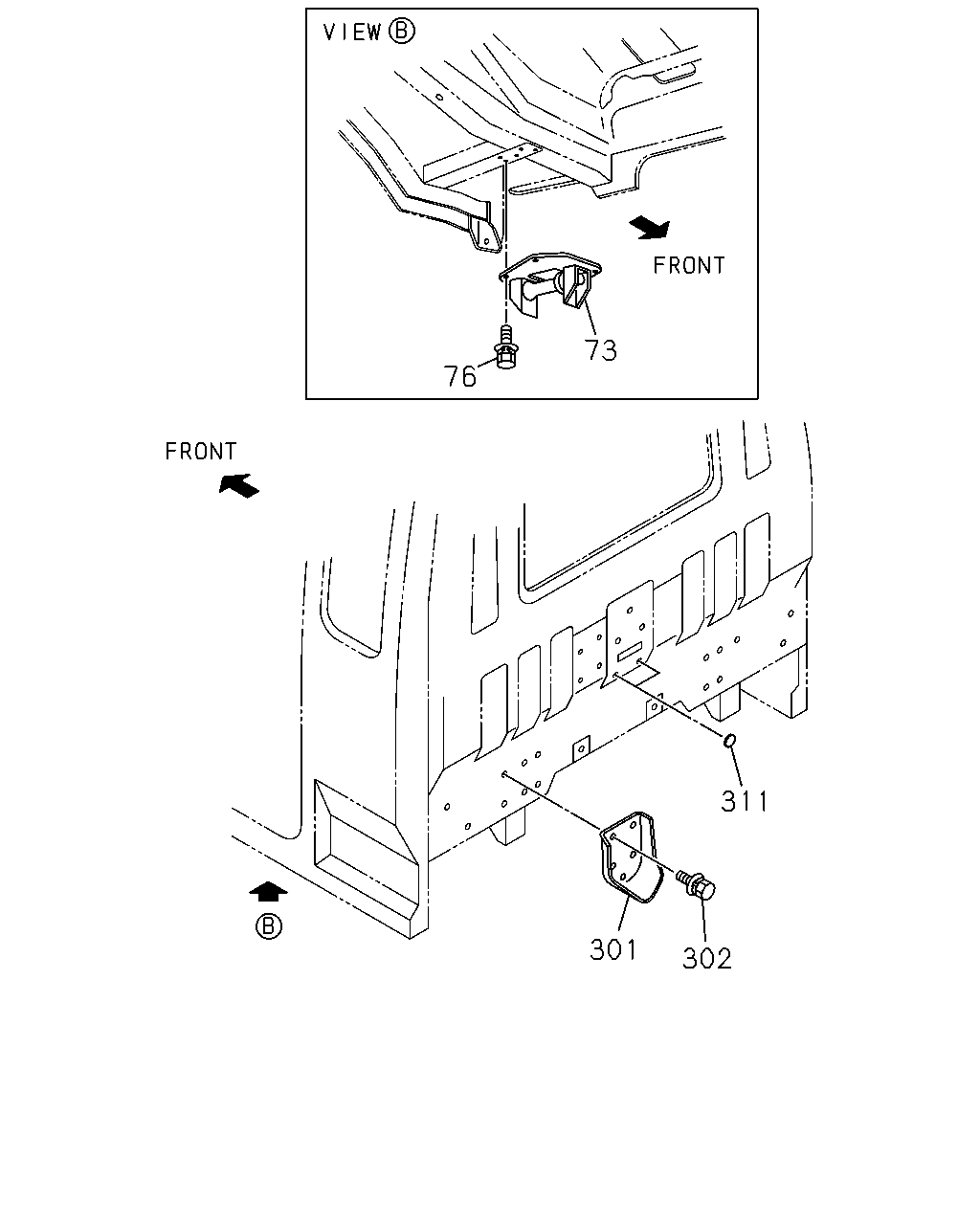

çizim 190202
73 76 311 301 302
BalonParca AdiParca NoAdetTipApplied Date
73 PAD; TORSION BAR 1-53459-790-1 02 1 0602-
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 0602-
301 BRACKET; RR MTG,CAB 1-62580-309-0 01 1 0602-
301 BRACKET; RR MTG,CAB 1-62580-308-0 01 1 0602-
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER 		1-09980-526-0 12 1 0602-
311 SEAL; CAB LOCK
OD=30 BLACK 		1-76798-035-0 02 1 0602-

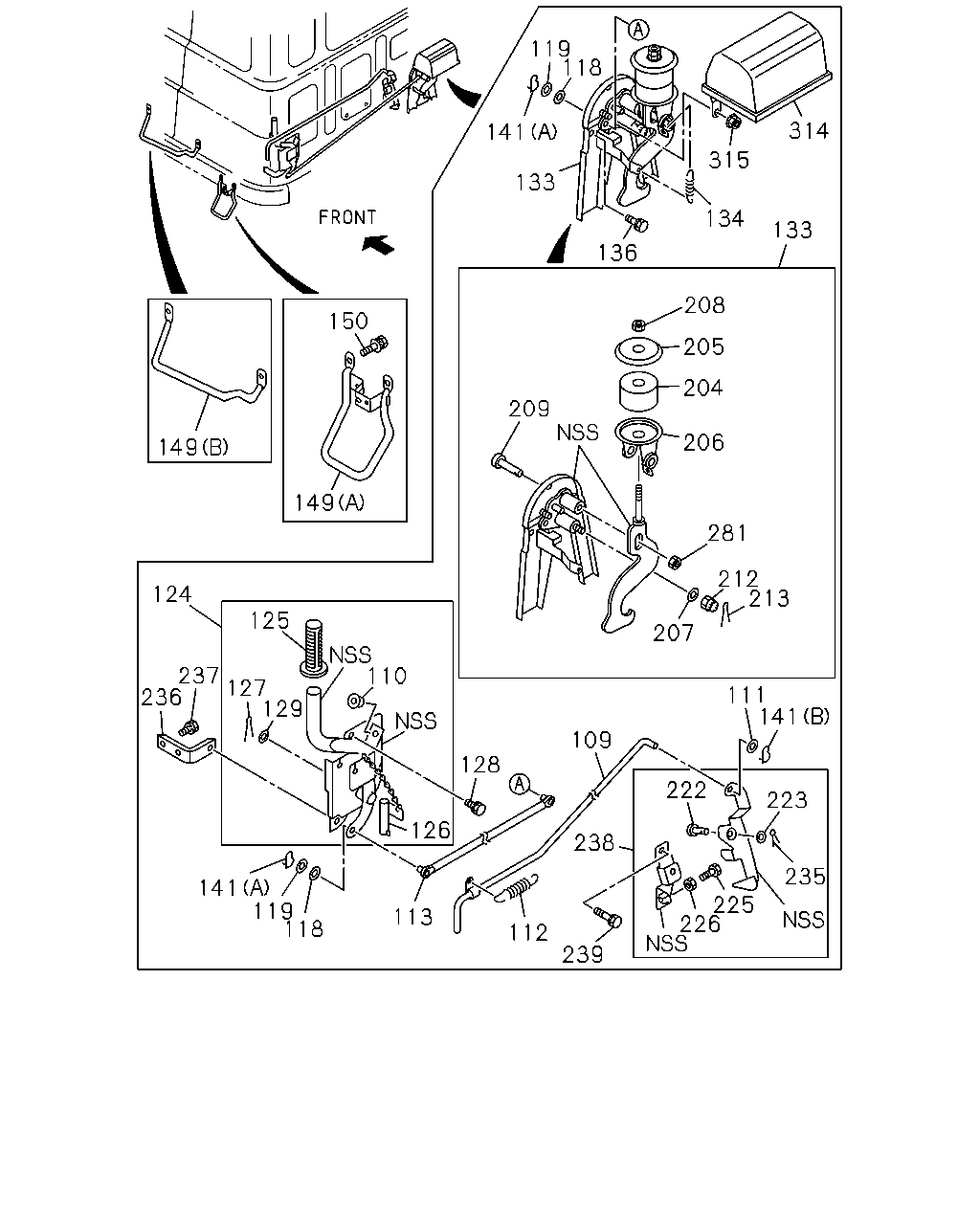

çizim 190212
314 315 133 134 136 133 141 119 118 150 149 149 208 205 204 206 209 281 212 213 207 124 125 237 236 127 129 110 126 141 119 118 113 128 109 238 112 239 111 141 222 223 235 225 226
BalonParca AdiParca NoAdetTipApplied Date
109 ROD; SAFETY,CAB LK 1-79718-642-1 01 1 0602-
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 0602-
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 0602-
112 SPRING; RETURN,SAFETY ROD 1-79718-655-0 01 1 0602-
113 ROD; CONN,CAB LK 1-79718-583-0 01 1 0602-
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 0602-
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 0602-
124 LEVER ASM; HAND,CAB LK 1-79718-585-4 01 1 0602-1403
124 LEVER ASM; HAND,CAB LK 8-98268-403-0 01 1 1404-
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 0602-
126 PIN; LK,HAND LEVER 1-79718-594-1 01 1 0602-1403
126 PIN; LK,HAND LEVER 8-98268-412-0 01 1 1404-
127 PIN; SPLIT,BRKT
L=30 L=30 		1-09987-080-0 01 1 1404-
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 03 1 0602-0904
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 03 1 0905-
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 0602-
133 LOCK ASM; CAB 1-79718-656-0 01 1 0602-
134 SPRING; CAB LK LEVER 1-79718-538-1 01 1 0602-
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 0602-
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 		1-09987-141-0 01 1 0602-
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 		1-09987-142-0 02 1 0602-
149 HANDLE; TILT
(A) 		1-71996-146-1 01 1 0602-
149 HANDLE; TILT
(B) 		1-71996-216-0 01 1 0602-
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0602-
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 0602-
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 0602-
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 0602-
207 WASHER; PL,SUPPORT PLATE
ID=19 OD=44 		1-09985-113-0 01 1 0602-
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE 		1-79718-526-0 01 1 0602-
209 PIN; JOINT,SUPPORT 1-79718-523-0 01 1 0602-
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 0602-
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 0602-
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 0602-
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 0602-
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 0602-
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 0602-
235 PIN; SNAP
MAL 		1-09987-158-1 01 1 0602-
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-493-0 01 1 0602-
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 02 1 0602-
238 LOCK ASM; SAFETY,CAB TILT 1-79718-612-1 01 1 0602-
239 BOLT; SAFETY LK
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0602-
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE 		1-79718-524-1 01 1 0602-
314 COVER; CAB LOCK 1-79718-575-1 01 1 0602-
315 NUT; COVER
M8 CUTTING NUT W/FLANGE MAL 		1-09985-340-0 02 1 0602-
