4-61 — SHOCK ABSORBER; REAR SUSPENSION (#72263) — 24 parça

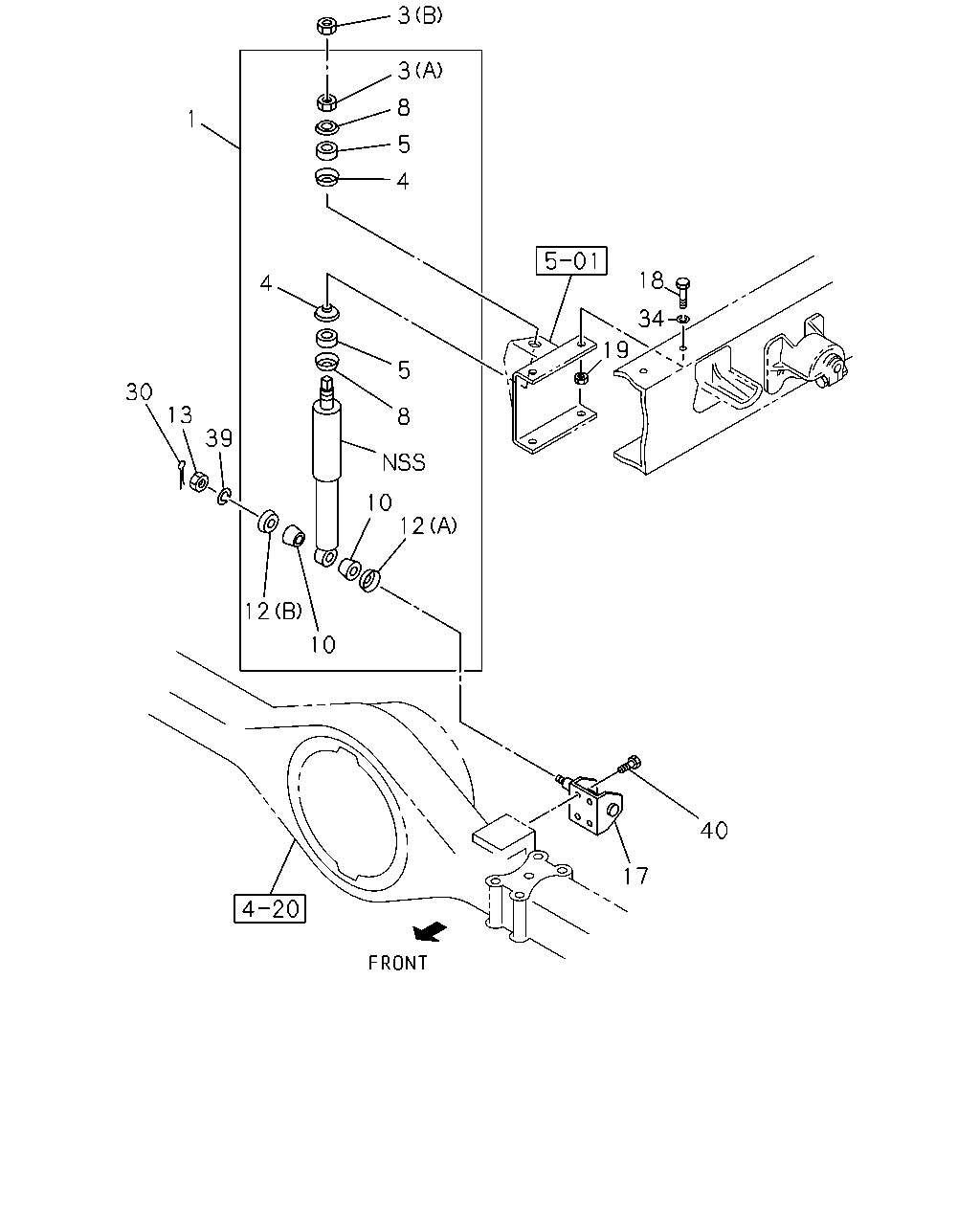

çizim 125086
3 3 8 1 5 4 18 4 34 19 5 30 13 8 39 10 12 12 10 40 17
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR
MAL 		1-51630-457-0 02 1 0602-
3 NUT; S/ABS
(B) M14 		0-91111-514-0 02 1 0602-
3 NUT; S/ABS
(A) M14 		9-99111-414-0 02 1 0602-
4 WASHER; CENTER,S/ABS
ID=24 MAL 		1-51631-067-0 04 1 0602-
5 BUSHING; RUBBER,S/ABS,UPR
ID=16 T=25 MAL 		1-51631-069-0 04 1 0602-
8 WASHER; S/ABS
ID=16.5 MAL 		1-51631-068-0 04 1 0602-
10 BUSHING; RUBBER,S/ABS
MAL 		9-51631-026-0 04 1 0602-
12 WASHER; S/ABS TO RR AXLE
(A) ID=27 MAL 		9-51631-027-0 02 1 0602-
12 WASHER; S/ABS TO RR AXLE
(B) ID=21 MAL 		9-51631-028-0 02 1 0602-
13 NUT; LWR,RR S/ABS
M20 SLOTTED 		9-99116-420-0 02 1 0602-
17 BRACKET; S/ABS LWR 1-51681-471-0 02 1 0602-
18 BOLT; S/ABS BRKT
M12X35 		0-20851-235-0 08 1 0602-
19 NUT; S/ABS BRKT
M12 MAL 		0-91110-512-0 08 1 0602-
30 PIN; SPLIT,S/ABS,RR SUSP
OD=3.7 L=30 		9-08114-030-0 02 1 0602-0606
30 PIN; SPLIT,S/ABS,RR SUSP
OD=3.7 L=30 		0-81124-030-0 02 1 0607-
34 WASHER; LK,S/ABS BRKT
ID=12.2 		9-09150-512-0 08 1 0602-0603
34 WASHER; LK,S/ABS BRKT
ID=12.2 MAL 		0-91510-512-0 08 1 0604-
39 WASHER; PL,S/ABS
ID=21 		9-09160-520-0 02 1 0602-0605
39 WASHER; PL,S/ABS
ID=21 		0-91610-520-0 02 1 0606-
40 BOLT; LWR BRKT
M12X25 W/LK WASHER 		0-50541-225-0 08 1 0602-

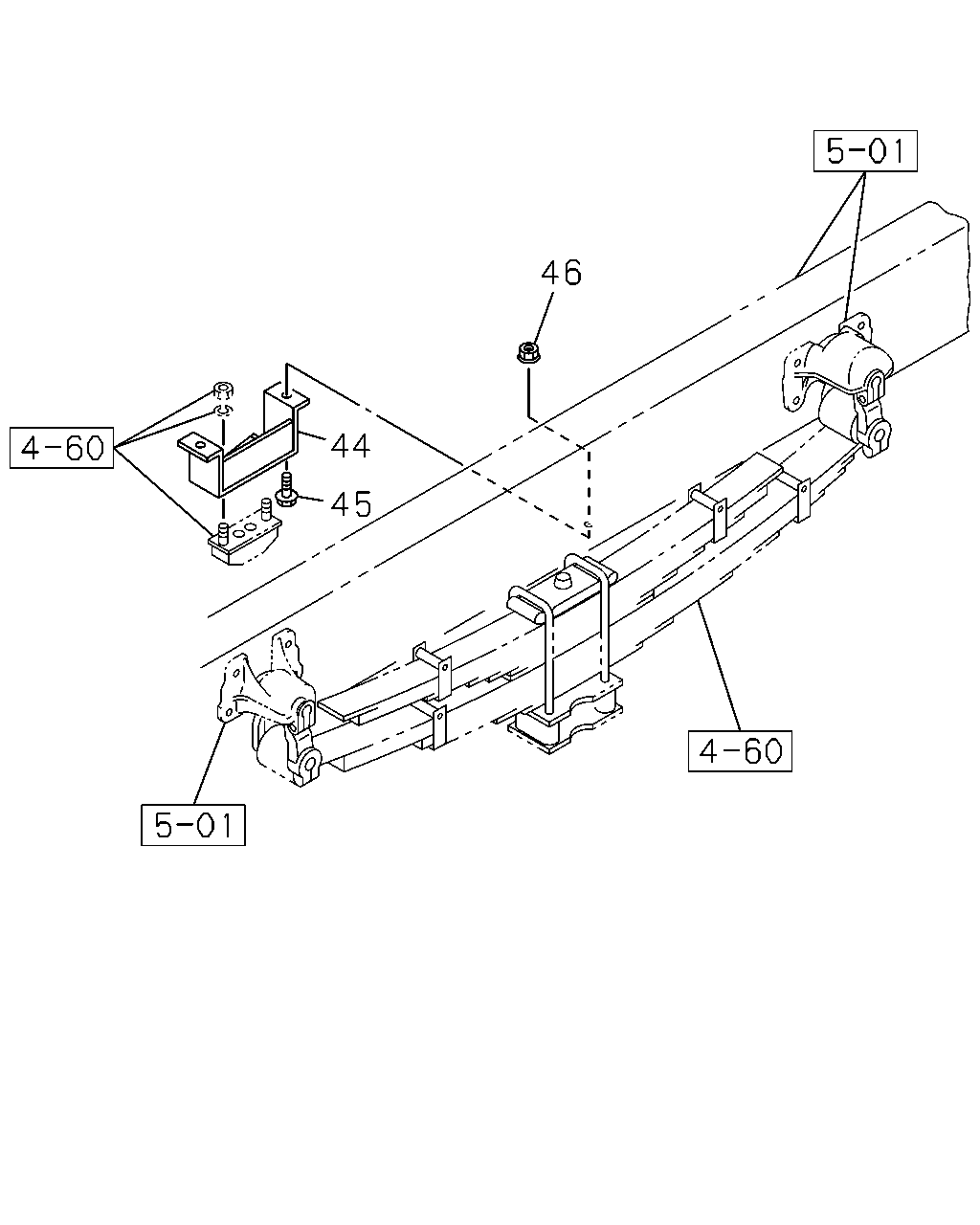

çizim 190200
46 44 45
BalonParca AdiParca NoAdetTipApplied Date
44 SEAT; CUSHION RUBBER 1-53369-008-1 02 1 0602-
45 BOLT; SEAT
M12X35 FLANGE 		0-28651-235-0 04 1 0602-
46 NUT; SEAT
M12 FLANGE 		0-91150-212-0 04 1 0602-0602
46 NUT; SEAT
M12 FLANGE MAL 		0-91180-212-0 04 1 0603-
