◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#72262) — 29 parça

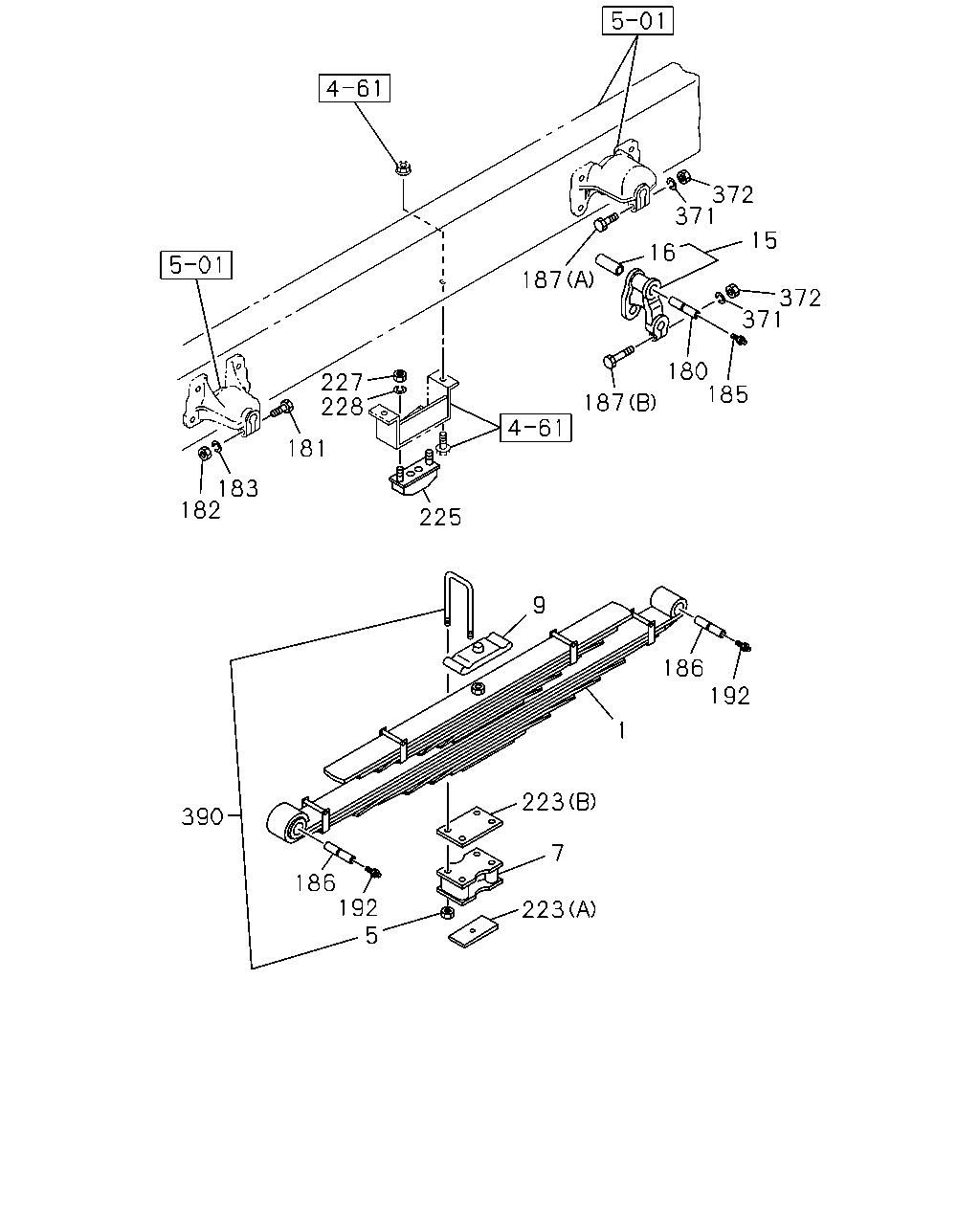

çizim 124892
372 371 15 16 187 372 371 180 185 227 228 187 181 183 182 225 9 186 192 1 223 390 7 186 192 5 223
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MAL 		1-51300-521-0 02 1 0602-
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0602-
7 SEAT; SPR,LWR 1-51385-087-1 02 1 0602-
9 PAD; U BOLT,RR SPR 1-51372-066-0 02 1 0602-
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0602-
16 BUSHING; SHACKLE,RR SPR
ID=25 MAL 		9-51151-032-0 02 1 0602-0902
16 BUSHING; SHACKLE,RR SPR
ID=25 MAL 		8-98082-176-0 02 1 0903-
180 PIN; RR SPR
DO=25 L=115 PT1/8 MAL 		1-51361-016-0 02 1 0602-
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 0602-
182 NUT; PIN,RR SPR
M12 MAL 		0-91110-512-0 02 1 0602-
183 WASHER; LK,PIN,RR SPR
ID=12.2 MAL 		9-09150-612-0 02 1 0602-0603
183 WASHER; LK,PIN,RR SPR
ID=12.2 MAL 		0-91510-612-0 02 1 0604-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0602-
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 MAL 		1-51361-016-0 04 1 0602-
187 BOLT; SPR & SHACKLE
(A) M12X55 		0-10811-255-0 02 1 0602-
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 0602-
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0602-
223 SPACER; U BOLT,RR SPR
(B) T=4.5 		1-51377-307-0 01 1 0602-
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-329-1 02 1 0602-
225 RUBBER; CUSHION,RR SPR 9-53366-021-1 02 1 0602-
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0602-0602
227 NUT; CUSHION RUBBER
M10 FLANGE MAL 		0-91180-210-0 04 1 0603-
228 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 04 1 0602-0603
228 WASHER; LK,CUSHION RUBBER
ID=10.2 MAL 		0-91510-510-0 04 1 0604-
371 WASHER; LK,SHACKLE
ID=12.2 MAL 		9-09150-612-0 04 1 0602-0603
371 WASHER; LK,SHACKLE
ID=12.2 MAL 		0-91510-612-0 04 1 0604-
372 NUT; SHACKLE
M12 MAL 		0-91110-512-0 04 1 0602-
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> L=540 		1-87870-429-0 04 1 0602-
390 U-BOLT SET; RR SPRING
EXC. REAR STABILIZER SHAFT<F61> L=525 		1-87870-379-0 04 1 0602-
