2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#7226) — 61 parça
çizim 8090
24 22 25 112 15 25 22 25 15 28 22 24 25 28 32 30 35 5 32 35 30 45 49 36 44 47 47 49 8 6 38 38 36 45 44
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
CAB UP +110MM<TGG> L=1120 		1-33652-603-0 01 1 9906-
5 ROD; LINK,3RD SHIFT
EXC. CAB UP +110MM<TGG> L=1110 		1-33652-623-0 01 1 9906-
6 ROD; LINK,3RD SELECT
EXC. CAB UP +110MM<TGG> L=1624 		1-33652-637-0 01 1 9906-
8 ROD; LINK,4TH SHIFT
L=370 		1-33652-654-1 01 1 9906-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (C) L=423 		1-33652-804-1 01 1 9906-
15 ROD; LINK 1ST SHIFT
EXC. CAB UP +110MM<TGG> (B) L=490 		1-33652-780-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
EXC. CAB UP +110MM<TGG> (C) L=428 		1-33652-781-1 01 1 9906-
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=345 		1-33652-736-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (E) L=88 		1-33652-740-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435 		1-33652-696-0 01 1 9906-
22 JOINT; BALL,SCREW,LINK ROD
(B) SELECT 		1-09760-109-0 02 1 9906-
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT 		1-09760-125-0 01 1 9906-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 01 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 01 1 9906-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9906-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9906-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9906-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
EXC. CAB UP +110MM<TGG> 		1-09760-109-0 02 1 9906-
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906-9912
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001-
44 NUT; LK,RIGHT SCREW,LINK ROD
EXC. CAB UP +110MM<TGG> M10 		9-09111-410-0 02 1 9906-
45 JOINT; BALL,RIGHT SCREW,LINK ROD
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-09760-125-0 02 1 9906-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9906-
49 NUT; LK,RIGHT SCREW,LINK ROD
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12 		9-99111-412-0 02 1 9906-
112 JOINT; RUBBER 1-33670-413-1 01 1 9906-
112 JOINT; RUBBER 1-33670-413-1 01 1 9906-

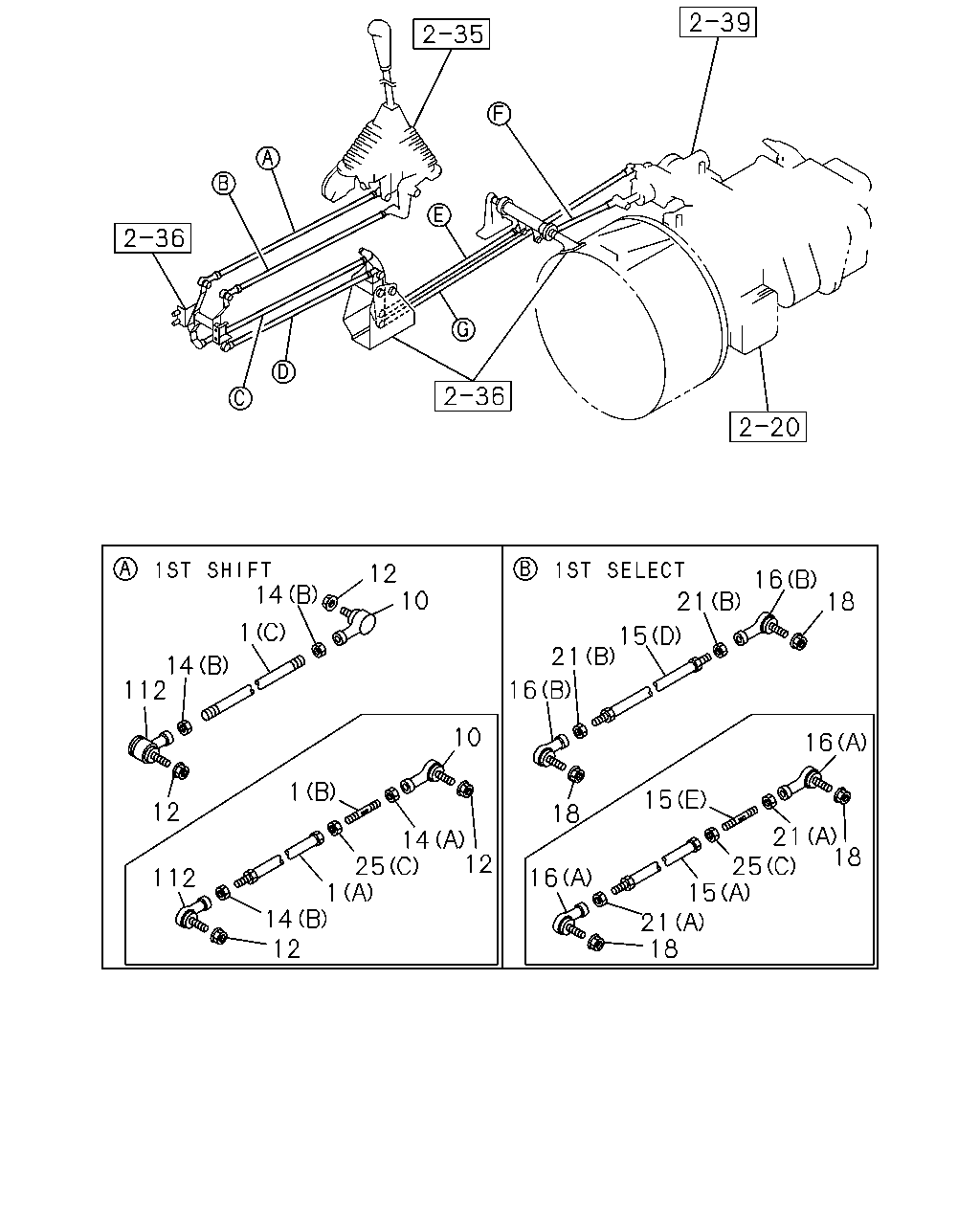

çizim 41876
14 10 21 18 1 15 21 14 112 16 10 16 1 15 12 18 21 25 15 21 18 18 14 25 1 14 12 12 112 16 12 16
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=421 		1-33652-738-0 01 1 9906-
1 ROD; LINK,1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=88 		1-33652-740-0 01 1 9906-
1 ROD; LINK,1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480 		9-08401-248-0 01 1 9906-
10 JOINT ASM; BALL,SELECT ROD
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-124-0 01 1 9906-
10 JOINT ASM; BALL,SELECT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-125-0 01 1 9906-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9906-
14 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 01 1 9906-
14 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12 		9-99111-412-0 01 1 9906-
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12 		9-99111-412-0 02 1 9906-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (C) L=423 		1-33652-804-1 01 1 9906-
15 ROD; LINK 1ST SHIFT
EXC. CAB UP +110MM<TGG> (B) L=490 		1-33652-780-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
EXC. CAB UP +110MM<TGG> (C) L=428 		1-33652-781-1 01 1 9906-
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=345 		1-33652-736-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (E) L=88 		1-33652-740-0 01 1 9906-
15 ROD; LINK 1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435 		1-33652-696-0 01 1 9906-
16 JOINT ASM; BALL,CONT ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-09760-109-0 02 1 9906-
16 JOINT ASM; BALL,CONT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09760-108-0 02 1 9906-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9906-
21 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 02 1 9906-
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8 		9-09111-408-0 02 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 01 1 9906-
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 01 1 9906-
112 JOINT; RUBBER 1-33670-413-1 01 1 9906-
112 JOINT; RUBBER 1-33670-413-1 01 1 9906-

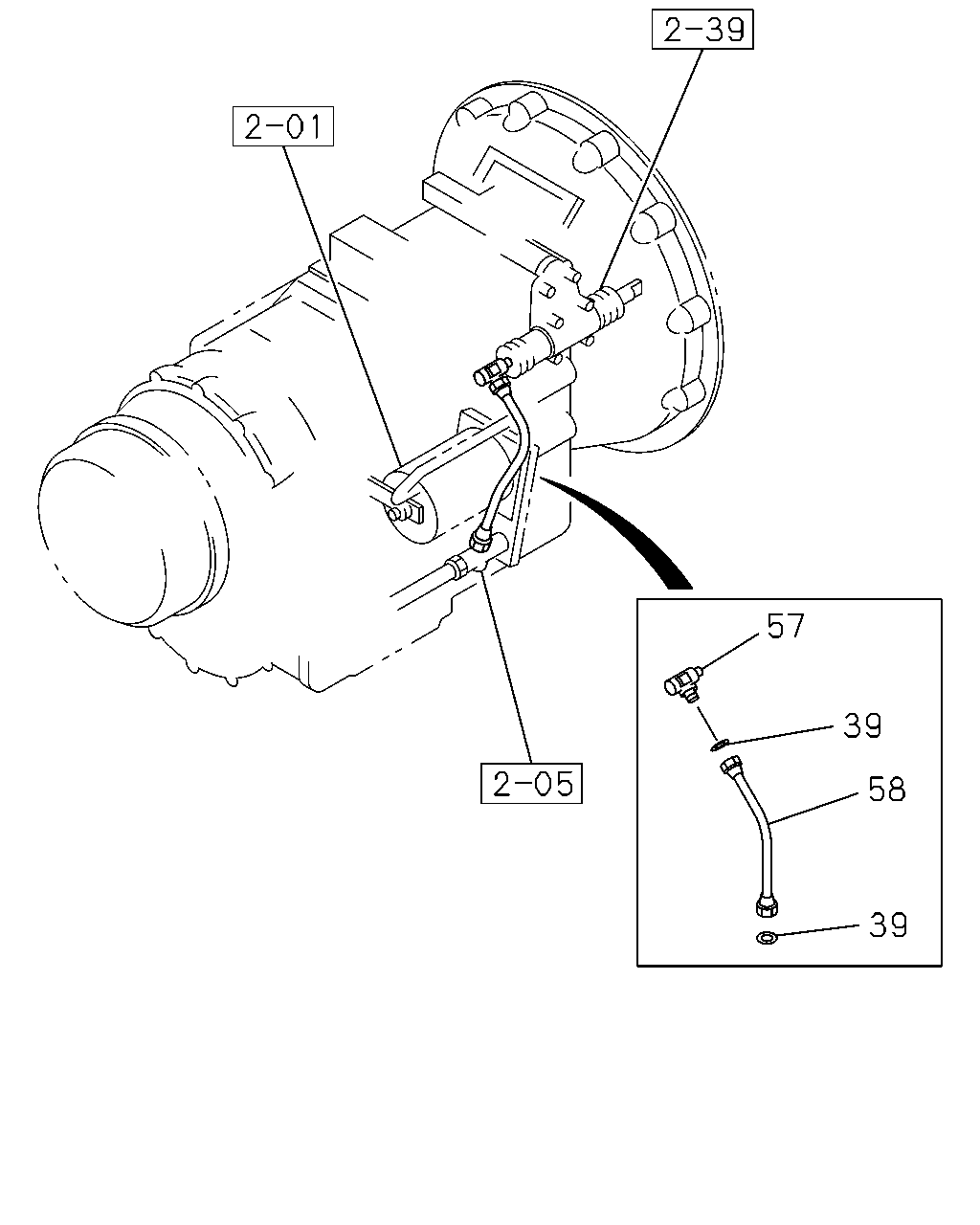

çizim 45090
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date
39 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9906-
57 NIPPLE; POWER ASSISTOR
M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9906-
58 HOSE; FLEX,POWER ASSISTOR
L=360 		0-07150-360-0 01 1 9906-
