4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#72256) — 40 parça

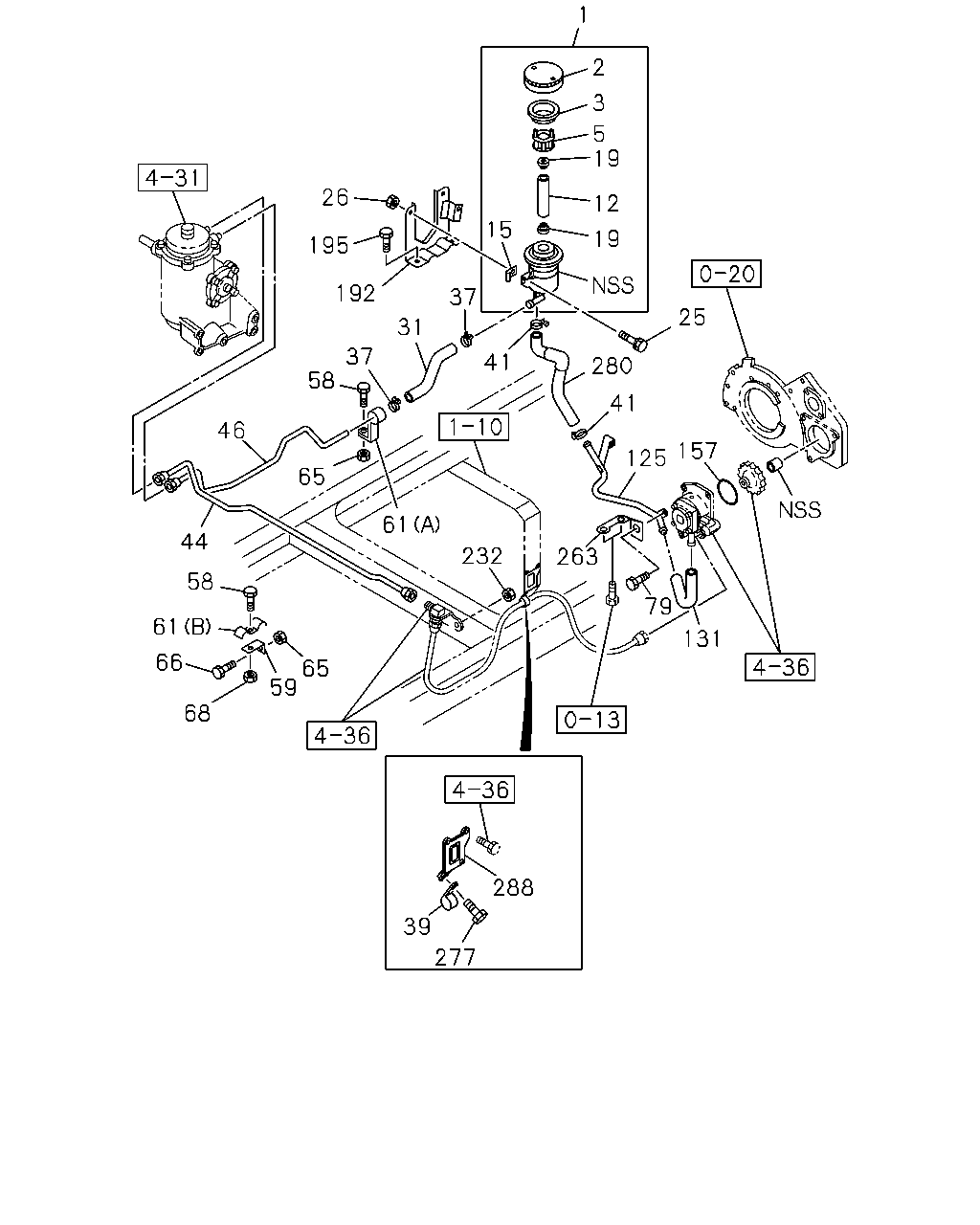

çizim 190215
1 2 3 5 19 26 12 15 19 195 192 37 25 31 37 41 280 58 41 46 157 125 65 61 44 232 263 58 79 61 131 65 59 66 68 288 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0602-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0602-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0602-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0602-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0602-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0602-
19 SEAT; OIL TANK 1-21249-004-0 02 1 0602-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0602-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0602-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0602-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0602-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0602-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0602-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21117-616-0 01 1 0602-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21114-768-3 01 1 0602-
58 BOLT; CLIP
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0602-
58 BOLT; CLIP
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0602-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0602-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0602-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0602-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0602-0602
65 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0602-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0602-0602
68 NUT; CLIP,OIL PIPE
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0602-
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 0602-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0602-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0602-
192 BRACKET; P/S OIL TANK 1-21119-115-5 01 1 0602-
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0602-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0602-0602
232 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0602-
277 BOLT; HOSE CLIP
M8X16 FLANGE MAL 		0-28050-816-0 01 1 0602-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0602-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 0602-
