4-15 — FRONT FINAL DRIVE (#72250) — 122 parça

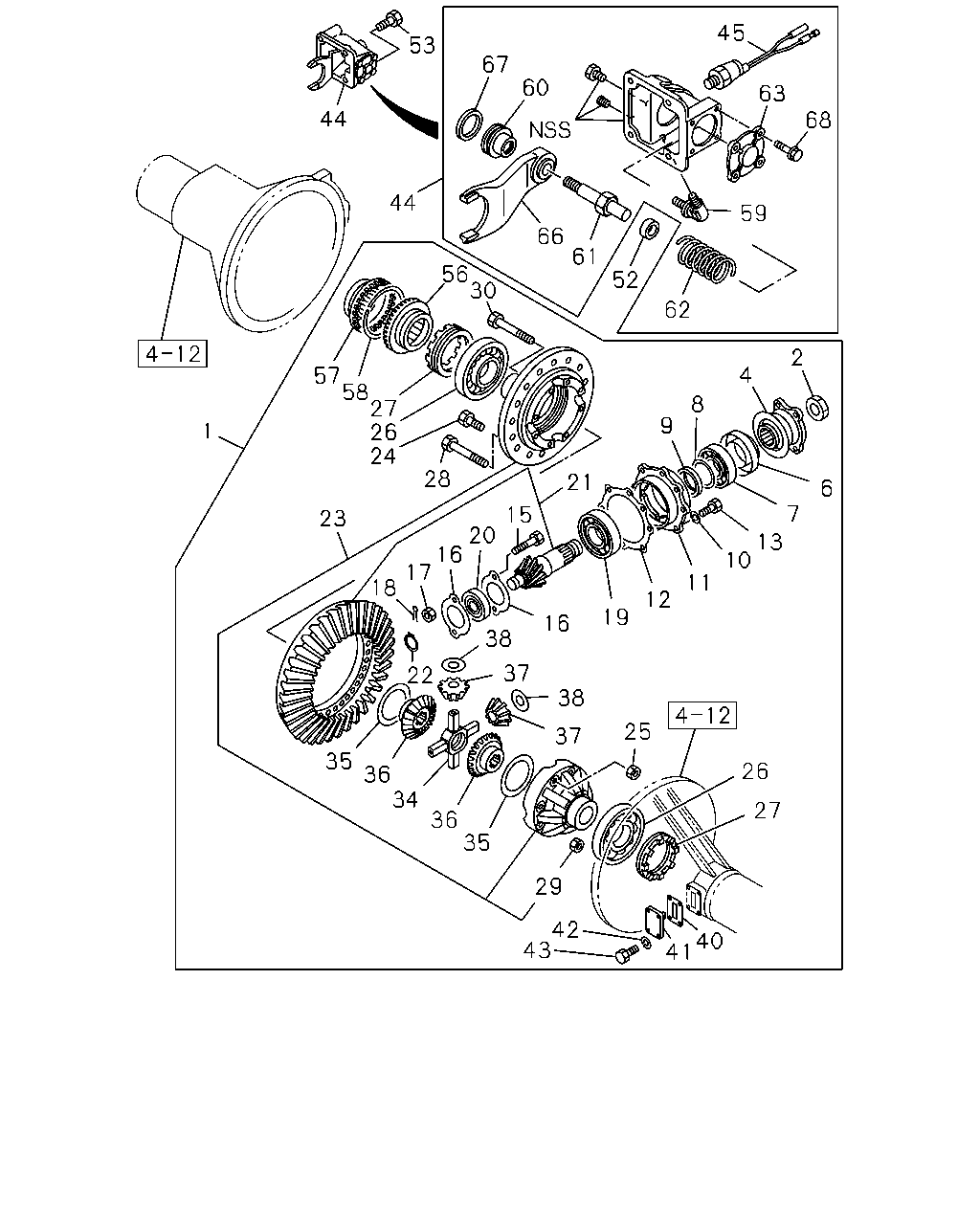

çizim 190203
45 53 67 60 63 44 68 44 59 66 61 56 30 52 62 2 4 57 58 27 26 24 8 9 1 28 21 6 7 15 23 20 16 17 13 10 11 18 12 19 16 38 37 22 38 25 37 35 26 36 34 27 36 35 29 42 43 40 41
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,FRT
39/7 		1-41003-166-0 01 1 0602-
2 NUT; FINAL DRIVE PINION
M30 FLANGE 		1-09449-066-1 01 1 0602-
4 COUPLING; FINAL DRIVE PINION 1-37245-067-4 01 1 0602-
6 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0602-
6 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 0602-
7 BEARING; PINION,OUTER
NSK 		1-09812-026-0 01 1 0602-1001
7 BEARING; PINION,OUTER
NSK 		5-09812-063-0 01 1 1002-
7 BEARING; PINION,OUTER
JTEKT 		5-09812-062-1 01 1 1001-
8 SHIM; PINION,FINAL DRIVE
T=1.60 		1-41229-179-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.61 		1-41229-180-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.62 		1-41229-181-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.63 		1-41229-182-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.64 		1-41229-183-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.65 		1-41229-184-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.66 		1-41229-185-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.67 		1-41229-186-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.68 		1-41229-187-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.69 		1-41229-188-0 AR 1 0602-
8 SHIM; PINION,FINAL DRIVE
T=1.70 		1-41229-189-0 AR 1 0602-
9 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 0602-
9 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 0602-
9 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 0602-
9 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 0602-
9 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 0602-
9 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 0602-
9 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 0602-
9 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 0602-
9 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 0602-
10 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 0602-0603
10 WASHER; LK,FINAL PINION
ID=12.2 MAL 		0-91510-512-0 06 1 0604-
11 CAGE; FINAL PINION 1-41151-063-0 01 1 0602-
12 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 0602-
12 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 0602-
12 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 0602-
12 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 0602-
13 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 0602-
15 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 0602-
16 RETAINER; PILOT BRG,PINION 9-41227-004-0 02 1 0602-
17 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0602-
18 PIN; SPLIT,RET 9-08112-012-0 02 1 0602-0805
18 PIN; SPLIT,RET 0-81122-012-0 02 1 0806-
19 BEARING; PINION,INNER
NSK 		1-09812-041-2 01 1 0602-
19 BEARING; PINION,INNER
JTEKT 		1-09812-042-1 01 1 0612-
20 BEARING; FINAL DRIVE PINION 9-00094-081-0 01 1 0602-
21 GEAR SET; FINAL DRIVE,FRT
39/7 		1-41210-259-2 01 1 0602-
22 RING; SNAP,FINAL DRIVE PINION 9-09952-005-0 01 1 0602-
23 CAGE ASM; DIFF,FINAL DRIVE 1-41510-194-1 01 1 0602-
24 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 0602-
25 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 0602-
26 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-011-0 01 1 0602-
26 BEARING; DIFF CAGE
NACHI ID=70 OD=125 T=26.3 		1-09812-024-0 01 1 0602-
26 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-071-0 01 1 0602-0704
26 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0705-
26 BEARING; DIFF CAGE
JTEKT 		1-09812-134-0 01 1 0602-
27 NUT; ADJ,DIFF CAGE
M120 		1-41121-027-0 01 1 0602-
27 NUT; ADJ,DIFF CAGE
M120 		9-41121-007-0 01 1 0602-
28 BOLT; DIFF CAGE SETTING
M14X107 		1-09044-024-0 04 1 0602-
29 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 0602-
30 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 0602-
34 PIN; CROSS,DIFF PINION 1-41521-050-2 01 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 0602-
35 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 0602-
36 GEAR; SIDE,DIFF
Z=16 		1-41561-135-0 02 1 0602-0905
36 GEAR; SIDE,DIFF
Z=16 		1-41561-155-0 02 1 0906-
37 GEAR; PINION DIFF
Z=10 		1-41551-042-0 04 1 0602-0905
37 GEAR; PINION DIFF
Z=10 		1-41551-049-0 04 1 0906-
38 WASHER; THRUST,PINION GEAR
ID=29 OD=60 		1-41562-119-0 04 1 0602-
40 GASKET; LK PLATE,ADJ NUT 9-43213-006-1 01 1 0602-
41 PLATE; LK,ADJ NUT 1-41124-011-0 01 1 0602-
41 PLATE; LK,ADJ NUT 9-41124-004-0 01 1 0602-
42 WASHER; LK,LOCK PLATE
ID=8.2 		9-09150-508-0 04 1 0602-0603
42 WASHER; LK,LOCK PLATE
ID=8.2 		0-91510-508-0 04 1 0604-
43 BOLT; LK PLATE
M8X16 		0-20850-816-0 02 1 0602-
43 BOLT; LK PLATE
M8X20 		0-20850-820-0 04 1 0602-
44 SHIFT UNIT; DIFF LOCK 1-48260-045-2 01 1 0602-
45 SWITCH; SHIFT UNIT,DIFF LOCK 1-82440-043-0 01 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=7.0 		1-48269-024-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=7.3 		1-48269-025-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=7.6 		1-48269-026-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=7.9 		1-48269-027-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=8.2 		1-48269-028-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=8.5 		1-48269-029-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=8.8 		1-48269-030-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=9.1 		1-48269-031-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=9.4 		1-48269-032-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=9.7 		1-48269-033-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=10.0 		1-48269-034-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=10.3 		1-48269-035-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=10.6 		1-48269-036-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=10.9 		1-48269-037-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=11.2 		1-48269-038-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=11.5 		1-48269-039-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=11.8 		1-48269-040-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=12.1 		1-48269-041-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=12.4 		1-48269-042-0 AR 1 0602-
52 STOPPER; STROKE,SHIFT UNIT
T=12.7 		1-48269-043-0 AR 1 0602-
53 BOLT; SHIFT UNIT
M10X50 FLANGE 		0-28151-050-0 01 1 0602-
53 BOLT; SHIFT UNIT
M10X25 FLANGE 		0-28751-025-0 03 1 0602-
56 CLUTCH; CLAW,FRT DIFF 1-41266-008-0 01 1 0602-
57 SLEEVE; CLU,FRT DIFF 1-41266-009-0 01 1 0602-
58 RING; SNAP,CLAW CLU 1-09587-074-0 01 1 0602-
59 NIPPLE; SHIFT UNIT,DIFF LOCK
M20 & PT1/4 ELBOW 		1-48269-012-0 01 1 0602-
59 NIPPLE; SHIFT UNIT,DIFF LOCK
M20 & PT1/4 ELBOW 		1-48269-012-0 01 1 0602-
60 PISTON; SHIFT UNIT 1-48262-026-0 01 1 0602-
60 PISTON; SHIFT UNIT 1-48262-026-0 01 1 0602-
61 ROD; SHIFT 1-48263-017-0 01 1 0602-
61 ROD; SHIFT 1-48263-017-0 01 1 0602-
62 SPRING; PISTON 1-48265-007-0 01 1 0602-
62 SPRING; PISTON 1-48265-007-0 01 1 0602-
63 COVER 1-48266-011-0 01 1 0602-
63 COVER 1-48266-011-0 01 1 0602-
66 FORK; SHIFT 1-48269-143-0 01 1 0602-
66 FORK; SHIFT 1-48269-143-0 01 1 0602-
67 GASKET; PISTON 1-48269-064-0 01 1 0602-
67 GASKET; PISTON 1-48269-064-0 01 1 0602-
68 BOLT; COVER 1-48269-144-0 04 1 0602-
68 BOLT; COVER 1-48269-144-0 04 1 0602-
