◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36C - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#7225) — 178 parça
çizim 7317
496 465 192 509 468
BalonParca AdiParca NoAdetTipApplied Date A B C
192 COVER 1-79907-090-0 01 1 9906- ● ●
465 BRACKET; CONNECTOR 1-47477-823-1 01 1 9906- ● ●
468 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906- ● ●
468 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0104- ● ● ●
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 9906- ● ●
509 SEAL; BRKT 1-47477-825-2 01 1 9906- ● ●

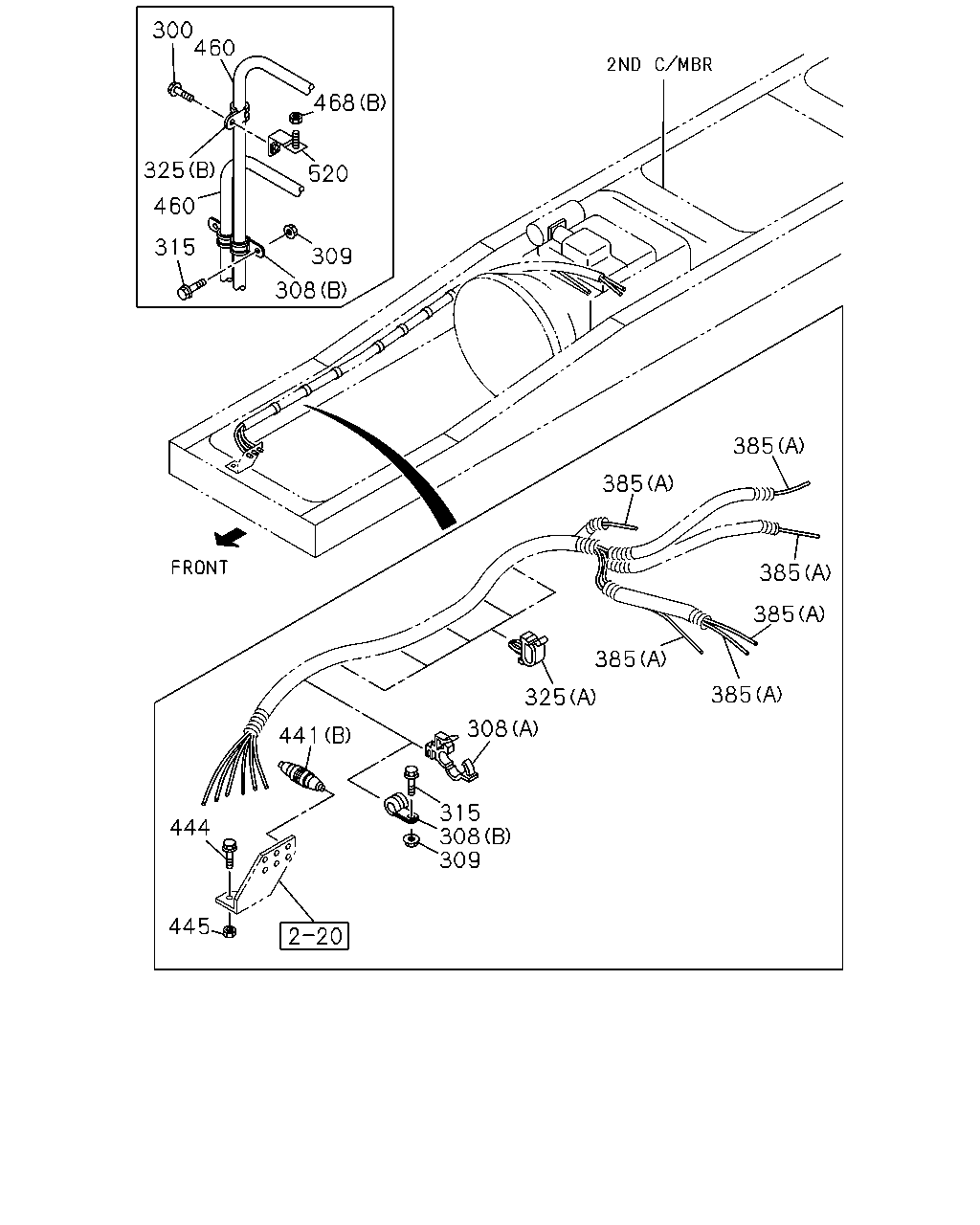

çizim 41973
300 460 468 325 520 460 315 309 308 385 385 385 385 385 385 325 308 441 315 308 309 444 445
BalonParca AdiParca NoAdetTipApplied Date A B C
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0104- ● ● ●
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 9906- ● ● ●
308 CLIP; PIPE
(B) ID=18 L=28 		1-09701-067-0 01 1 0104- ● ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0104- ● ● ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0104- ● ● ●
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 06 1 9906-9910 ● ● ●
325 CLIP; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5 		5-09709-020-0 06 1 9911- ● ● ●
325 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0104- ● ● ●
325 CLIP; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5 		5-09709-020-0 04 1 9911- ● ● ●
385 TUBE; NYLON
(B) L=1530 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104- ●
385 TUBE; NYLON
(A) L=3000 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3100 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(A) L=3100 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(A) L=3500 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3600 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(A) L=3100 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104- ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104- ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(B) L=1640 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104- ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9906- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 9906-9910 ● ● ●
441 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-09660-975-0 06 1 9911- ● ● ●
441 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-09660-975-0 04 1 9911- ● ● ●
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28680-825-0 01 1 9906- ● ● ●
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=800 		1-83129-031-1 02 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=300 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=2400 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 9906-9910 ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 9911-0103 ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0104- ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=800 		1-83129-031-1 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=800 		1-83129-031-1 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 9911-0103 ● ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0104- ● ● ●
460 TUBE; CORRUGATE
L=1030 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 9906-0103 ● ●
460 TUBE; CORRUGATE
L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0104- ● ● ●
468 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906- ● ●
468 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0104- ● ● ●
520 BRACKET; NYLON TUBE 1-79996-545-0 01 1 0104- ● ● ●

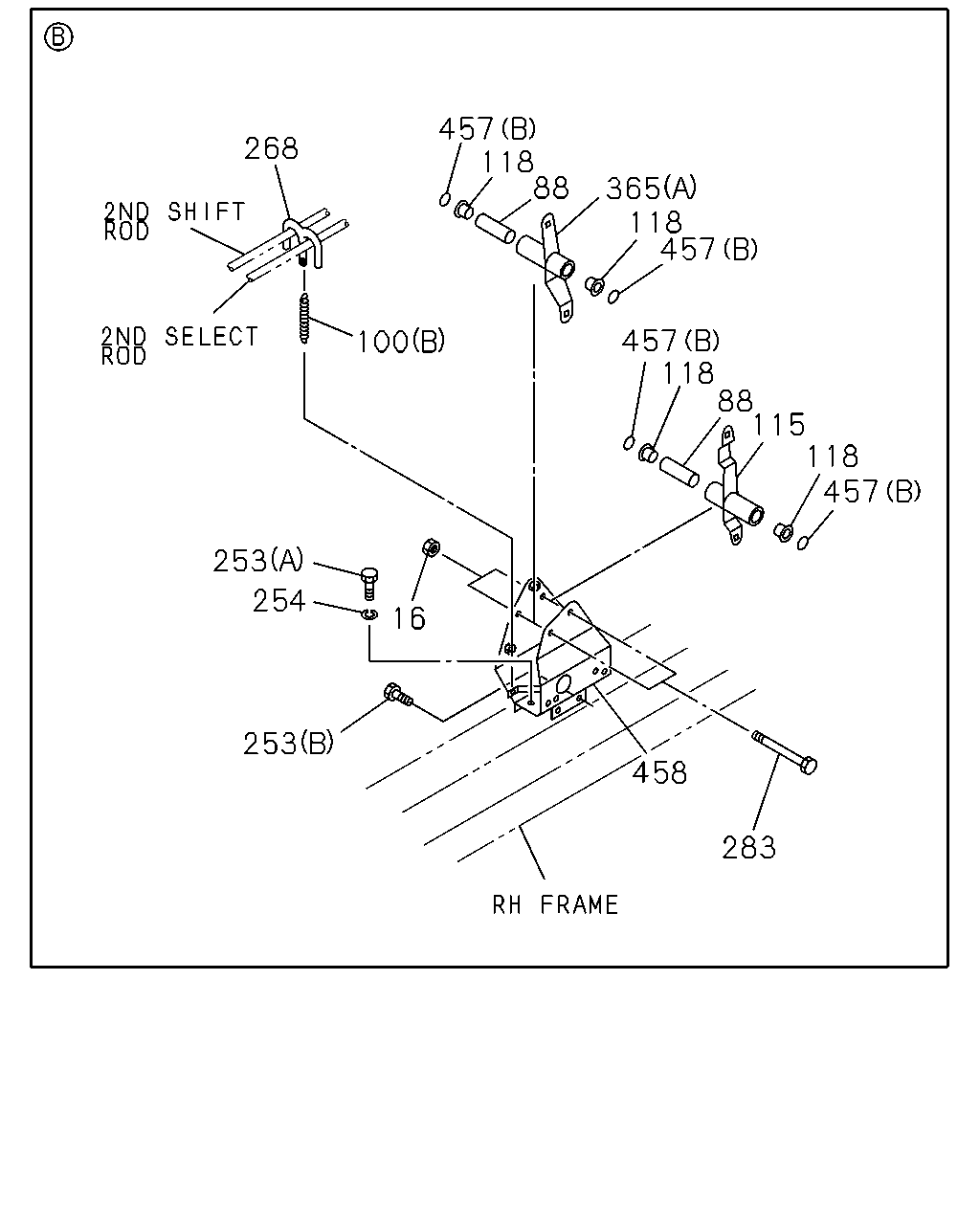

çizim 42708
457 118 88 268 365 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date A B C
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9906- ● ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9906- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9906- ● ● ●
100 SPRING
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9906-9906 ● ● ●
100 SPRING
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9907- ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9906- ● ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9906- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9906- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9906- ● ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9906- ● ● ●
268 BRACKET; LINK ROD 1-33657-216-0 01 1 9906- ● ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 9906- ● ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9906- ● ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 9906- ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-583-1 01 1 9906- ●

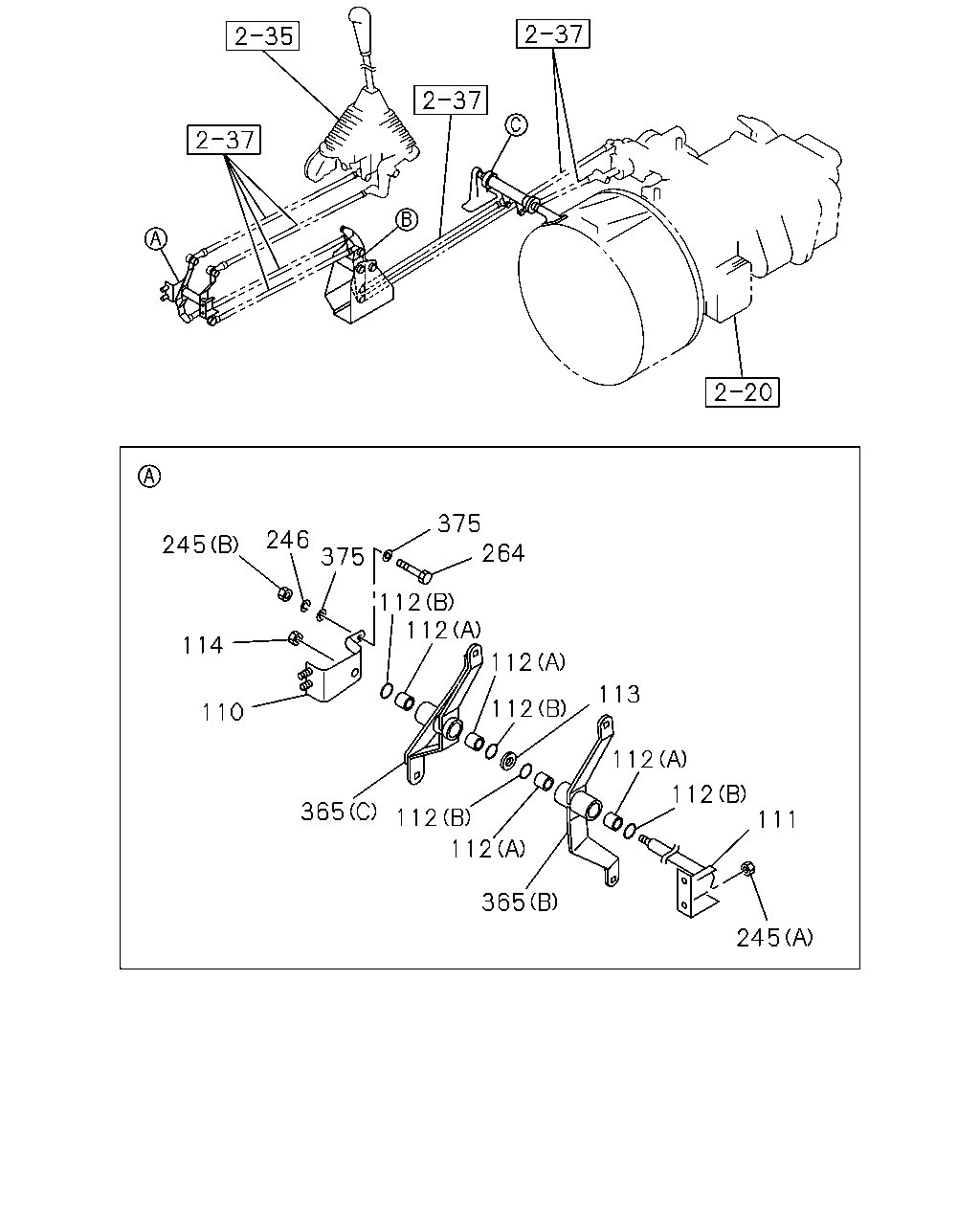

çizim 43045
375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245
BalonParca AdiParca NoAdetTipApplied Date A B C
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 9906- ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-468-0 01 1 9906- ● ● ●
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 9906- ● ● ●
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 9906- ● ● ●
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 9906- ● ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 9906- ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 9906- ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 9906- ● ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 9906- ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 9906- ● ● ●
çizim 44633
507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71 386
BalonParca AdiParca NoAdetTipApplied Date A B C
33 BOLT; BRKT,3RD RELAY LEVER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) M10X30 FLANGE 		0-28681-030-0 03 1 9906-9906 ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
6WA1 TC-C(55L),6WG1 TC-N(71L) M10X30 FLANGE 		0-28681-030-0 03 1 9907- ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 9906- ● ● ●
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 9906- ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 9906- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 9906- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
CAB UP +110MM<TGG> (A) 		1-33657-657-1 01 1 9906- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. CAB UP +110MM<TGG> (A) 		1-33657-512-0 01 1 9906- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9906- ● ● ●
100 SPRING
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9906-9906 ● ● ●
100 SPRING
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9907- ● ● ●
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ●
162 LEVER; RELAY 1-33651-625-0 01 1 9906- ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) M12 FLANGE 		0-91150-212-0 03 1 9906-9906 ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
6WA1 TC-C(55L),6WG1 TC-N(71L) M12 FLANGE 		0-91150-212-0 03 1 9907- ● ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 07 1 9906-9910 ● ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 09 1 9911-0103 ● ● ●
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 08 1 0104- ● ● ●
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9906- ● ●
507 PROTECTOR; HEAT 1-14181-315-0 01 1 9906- ● ●
çizim 47092
385 385 460 387 501 441
BalonParca AdiParca NoAdetTipApplied Date A B C
385 TUBE; NYLON
(B) L=1530 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104- ●
385 TUBE; NYLON
(B) L=1530 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9906-0103 ●
385 TUBE; NYLON
(B) L=1680 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104- ●
385 TUBE; NYLON
(A) L=3000 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3100 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(A) L=3100 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(A) L=3500 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3600 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(A) L=3100 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104- ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104- ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9906-0103 ● ● ●
385 TUBE; NYLON
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104- ● ● ●
385 TUBE; NYLON
(B) L=1640 RED SERVICED BY L=5800 RED 		1-33619-362-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 BLACK SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 BLUE SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 GREEN SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 YELLOW SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 0104- ● ●
385 TUBE; NYLON
(B) L=1640 ORANGE SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9906-0103 ● ●
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 0104- ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 9906- ● ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9906- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 06 1 9906-9910 ● ● ●
441 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-09660-975-0 06 1 9911- ● ● ●
441 CONNECTOR; NYLON TUBE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-09660-975-0 04 1 9911- ● ● ●
460 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=800 		1-83129-031-1 02 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=300 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
L=2400 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 9906-9910 ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 9911-0103 ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=13 		1-87411-023-0 01 1 0104- ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=800 		1-83129-031-1 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
COUNTER SHAFT BRAKE MULTI DISC<BCP> L=800 		1-83129-031-1 01 1 9906- ● ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 9911-0103 ● ● ●
460 TUBE; CORRUGATE
EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0104- ● ● ●
460 TUBE; CORRUGATE
L=1030 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 9906-0103 ● ●
460 TUBE; CORRUGATE
L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0104- ● ● ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
