◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#72246) — 145 parça

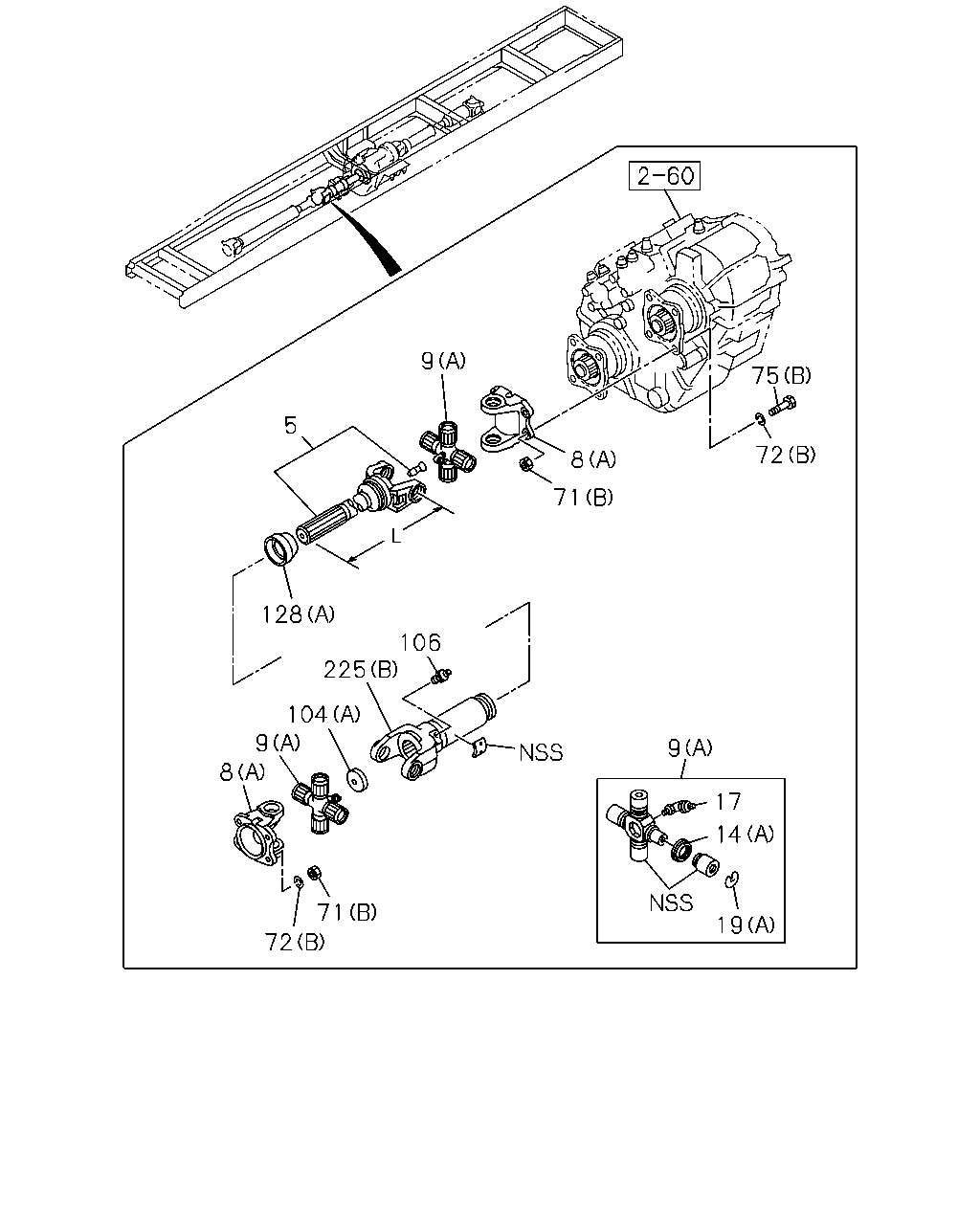

çizim 122454
9 75 5 72 8 71 128 106 225 104 9 9 8 17 14 71 19 72
BalonParca AdiParca NoAdetTipApplied Date
5 YOKE; STUB,PROP SHAFT
L=302 		1-37171-092-1 01 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0602-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0602-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0602-1505
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0602-1106
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0602-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0602-1505
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0602-1505
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0602-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0602-
71 NUT; YOKE
(A) M12 MAL 		0-91110-512-0 08 1 0602-
71 NUT; YOKE
(B) M14 MAL 		0-91110-514-0 12 1 0602-
72 WASHER; LK,YOKE
(A) ID=12.2 MAL 		9-09150-612-0 08 1 0602-0603
72 WASHER; LK,YOKE
(A) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=14.2 MAL 		9-09150-614-0 12 1 0602-0603
72 WASHER; LK,YOKE
(B) ID=14.2 MAL 		0-91510-614-0 12 1 0604-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0602-
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0602-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0602-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0602-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0602-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0602-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0602-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0602-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0602-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=229 		1-37241-086-2 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-099-2 01 1 0602-

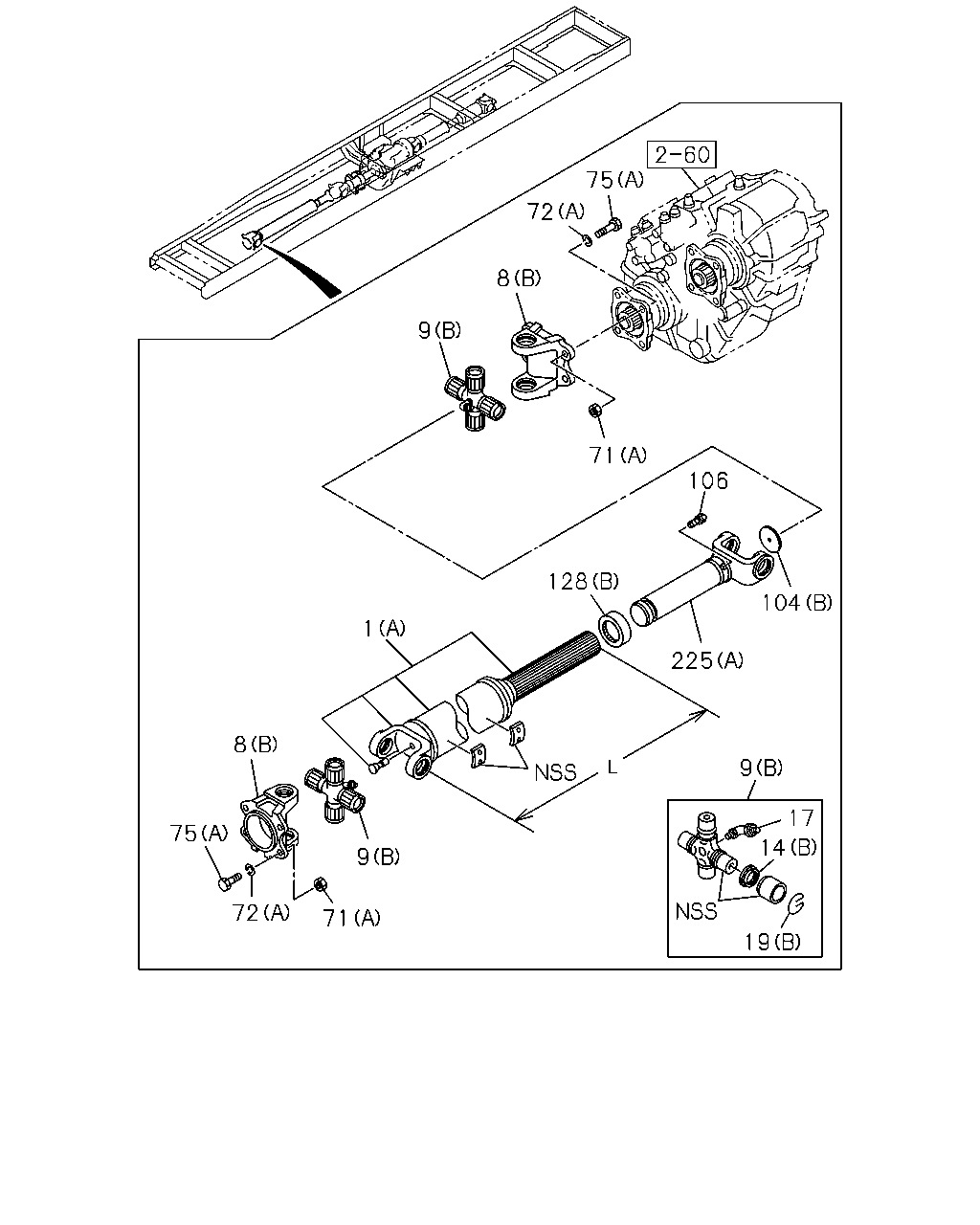

çizim 122458
75 72 8 9 71 106 128 104 1 225 8 9 17 75 14 9 72 71 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0602-
1 SHAFT; PROP
(B) L=786 		1-37124-064-1 01 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0602-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0602-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0602-1505
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0602-1106
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0602-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0602-1505
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0602-1505
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0602-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0602-
71 NUT; YOKE
(A) M12 MAL 		0-91110-512-0 08 1 0602-
71 NUT; YOKE
(B) M14 MAL 		0-91110-514-0 12 1 0602-
72 WASHER; LK,YOKE
(A) ID=12.2 MAL 		9-09150-612-0 08 1 0602-0603
72 WASHER; LK,YOKE
(A) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=14.2 MAL 		9-09150-614-0 12 1 0602-0603
72 WASHER; LK,YOKE
(B) ID=14.2 MAL 		0-91510-614-0 12 1 0604-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0602-
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0602-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0602-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0602-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0602-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0602-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0602-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0602-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0602-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=229 		1-37241-086-2 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-099-2 01 1 0602-

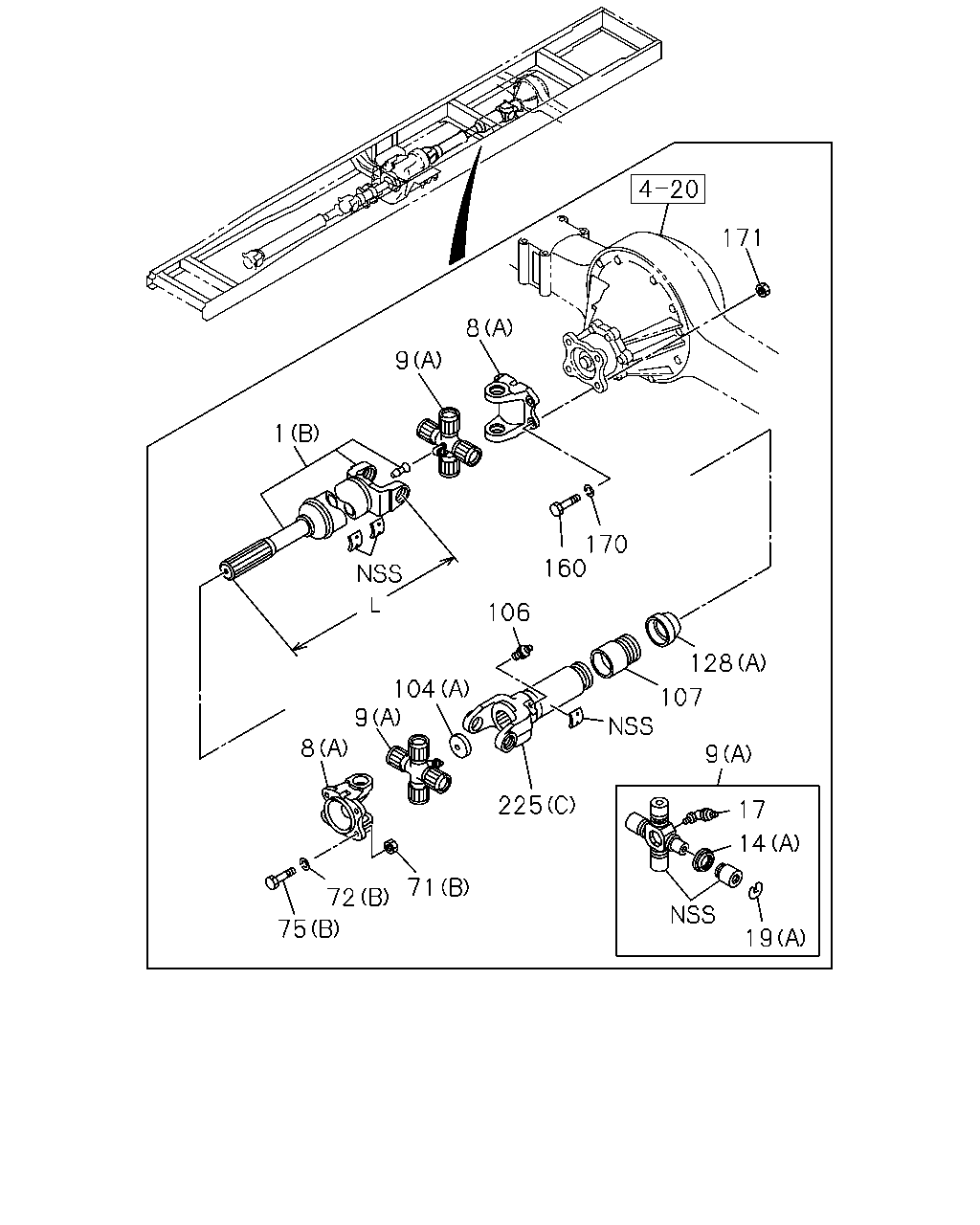

çizim 122867
171 8 9 1 170 160 106 128 104 107 9 8 9 225 17 14 71 72 75 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0602-
1 SHAFT; PROP
(B) L=786 		1-37124-064-1 01 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0602-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0602-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0602-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0602-1505
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 0602-1106
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 0602-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0602-1505
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 0602-1505
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0602-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0602-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0602-
71 NUT; YOKE
(A) M12 MAL 		0-91110-512-0 08 1 0602-
71 NUT; YOKE
(B) M14 MAL 		0-91110-514-0 12 1 0602-
72 WASHER; LK,YOKE
(A) ID=12.2 MAL 		9-09150-612-0 08 1 0602-0603
72 WASHER; LK,YOKE
(A) ID=12.2 MAL 		0-91510-612-0 08 1 0604-
72 WASHER; LK,YOKE
(B) ID=14.2 MAL 		9-09150-614-0 12 1 0602-0603
72 WASHER; LK,YOKE
(B) ID=14.2 MAL 		0-91510-614-0 12 1 0604-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 0602-
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0602-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0602-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0602-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0602-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0602-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0602-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0602-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0602-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0602-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0602-
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 0602-
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 MAL 		9-09150-614-0 04 1 0602-0603
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 MAL 		0-91510-614-0 04 1 0604-
171 NUT; YOKE,SLEEVE
M14 MAL 		0-91110-514-0 04 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=229 		1-37241-086-2 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0602-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-099-2 01 1 0602-
