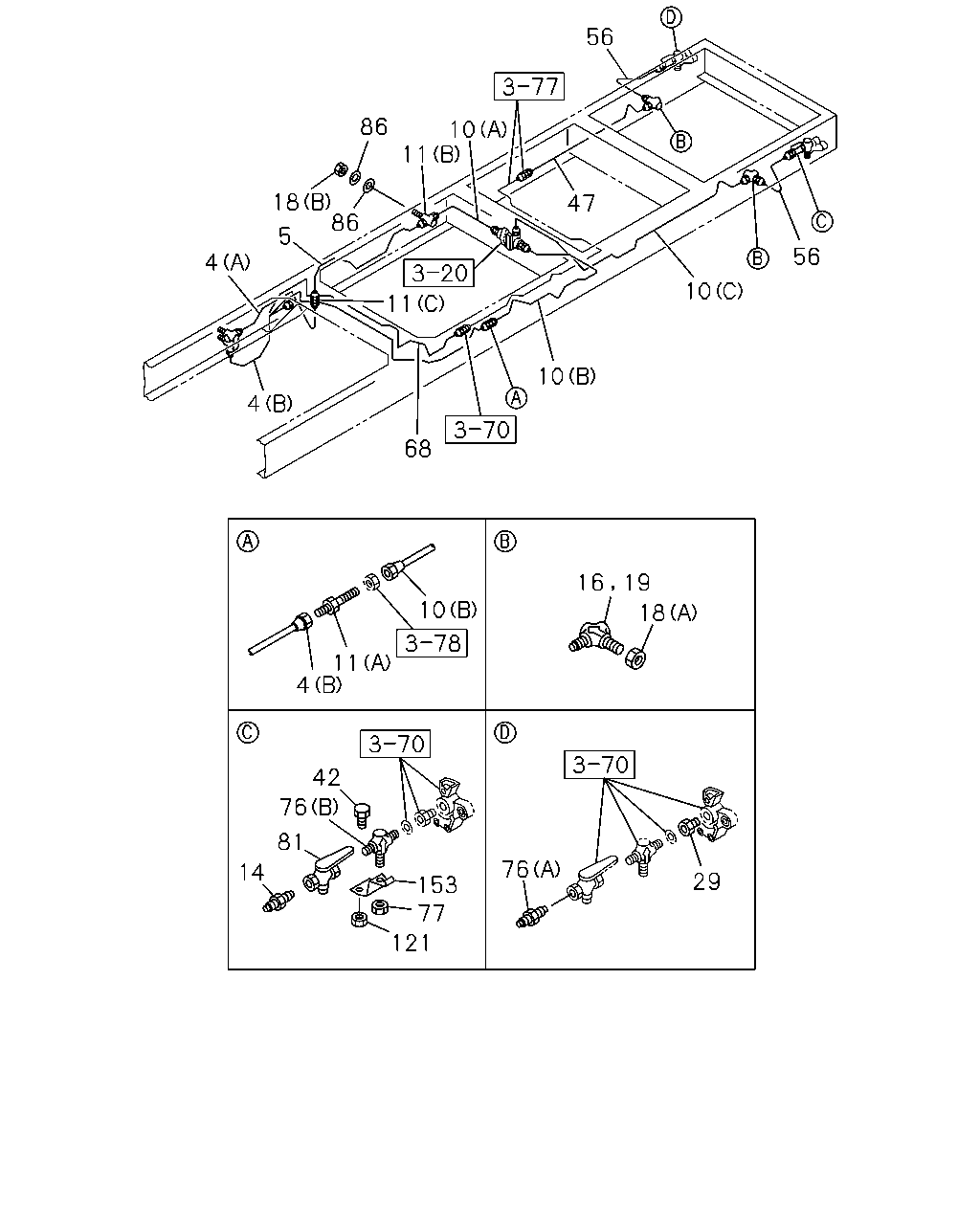

3-80 — BRAKE PIPING; TRAILER (#72244) — 30 parça
çizim 122479
56 86 10 11 18 86 47 5 56 4 10 11 10 4 68 19 16 10 18 11 4 42 76 81 76 14 29 153 77 121
BalonParca AdiParca NoAdetTipApplied Date
4 PIPE; AIR,UNION TO UNION
(A) L=781 SERVICED BY L=800 		1-47428-787-0 01 1 0602-
4 PIPE; AIR,UNION TO UNION
(B) L=1249 SERVICED BY L=1250 		1-47428-791-0 01 1 0602-
5 PIPE; AIR,UNION TO UNION
L=1192 SERVICED BY L=1250 		1-47428-791-0 01 1 0602-
10 PIPE; AIR,UNION TO DBL CHECK VLV
(B) L=1460 SERVICED BY L=1550 		1-47426-419-0 01 1 0602-
10 PIPE; AIR,UNION TO DBL CHECK VLV
(C) L=1740 SERVICED BY L=1900 		1-47426-421-0 01 1 0602-
10 PIPE; AIR,UNION TO DBL CHECK VLV
(A) L=1357 SERVICED BY L=1400 		1-47428-793-0 01 1 0602-
11 UNION; AIR PIPE
(C) M16 2WAY 		1-09650-182-1 01 1 0602-
11 UNION; AIR PIPE
(B) M16 		1-09654-148-1 01 1 0602-
11 UNION; AIR PIPE
(A) M16 L=42 		9-09233-010-1 01 1 0602-0607
11 UNION; AIR PIPE
(A) M16 L=42 		0-92123-010-0 01 1 0608-
14 CONNECTOR; AIR PIPE
M20 & PT1/2 STRAIGHT MAL 		1-09650-249-1 01 1 0602-
16 UNION; AIR PIPE 1-09654-189-1 01 1 0602-
18 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0602-
18 NUT; UNION
(A) M20 		0-91111-520-0 02 1 0602-
19 UNION; AIR PIPE 1-09654-189-1 01 1 0602-
29 CONNECTOR; COCK 1-09660-199-1 01 1 0602-
42 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0602-
47 PIPE; AIR,UNION TO UNION
L=1001 SERVICED BY L=1100 		1-47428-790-0 01 1 0602-
56 PIPE; AIR,UNION TO COCK
L=505 SERVICED BY L=550 		1-49111-436-0 01 1 0602-
56 PIPE; AIR,UNION TO COCK
L=505 SERVICED BY L=550 		1-49111-436-0 01 1 0602-
68 PIPE; AIR,UNION TO UNION
L=1334 SERVICED BY L=1400 		1-47428-793-0 01 1 0602-
76 NIPPLE; AIR PIPE
(A) M20 & PT1/2 STRAIGHT MAL 		1-09650-249-1 01 1 0602-
76 NIPPLE; AIR PIPE
(B) 		1-09656-377-1 01 1 0602-
77 NUT; NIPPLE
M16 MAL 		0-91111-516-0 01 1 0602-
81 COCK; AIR COUPLING
YELLOW 		1-09680-093-0 01 1 0602-
86 WASHER; PL
ID=12.5 		9-09160-512-0 02 1 0602-0605
86 WASHER; PL
ID=12.5 OD=22 MAL 		0-91610-512-0 02 1 0606-
121 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0602-0602
121 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
153 BRACKET; NIPPLE 1-47469-061-0 01 1 0602-
