Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#72242) — 35 parça
◀

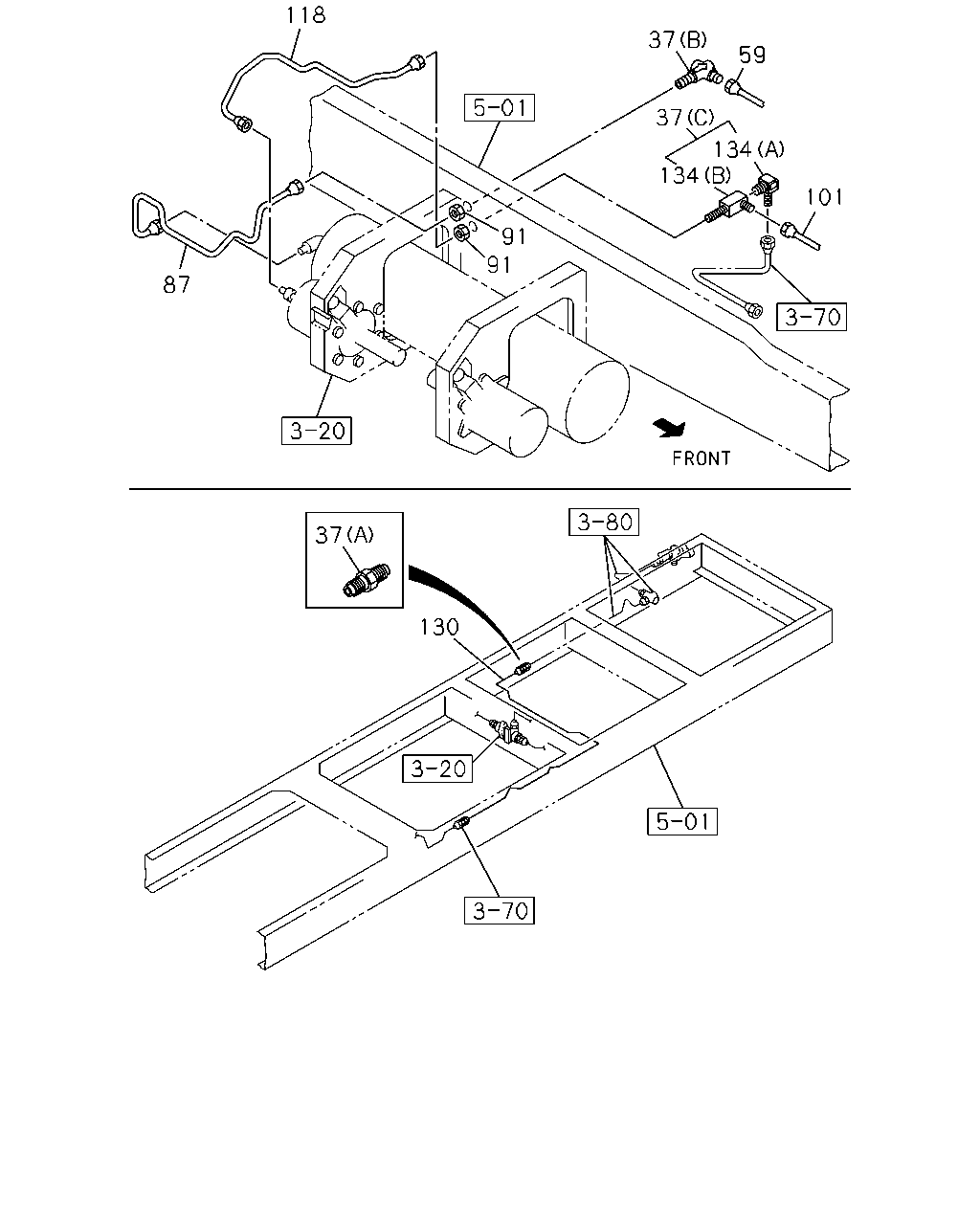

[377A] NO.1 (14 parça)

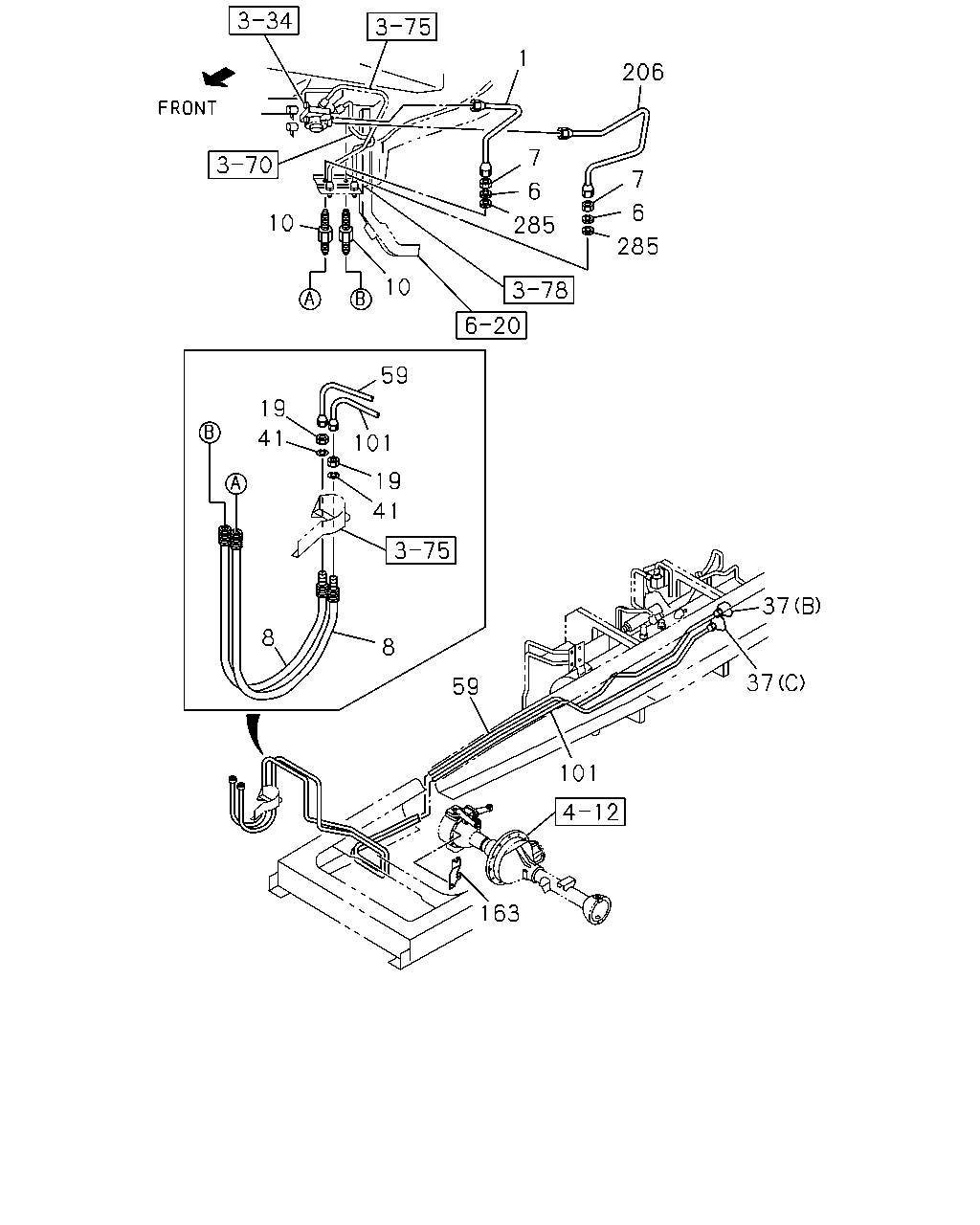

[377A] NO.2 (21 parça)
▶
118
37
59
37
134
134
101
91
91
87
37
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(C)
1-09654-377-0
01
1
0602-
37
UNION; AIR PIPE
(A) M16 L=42
9-09233-010-1
01
1
0602-0607
37
UNION; AIR PIPE
(A) M16 L=42
0-92123-010-0
01
1
0608-
37
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-210-1
01
1
0602-0607
37
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0608-
59
PIPE; AIR,UNION TO FLEX HOSE
L=3278 SERVICED BY L=3300
1-47426-426-0
01
1
0602-
87
PIPE; AIR,AIR TANK TO UNION
1-49115-908-0
01
1
0602-
91
NUT; PIPE UNION
M16 MAL
0-91111-516-0
02
1
0602-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3036 SERVICED BY L=3300
1-47426-426-0
01
1
0602-
118
PIPE; AIR,UNION TO AIR MASTER
1-49117-731-0
01
1
0602-
130
PIPE; AIR,UNION TO UNION
L=2230 SERVICED BY L=2500
1-47428-798-0
01
1
0602-
134
CONNECTOR
(A) M16 & PT1/4 ELBOW
1-09650-434-0
01
1
0602-0607
134
CONNECTOR
(A) M16 & PT1/4 ELBOW MAL
0-92134-310-0
01
1
0608-
134
CONNECTOR
(B)
1-09656-561-1
01
1
0602-
1
206
7
7
6
6
10
285
285
10
59
19
41
101
19
41
37
8
8
37
59
101
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0602-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0602-0603
6
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16 MAL
0-91111-516-0
02
1
0602-
8
HOSE; FLEX,AIR,CAB SIDE
L=520
1-09363-605-0
02
1
0602-
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0602-
10
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0602-
19
NUT; PIPE UNION
M16 MAL
0-91111-516-0
02
1
0602-
37
UNION; AIR PIPE
(C)
1-09654-377-0
01
1
0602-
37
UNION; AIR PIPE
(A) M16 L=42
9-09233-010-1
01
1
0602-0607
37
UNION; AIR PIPE
(A) M16 L=42
0-92123-010-0
01
1
0608-
37
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-210-1
01
1
0602-0607
37
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0608-
41
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0602-0603
41
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
59
PIPE; AIR,UNION TO FLEX HOSE
L=3278 SERVICED BY L=3300
1-47426-426-0
01
1
0602-
101
PIPE; AIR,FLEX HOSE TO UNION
L=3036 SERVICED BY L=3300
1-47426-426-0
01
1
0602-
163
BRACKET; FLEX HOSE
1-47476-239-0
01
1
0602-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0602-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
0602-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-
