3-70 — BRAKE PIPING; AIR,AIR MASTER (#72240) — 71 parça

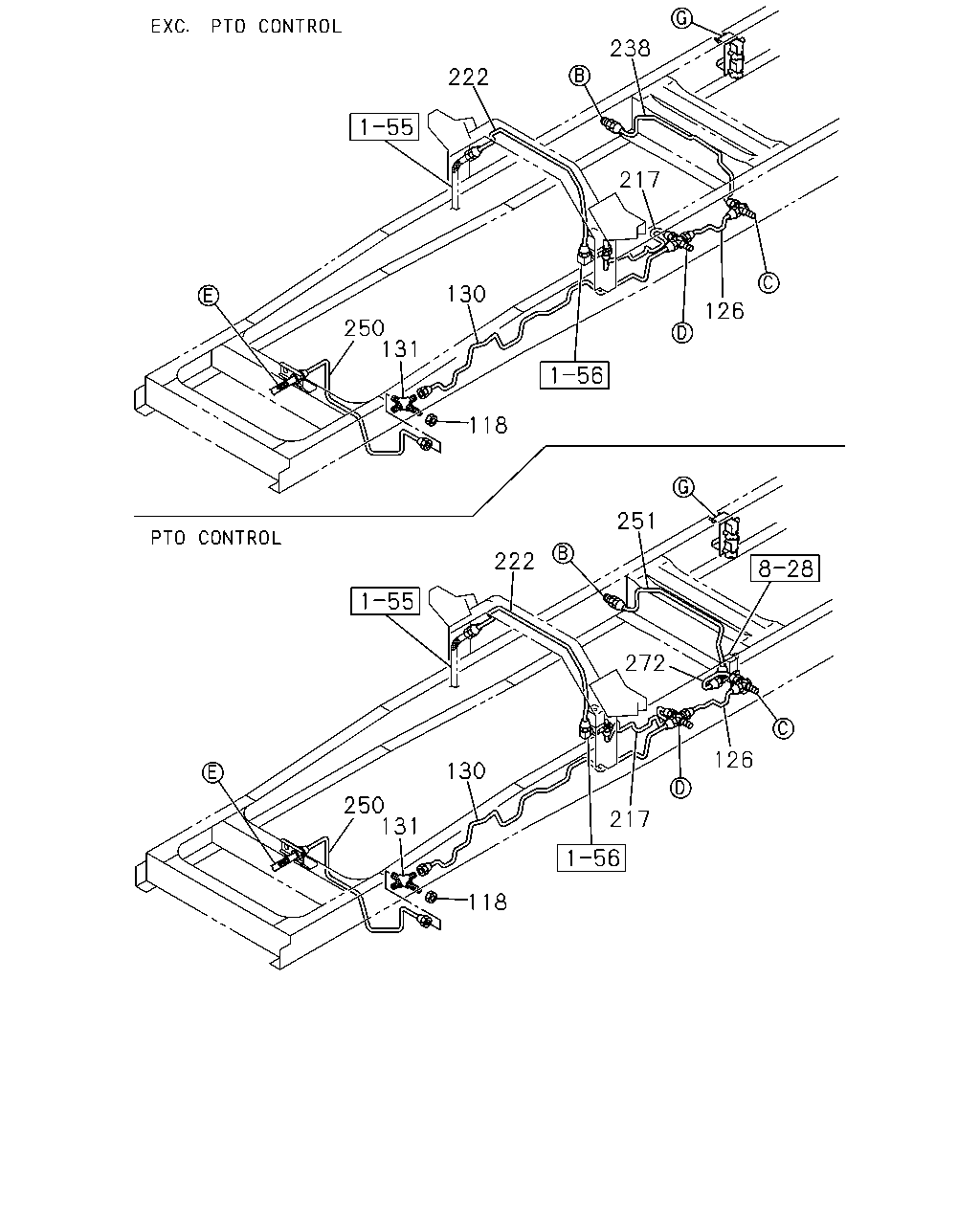

çizim 121282
238 222 217 130 126 250 131 118 251 222 272 126 130 250 131 217 118
BalonParca AdiParca NoAdetTipApplied Date
118 NUT; UNION
M12 		0-91111-512-0 01 1 0602-
126 PIPE; AIR,UNION TO UNION 1-49116-732-0 01 1 0602-
130 PIPE; AIR,UNION TO UNION
L=1880 SERVICED BY L=2000 		1-47428-823-0 01 1 0602-
131 UNION; AIR PIPE 9-09228-206-1 01 1 0602-0607
131 UNION; AIR PIPE 0-92138-206-0 01 1 0608-
217 PIPE; VAC,UNION TO MAG VLV 1-49117-813-0 01 1 0602-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1035 SERVICED BY L=1100 		1-47426-351-0 01 1 0602-
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL(SV6) L=1028 SERVICED BY L=1100 		1-47426-351-0 01 1 0602-
250 PIPE; AIR,UNION TO FLEX HOSE 1-49123-598-0 01 1 0602-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL(SV6) 		1-49116-733-0 01 1 0602-
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL(SV6) 		1-49116-734-0 01 1 0602-

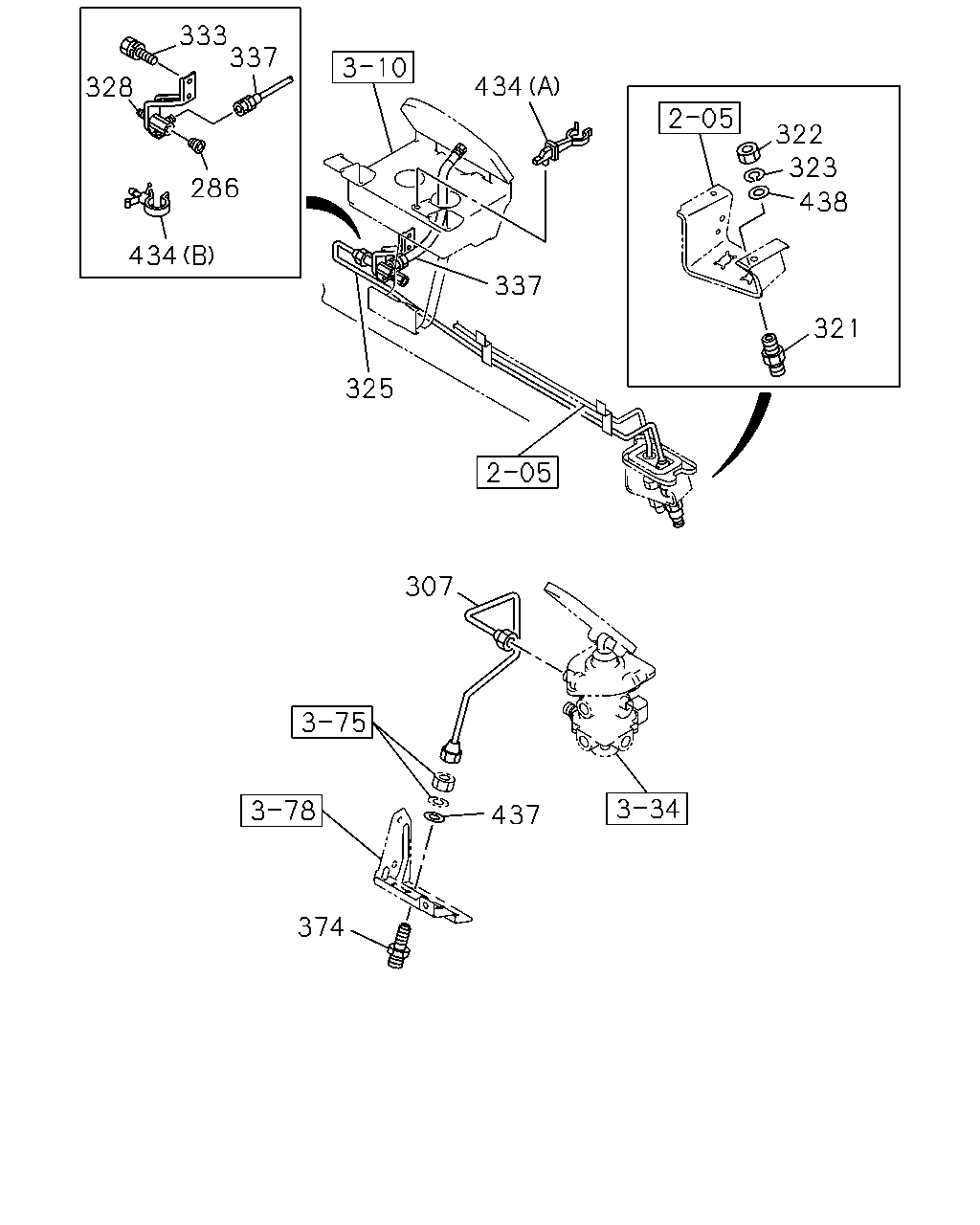

çizim 121325
333 337 434 328 322 323 286 438 434 337 321 325 307 437 374
BalonParca AdiParca NoAdetTipApplied Date
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0602-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0602-
321 JOINT; FLEX HOSE 1-09656-742-0 01 1 0602-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0602-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0602-0603
323 WASHER; LK,JOINT
ID=10.2 MAL 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0602-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0602-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0602-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0602-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0602-
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0602-
434 CLIP
(B) 		8-94297-486-0 02 1 0602-
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0602-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0602-

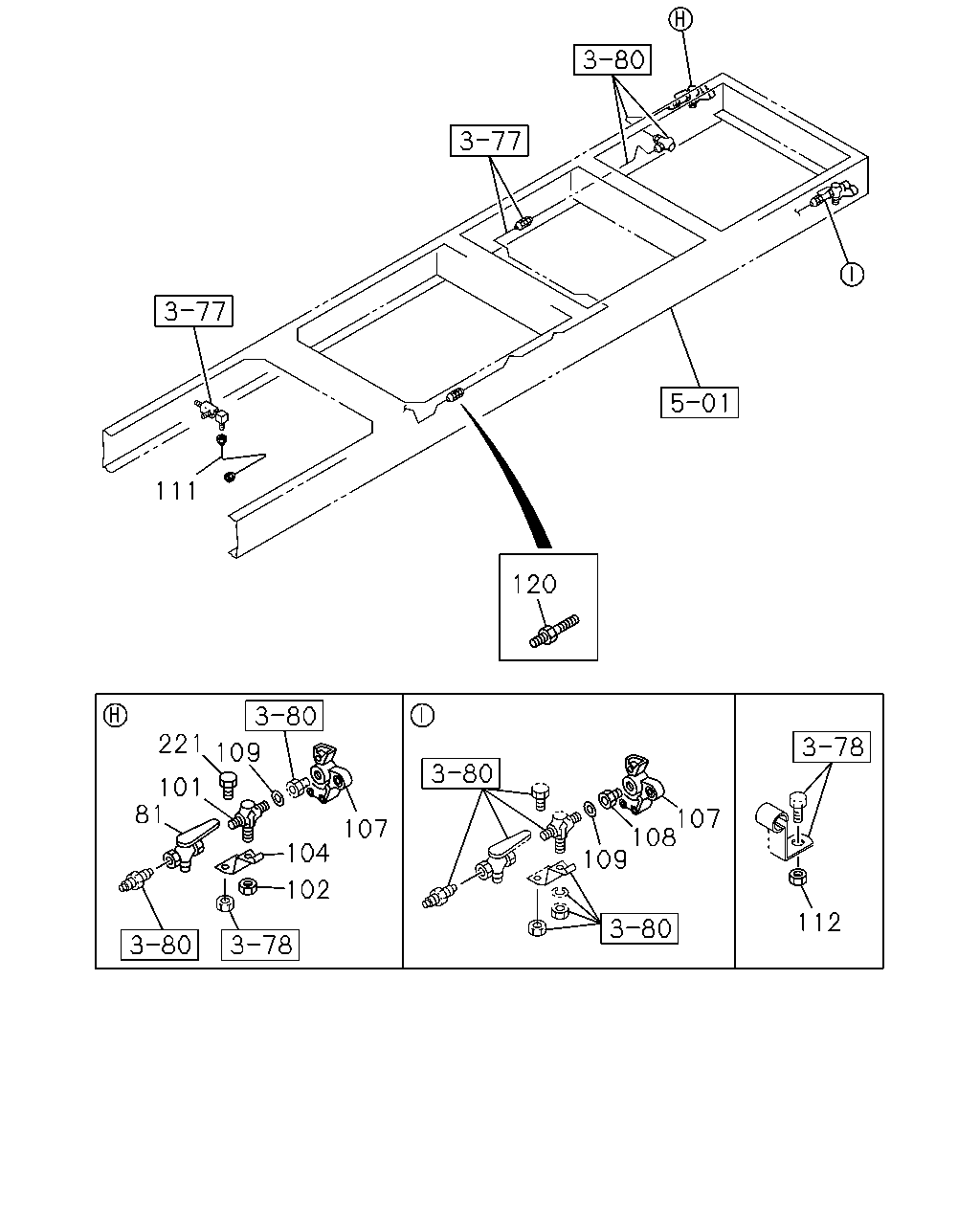

çizim 121637
111 120 221 109 101 81 107 108 109 107 104 102 112
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR
RED 		1-09680-091-0 01 1 0602-
101 NIPPLE; AIR PIPE 1-09656-377-1 01 1 0602-
102 NUT; NIPPLE,AIR PIPE
M16 MAL 		0-91111-516-0 01 1 0602-
104 BRACKET; NIPPLE 1-47469-061-0 01 1 0602-
107 COUPLING; SERVICE 1-47456-008-0 01 1 0602-
107 COUPLING; SERVICE 1-47456-009-0 01 1 0602-
108 CONNECTOR; COUPLING 1-09660-199-1 01 1 0602-
109 GASKET; COUPLING 1-09630-108-0 02 1 0602-
111 PIPE; AIR,UNION TO UNION
L=357 		1-49124-550-0 01 1 0602-
112 NUT
M8 FLANGE 		0-91150-108-0 01 1 0602-0602
112 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
120 CONNECTOR; AIR PIPE
M16 STRAIGHT 		1-09654-380-0 01 1 0602-
221 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0602-

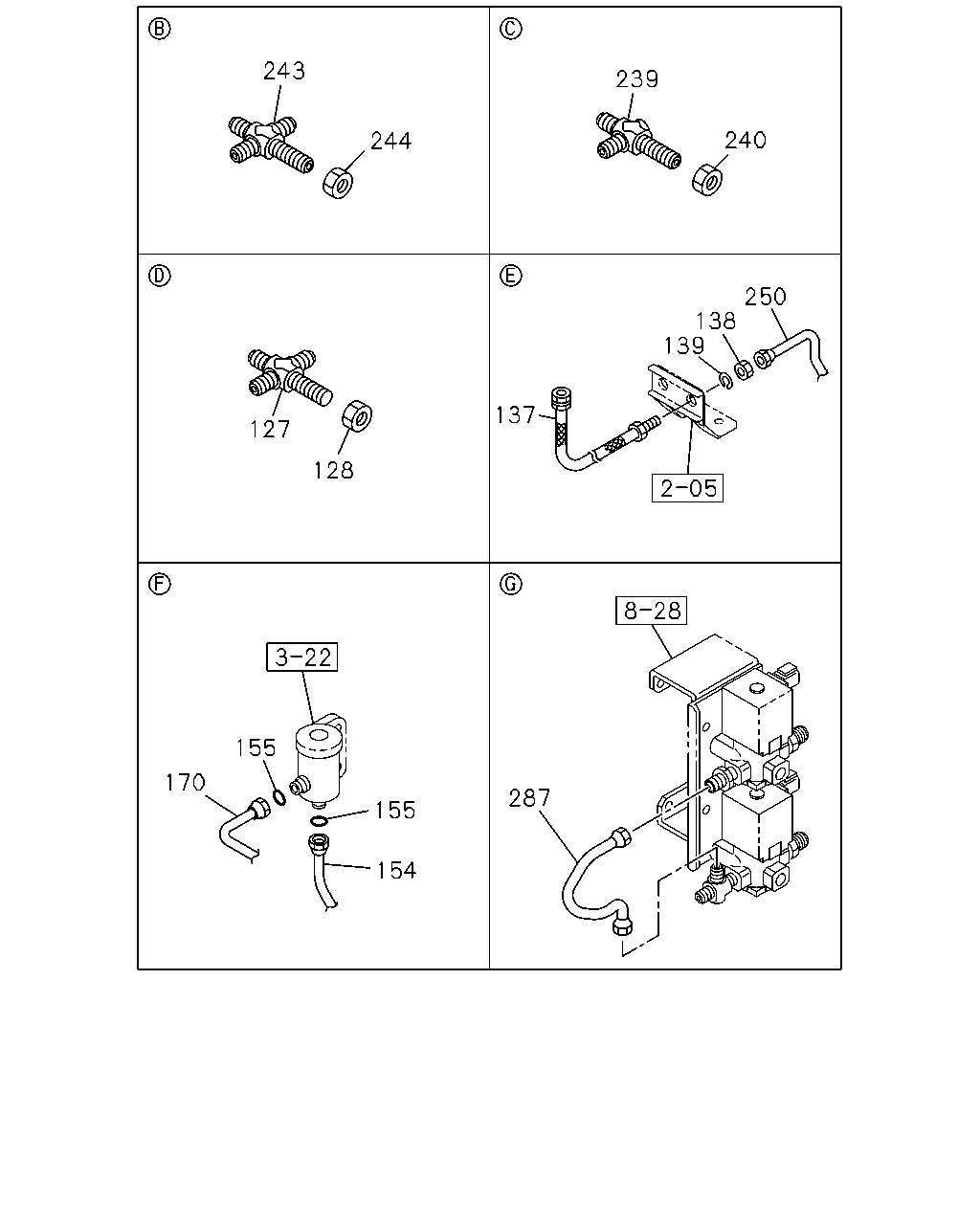

çizim 121703
243 239 240 244 250 138 139 137 127 128 155 170 287 155 154
BalonParca AdiParca NoAdetTipApplied Date
127 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0602-0607
127 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608-
128 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0602-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=400 		1-09363-606-0 01 1 0602-
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0602-
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0602-0603
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-967-0 01 1 0602-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 0602-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49115-964-0 01 1 0602-
239 UNION; AIR PIPE
M12 2WAY MAL 		1-09654-059-2 01 1 0602-
240 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 0602-
243 UNION; AIR PIPE 1-09656-444-1 01 1 0602-
244 NUT; UNION,AIR PIPE
M16 MAL 		0-91111-516-0 01 1 0602-
250 PIPE; AIR,UNION TO FLEX HOSE 1-49123-598-0 01 1 0602-
287 PIPE; AIR,MAG VLV
L=207 		1-49113-918-0 01 1 0602-

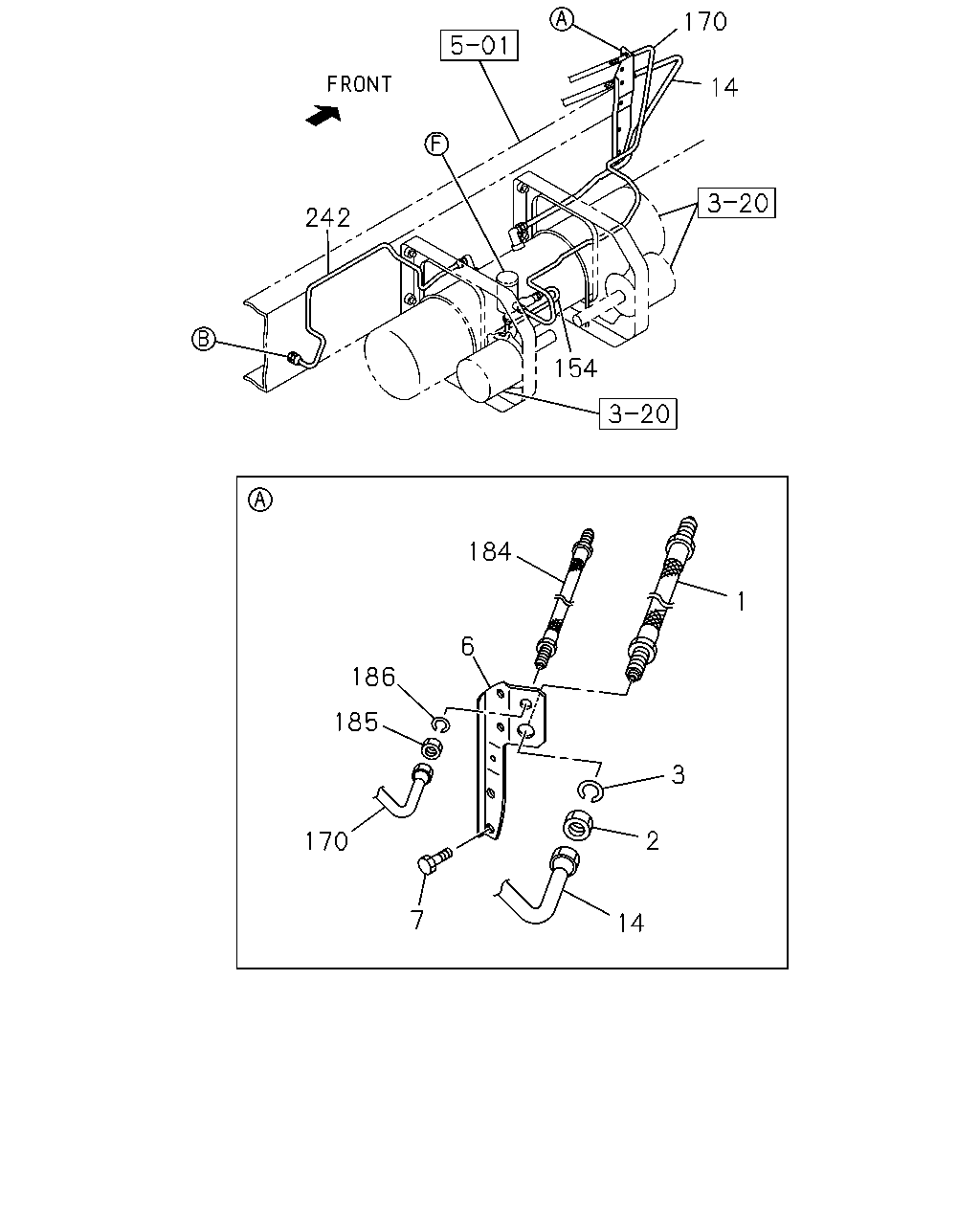

çizim 190194
170 14 242 154 184 1 6 186 185 3 2 170 7 14
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 0602-
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0602-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0602-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0602-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0602-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-923-0 01 1 0602-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-967-0 01 1 0602-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49115-964-0 01 1 0602-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 0602-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0602-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0602-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
242 PIPE; AIR,AIR TANK TO UNION 1-49121-641-0 01 1 0602-
