Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

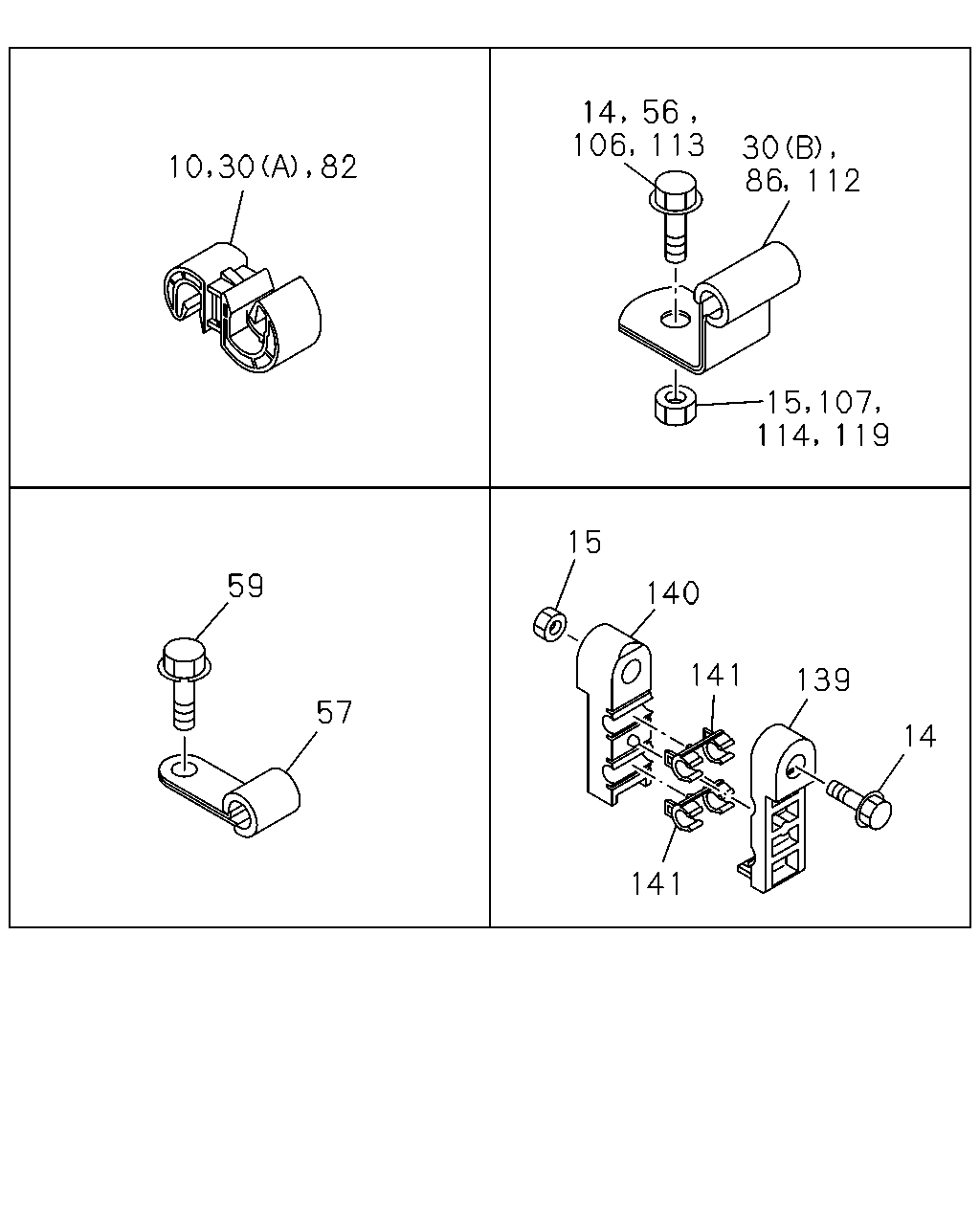

3-58 — FIXING PARTS; OIL PIPING
(#72239) — 26 parça
56
113
14
106
82
15
59
140
141
139
57
14
141
10
30
30
86
112
15
107
114
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; OIL PIPE
ID=6.35 & 12
1-09709-275-1
01
1
0602-
14
BOLT; CLIP,OIL PIPE
M8X50 FLANGE
0-28050-850-0
01
1
0602-
15
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
01
1
0602-0602
15
NUT; CLIP,OIL PIPE
M8 FLANGE MAL
0-91180-108-0
01
1
0603-
30
CLIP; OIL PIPE
(B) ID=6 H=20 L=20
1-09700-603-0
03
1
0602-
30
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
01
1
0602-
56
BOLT; CLIP
M8X25 FLANGE MAL
0-28650-825-0
02
1
0602-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
9-09524-635-0
05
1
0602-0606
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
0607-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
0602-
82
CLIP; OIL PIPE
ID=6.35 & 6.35
1-09709-273-1
03
1
0602-
86
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
02
1
0602-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE MAL
0-28650-825-0
03
1
0602-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
03
1
0602-0602
107
NUT; CLIP,OIL PIPE
M8 FLANGE MAL
0-91180-108-0
03
1
0603-
112
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
02
1
0602-
113
BOLT; CLIP,OIL PIPE
M8X25 FLANGE MAL
0-28650-825-0
02
1
0602-
114
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
02
1
0602-0602
114
NUT; CLIP,OIL PIPE
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
119
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0602-0602
119
NUT; CLIP
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
139
CLIP; UPR
ID=10 & 10 MAL
1-09709-241-0
03
1
0602-
140
CLIP; LWR
ID=10 & 10 MAL
1-09709-243-0
02
1
0602-
140
CLIP; LWR
ID=6 & 6
1-09709-244-0
01
1
0602-
141
COLLAR
ID=6 MAL
1-47459-010-0
02
1
0602-
141
COLLAR
ID=8 MAL
1-47459-011-0
02
1
0602-
