Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

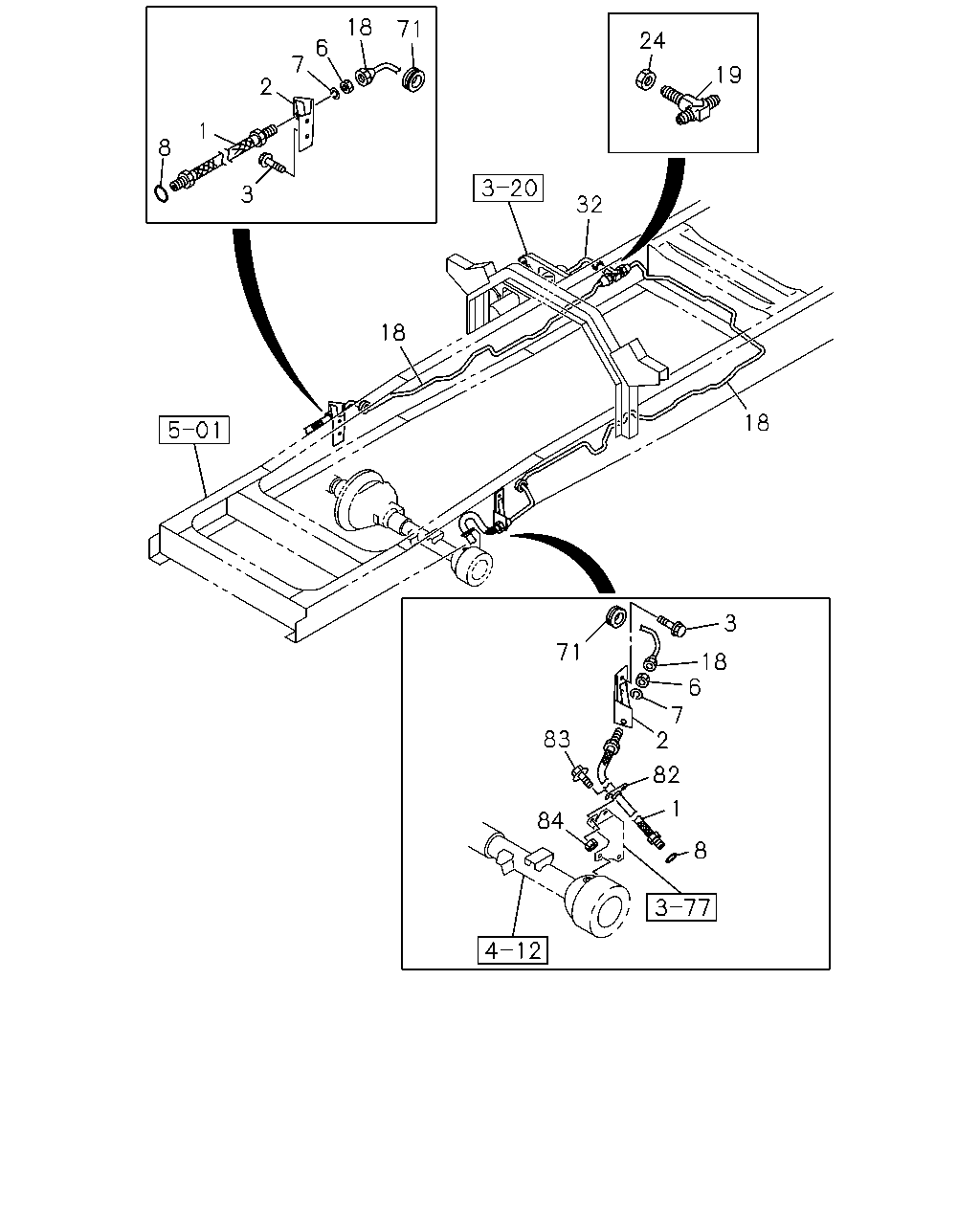

3-52 — BRAKE PIPING; OIL,FRONT
(#72237) — 20 parça
18
71
24
6
7
19
2
1
8
3
32
18
18
3
71
18
6
7
2
83
82
1
84
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=625
1-09364-199-0
01
1
0602-
1
HOSE; FLEX,FRT BRK
L=630
1-09364-688-0
01
1
0602-
2
BRACKET; FLEX HOSE,FRT BRK
1-47477-891-0
01
1
0602-
2
BRACKET; FLEX HOSE,FRT BRK
1-47477-892-0
01
1
0602-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE MAL
0-28650-825-0
04
1
0602-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
0602-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
9-09150-512-0
02
1
0602-0603
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 MAL
0-91510-512-0
02
1
0604-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
0602-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
L=2809 SERVICED BY L=2900
1-47426-364-0
01
1
0602-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
L=1726 SERVICED BY L=1820
1-47426-358-0
01
1
0602-
19
UNION; OIL PIPE
M12 3WAY
9-09228-606-1
01
1
0602-0607
19
UNION; OIL PIPE
M12 3WAY
0-92138-606-0
01
1
0608-
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0602-
32
PIPE; OIL,AIR MASTER TO UNION
L=953
1-47429-076-0
01
1
0602-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0602-
82
PLATE; FLEX HOSE
1-47476-241-1
01
1
0602-
83
BOLT; PLATE
M8X20 FLANGE MAL
0-28650-820-0
02
1
0602-
84
NUT; PLATE
M8 FLANGE
0-91150-108-0
02
1
0602-0602
84
NUT; PLATE
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
