◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 3 - Brakes, Brake System ▶ 3-33 - AIR MASTER ▶
3-33 — AIR MASTER (#72235) — 51 parça

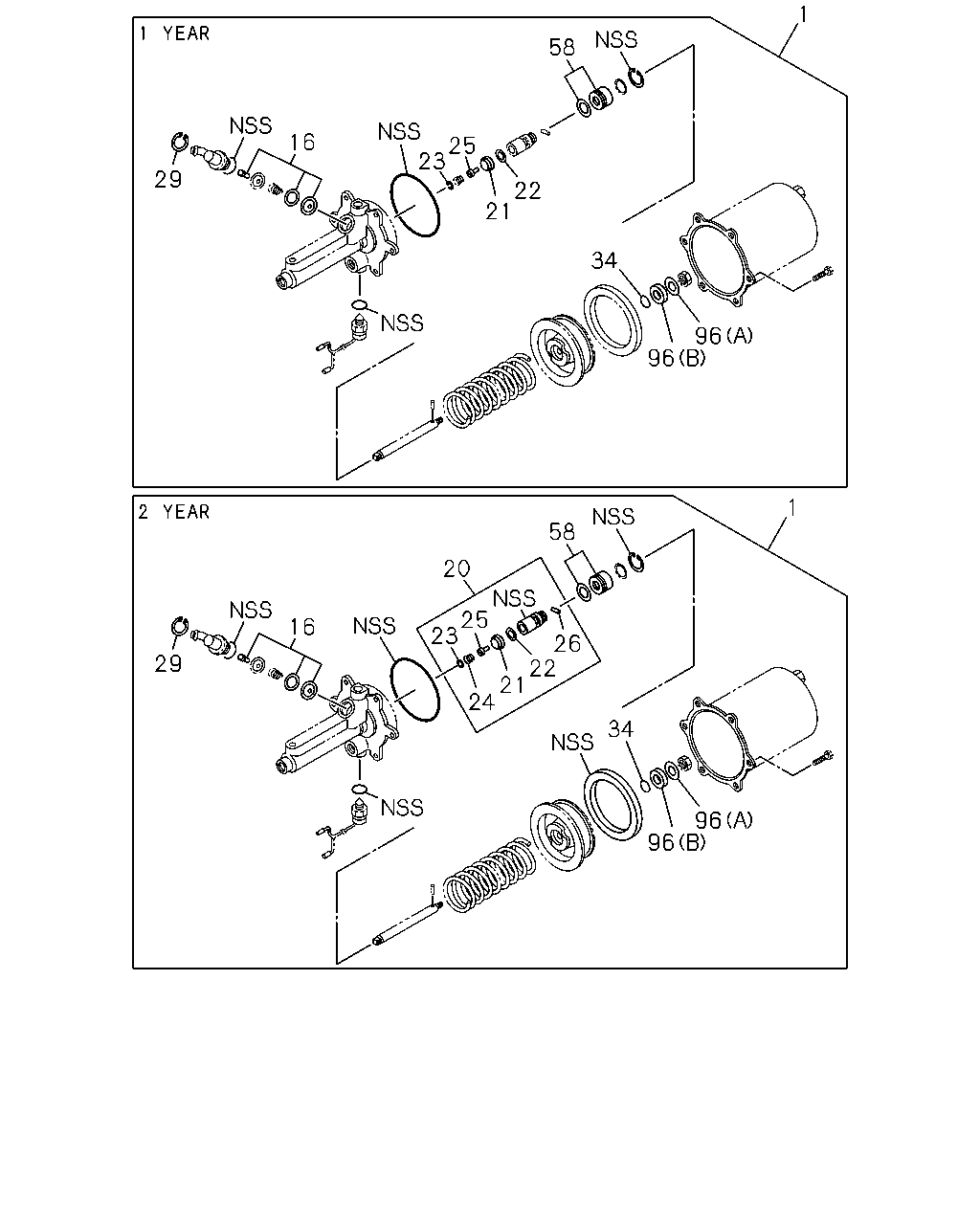

çizim 116887
1 58 16 25 23 29 22 21 34 96 96 1 58 20 25 23 16 26 22 21 24 29 34 96 96
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: A = 1-47800-467-0 		1-87830-393-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: A = 1-47800-467-0 		1-87830-394-0 01 1 -
16 VALVE ASM
ASM PART: A = 1-47800-467-0 		1-47842-009-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: A = 1-47800-467-0 		1-47821-019-0 01 1 -
21 GASKET; CUP
ASM PART: A = 1-47800-467-0 		1-47829-037-0 01 1 -
22 RING; PISTON,HYDRAULIC
ASM PART: A = 1-47800-467-0 		1-47829-036-0 01 1 -
23 RING; RET
ASM PART: A = 1-47800-467-0 		1-46366-111-0 01 1 -
24 SPRING; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47824-017-0 01 1 -
25 SEAL; VALVE
ASM PART: A = 1-47800-467-0 		1-47829-038-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-039-0 01 1 -
29 RING; RET,VLV,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-057-0 01 1 -
34 GASKET
ID=11.0 ASM PART: A = 1-47800-467-0 		9-09561-111-0 01 1 -
58 RETAINER; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-056-0 01 1 -
96 WASHER
(B) ASM PART: A = 1-47800-467-0 		1-47829-032-0 01 1 -
96 WASHER
(A) ASM PART: A = 1-47800-467-0 		1-47829-064-0 01 1 -

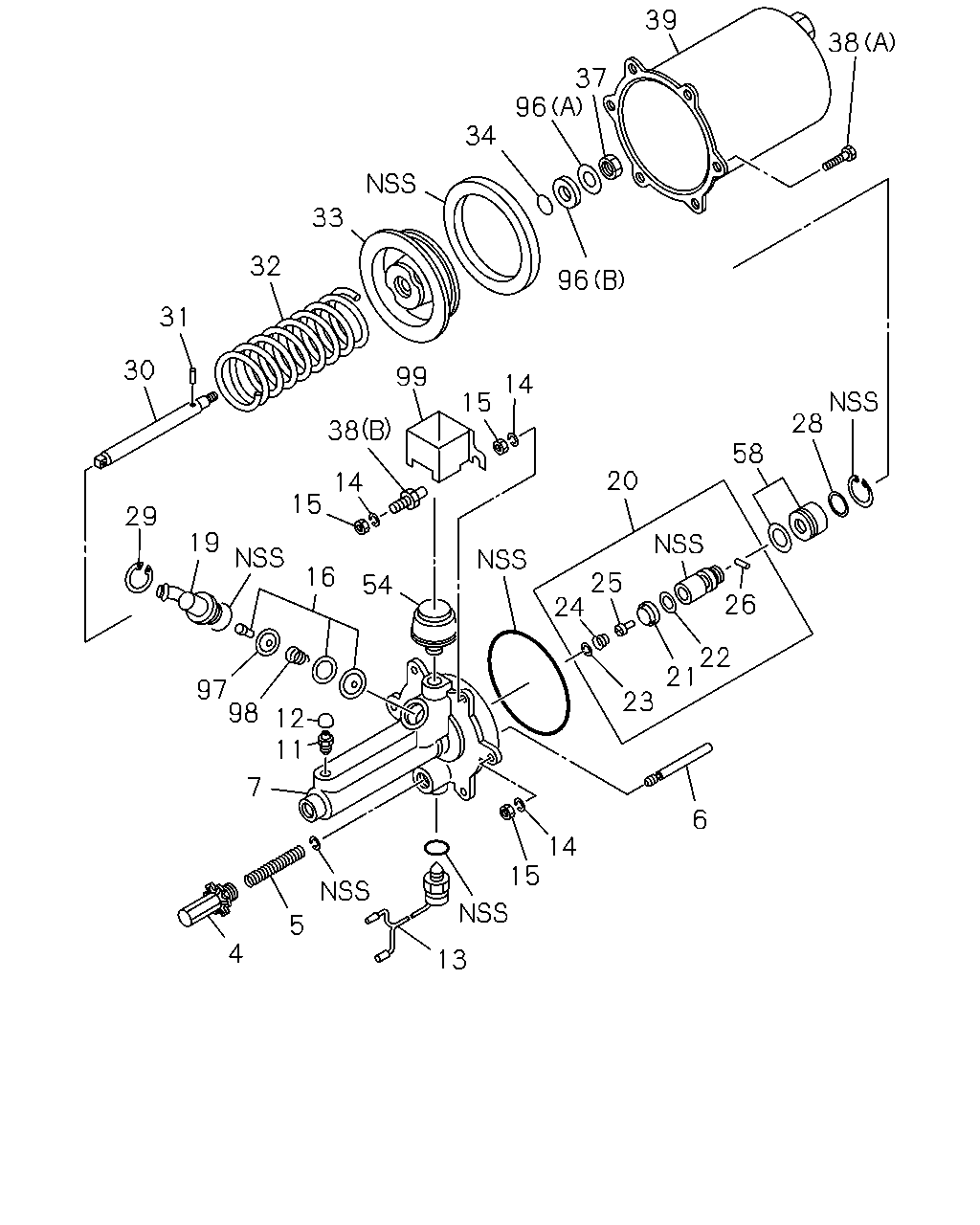

çizim 190193
39 38 37 96 34 33 32 96 31 30 99 14 28 15 38 58 20 14 15 29 19 16 25 24 54 26 22 21 97 98 23 12 11 7 6 14 15 5 4 13
BalonParca AdiParca NoAdetTipApplied Date
4 RETAINER; PUSH ROD,WARNING SW,AIR MAST
ASM PART: A = 1-47800-467-0 		1-47829-022-0 01 1 -
5 SPRING; PUSH ROD,WARNING SW,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47824-019-0 01 1 -
6 ROD; PUSH,WARNING SW,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-043-0 01 1 -
7 PLATE; END,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47841-052-0 01 1 -
11 PLUG; CAP,AIR MASTER
ASM PART: A = 1-47800-467-0 		9-83331-704-0 01 1 -
12 PROTECTOR; CAP,AIR MASTER
ASM PART: A = 1-47800-467-0 		9-83335-044-0 01 1 -
13 SWITCH; WARNING,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47819-170-0 01 1 -
14 WASHER; END PLATE TO SHELL,AIR MASTER
ID=8.2 ASM PART: A = 1-47800-467-0 		9-09150-508-0 07 1 -
15 NUT; END PLATE TO SHELL,AIR MASTER
ASM PART: A = 1-47800-467-0 		9-83315-085-0 07 1 -
16 VALVE ASM
ASM PART: A = 1-47800-467-0 		1-47842-009-0 01 1 -
19 CONNECTOR; END PLATE,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47849-031-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: A = 1-47800-467-0 		1-47821-019-0 01 1 -
21 GASKET; CUP
ASM PART: A = 1-47800-467-0 		1-47829-037-0 01 1 -
22 RING; PISTON,HYDRAULIC
ASM PART: A = 1-47800-467-0 		1-47829-036-0 01 1 -
23 RING; RET
ASM PART: A = 1-47800-467-0 		1-46366-111-0 01 1 -
24 SPRING; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47824-017-0 01 1 -
25 SEAL; VALVE
ASM PART: A = 1-47800-467-0 		1-47829-038-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-039-0 01 1 -
28 WASHER; OIL SEAL,HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47819-164-0 01 1 -
29 RING; RET,VLV,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-057-0 01 1 -
30 ROD; PUSH,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47825-021-0 01 1 -
31 PIN; STRAIGHT
ASM PART: A = 1-47800-467-0 		1-47829-054-0 01 1 -
32 SPRING; CYL SHELL,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47824-018-0 01 1 -
33 PLATE; PISTON,SHELL,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47821-028-0 01 1 -
34 GASKET
ID=11.0 ASM PART: A = 1-47800-467-0 		9-09561-111-0 01 1 -
37 NUT; PUSH ROD,SHELL,AIR MASTER
M12 ASM PART: A = 1-47800-467-0 		9-99111-412-0 01 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
(A) ASM PART: A = 1-47800-467-0 		1-31829-015-0 05 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
(B) ASM PART: A = 1-47800-467-0 		1-47829-065-0 01 1 -
39 SHELL; CYL,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47811-116-0 01 1 -
54 COVER; EXH,END PLATE,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47819-039-0 01 1 -
58 RETAINER; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47829-056-0 01 1 -
96 WASHER
(B) ASM PART: A = 1-47800-467-0 		1-47829-032-0 01 1 -
96 WASHER
(A) ASM PART: A = 1-47800-467-0 		1-47829-064-0 01 1 -
97 RETAINER; VALVE
ASM PART: A = 1-47800-467-0 		1-47824-023-0 01 1 -
98 SPRING; VALVE
ASM PART: A = 1-47800-467-0 		1-47843-006-0 01 1 -
99 BRACKET; AIR MASTER
ASM PART: A = 1-47800-467-0 		1-47819-123-0 01 1 -
