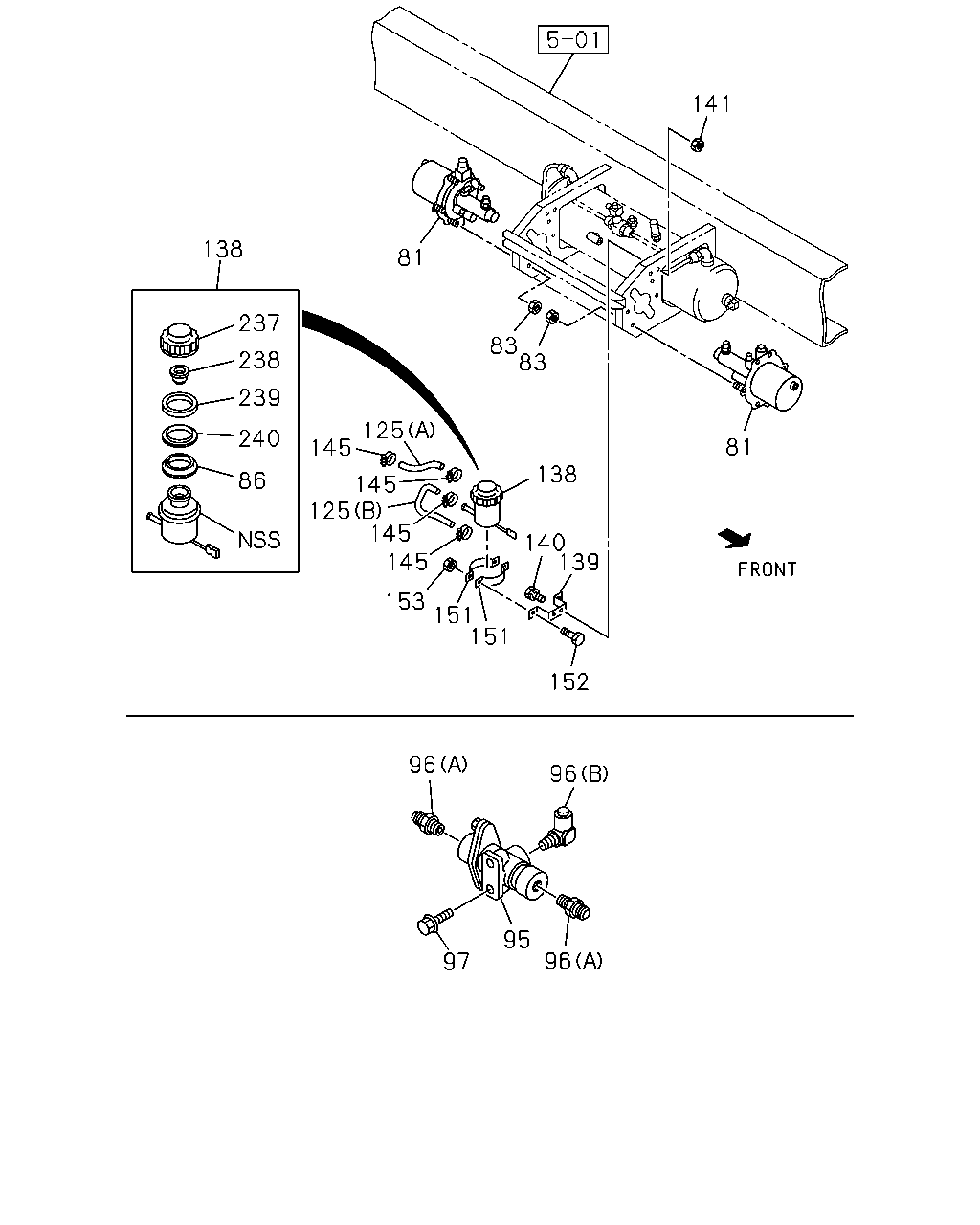

3-20 — AIR TANK (#72233) — 56 parça

141 138 81 237 83 83 238 239 125 240 81 145 138 86 145 125 145 145 140 139 153 151 151 152 96 96 95 96 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-467-0	02	1	0602-
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	0602-0602
83	NUT; AIR MASTER M8 FLANGE MAL	0-91180-108-0	08	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	0602-
95	VALVE; DOUBLE CHECK	1-48410-531-1	01	1	0602-
96	CONNECTOR; DOUBLE CHECK VLV (A) M16 & PT3/8 STRAIGHT MAL	1-09650-179-1	02	1	0602-
96	CONNECTOR; DOUBLE CHECK VLV (B) M16 & PT3/8 ELBOW MAL	1-09650-438-0	01	1	0602-
97	BOLT; BRKT,DBL CHECK VLV M8X16 FLANGE MAL	0-28050-816-0	02	1	0602-
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0602-
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0602-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0602-
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0602-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE MAL	0-28651-020-0	02	1	0602-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0602-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE MAL	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0602-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0602-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0602-0602
153	NUT; OIL TANK TO BAND M8 FLANGE MAL	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-030-0	01	1	0602-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0602-
239	FILTER; DUST	1-47529-017-0	01	1	0602-
240	HOLDER; FILTER	1-47529-018-0	01	1	0602-

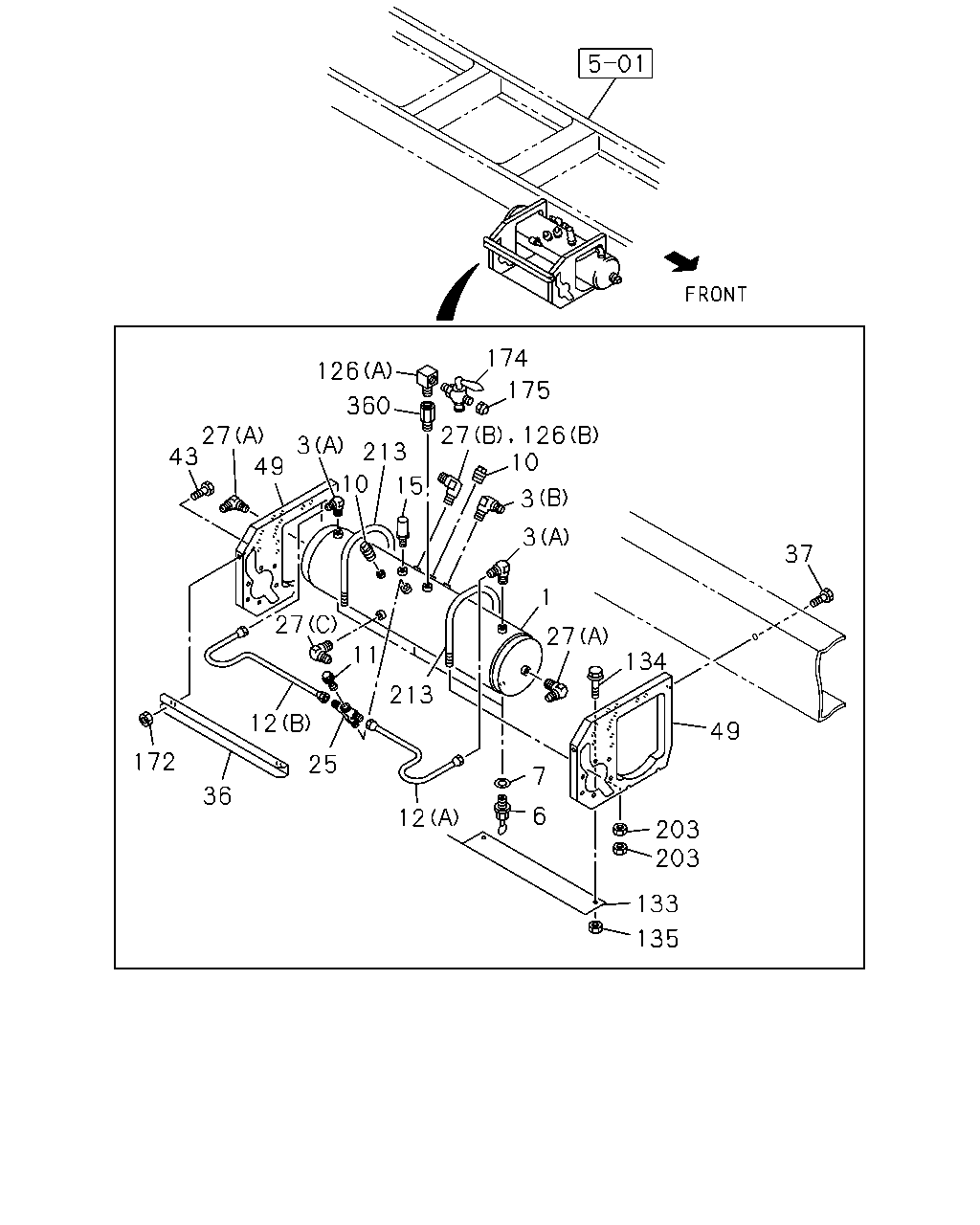

174 126 175 360 27 126 10 27 43 3 213 49 10 15 27 3 37 1 27 11 134 213 12 49 172 25 7 36 6 12 203 203 133 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48330-686-1	01	1	0602-
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0602-
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0602-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0602-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0602-
10	PLUG; AIR TANK PT1/4 MAL	9-99204-513-0	02	1	0602-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0602-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-008-0	01	1	0602-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-009-0	01	1	0602-
15	SWITCH; LOW PRESS,AIR TANK 530KPA MAL	1-48340-054-1	01	1	0602-
25	UNION; 4 WAY MAL	1-09656-699-0	01	1	0602-
27	UNION; ELBOW,AIR TANK (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0602-
27	UNION; ELBOW,AIR TANK (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0602-0607
27	UNION; ELBOW,AIR TANK (A) M16 & PT1/4 ELBOW MAL	0-92134-310-0	02	1	0608-
27	UNION; ELBOW,AIR TANK (B) M16 & PT3/8 ELBOW MAL	1-09650-438-0	01	1	0602-
36	STAY; MAIN TANK	1-48317-307-2	01	1	0602-
37	BOLT; AIR TANK M10X35 FLANGE MAL	0-28651-035-0	04	1	0602-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE MAL	0-28650-820-0	02	1	0602-
49	BRACKET; AIR TANK	1-48317-709-4	02	1	0602-
126	CONNECTOR; ELBOW (B) M16 & PT3/8 ELBOW MAL	1-09650-438-0	02	1	0602-
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	0602-
133	COVER; AIR MASTER	1-48317-641-1	01	1	0602-
134	BOLT; COVER FIX M8X20 FLANGE MAL	0-28650-820-0	04	1	0602-
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0602-0602
135	NUT; COVER M8 FLANGE MAL	0-91180-108-0	04	1	0603-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91150-108-0	02	1	0602-0602
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE MAL	0-91180-108-0	02	1	0603-
174	COCK; AIR,INFLATOR	1-09680-099-0	01	1	0602-
175	CAP; AIR COCK	9-48319-102-0	01	1	0602-
203	NUT M8	0-91110-508-0	08	1	0602-
213	BOLT; U AIR TANK L=250	1-48317-308-0	02	1	0602-
360	ADAPTER; INFLATOR PT3/8	1-48319-058-0	01	1	0602-
