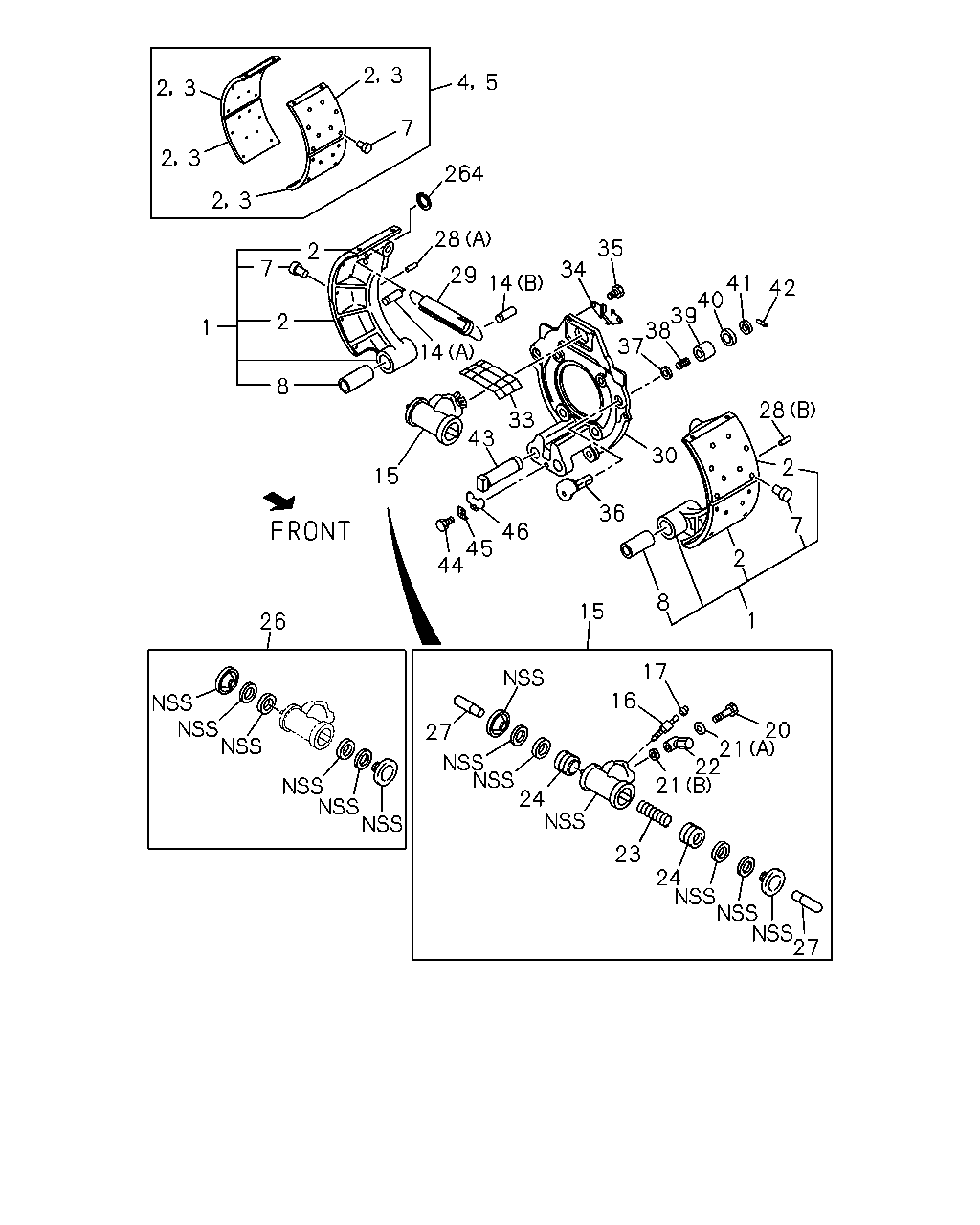

3-01 — FRONT WHEEL BRAKE
(#7223) — 45 parça
2
3
2
3
4
5
7
2
3
2
3
264
28
35
34
14
29
2
7
1
2
8
15
43
33
14
37
38
39
40
41
42
28
2
7
1
2
30
36
8
15
46
45
44
26
27
24
21
16
21
22
17
20
23
24
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
TRAILING
1-47120-672-0
02
1
9906-
1
SHOE; BRK,FRT
LEADING
1-47120-692-0
02
1
9906-
2
LINING; FRT BRK SHOE,STANDARD
1-47125-785-1
08
1
9906-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47125-786-1
08
1
9906-
4
LINING SET; FRT BRK,STANDARD
TRAILING
1-88310-507-1
01
1
9906-
4
LINING SET; FRT BRK,STANDARD
LEADING
1-88310-509-1
01
1
9906-
5
LINING SET; FRT BRK,OVER SIZE
TRAILING
1-88310-508-1
01
1
9906-
5
LINING SET; FRT BRK,OVER SIZE
LEADING
1-88310-510-1
01
1
9906-
7
RIVET; LINING,FRT BRK
TRAILING L=18.5
1-09732-034-0
40
1
9906-
7
RIVET; LINING,FRT BRK
LEADING L=15.5
1-09732-053-0
40
1
9906-
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
9906-
14
PIN; SHOE RETURN SPR
(B) L=73.5
1-47119-017-1
02
1
9906-
14
PIN; SHOE RETURN SPR
(A)
1-47119-122-0
02
1
9906-
15
CYLINDER; WHEEL,FRT BRK
1-47600-690-0
01
1
9906-
15
CYLINDER; WHEEL,FRT BRK
1-47600-689-0
01
1
9906-
16
SCREW; BLEEDER,FRT BRK
L=66.5
1-47615-005-0
02
1
9906-
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
9906-
20
BOLT; JOINT
1-47634-006-0
02
1
9906-
21
GASKET; UNION BOLT
(A) ID=15.2
1-09630-019-0
02
1
9906-
21
GASKET; UNION BOLT
(B) ID=12.2
1-09630-020-0
02
1
9906-
22
JOINT; PIPE
1-47631-057-1
02
1
9906-
23
SPRING; COIL
9-09940-435-0
02
1
9906-
24
PISTON; FRT WHEEL CYL
9-47624-211-0
04
1
9906-
26
CUP SET; FRT WHEEL CYL
ID=33.3
1-87830-525-0
02
1
9906-
27
ROD; PUSH
1-47621-009-0
04
1
9906-
28
PIN; SHOE ADJ CAM GUIDE
(A)
1-47116-002-0
02
1
9906-
28
PIN; SHOE ADJ CAM GUIDE
(B)
1-47116-006-0
02
1
9906-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-269-1
02
1
9906-
30
BRACKET; ANCHOR,FRT
1-47137-435-0
02
1
9906-
33
COVER; WHEEL CYL
1-47159-080-0
02
1
9906-
34
PLATE; DIRECTION,FRT
1-47159-094-0
02
1
9906-
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50051-235-0
04
1
9906-
36
CAM ASM; ADJ
FRONT
1-47165-058-1
02
1
9906-
36
CAM ASM; ADJ
REAR
1-47165-059-1
02
1
9906-
37
WASHER; ADJ CAM
1-47169-033-0
04
1
9906-
38
SPRING; ADJ CAM
1-47169-046-0
04
1
9906-
39
BOOT; ADJ CAM
1-47169-034-0
04
1
9906-
40
COVER; BOOT,ADJ CAM
1-47169-031-0
04
1
9906-
41
INDICATOR
1-47169-032-1
04
1
9906-
42
PIN; SPINDLE
1-47169-030-0
04
1
9906-
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
9906-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20801-016-0
02
1
9906-
45
WASHER; LK
1-47133-011-0
02
1
9906-
46
PLATE; LOCK
1-47133-005-0
02
1
9906-
264
RING; SNAP,SPR PIN
ID=10
9-09185-410-0
02
1
9906-
