2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#7221) — 34 parça

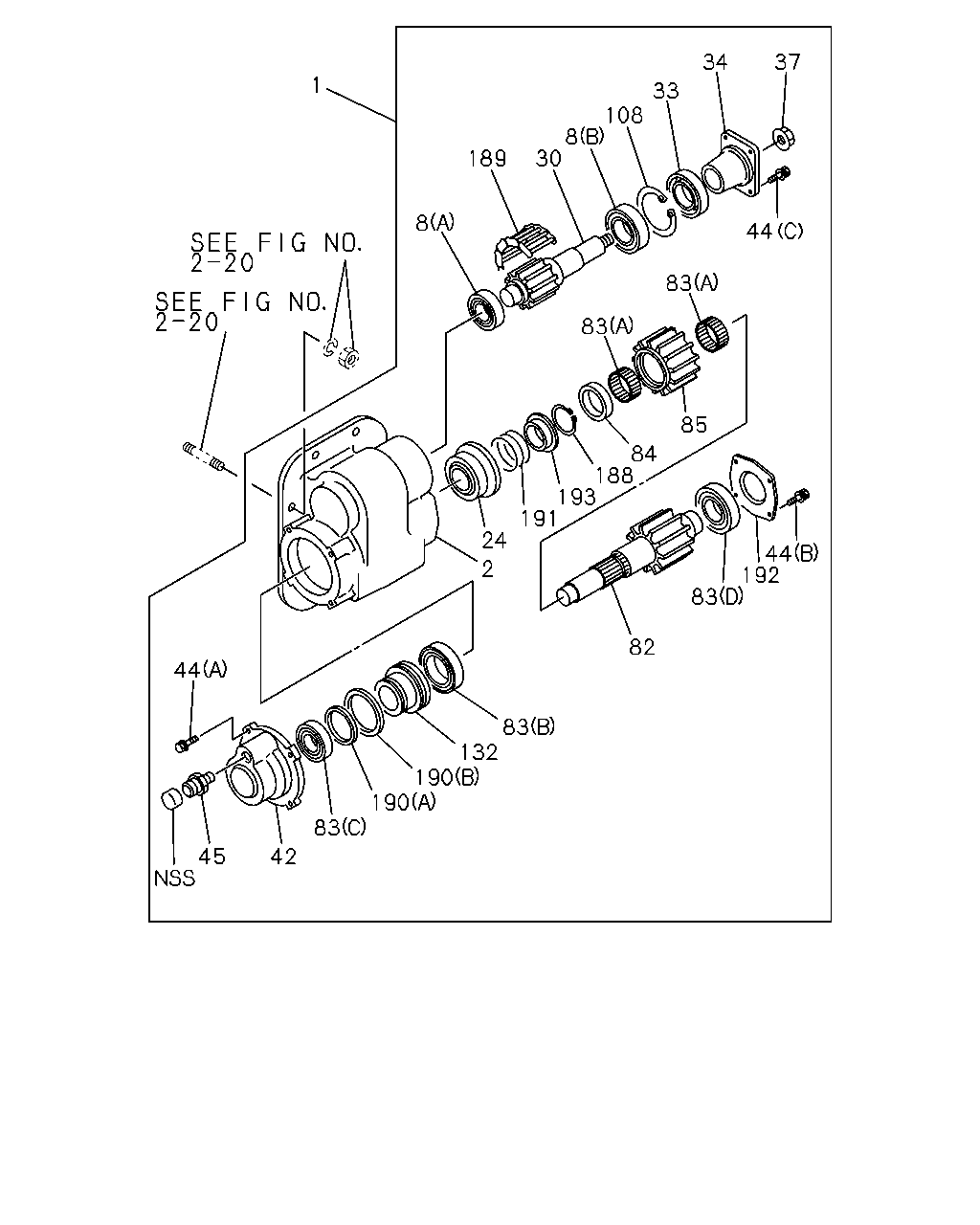

çizim 44330
44 82 192 85 84 188 193 191 24 2 83 83 44 37 34 33 108 8 30 189 8 1 44 45 42 190 190 83 83 132 83
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE 1-38000-315-1 01 1 9906-
2 CASE; GEAR,TRANS SIDE PTO 1-38111-081-0 01 1 9906-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) KOYO 		1-09810-231-0 01 1 9906-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) NSK 		1-09810-232-0 01 1 9906-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(B) KOYO 		1-09810-233-0 01 1 9906-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(B) NSK 		1-09810-234-0 01 1 9906-
24 SLEEVE; DOG CLU,TRANS SIDE PTO 1-38225-009-0 01 1 9906-
30 SHAFT; OUTPUT,TRANS SIDE PTO 1-38111-083-0 01 1 9906-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 1-38119-035-0 01 1 9906-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 1-38512-019-0 01 1 9906-
37 NUT; FLANGE FIX,TRANS SIDE PTO
M16 		1-38119-036-0 01 1 9906-
42 CYLINDER; AIR,TRANS SIDE PTO 1-38151-021-0 01 1 9906-
44 BOLT; COVER,TRANS SIDE PTO
(B) M8X16 FLANGE 		0-28080-816-0 04 1 9906-
44 BOLT; COVER,TRANS SIDE PTO
(A) M8X25 FLANGE 		0-28080-825-0 04 1 9906-
44 BOLT; COVER,TRANS SIDE PTO
(C) M8X30 FLANGE 		0-28680-830-0 04 1 9906-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9906-
82 SHAFT; INPUT 1-38211-027-0 01 1 9906-
83 BEARING; INPUT SHAFT
(B) KOYO 		1-09800-259-0 01 1 9906-
83 BEARING; INPUT SHAFT
(B) NSK 		1-09800-260-0 01 1 9906-
83 BEARING; INPUT SHAFT
(D) KOYO 		1-09810-233-0 01 1 9906-
83 BEARING; INPUT SHAFT
(D) NSK 		1-09810-234-0 01 1 9906-
83 BEARING; INPUT SHAFT
(A) 		1-09811-397-0 02 1 9906-
83 BEARING; INPUT SHAFT
(C) 		8-97012-835-0 01 1 9906-
84 COLLAR; INPUT SHAFT 1-38226-057-0 01 1 9906-
85 GEAR; INPUT SHAFT 1-38241-104-0 01 1 9906-
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
ID=57.9 		9-09180-562-0 01 1 9906-
132 PISTON; CYL,PTO 1-38377-010-0 01 1 9906-
188 RING; SNAP,INPUT SHAFT 1-09588-199-0 01 1 9906-
189 CHAIN; DRIVE,PTO 1-38111-082-1 01 1 9906-
190 CUP; PISTON,PTO
(A) 		1-38152-020-0 01 1 9906-
190 CUP; PISTON,PTO
(B) 		1-38152-021-0 01 1 9906-
191 SPRING; SLEEVE,PTO 1-38121-005-0 01 1 9906-
192 COVER; INPUT SHAFT 9-38151-604-0 01 1 9906-
193 RETAINER; SPRING 1-38226-056-0 01 1 9906-
