2-05 — CLUTCH PIPING (#72209) — 60 parça

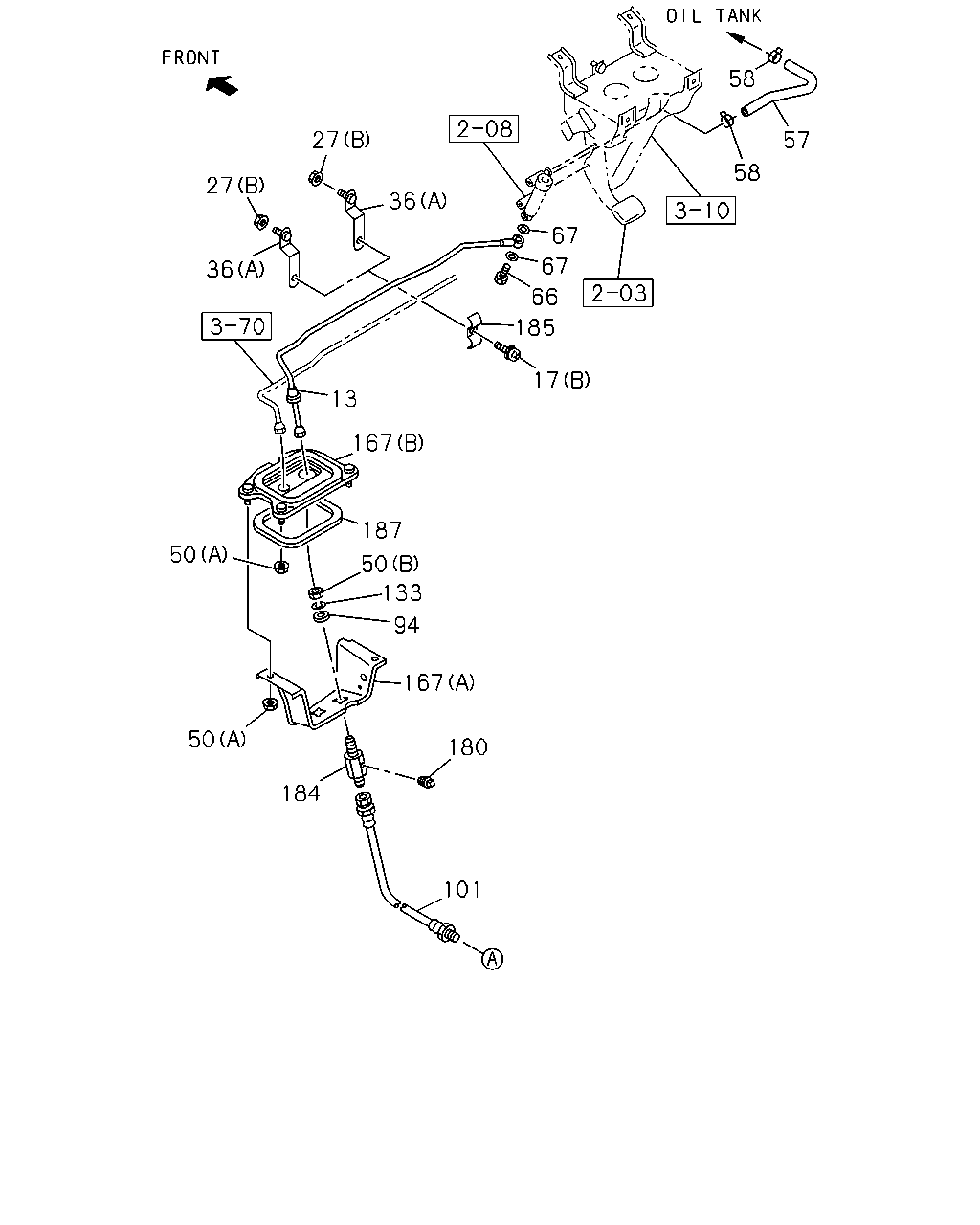

çizim 101723
58 27 57 58 27 36 67 67 36 66 185 17 13 167 187 50 50 133 94 167 50 180 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47423-750-4 01 1 0602-
17 BOLT; BRKT
(A) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0602-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0602-
27 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0602-0602
27 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0602-
36 BRACKET; CLIP
(B) M8 W/NUT 		1-47475-729-0 01 1 0602-
36 BRACKET; CLIP
(A) 		1-79738-186-1 02 1 0602-
50 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0602-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE MAL 		1-09985-340-0 03 1 0602-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 0602-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 MAL 		8-94238-572-0 02 1 0602-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0602-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0602-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 0602-0605
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0602-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0602-0603
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-
167 BRACKET; UNION
(A) 		1-79738-193-6 01 1 0602-
167 BRACKET; UNION
(B) 		1-79738-845-1 01 1 0602-
180 PLUG; PIPE 9-09204-510-0 01 1 0602-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 0602-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0602-
187 SEAL; BRKT 1-79738-190-0 01 1 0602-

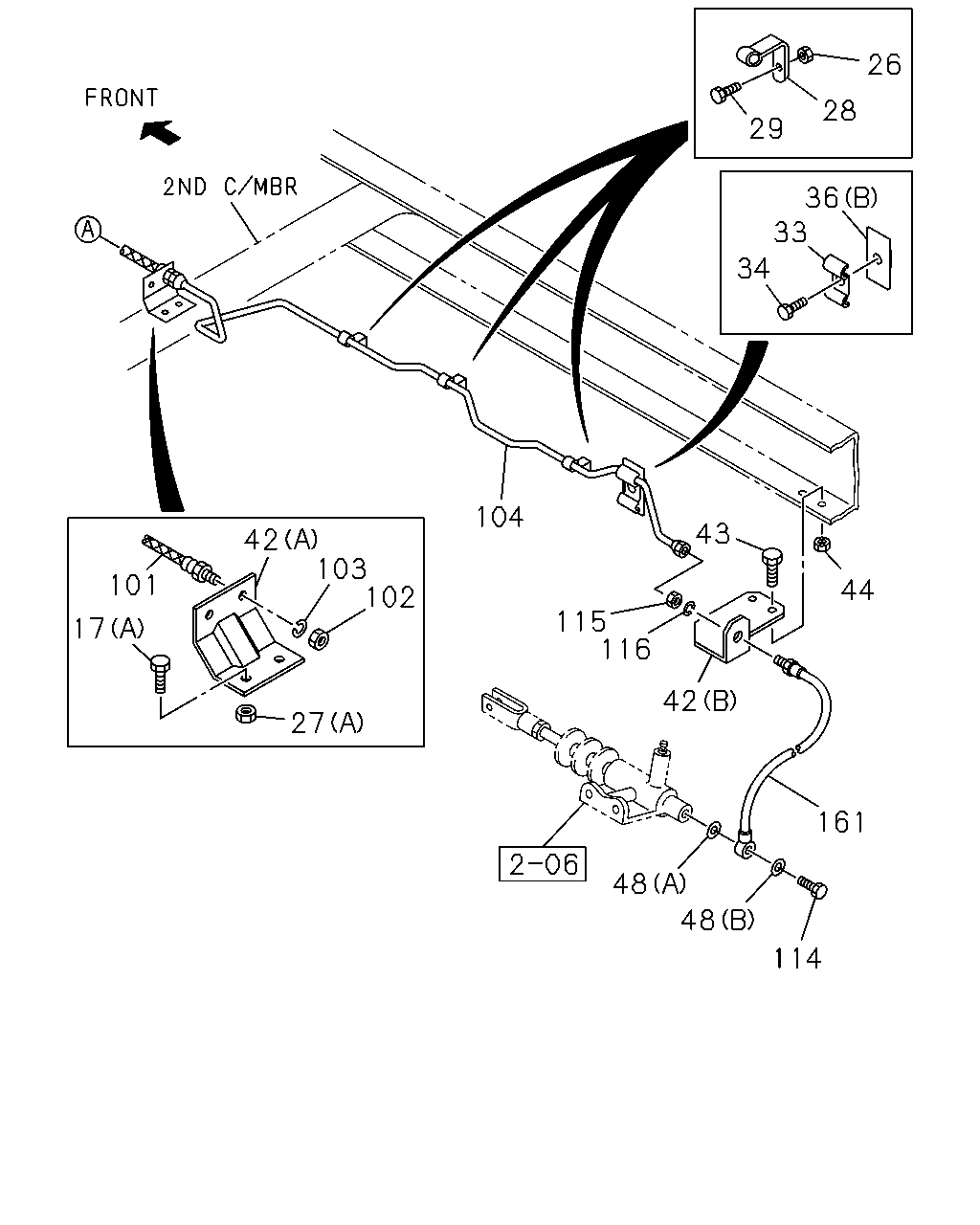

çizim 102083
26 28 29 36 33 34 104 43 42 103 102 101 44 115 116 17 42 27 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; BRKT
(A) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0602-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0602-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0602-0602
26 NUT; CLIP,OIL PIPE
M8 FLANGE MAL 		0-91180-108-0 03 1 0603-
27 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0602-0602
27 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0602-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 0602-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE MAL 		0-28650-825-0 03 1 0602-
33 CLIP; OIL PIPE
ID=9 & 7 L=15 & 15 		1-09700-653-0 01 1 0602-
34 BOLT; PIPE CLIP
M8X16 FLANGE MAL 		0-28050-816-0 01 1 0602-
36 BRACKET; CLIP
(B) M8 W/NUT 		1-47475-729-0 01 1 0602-
36 BRACKET; CLIP
(A) 		1-79738-186-1 02 1 0602-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 0602-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-640-0 01 1 0602-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0602-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0602-0602
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=10.5 		1-09630-074-1 01 1 0602-
48 GASKET; FLEX HOSE,CLU CONT
(A) T=1.5 ID=14.2 OD=20 		9-09851-004-0 01 1 0602-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0602-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0602-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0602-0603
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2596 SERVICED BY L=2700 		1-47426-396-0 01 1 0602-
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 0602-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0602-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0602-0603
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
161 HOSE; FLEX,SLAVE CYL
L=380 		0-05567-380-0 01 1 0602-
