Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

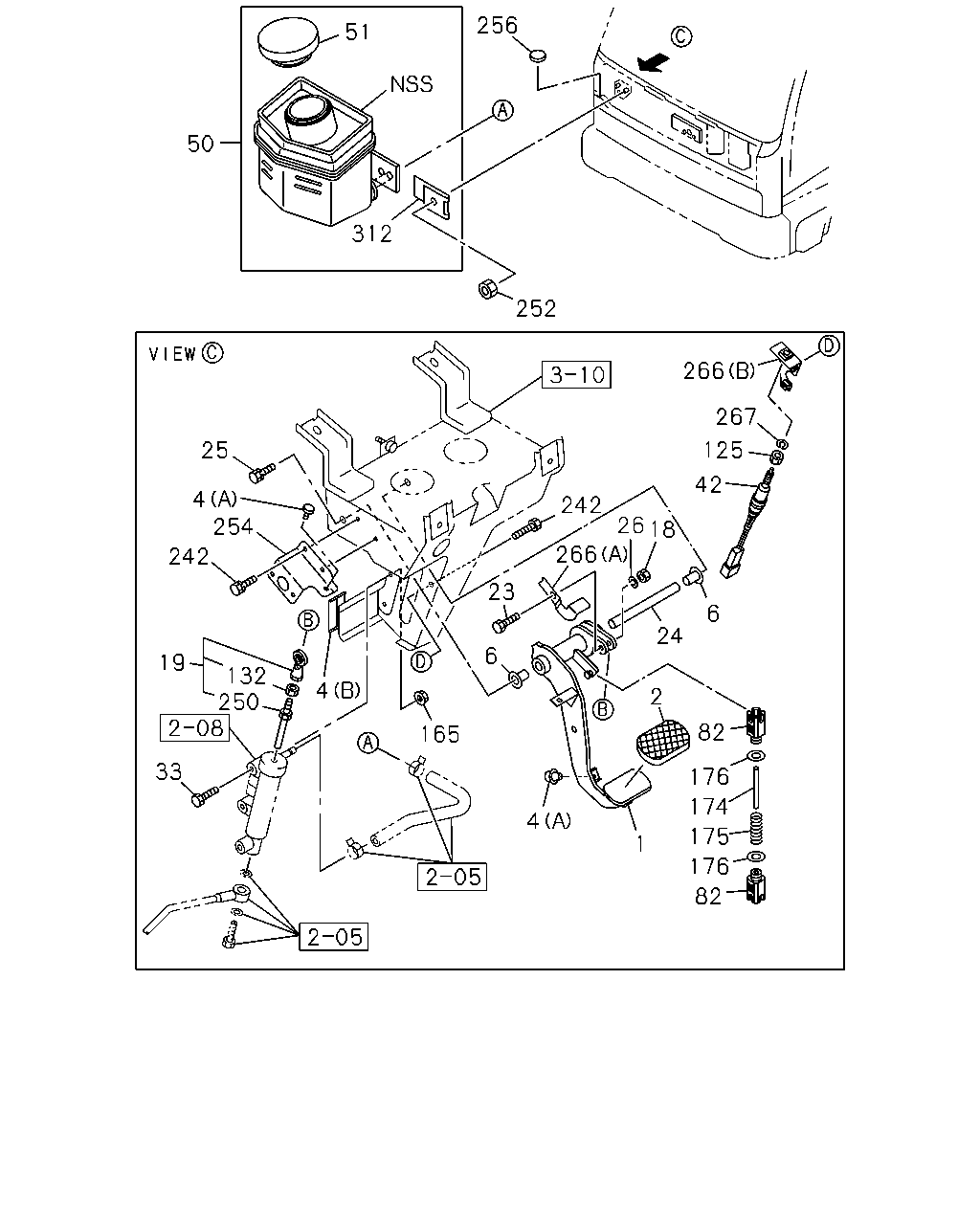

2-03 — CLUTCH PEDAL AND CONTROL
(#72208) — 32 parça
256
51
50
312
252
266
267
125
25
42
4
254
242
26
18
266
242
23
6
24
6
19
132
250
2
4
82
165
33
176
174
4
175
1
176
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73908-331-2
01
1
0602-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0602-
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
02
1
0602-
4
STOPPER; CLU PEDAL
(B)
1-73908-088-1
01
1
0602-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0602-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
0602-
19
ROD ASM; PUSH,CLU
1-73908-332-0
01
1
0602-
23
BOLT; PUSH ROD
M8X43.7
1-73908-333-0
01
1
0602-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0602-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0602-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
0602-
33
BOLT; CLU M/CYL TO BRKT
M10X65
5-09030-024-1
02
1
0602-
42
SWITCH; CLU
1-82440-094-0
01
1
0602-
50
TANK; OIL,CLU
1-47530-182-0
01
1
0602-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0602-
82
CLEVIS; HELPER,CLU PEDAL
1-73998-472-1
02
1
0602-
125
NUT; CLU SWITCH
M10
9-09110-510-0
01
1
0602-
132
NUT; LK,PUSH ROD
M8 MAL
9-09110-408-0
01
1
0602-
165
NUT; CLU M/CYL
M10 FLANGE
0-91150-210-0
02
1
0602-0602
165
NUT; CLU M/CYL
M10 FLANGE MAL
0-91180-210-0
02
1
0603-
174
PIN; STRAIGHT,CLU PEDAL
1-73998-474-0
01
1
0602-
175
SPRING; HELPER
1-73908-052-0
01
1
0602-
176
SEAT; SPRING
1-09503-114-0
02
1
0602-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
04
1
0602-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0602-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0602-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0602-
256
SEAL; HOLE
OD=25 BLACK MAL
1-76798-019-0
01
1
0602-
266
BRACKET; CLU SWITCH
(A)
1-73907-395-1
01
1
0602-
266
BRACKET; CLU SWITCH
(B)
1-73908-354-0
01
1
0602-
267
WASHER; LK,CLU SWITCH
ID=10.2
9-09150-510-0
01
1
0602-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0602-
