Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#72207) — 51 parça
◀

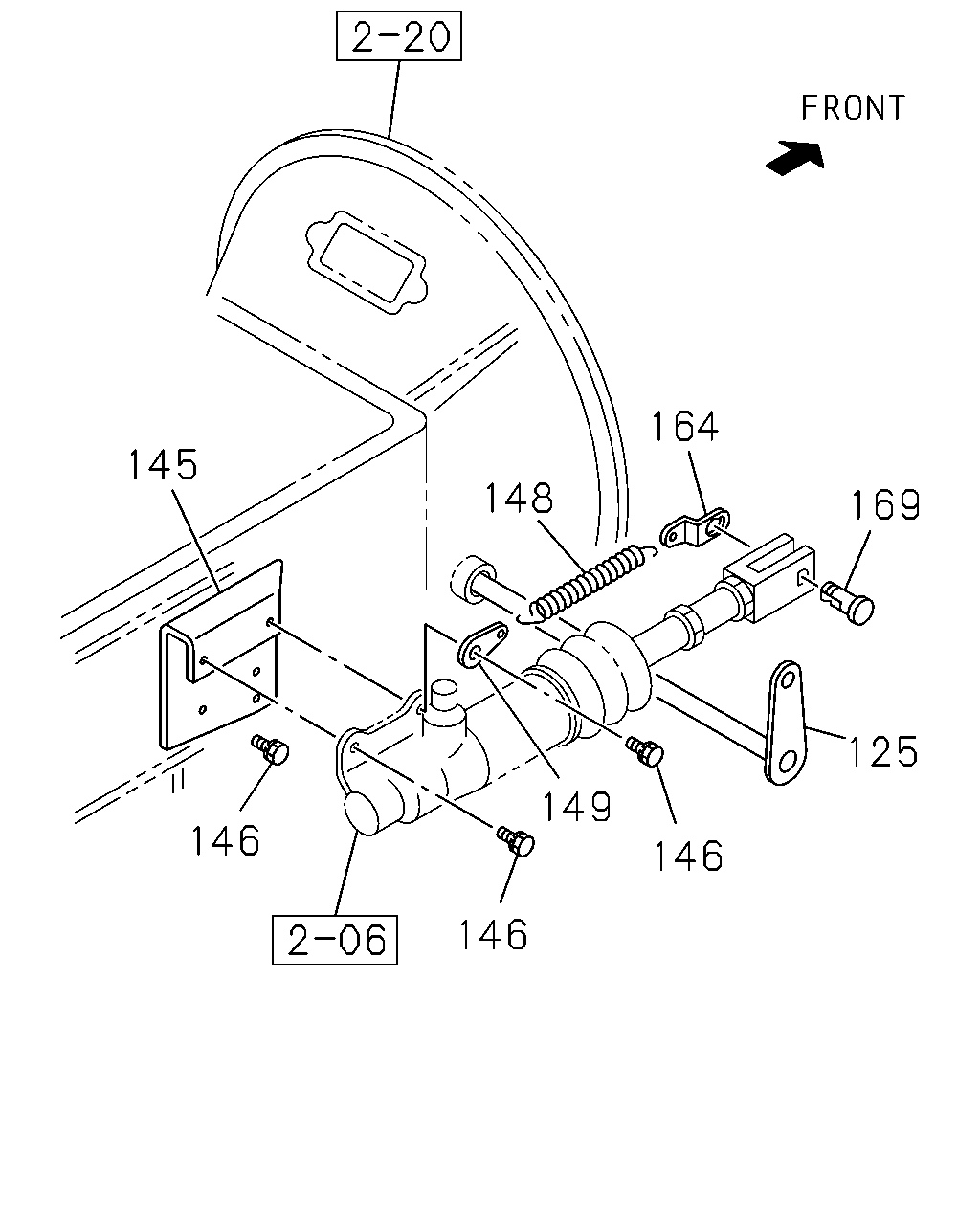

[201A] FIXING;SLAVE CYLINDER (7 parça)

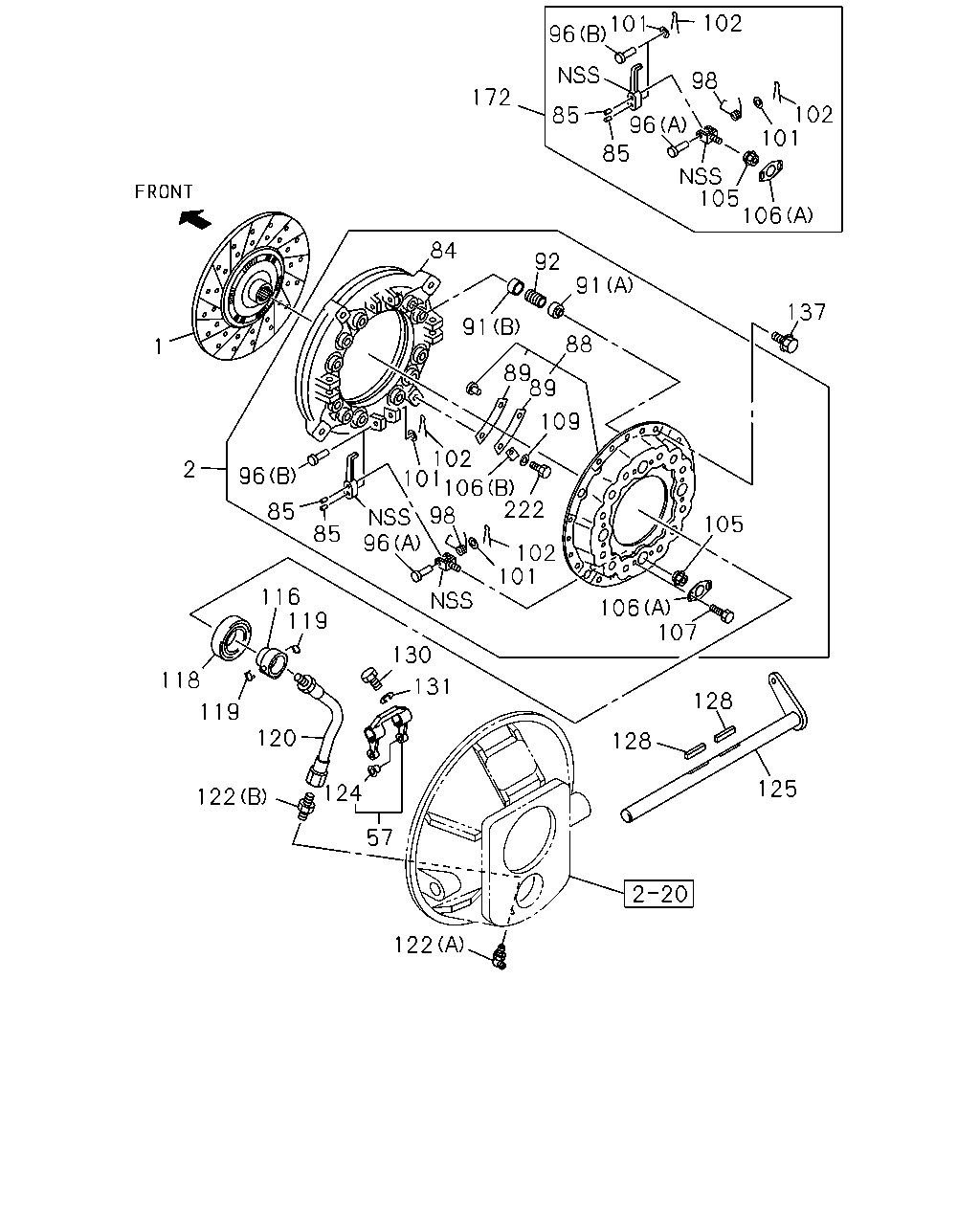

[201A] CLUTCH (44 parça)
▶
164
145
148
169
125
149
146
146
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
SHAFT; CLU
1-31342-299-0
01
1
0602-
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-059-0
01
1
0602-
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28151-025-0
04
1
0602-
148
SPRING; CLU RETURN
1-09583-249-0
01
1
0602-
149
EYE; SPRING,RETURN SPRING
T=2.3
1-47324-005-1
01
1
0602-
164
EYE; SPRING
1-31426-019-1
01
1
0602-
169
PIN; JOINT,MINIPACK
1-31424-009-0
01
1
0602-
102
101
96
98
172
96
85
102
101
85
105
106
84
92
91
137
91
88
1
89
89
109
102
101
106
222
96
2
96
85
85
105
102
101
116
119
106
107
130
118
131
128
119
120
128
124
125
122
57
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
14"
1-31240-901-0
01
1
0602-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-139-0
01
1
0602-
2
PLATE ASM; PRESSURE,CLU
1-31220-364-2
01
1
0602-1005
2
PLATE ASM; PRESSURE,CLU
1-31220-447-0
01
1
1006-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-144-0
01
1
1006-
57
FORK; SHIFT,CLU
1-31340-056-1
01
1
0602-
84
PLATE; PRESSURE
14"
1-31221-082-0
01
1
0602-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0602-
88
COVER SUB ASM; CLU
1-31211-036-0
01
1
0602-
89
PLATE; STRAP
1-31229-001-0
08
1
0602-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0602-1005
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
08
1
1006-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0602-1005
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
08
1
1006-
92
SPRING; CLU
1-31214-088-0
12
1
0602-1005
92
SPRING; CLU
1-31214-060-0
08
1
1006-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
0602-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
0602-
98
SPRING; RETURN
1-31233-003-0
04
1
0602-
101
WASHER; RELEASE LEVER
9-31239-039-0
08
1
0602-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
0602-
105
NUT; SUPPORT
1-31235-014-0
04
1
0602-
106
PLATE; LK,LEVER SUPPORT
(B)
1-31235-008-0
04
1
0602-
106
PLATE; LK,LEVER SUPPORT
(A)
1-31239-019-0
04
1
0602-
107
BOLT; LK PLATE
1-31239-061-0
08
1
0602-
109
WASHER; LK,STRAP
ID=10.2
9-09150-510-0
04
1
0602-0603
109
WASHER; LK,STRAP
ID=10.2 MAL
0-91510-510-0
04
1
0604-
116
BLOCK; SHIFT,CLU
1-31321-070-3
01
1
0602-
118
BEARING; CLU RELEASE
1-09820-114-0
01
1
0602-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-148-0
01
1
0602-
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
0602-
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
0602-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=170
1-09364-869-0
01
1
0602-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
0602-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
0602-
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
0602-
125
SHAFT; CLU
1-31342-299-0
01
1
0602-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0602-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0602-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0602-0603
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0604-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0602-
172
LEVER KIT; RELEASE,CLU
1-87831-173-1
01
1
0602-
222
BOLT; STRAP
1-31239-059-0
04
1
0602-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
