1-50 — EXHAUST PIPE AND SILENCER (#722) — 203 parça

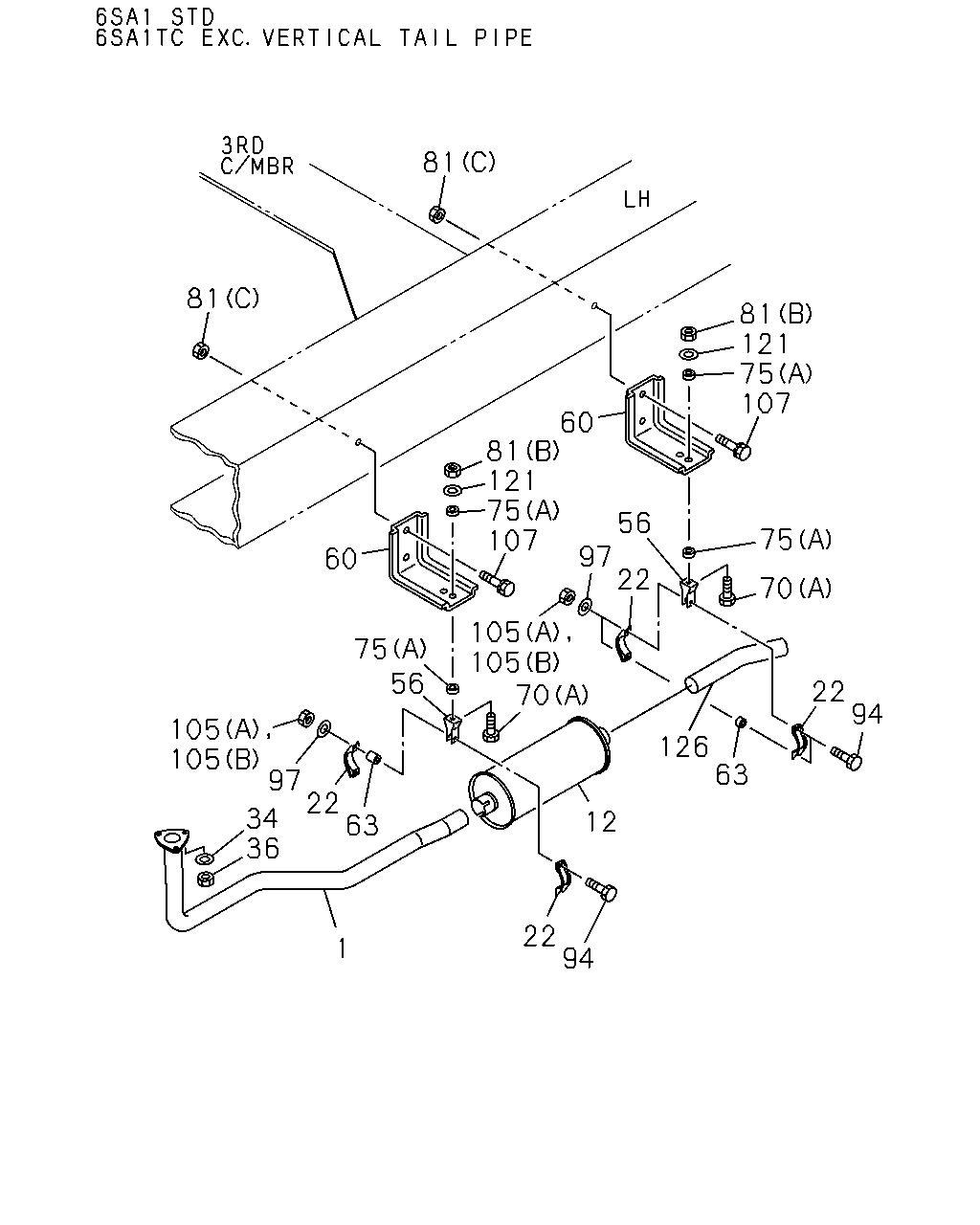

70 60 107 81 62 75 81 266 81 94 107 105 97 81 56 22 22 126 12 5 81 1 121 75 60 56 34 75 36 105 97 70 36 22 63 22 94 81 121 75 5 60 56 75 105 97 70 22 63 94 22 70 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH	1-22122-158-2	01	1	9204-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9204-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-157-2	01	1	9204-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH	1-22122-385-0	01	1	9505-			●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9505-			●
12	SILENCER ASM; EXH	1-22140-606-3	01	1	9204-	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9204-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9204-		●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9505-			●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	9204-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9204-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9204-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B) ID=284	1-22133-185-0	02	1	9204-		●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9505-			●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9505-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9204-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9204-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9505-			●
56	BRACKET; CLAMP,EXH PIPE H=92	1-22139-076-0	02	1	9204-	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9204-		●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9204-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22131-528-1	01	1	9505-			●
56	BRACKET; CLAMP,EXH PIPE (B) H=125	1-22139-048-0	02	1	9505-			●
60	BRACKET; FRAME TO BRKT	1-22151-512-2	02	1	9204-	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4>	1-22151-512-2	02	1	9204-		●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9204-		●
60	BRACKET; FRAME TO BRKT (A)	1-22131-435-1	01	1	9505-			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-630-0	02	1	9505-			●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	9505-			●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9204-	●		●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	02	1	9204-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9204-	●	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28010-830-0	02	1	9204-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-		●
70	BOLT; BRKT (C) M10X55	0-10806-055-0	01	1	9505-			●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	9505-			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9204-	●	●	●
75	RUBBER; SUPPORT,BRKT (B) OD=35	9-22159-008-0	02	1	9505-			●
81	NUT; BRKT (C) M10	9-09110-410-0	04	1	9204-	●	●	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9204-	●	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	02	1	9204-		●
81	NUT; BRKT (A) M10	9-09110-510-0	03	1	9505-			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9204-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9505-			●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9204-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9505-			●
105	NUT; CLAMP (A),(B) M10	9-09110-510-0	04	1	9408-	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-510-0	04	1	9408-		●
105	NUT; CLAMP (A),(B) M10	9-09110-410-0	04	1	9204-9407	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-410-0	02	1	9408-		●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	02	1	9408-		●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9505-			●
107	BOLT; BRKT M10X40 W/LK WASHER	0-50041-040-0	04	1	9204-9307	●	●
107	BOLT; BRKT M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9505-			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9204-	●	●	●
126	PIPE; EXH,RR	1-22112-981-1	01	1	9204-	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-981-1	01	1	9204-		●
126	PIPE; EXH,RR	1-22126-132-0	01	1	9505-			●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9505-			●

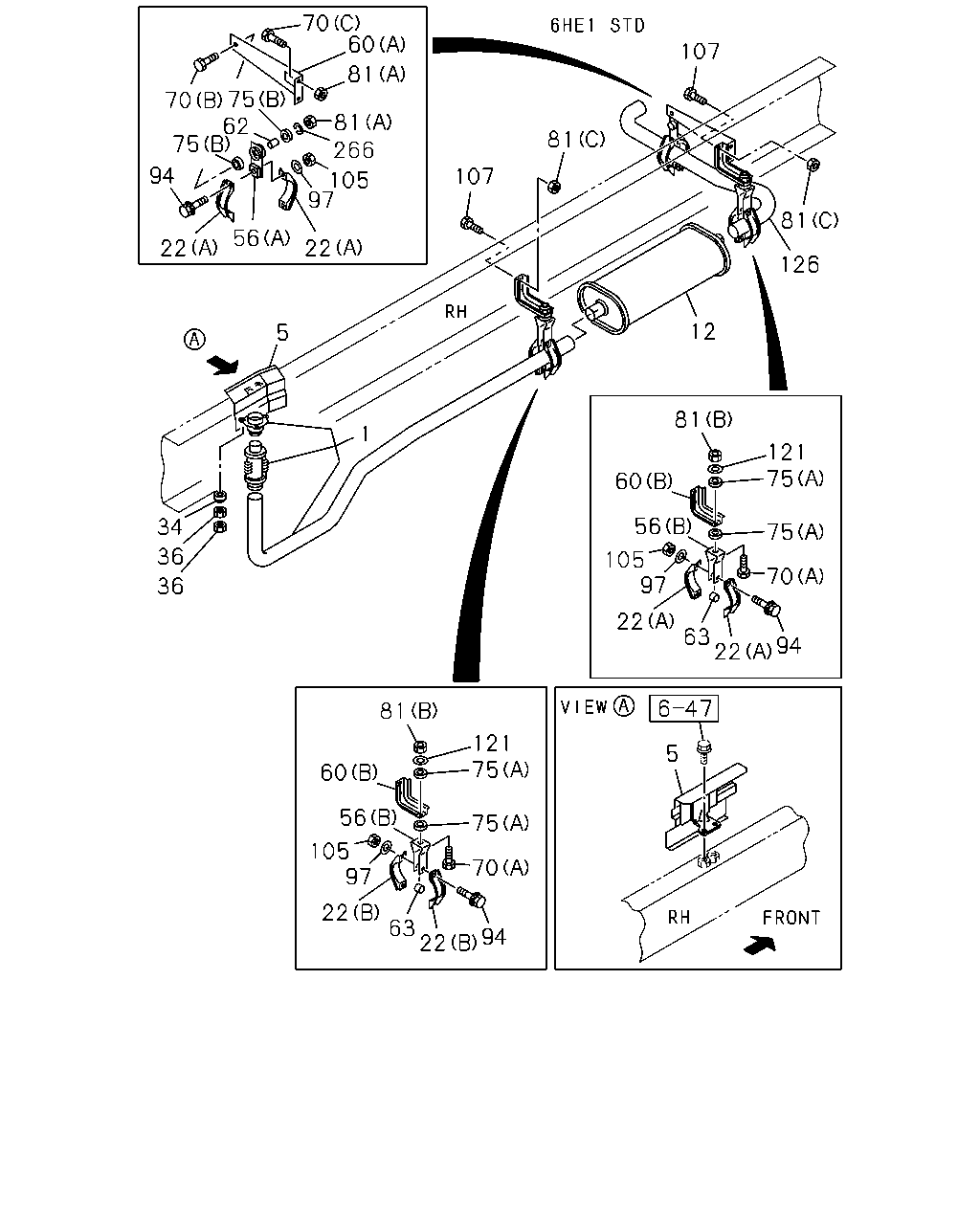

81 81 121 75 107 60 81 121 75 107 56 97 22 75 60 70 105 75 105 56 70 22 94 105 105 97 22 63 126 63 34 36 12 22 94 1 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH	1-22122-158-2	01	1	9204-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9204-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-157-2	01	1	9204-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH	1-22122-385-0	01	1	9505-			●
12	SILENCER ASM; EXH	1-22140-606-3	01	1	9204-	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9204-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9204-		●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9505-			●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	9204-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9204-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9204-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B) ID=284	1-22133-185-0	02	1	9204-		●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9505-			●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9505-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9204-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9204-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9505-			●
56	BRACKET; CLAMP,EXH PIPE H=92	1-22139-076-0	02	1	9204-	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9204-		●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9204-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22131-528-1	01	1	9505-			●
56	BRACKET; CLAMP,EXH PIPE (B) H=125	1-22139-048-0	02	1	9505-			●
60	BRACKET; FRAME TO BRKT	1-22151-512-2	02	1	9204-	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4>	1-22151-512-2	02	1	9204-		●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9204-		●
60	BRACKET; FRAME TO BRKT (A)	1-22131-435-1	01	1	9505-			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-630-0	02	1	9505-			●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9204-	●		●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	02	1	9204-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9204-	●	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28010-830-0	02	1	9204-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-		●
70	BOLT; BRKT (C) M10X55	0-10806-055-0	01	1	9505-			●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	9505-			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9204-	●	●	●
75	RUBBER; SUPPORT,BRKT (B) OD=35	9-22159-008-0	02	1	9505-			●
81	NUT; BRKT (C) M10	9-09110-410-0	04	1	9204-	●	●	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9204-	●	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	02	1	9204-		●
81	NUT; BRKT (A) M10	9-09110-510-0	03	1	9505-			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9204-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9505-			●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9204-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9505-			●
105	NUT; CLAMP (A),(B) M10	9-09110-510-0	04	1	9408-	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-510-0	04	1	9408-		●
105	NUT; CLAMP (A),(B) M10	9-09110-410-0	04	1	9204-9407	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-410-0	02	1	9408-		●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	02	1	9408-		●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9505-			●
107	BOLT; BRKT M10X40 W/LK WASHER	0-50041-040-0	04	1	9204-9307	●	●
107	BOLT; BRKT M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9505-			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9204-	●	●	●
126	PIPE; EXH,RR	1-22112-981-1	01	1	9204-	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-981-1	01	1	9204-		●
126	PIPE; EXH,RR	1-22126-132-0	01	1	9505-			●

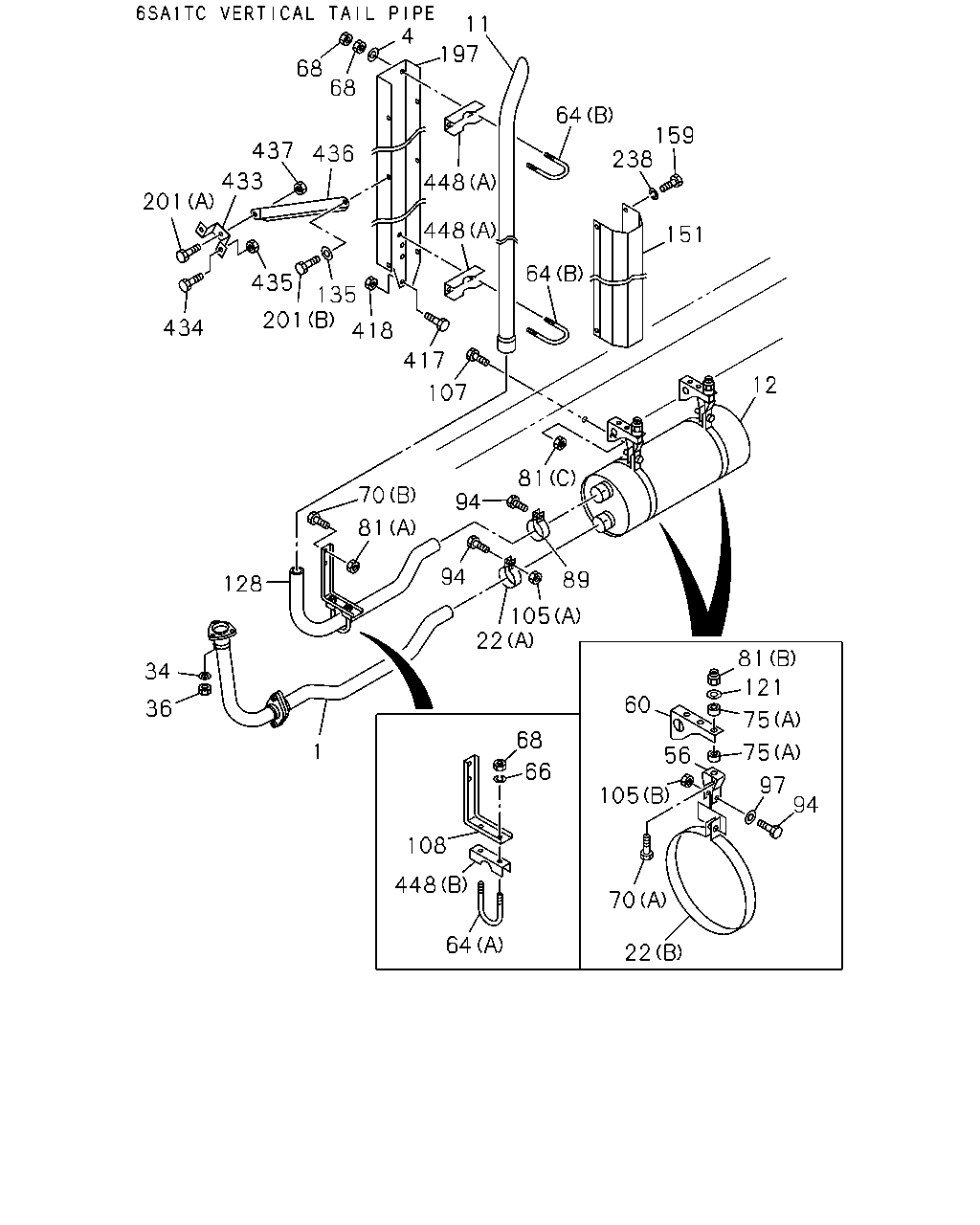

4 11 197 68 68 64 159 238 437 436 448 433 201 448 151 64 435 135 201 434 418 417 12 107 81 70 94 81 94 89 128 105 22 81 34 121 60 36 75 68 1 75 56 66 97 94 105 108 448 70 64 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH	1-22122-158-2	01	1	9204-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9204-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-157-2	01	1	9204-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH	1-22122-385-0	01	1	9505-			●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.4	9-09160-508-0	06	1	9204-		●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-967-1	01	1	9204-		●
12	SILENCER ASM; EXH	1-22140-606-3	01	1	9204-	●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9204-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9204-		●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9505-			●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	04	1	9204-	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9204-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9204-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> (B) ID=284	1-22133-185-0	02	1	9204-		●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9505-			●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9505-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9204-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9204-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9505-			●
56	BRACKET; CLAMP,EXH PIPE H=92	1-22139-076-0	02	1	9204-	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9204-		●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9204-		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22131-528-1	01	1	9505-			●
56	BRACKET; CLAMP,EXH PIPE (B) H=125	1-22139-048-0	02	1	9505-			●
60	BRACKET; FRAME TO BRKT	1-22151-512-2	02	1	9204-	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4>	1-22151-512-2	02	1	9204-		●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9204-		●
60	BRACKET; FRAME TO BRKT (A)	1-22131-435-1	01	1	9505-			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-630-0	02	1	9505-			●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (A)	1-22139-033-1	01	1	9204-		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (B)	1-22139-053-0	02	1	9204-9502		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> (B) L=140	1-22113-030-1	02	1	9503-		●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	02	1	9204-		●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9204-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9204-	●	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28010-830-0	02	1	9204-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-		●
70	BOLT; BRKT (C) M10X55	0-10806-055-0	01	1	9505-			●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28081-030-0	02	1	9505-			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9204-	●	●	●
75	RUBBER; SUPPORT,BRKT (B) OD=35	9-22159-008-0	02	1	9505-			●
81	NUT; BRKT (C) M10	9-09110-410-0	04	1	9204-	●	●	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9204-	●	●	●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	02	1	9204-		●
81	NUT; BRKT (A) M10	9-09110-510-0	03	1	9505-			●
89	CLAMP; EXH SILENCER,RR VERTICAL TAIL PIPE<NC4> ID=83.5	1-22133-178-1	01	1	9204-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9204-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9505-			●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9204-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9505-			●
105	NUT; CLAMP (A),(B) M10	9-09110-510-0	04	1	9408-	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-510-0	04	1	9408-		●
105	NUT; CLAMP (A),(B) M10	9-09110-410-0	04	1	9204-9407	●	●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-410-0	02	1	9408-		●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	02	1	9408-		●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9505-			●
107	BOLT; BRKT M10X40 W/LK WASHER	0-50041-040-0	04	1	9204-9307	●	●
107	BOLT; BRKT M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9505-			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR VERTICAL TAIL PIPE<NC4>	1-22131-426-0	01	1	9204-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9204-	●	●	●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4>	1-22112-980-1	01	1	9204-		●
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9204-		●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22159-169-3	01	1	9204-		●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X22	9-01900-822-0	10	1	9204-9204		●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-		●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4>	1-22131-605-2	01	1	9204-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9204-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9204-		●
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9204-		●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	05	1	9204-9307		●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	05	1	9308-		●
418	NUT; BRKT VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	05	1	9204-		●
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22131-501-1	01	1	9204-		●
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	02	1	9204-		●
435	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9204-		●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4>	1-22131-659-0	01	1	9204-	●	●
437	NUT; STAY VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9204-		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (A)	1-22113-074-0	02	1	9204-		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9204-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
