1-30 — AIR CLEANER (#72199) — 40 parça
çizim 90948
1 68 112 117 119 118 120 6 2 94 3 8 2 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (B) 		1-14210-777-4 01 1 0602-
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (A) 		1-14210-772-3 01 1 0602-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0602-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0602-
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 0602-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0602-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0602-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 0602-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0602-
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 0602-
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 0602-
8 COVER ASM; ACL 1-14212-084-0 01 1 0602-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0602-
94 VALVE; VACUATOR 1-14219-192-0 01 1 0602-
112 HOSE; INDICATOR 1-14219-260-0 01 1 0602-
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0602-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0602-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0602-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0602-

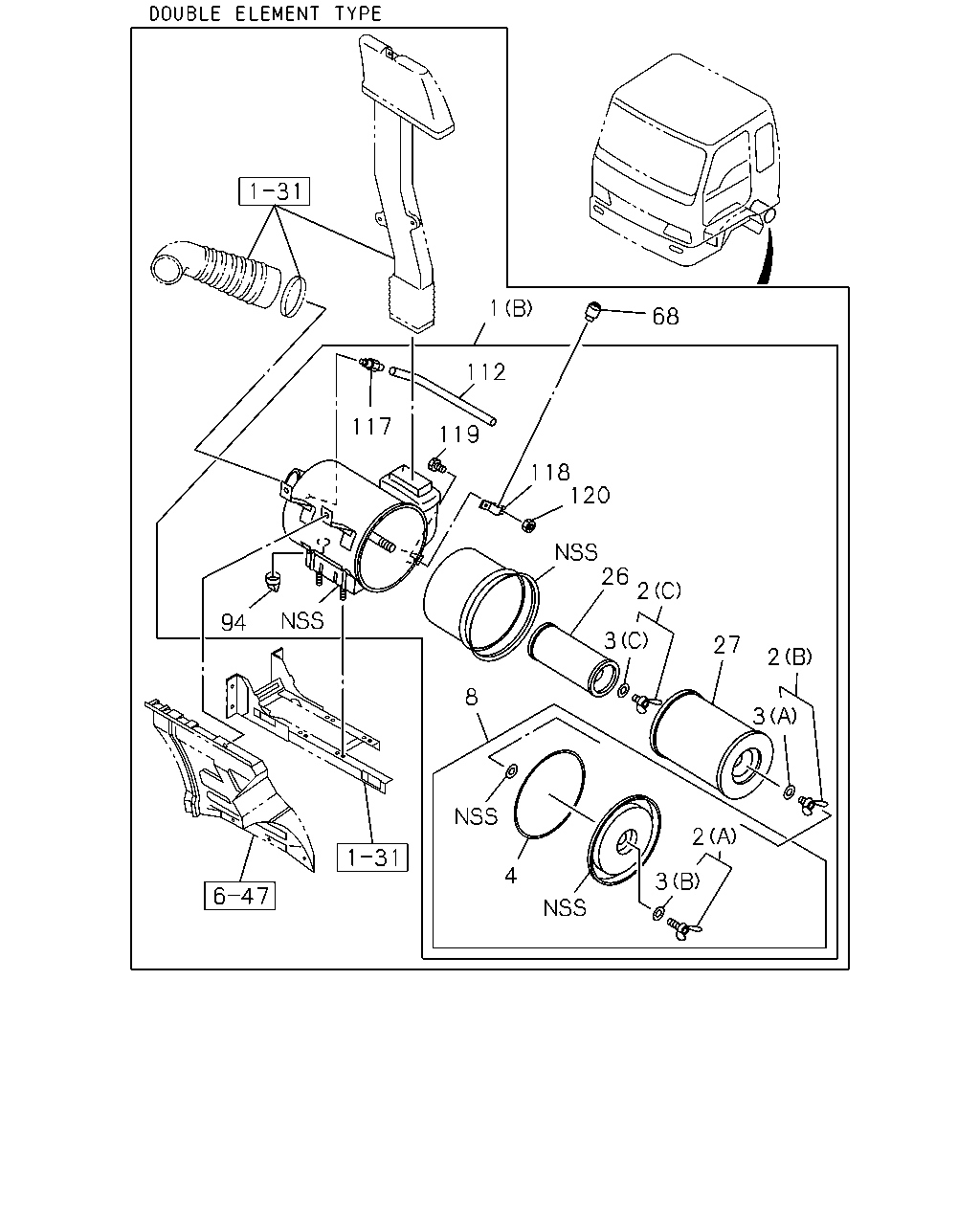

çizim 91522
1 68 112 117 119 118 120 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (B) 		1-14210-777-4 01 1 0602-
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (A) 		1-14210-772-3 01 1 0602-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0602-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0602-
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 0602-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0602-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0602-
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 0602-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0602-
8 COVER ASM; ACL 1-14212-084-0 01 1 0602-
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 0602-
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 0602-
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 0602-
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 0602-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0602-
94 VALVE; VACUATOR 1-14219-192-0 01 1 0602-
112 HOSE; INDICATOR 1-14219-260-0 01 1 0602-
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0602-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0602-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0602-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0602-
