Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#72197) — 43 parça
◀

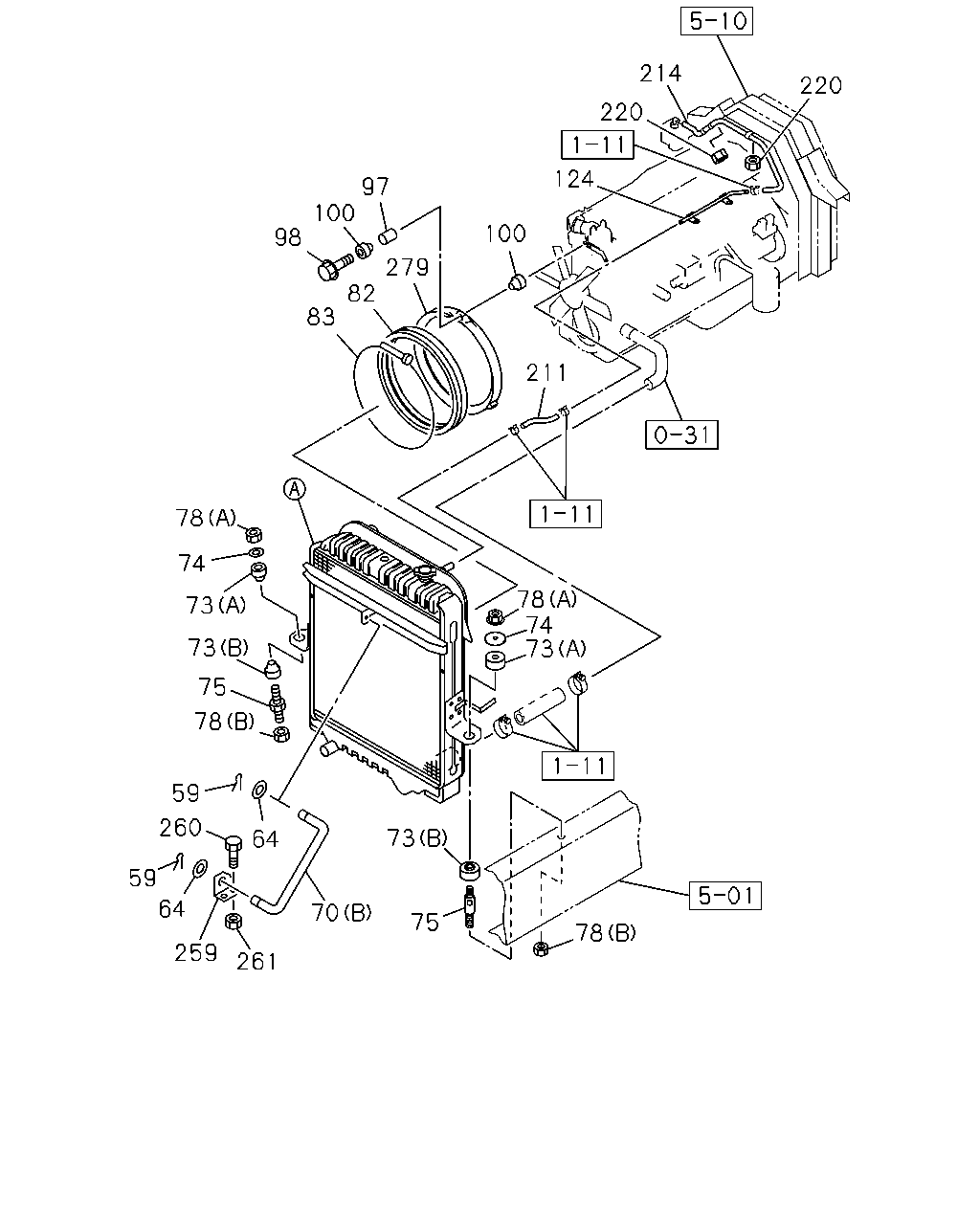

[110A] FIXING;ASM,HOSE AND OTHER PARTS (27 parça)
[110A] FAN GUIDE STAY (4 parça)

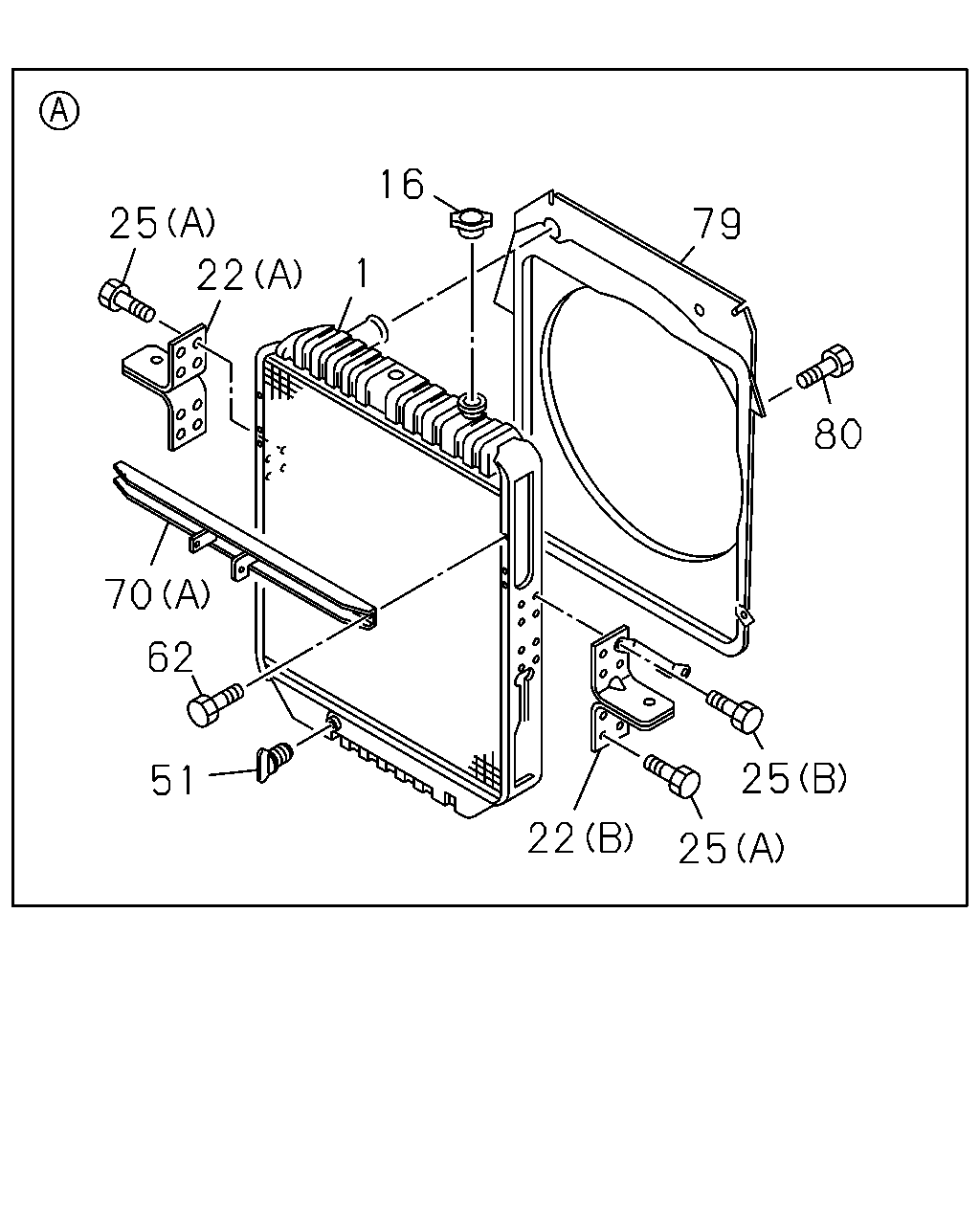

[110A] RADIATOR ASM (12 parça)
▶
214
220
220
124
97
100
100
98
279
82
83
211
78
74
78
74
73
73
73
75
78
59
260
73
64
59
64
70
78
75
259
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
59
PIN; SNAP,STAY
MAL
1-09987-158-1
02
1
0602-
64
WASHER; STAY TO RAD
ID=12.5
9-09160-512-0
02
1
0602-0605
64
WASHER; STAY TO RAD
ID=12.5 OD=22 MAL
0-91610-512-0
02
1
0606-
70
STAY; RAD
(B)
1-21522-069-0
01
1
0602-
70
STAY; RAD
(A) MAL
1-21522-064-0
01
1
0605-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0602-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0602-
74
WASHER; PL,CUSHION RUBBER
OD=55
9-09852-169-0
02
1
0602-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0602-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91150-212-0
02
1
0602-0602
78
NUT; CUSHION RUBBER
(B) M12 FLANGE MAL
0-91180-212-0
02
1
0603-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
5-09440-006-0
02
1
0602-
82
COVER; FAN,RAD
1-21559-340-0
01
1
0602-
83
CLIP; FAN COVER
1-09707-177-2
01
1
0602-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0602-
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28650-830-0
03
1
0602-
100
RUBBER; MTG
OD=32
8-94395-766-0
06
1
0602-
124
PIPE; WATER,TANK TO RAD
8-94394-461-4
01
1
0602-
211
HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000
0-03557-300-0
01
1
0602-
214
HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000
0-03557-300-0
01
1
0602-
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0602-0602
220
NUT; CLIP
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
259
BRACKET; RAD STAY
1-21523-024-0
01
1
0602-
260
BOLT; BRKT
M8X20 FLANGE MAL
0-28650-820-0
02
1
0602-
261
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0602-0602
261
NUT; BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
279
BELL MOUTH
8-94394-808-2
01
1
0602-
87
87
96
87
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(A)
8-94394-775-0
01
1
0602-
87
STAY; FAN GUIDE
(B)
8-94396-496-1
01
1
0602-
87
STAY; FAN GUIDE
(C)
8-94397-395-1
01
1
0602-
96
BOLT; STAY FIX
M10X16 FLANGE
0-28151-016-0
02
1
0602-
16
25
22
79
1
80
70
62
25
51
22
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-675-1
01
1
0605-
16
CAP; RAD
MAL
1-21450-142-0
01
1
0605-
22
BRACKET; RAD MTG
(A) MAL
1-21464-361-0
01
1
0605-
22
BRACKET; RAD MTG
(B) MAL
1-21464-544-0
01
1
0605-
25
BOLT; BRKT
(A) M8X12 FLANGE
0-28080-812-0
15
1
0605-
25
BOLT; BRKT
(B) M8X16 FLANGE
0-28080-816-0
01
1
0605-
51
PLUG; DRAIN
W/GASKET MAL
1-09609-009-0
01
1
0605-
62
BOLT; STAY
M8X12 FLANGE
0-28080-812-0
02
1
0605-
70
STAY; RAD
(B)
1-21522-069-0
01
1
0602-
70
STAY; RAD
(A) MAL
1-21522-064-0
01
1
0605-
79
GUIDE; FAN,RAD
MAL
1-21551-374-4
01
1
0605-
80
BOLT; FAN GUIDE
M6X10 FLANGE
0-28080-610-0
04
1
0605-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
