Isuzu WW
▶
TRUCKS
▶
FSS
▶
11365 - FSS(MALAYSIA)M/T
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

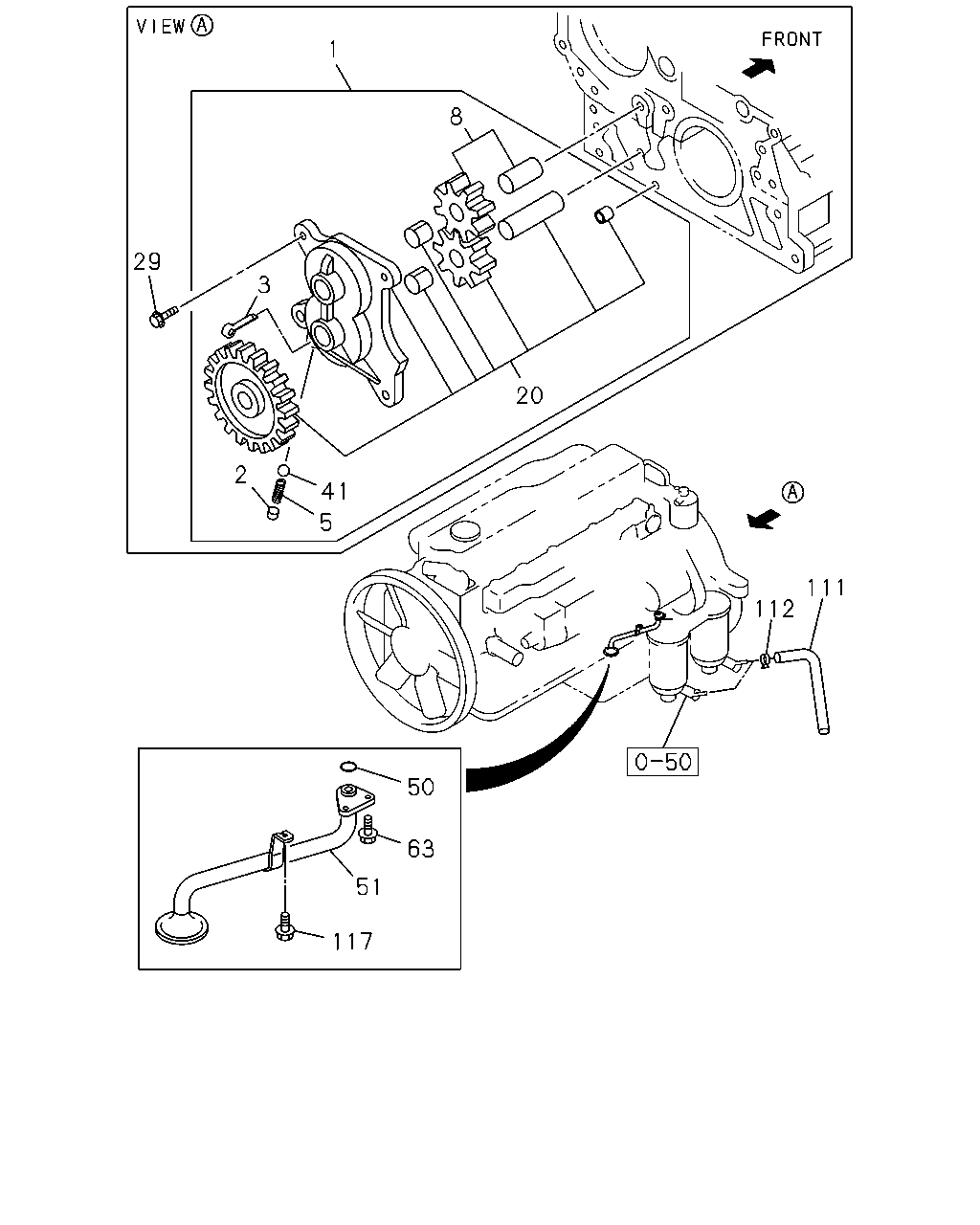

0-51 — OIL PUMP AND OIL STRAINER
(#72184) — 15 parça
29
3
2
41
5
8
20
50
63
51
117
112
111
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
8-94395-564-3
01
1
0602-
2
SEAT; SPR
5-13165-004-0
01
1
0602-
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
0602-
5
SPRING; COIL
5-09580-098-0
01
1
0602-
8
GEAR; DRIVEN,OIL PUMP
8-94392-559-0
01
1
0602-
20
GEAR; DRIVE,OIL PUMP
8-94392-557-1
01
1
0602-
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
0602-
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
0602-
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0602-
51
STRAINER & PIPE ASM; OIL
8-94392-597-0
01
1
0602-1209
51
STRAINER & PIPE ASM; OIL
8-98204-155-0
01
1
1210-
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
0-28080-814-0
02
1
0602-
111
HOSE; OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1>
8-94396-950-0
02
1
0602-
112
CLIP; HOSE,OIL DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=14
5-09707-004-1
02
1
0602-
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
0602-
