◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11365 - FSS(MALAYSIA)M/T ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#72181) — 20 parça

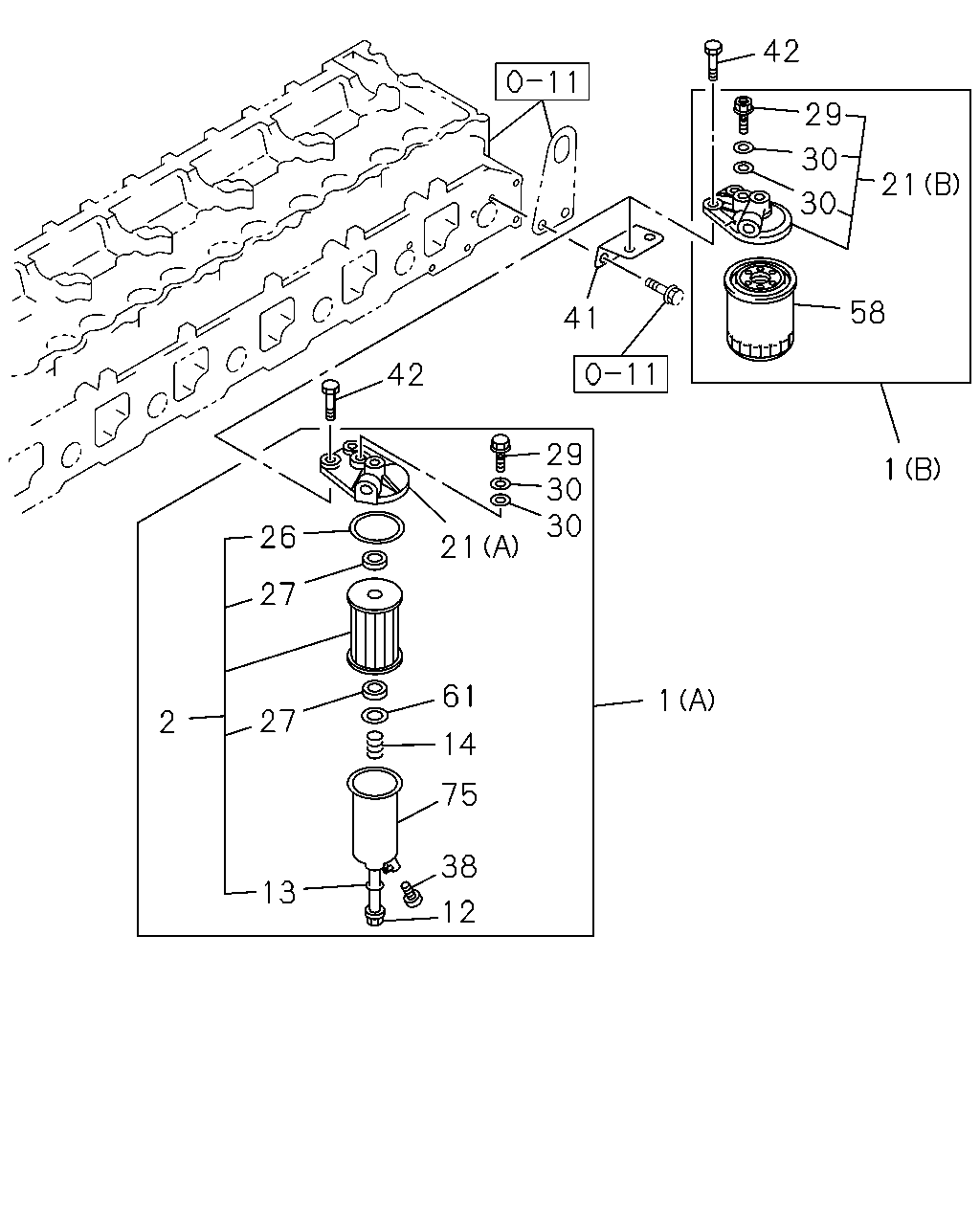

çizim 63538
42 29 30 21 30 58 41 42 29 30 30 1 26 21 27 61 1 27 2 14 75 38 13 12
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		8-94397-113-3 01 1 0602-
1 FILTER ASM; FUEL
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94393-449-3 01 1 0602-
2 ELEMENT KIT; FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-88511-191-1 01 1 0602-
12 BOLT; CENTER,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13231-053-0 01 1 0602-
13 GASKET; CENTER BOLT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09720-541-0 01 1 0602-
14 SPRING; ELEMENT SUPPORT,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09742-109-0 01 1 0602-
21 COVER; UPR,FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A) 		9-13212-804-0 01 1 0602-
21 COVER; UPR,FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		8-94396-669-1 01 1 0602-
26 GASKET; COVER TO BODY
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-13213-601-0 01 1 0602-
27 GASKET; ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09720-542-0 02 1 0602-
29 VALVE; OVERFLOW 8-94399-170-0 01 1 0602-
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0602-1312
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
38 PLUG; DRAIN
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13219-052-0 01 1 0602-
41 BRACKET; FUEL FILTER 8-94399-441-0 01 1 0602-
42 BOLT; FUEL FILTER
M10X35 FLANGE MAL 		0-28651-035-0 02 1 0602-
58 ELEMENT; FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94394-079-2 01 1 0602-
58 ELEMENT; FUEL FILTER
EXC. PARTIAL OIL FILTER ELEMENT TYPE<KC1> BEST VALUE PARTS 		1-87610-054-1 01 1 0602-
61 SEAT; SPR ELEMENT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		9-09651-068-0 01 1 0602-
75 BODY; FUEL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94393-518-1 01 1 0602-
