Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

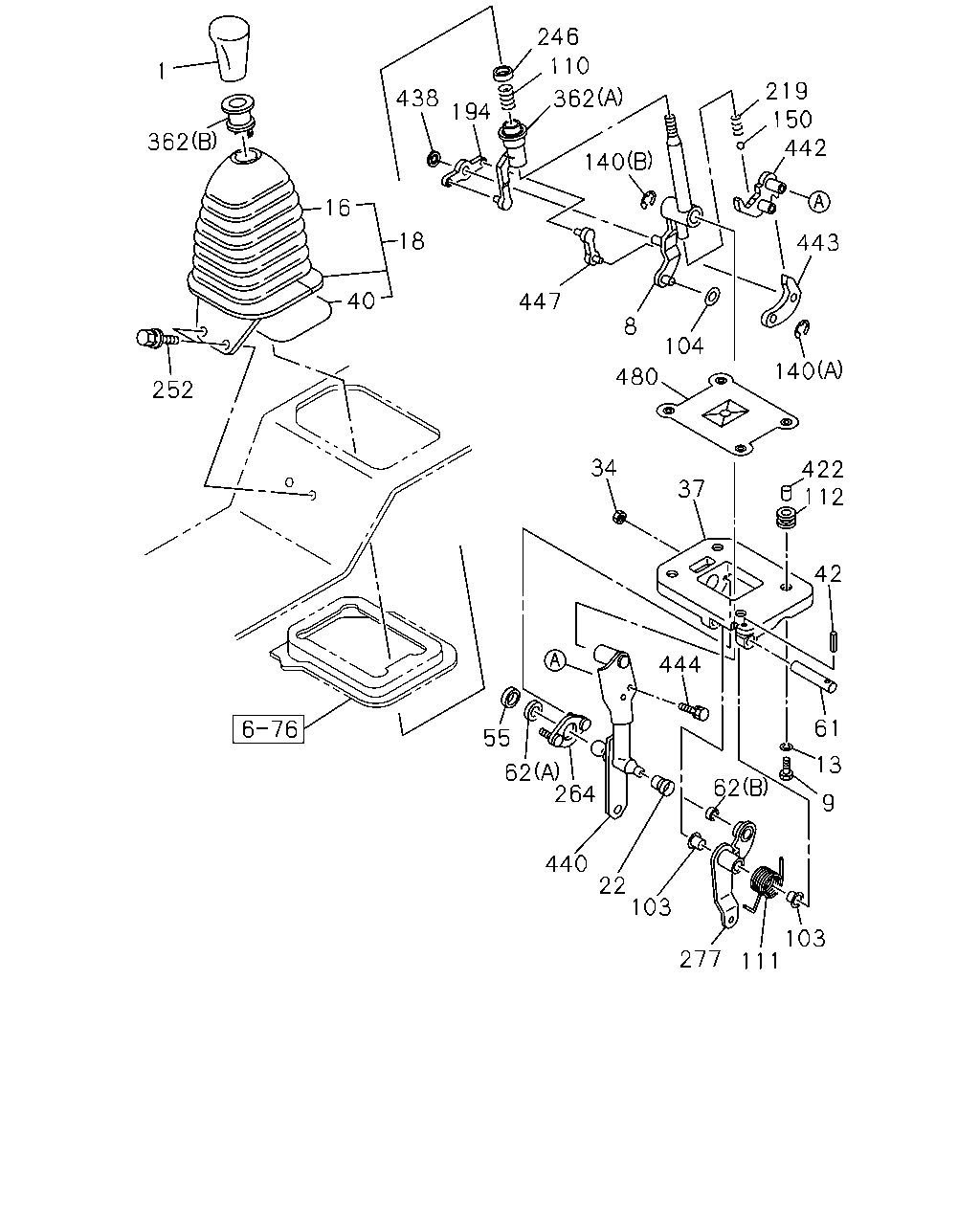

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#7217) — 40 parça
Tümü
A - MJD7S M/T
B - MAL6Q M/T
110
1
150
442
438
194
362
140
16
18
443
40
447
8
104
140
480
252
34
422
112
37
42
444
61
55
13
62
62
264
9
440
22
103
103
111
277
219
246
362
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
KNOB; CHANGE LEVER
1-33611-082-0
01
1
9906-
●
1
KNOB; CHANGE LEVER
1-33611-068-0
01
1
9907-
●
8
LEVER; CHANGE
1-33619-476-0
01
1
9906-
●
●
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28680-825-0
04
1
9906-
●
●
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9906-
●
●
16
BOOT; CHANGE LEVER
1-33614-116-0
01
1
9906-
●
●
18
BOOT; CHANGE LEVER
1-33614-122-1
01
1
9906-
●
●
22
COVER; DUST,CHANGE LEVER
1-33619-573-0
01
1
9906-
●
●
34
NUT
M6 FLANGE
0-91150-106-0
02
1
9906-
●
●
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-467-0
01
1
9906-
●
●
40
SEAL; BOOT HOLDER CHANGE LEVER
1-79996-345-0
01
1
9906-
●
●
42
PIN; SPRING,SELECT LEVER PIN
D=5 L=28
8-94252-581-0
01
1
9906-
●
●
55
SEAT; RUBBER,SELECT SPRING
1-33619-429-0
01
1
9906-
●
●
61
PIN; SELECT LEVER
1-33619-470-0
01
1
9906-
●
●
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
9906-
●
●
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
9906-
●
●
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
9906-
●
●
104
WASHER; WAVED
1-33619-436-0
01
1
9906-
●
●
110
SPRING; RETURN,CHANGE LEVER
1-33619-506-0
01
1
9906-
●
●
111
SPRING
1-09585-133-1
01
1
9906-
●
●
112
RUBBER; CUSHION
8-97091-426-0
04
1
9906-
●
●
140
RING; SNAP
(A) ID=7
9-09185-007-0
01
1
9906-
●
●
140
RING; SNAP
(B) ID=12
9-09185-012-0
01
1
9906-
●
●
150
BALL; DETENT,CONT LEVER
1-33619-433-0
01
1
9906-
●
●
194
LEVER; PULL
1-33619-481-0
01
1
9906-
●
●
219
SPRING; DETENT
1-33619-434-0
01
1
9906-
●
●
246
SEAT; SPR SET
1-33619-441-1
01
1
9906-
●
●
252
BOLT; COVER,CHANGE LEVER
M8X20 W/LK&PL WASHER
8-94279-208-0
04
1
9906-
●
●
264
PLATE; COVER
1-33619-469-0
01
1
9906-
●
●
277
LEVER; RELAY
1-33651-636-0
01
1
9906-
●
●
362
RING; PULL,CHANGE LEVER
(A)
1-33619-477-1
01
1
9906-
●
●
362
RING; PULL,CHANGE LEVER
(B)
1-33619-516-0
01
1
9906-
●
●
422
BUSHING; CHANGE LEVER
8-97091-427-0
04
1
9906-
●
●
438
NUT; LK,LINK ROD
1-33619-480-0
01
1
9906-
●
●
440
LEVER; SHIFT
1-33619-475-0
01
1
9906-
●
●
442
PLATE; LOCK
1-33619-478-1
01
1
9906-
●
●
443
LEVER; LOCK
1-33619-479-1
01
1
9906-
●
●
444
BOLT; PLATE
M8X25 W/LK WASHER
0-50040-825-0
02
1
9906-
●
●
447
LINK; LEVER
1-33619-482-1
01
1
9906-
●
●
480
RUBBER; COVER
1-33619-554-0
01
1
9906-
●
●
