Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#7216) — 360 parça

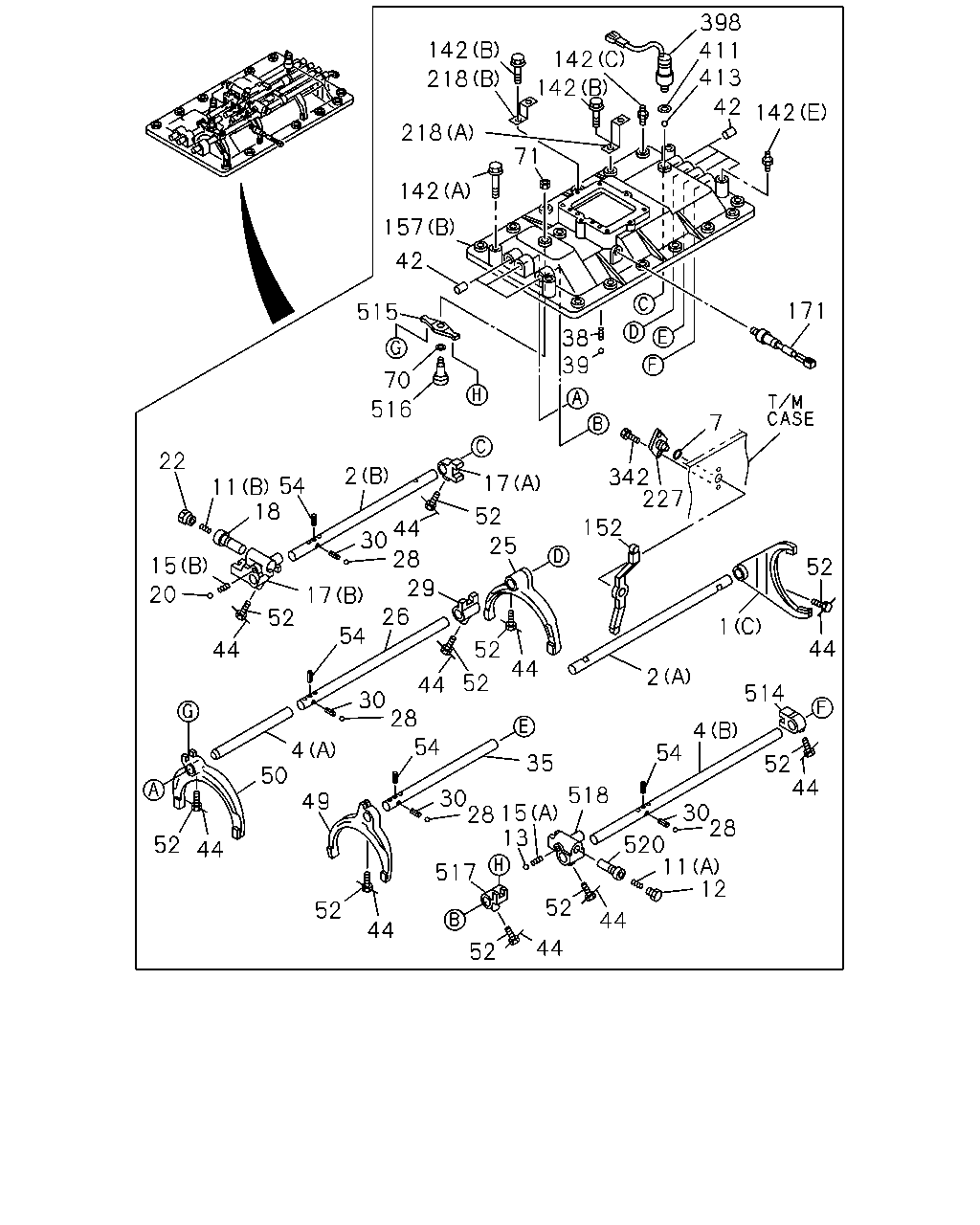

398 411 413 142 142 218 142 42 142 218 71 142 157 42 38 39 171 515 70 516 7 22 2 342 227 17 18 52 152 44 30 28 25 15 52 29 26 20 17 52 1 54 44 52 44 44 2 52 44 514 30 28 4 54 4 50 54 35 52 44 518 30 13 49 30 28 520 11 12 52 44 517 52 52 44 44 44 52 28 15 11 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (C)	1-33511-520-1	01	1	9906-	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9907-		●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9907-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	9906-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	9906-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9907-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9907-		●
4	ROD; SHIFT,6TH (B)	1-33531-421-1	01	1	9906-	●
4	ROD; SHIFT,6TH (A)	1-33531-422-1	01	1	9906-	●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	9907-		●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	9907-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9906-9906	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9907-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9906-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9906-9906	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9907-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9906-9906	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9907-9910	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9911-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9906-9906	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9907-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9906-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9906-9906	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9907-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-256-2	01	1	9906-9906	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-605-0	01	1	9906-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-482-0	01	1	9906-9906	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-603-0	01	1	9906-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9907-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9907-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9906-9906	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9907-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9906-9906	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9907-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9906-9906	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9907-9910	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9911-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	9906-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9907-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-419-1	01	1	9906-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	9907-		●
28	BALL; INTER LK	9-00097-501-0	04	1	9906-9906	●
28	BALL; INTER LK	9-00097-501-0	04	1	9907-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-286-1	01	1	9906-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9907-		●
30	PIN; INTER LK	9-33534-003-0	03	1	9906-9906	●
30	PIN; INTER LK	9-33534-003-0	03	1	9907-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-420-1	01	1	9906-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9906-9906	●
38	SPRING; DETENT	1-09580-379-0	04	1	9907-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9906-9906	●
39	BALL; DETENT	1-09843-012-0	04	1	9907-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9906-	●
44	WIRE; LK L=180	1-09780-024-0	08	1	9906-9911	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9912-	●
44	WIRE; LK L=200	9-08351-020-0	02	1	9906-9911	●
44	WIRE; LK L=200	9-08351-020-0	03	1	9912-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	9906-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9907-		●
50	ARM; SHIFT,6TH	1-33511-437-0	01	1	9906-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9907-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	9906-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9906-9906	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9907-	●	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	9906-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	9906-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9906-9906	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	04	1	9906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	02	1	9906-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9906-9906	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	9907-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	03	1	9907-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	9907-		●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	01	1	9907-		●
152	LEVER; RELAY,SELECT	1-33511-428-0	01	1	9906-	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9906-9906	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9907-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9906-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9907-		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9906-9906	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9907-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9906-9906	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9907-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9906-9906	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9907-	●	●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	9906-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9907-		●
342	BOLT M14X20	1-09044-078-0	02	1	9906-	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9906-	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9907-		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9906-	●
413	BALL; BACK SW	9-00097-013-0	01	1	9906-	●
514	BLOCK; 6-7 SETTING	1-33511-256-2	01	1	9906-9906	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	9906-	●
515	LEVER; SHIFT,6TH & 7TH	1-33511-082-0	01	1	9906-	●
516	SPINDLE; 6TH & 7TH	1-33519-012-0	01	1	9906-	●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-395-1	01	1	9906-	●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-293-2	01	1	9906-	●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	9906-	●

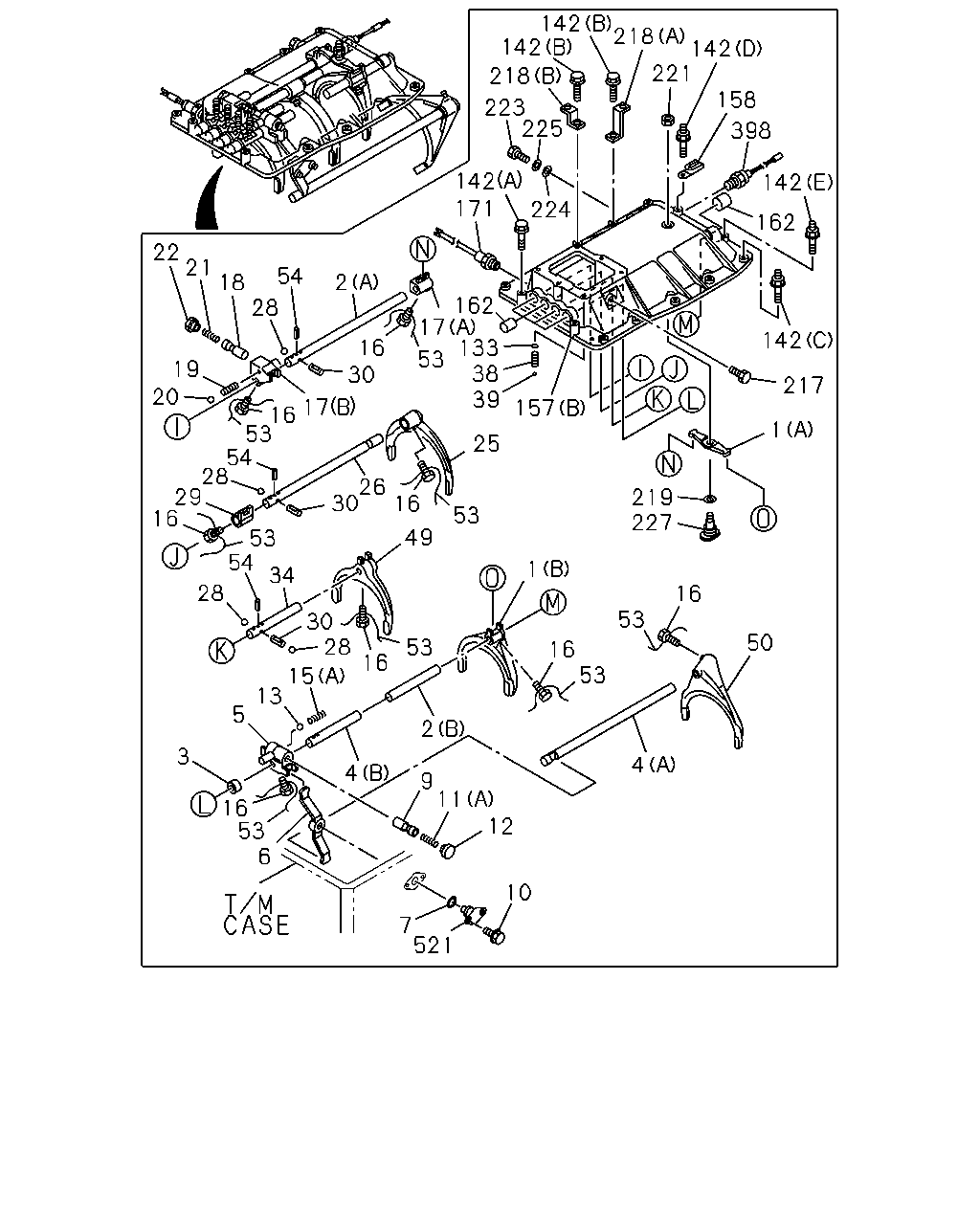

142 218 142 142 221 218 158 223 225 38 142 171 142 224 162 22 21 54 18 28 2 162 17 133 38 39 142 16 30 53 19 20 217 17 16 53 54 28 29 16 157 1 25 26 30 219 227 16 53 49 53 54 1 34 28 16 53 30 28 50 53 16 53 16 15 13 5 2 3 4 9 11 4 16 53 6 12 10 7 521

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (C)	1-33511-520-1	01	1	9906-	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	9907-		●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	9907-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	9906-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	9906-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9907-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9907-		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9907-		●
4	ROD; SHIFT,6TH (B)	1-33531-421-1	01	1	9906-	●
4	ROD; SHIFT,6TH (A)	1-33531-422-1	01	1	9906-	●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	9907-		●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	9907-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9907-		●
6	LEVER; RELAY	9-33511-402-1	01	1	9907-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9906-9906	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9907-	●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9907-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9907-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9906-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9906-9906	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9907-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9906-9906	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9907-9910	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9911-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9906-9906	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9907-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9906-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9906-9906	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9907-	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	9907-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-256-2	01	1	9906-9906	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-605-0	01	1	9906-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-482-0	01	1	9906-9906	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-603-0	01	1	9906-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	9907-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	9907-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9906-9906	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9907-	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9907-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9906-9906	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9907-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9907-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9906-9906	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9907-9910	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9911-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	9911-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	9906-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	9907-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-419-1	01	1	9906-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	9907-		●
28	BALL; INTER LK	9-00097-501-0	04	1	9906-9906	●
28	BALL; INTER LK	9-00097-501-0	04	1	9907-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-286-1	01	1	9906-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9907-		●
30	PIN; INTER LK	9-33534-003-0	03	1	9906-9906	●
30	PIN; INTER LK	9-33534-003-0	03	1	9907-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	9907-		●
38	SPRING; DETENT	1-09580-379-0	04	1	9906-9906	●
38	SPRING; DETENT	1-09580-379-0	04	1	9907-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9906-9906	●
39	BALL; DETENT	1-09843-012-0	04	1	9907-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	9906-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	9907-		●
50	ARM; SHIFT,6TH	1-33511-437-0	01	1	9906-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9907-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9907-		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9907-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9906-9906	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9907-	●	●
133	SEAT; SPR	1-33549-072-0	04	1	9907-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9906-9906	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	04	1	9906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	02	1	9906-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9906-9906	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	9907-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	03	1	9907-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	9907-		●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	01	1	9907-		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9906-9906	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9907-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9906-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9907-		●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9906-	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9907-		●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9907-		●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9906-9906	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9907-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9907-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9906-9906	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9907-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9906-9906	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9907-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9907-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9907-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9907-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9907-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9907-		●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	9906-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9907-		●
521	SPINDLE; 6TH	1-33119-255-0	01	1	9907-		●

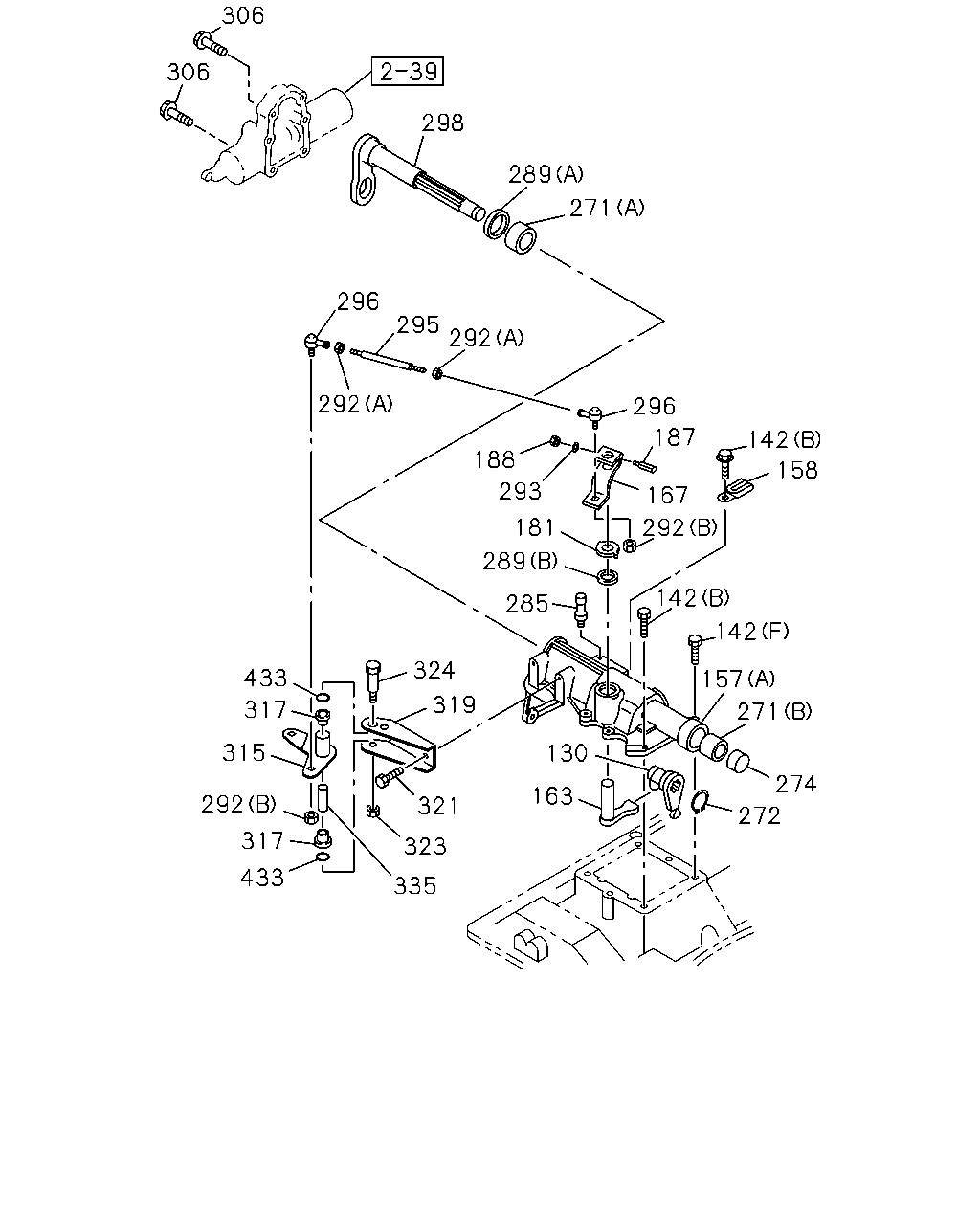

306 306 298 289 271 296 295 292 292 296 187 142 188 158 293 167 181 292 289 142 285 142 324 433 157 319 317 271 130 315 274 163 292 321 272 317 323 433 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	9906-9906	●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	9907-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9906-9906	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	04	1	9906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	02	1	9906-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9906-9906	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	9907-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	03	1	9907-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	9907-		●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	01	1	9907-		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9906-9906	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9907-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9906-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9907-		●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9906-	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9907-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9906-9906	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9907-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9906-9906	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9907-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9906-9906	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9907-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9906-9906	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9907-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9906-9906	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9907-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9906-9906	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9907-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9906-9906	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9907-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9906-9906	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9907-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9906-9906	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9907-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9906-9906	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9907-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9906-9906	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9907-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9906-9906	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9907-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9906-9906	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9907-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9906-9906	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9907-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9906-9906	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9907-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9906-9906	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9907-	●	●
296	ROD END	1-09760-108-0	02	1	9906-9906	●
296	ROD END	1-09760-108-0	02	1	9907-	●	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9906-9906	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9907-0307	●	●
298	SHAFT; SHIFT LEVER	1-33522-179-0	01	1	0308-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9906-9906	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9907-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9906-9906	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9907-	●	●
315	LEVER; SELECT	1-33651-727-0	01	1	9906-9906	●
315	LEVER; SELECT	1-33651-727-0	01	1	9907-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9906-9906	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9907-	●	●
319	BRACKET; SELECT LEVER	1-33657-591-0	01	1	9906-9906	●
319	BRACKET; SELECT LEVER	1-33657-591-0	01	1	9907-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9906-9906	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9907-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9906-9906	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9907-	●	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9906-9906	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9907-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9906-9906	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9907-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9906-9906	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9907-	●	●

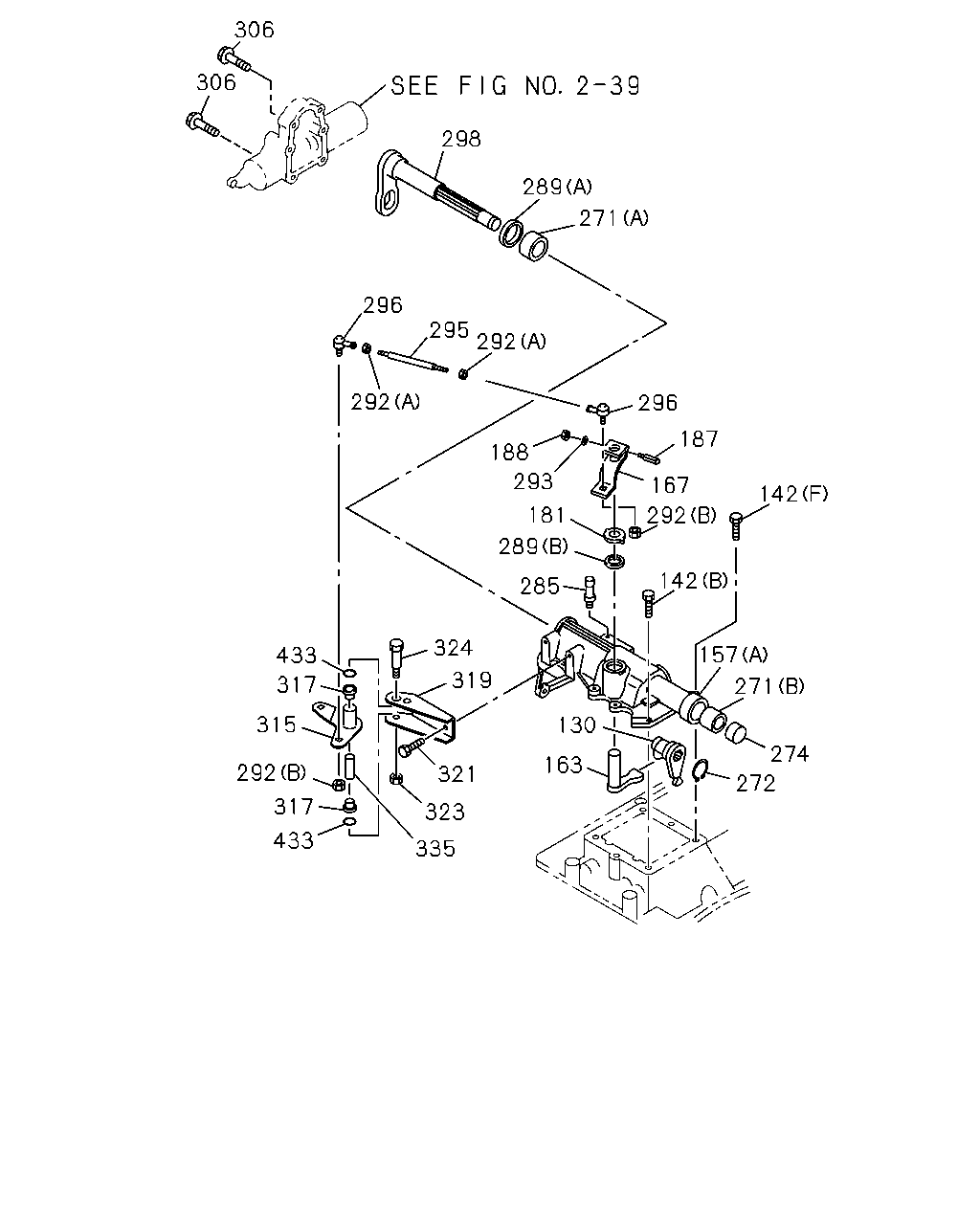

306 306 298 271 289 292 295 296 292 188 296 293 167 187 292 142 181 289 142 285 157 271 274 272 130 163 319 324 321 323 335 433 292 317 317 315 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	9906-9906	●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	9907-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	12	1	9906-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9906-9906	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	04	1	9906-	●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	02	1	9906-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9906-9906	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9907-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	9907-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26, L=56	1-09049-014-1	03	1	9907-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	9907-		●
142	BOLT; QUAD BOX (E) M10X20,M10X55 L=85	1-09049-016-0	01	1	9907-		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9906-9906	●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	9907-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-466-0	01	1	9906-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	9907-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9906-9906	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9907-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9906-9906	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9907-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9906-9906	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9907-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9906-9906	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9907-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9906-9906	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9907-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9906-9906	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9907-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9906-9906	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9907-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9906-9906	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9907-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9906-9906	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9907-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9906-9906	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9907-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9906-9906	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9907-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9906-9906	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9907-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9906-9906	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9907-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9906-9906	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9907-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9906-9906	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9907-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9906-9906	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9907-	●	●
296	ROD END	1-09760-108-0	02	1	9906-9906	●
296	ROD END	1-09760-108-0	02	1	9907-	●	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9906-9906	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9907-0307	●	●
298	SHAFT; SHIFT LEVER	1-33522-179-0	01	1	0308-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9906-9906	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9907-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9906-9906	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9907-	●	●
315	LEVER; SELECT	1-33651-727-0	01	1	9906-9906	●
315	LEVER; SELECT	1-33651-727-0	01	1	9907-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9906-9906	●
317	BUSHING; LEVER	1-09330-119-0	02	1	9907-	●	●
319	BRACKET; SELECT LEVER	1-33657-591-0	01	1	9906-9906	●
319	BRACKET; SELECT LEVER	1-33657-591-0	01	1	9907-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9906-9906	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9907-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9906-9906	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9907-	●	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9906-9906	●
324	BOLT; SHAFT M10X60	0-10811-060-0	01	1	9907-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9906-9906	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	9907-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9906-9906	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
