◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#72154) — 15 parça
çizim 141407
1 17 16 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1103- ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1010-1102 ●
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1103- ● ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1010- ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1103- ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1010-1102 ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1103- ● ●
20 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE 		1-09044-073-0 04 1 1103- ●

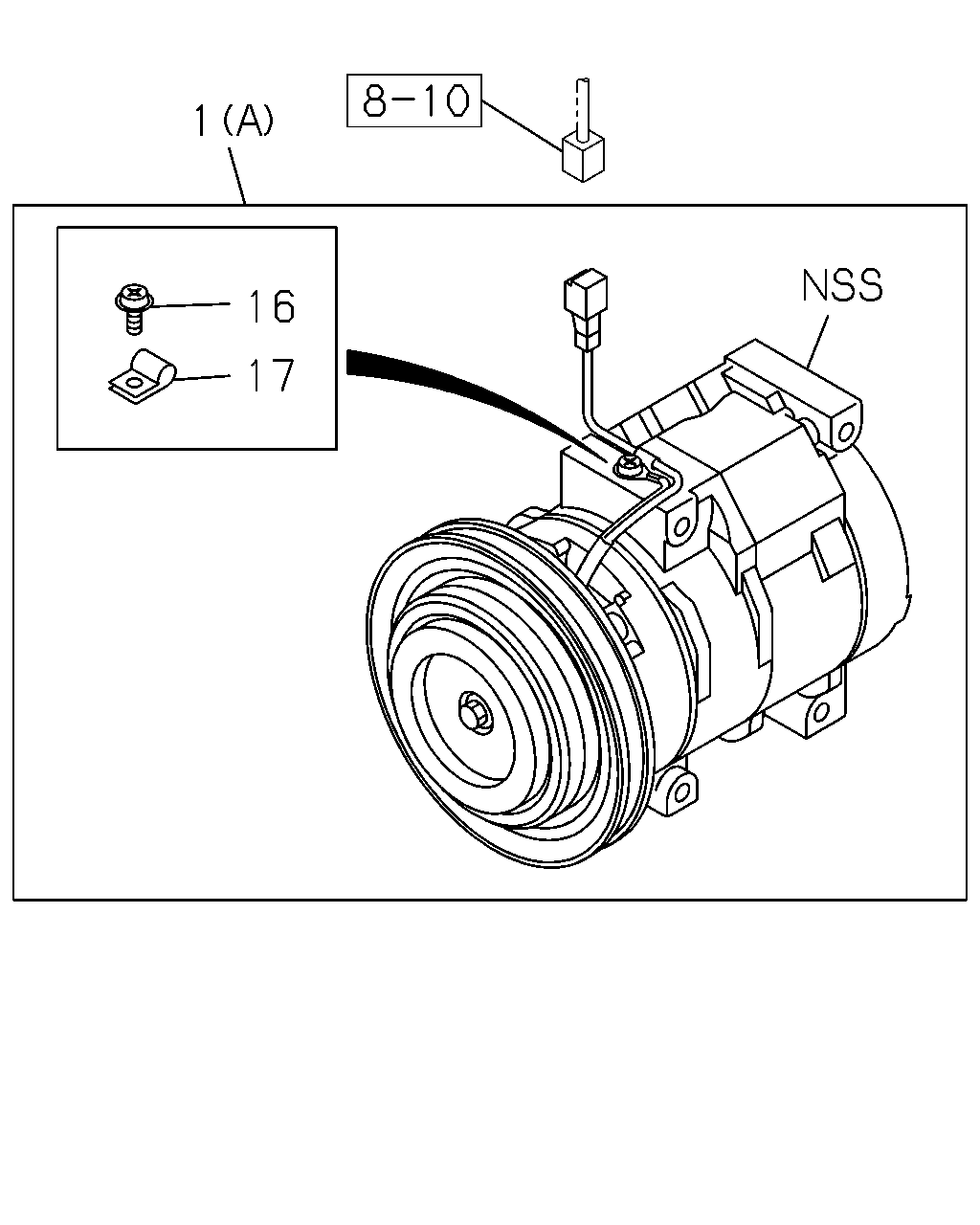

çizim 190057
1 16 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1103- ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1010-1102 ●
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1103- ● ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1010- ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1103- ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1010-1102 ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1103- ● ●
