Sayfa 2-26 - Isuzu EPC

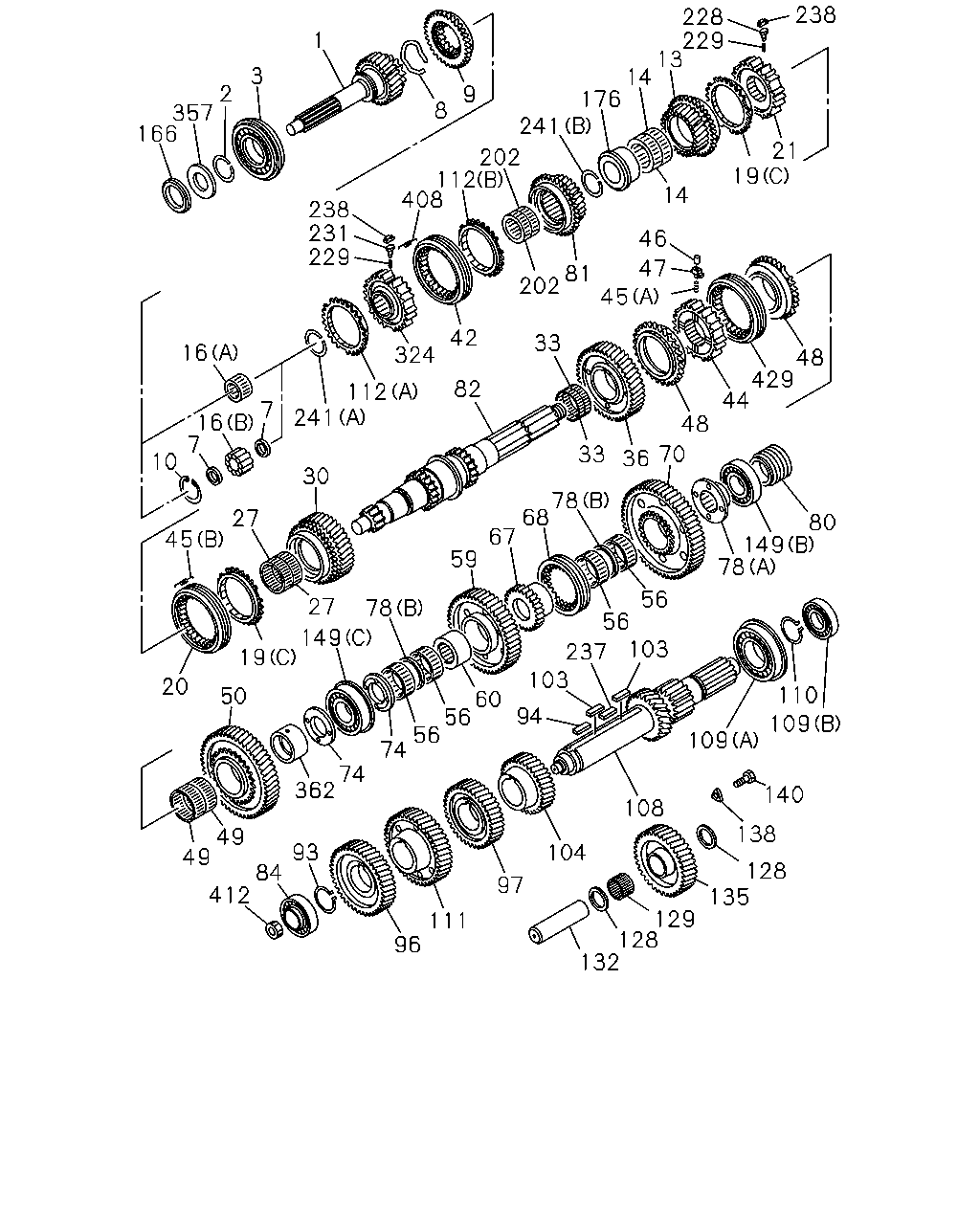

2-26 — MANUAL TRANSMISSION GEAR (#7215) — 360 parça

238 228 229 13 14 176 241 1 3 2 357 166 9 8 21 19 202 112 408 14 238 231 229 46 47 81 202 45 42 33 16 324 48 429 44 7 16 7 82 112 241 48 36 70 33 10 30 78 68 67 27 45 80 149 78 59 56 27 78 56 103 149 19 237 103 20 110 50 60 56 56 74 94 109 109 74 362 140 108 138 49 49 93 104 128 135 84 412 97 129 128 132 111 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-834-2	01	1	9906-0112	●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33215-004-0	01	1	0201-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9907-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-224-2	01	1	9906-9912	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0001-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-236-1	01	1	9906-9912	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0001-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9907-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9907-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0201-	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	9906-	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9907-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	9906-	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9907-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0201-	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-562-1	01	1	9906-9910	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-706-0	01	1	9911-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	9906-	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	9906-	●
16	BEARING; PILOT,MAINSHAFT (A) NSK	1-09810-139-0	01	1	9906-9906	●
16	BEARING; PILOT,MAINSHAFT (A) NSK	1-09810-139-0	01	1	9907-0112	●	●
16	BEARING; PILOT,MAINSHAFT (A) NSK	1-09810-139-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT (A) NTN	1-09810-208-0	01	1	9906-9906	●
16	BEARING; PILOT,MAINSHAFT (A) NTN	1-09810-208-0	01	1	9907-0112	●	●
16	BEARING; PILOT,MAINSHAFT (A) NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT (B) NSK	1-09810-242-0	16	1	0201-	●
16	BEARING; PILOT,MAINSHAFT (B) NTN	1-09810-243-0	16	1	0201-	●
19	RING; BLOCK,4TH & 5TH (C)	1-33265-429-0	02	1	9906-9908	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	9909-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9907-		●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9907-9908		●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-		●
20	SLEEVE	1-33262-133-2	01	1	9906-0010	●
20	SLEEVE	1-33262-222-0	01	1	0011-	●
20	SLEEVE	1-33262-097-1	01	1	9907-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	9906-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9907-		●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	9906-	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	9906-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9907-		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9907-		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-560-1	01	1	9906-	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9907-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	9906-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	9906-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	9907-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	9907-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	9906-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9907-		●
42	SLEEVE	1-33262-133-2	01	1	9906-0010	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-190-2	01	1	9906-9907	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	9908-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-209-3	01	1	9907-9907		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	9908-		●
45	SPRING; BLOCK INSERT (A)	1-09580-395-0	03	1	9906-9906	●
45	SPRING; BLOCK INSERT (A)	1-09580-395-0	03	1	9907-9907	●	●
45	SPRING; BLOCK INSERT (A)	1-09580-395-0	06	1	9908-	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	9906-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9906-9906	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9907-9907	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9908-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9906-9906	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9907-9907	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9908-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-508-1	02	1	9906-9907	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-524-0	02	1	9908-9909	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	9910-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-507-1	02	1	9907-9907		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-523-0	02	1	9908-9909		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	9910-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	9906-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	9906-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	9907-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	9907-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	9906-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9907-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	9906-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	9906-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9907-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9907-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	9906-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9907-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	9906-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	9906-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	9907-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9906-9906	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9907-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	9906-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9907-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	9906-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	9906-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	9906-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	9907-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9906-	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9907-		●
81	GEAR; 7TH,MAIN Z=24-66	1-33253-532-0	01	1	9906-	●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	9906-0112	●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0201-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9907-9908		●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-306-0	01	1	9909-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9906-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9906-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9907-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9907-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9906-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9907-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	9906-	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9907-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-220-0	01	1	9906-0101	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-269-0	01	1	0102-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9907-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-283-0	01	1	9906-9911	●
97	GEAR; 5TH,COUNTER Z=36	1-33338-363-0	01	1	9912-0101	●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0102-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	9906-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	9906-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	9907-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9907-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-285-2	01	1	9906-0006	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-382-0	01	1	0007-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9907-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	9906-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9907-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	9907-		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	9907-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	9906-	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9907-		●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-281-0	01	1	9906-9911	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-365-0	01	1	9912-0101	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0102-	●
112	RING; BLOCK,7TH SYN (A)	1-33265-376-4	01	1	9906-	●
112	RING; BLOCK,7TH SYN (B)	1-33265-429-0	01	1	9906-9908	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	9909-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9906-9906	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9907-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	9906-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	9906-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9907-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9907-		●
132	SHAFT; REV	1-33351-025-4	01	1	9906-	●
132	SHAFT; REV	1-33351-012-2	01	1	9907-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	9906-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	9907-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9906-	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9906-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9906-9906	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9907-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9906-9906	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9907-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-203-0	01	1	9906-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-204-0	01	1	9906-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9907-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9907-		●
166	PIECE; DIST	1-33363-032-1	01	1	9906-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	9906-	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	9906-	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	9906-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	9906-	●
229	SPRING; PLUNGER	1-09580-091-1	06	1	9906-	●
231	PLUNGER	1-33263-020-0	03	1	9906-	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	9906-	●
238	INSERT	1-33263-025-2	06	1	9906-	●
241	RING; SNAP (A)	1-09588-185-0	01	1	9906-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	9906-	●
324	HUB; CLU	1-33261-238-0	01	1	9906-	●
357	RING	1-31349-015-0	01	1	9906-	●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	9906-	●
408	SPRING	1-09583-171-0	03	1	9906-	●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	9906-	●
429	SLEEVE; 2ND & 3RD	1-33262-184-3	01	1	9906-0010	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0011-	●
429	SLEEVE; 2ND & 3RD	1-33262-187-2	01	1	9907-0010		●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0011-		●

8 48 429 47 1 46 45 49 49 3 2 9 33 32 50 27 44 48 28 80 149 78 77 30 22 25 23 26 36 33 27 149 19 56 21 68 20 67 19 17 16 76 59 126 120 56 70 126 125 122 124 56 82 56 115 121 119 118 103 94 115 110 101 103 109 102 96 128 129 108 93 84 135 129 128 130 134 133 105 104 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-834-2	01	1	9906-0112	●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33215-004-0	01	1	0201-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-609-0	01	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	9906-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9907-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9907-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-224-2	01	1	9906-9912	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0001-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-236-1	01	1	9906-9912	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0001-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9907-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9907-		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	9906-	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9907-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	9906-	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9907-		●
16	BEARING; PILOT,MAINSHAFT (A) NSK	1-09810-139-0	01	1	9906-9906	●
16	BEARING; PILOT,MAINSHAFT (A) NSK	1-09810-139-0	01	1	9907-0112	●	●
16	BEARING; PILOT,MAINSHAFT (A) NSK	1-09810-139-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT (A) NTN	1-09810-208-0	01	1	9906-9906	●
16	BEARING; PILOT,MAINSHAFT (A) NTN	1-09810-208-0	01	1	9907-0112	●	●
16	BEARING; PILOT,MAINSHAFT (A) NTN	1-09810-208-0	01	1	0201-		●
16	BEARING; PILOT,MAINSHAFT (B) NSK	1-09810-242-0	16	1	0201-	●
16	BEARING; PILOT,MAINSHAFT (B) NTN	1-09810-243-0	16	1	0201-	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9907-		●
19	RING; BLOCK,4TH & 5TH (C)	1-33265-429-0	02	1	9906-9908	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	9909-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9907-		●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9907-9908		●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-		●
20	SLEEVE	1-33262-133-2	01	1	9906-0010	●
20	SLEEVE	1-33262-222-0	01	1	0011-	●
20	SLEEVE	1-33262-097-1	01	1	9907-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	9906-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9907-		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9907-		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9907-		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9907-		●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9907-		●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	9906-	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	9906-	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9907-		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9907-		●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9907-		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-560-1	01	1	9906-	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9907-		●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	9907-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	9906-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	9906-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	9907-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	9907-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	9906-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9907-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-190-2	01	1	9906-9907	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	9908-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-209-3	01	1	9907-9907		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	9908-		●
45	SPRING; BLOCK INSERT (A)	1-09580-395-0	03	1	9906-9906	●
45	SPRING; BLOCK INSERT (A)	1-09580-395-0	03	1	9907-9907	●	●
45	SPRING; BLOCK INSERT (A)	1-09580-395-0	06	1	9908-	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	9906-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9906-9906	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9907-9907	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9908-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9906-9906	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9907-9907	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9908-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-508-1	02	1	9906-9907	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-524-0	02	1	9908-9909	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	9910-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-507-1	02	1	9907-9907		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-523-0	02	1	9908-9909		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	9910-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	9906-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	9906-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	9907-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	9907-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	9906-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9907-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	9906-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	9906-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9907-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9907-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	9906-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9907-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	9906-	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	9907-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9906-9906	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9907-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	9906-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9907-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	9907-		●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	9907-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	9906-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	9906-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	9907-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9906-	●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9907-		●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	9906-0112	●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0201-	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9907-9908		●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-306-0	01	1	9909-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9906-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9906-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9907-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9907-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9906-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9907-		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	9906-	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9907-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-220-0	01	1	9906-0101	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-269-0	01	1	0102-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9907-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9907-		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9907-		●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	9906-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	9906-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	9907-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9907-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-285-2	01	1	9906-0006	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-382-0	01	1	0007-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9907-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9907-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	9906-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9907-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	9906-	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	9907-		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	9907-		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	9906-	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9907-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9907-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9907-		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	9907-		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9907-		●
120	SLEEVE	1-33262-098-2	01	1	9907-		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9907-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9907-		●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9907-		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9907-		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9907-		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9907-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9906-9906	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9907-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	9906-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	9906-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9907-		●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9907-		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9907-		●
132	SHAFT; REV	1-33351-025-4	01	1	9906-	●
132	SHAFT; REV	1-33351-012-2	01	1	9907-		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9907-		●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9907-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	9906-	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	9907-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9906-9906	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9907-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9906-9906	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9907-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-203-0	01	1	9906-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-204-0	01	1	9906-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9907-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9907-		●
429	SLEEVE; 2ND & 3RD	1-33262-184-3	01	1	9906-0010	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0011-	●
429	SLEEVE; 2ND & 3RD	1-33262-187-2	01	1	9907-0010		●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0011-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
