Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#72147) — 226 parça

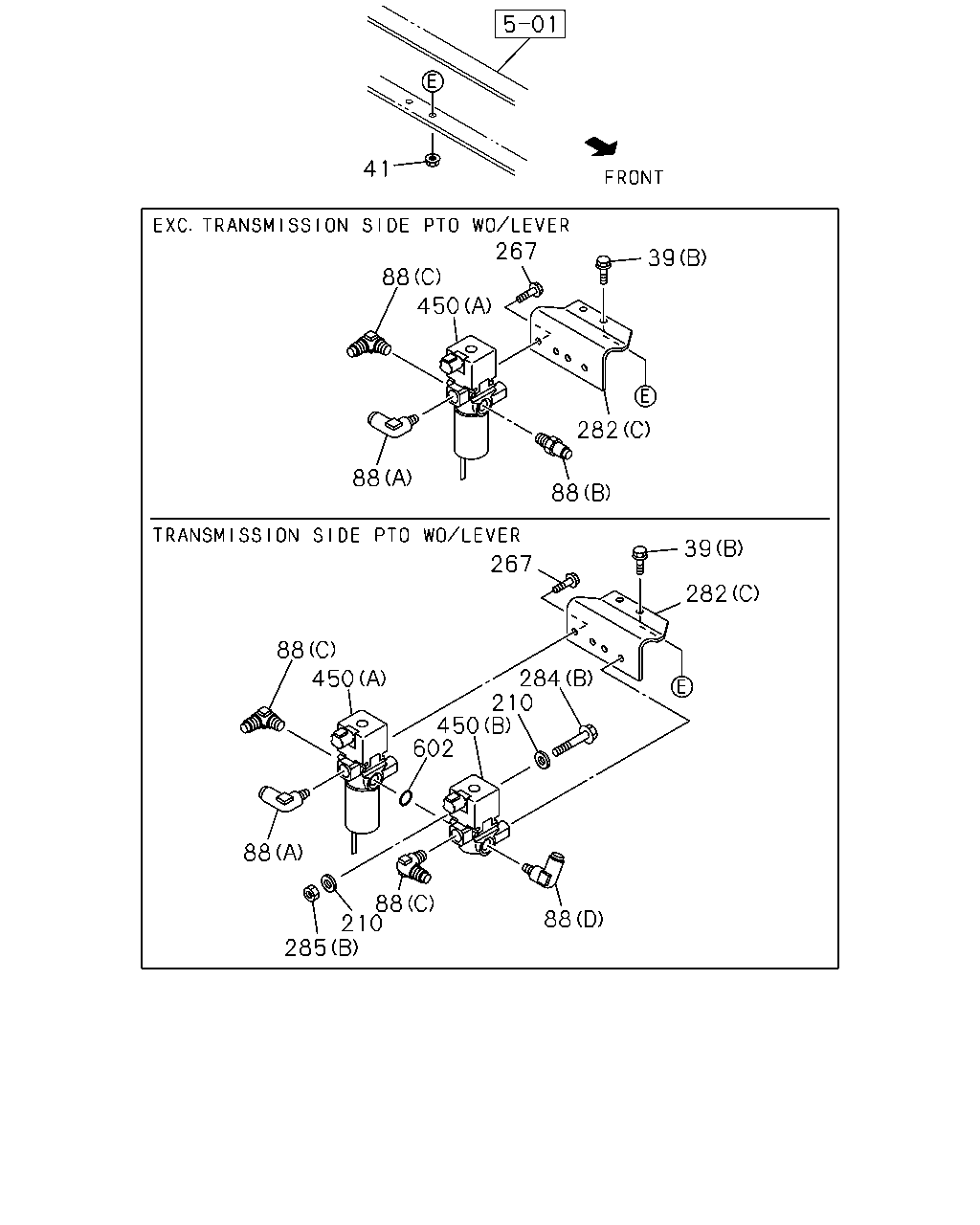

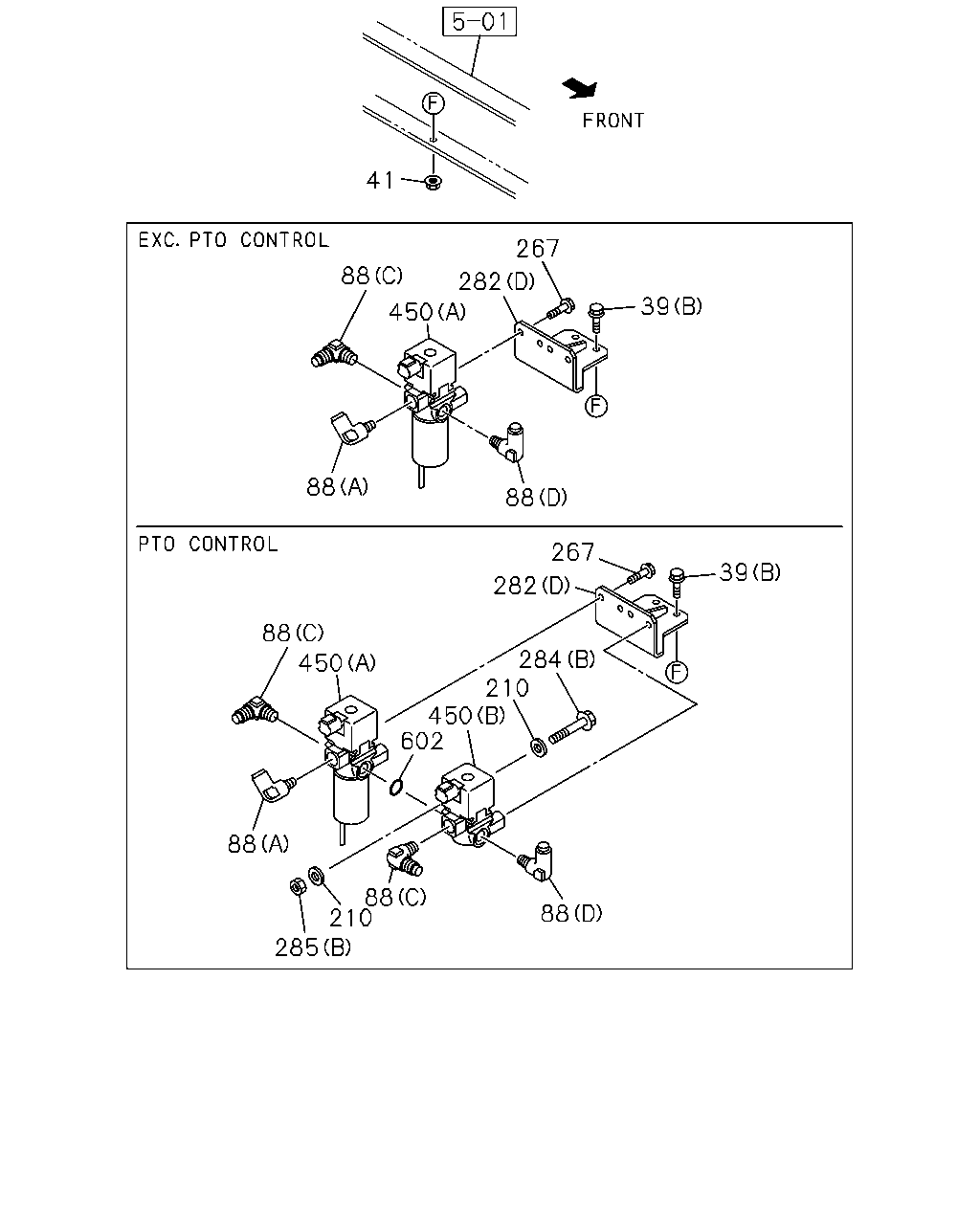

41 88 267 39 88 450 282 88 39 282 267 88 450 450 602 88 285 210 88 88 210 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1010-	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-		●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	1010-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1010-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1102	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1102		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1103-	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1102	●
267	BOLT; VLV TO BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1010-1102		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	1103-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	1010-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	1010-	●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	1010-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1103-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	1010-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) (A)	8-97633-075-0	01	1	1010-1102		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1103-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1103-	●	●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	1010-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1102	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1102		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1103-	●	●

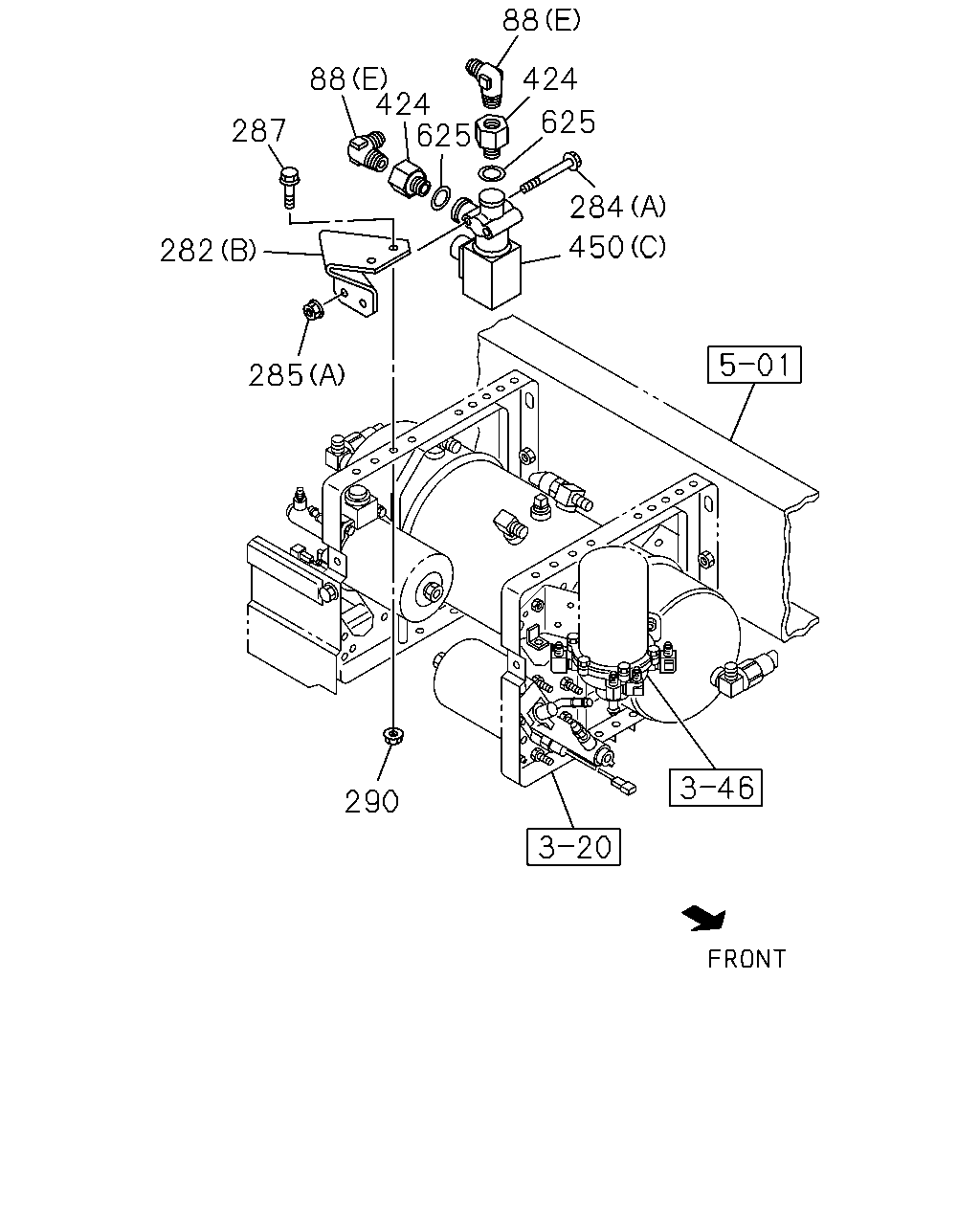

290 285 282 287 88 424 88 424 625 284 450 625

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1010-	●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	1103-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	1010-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	1010-	●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	1010-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1103-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	1010-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●
287	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●
290	NUT THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1010-	●
424	ADAPTER THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	1010-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) (A)	8-97633-075-0	01	1	1010-1102		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1103-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1103-	●	●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	1010-	●
625	GASKET; CONNECTOR THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24	9-09571-416-0	02	1	1010-	●

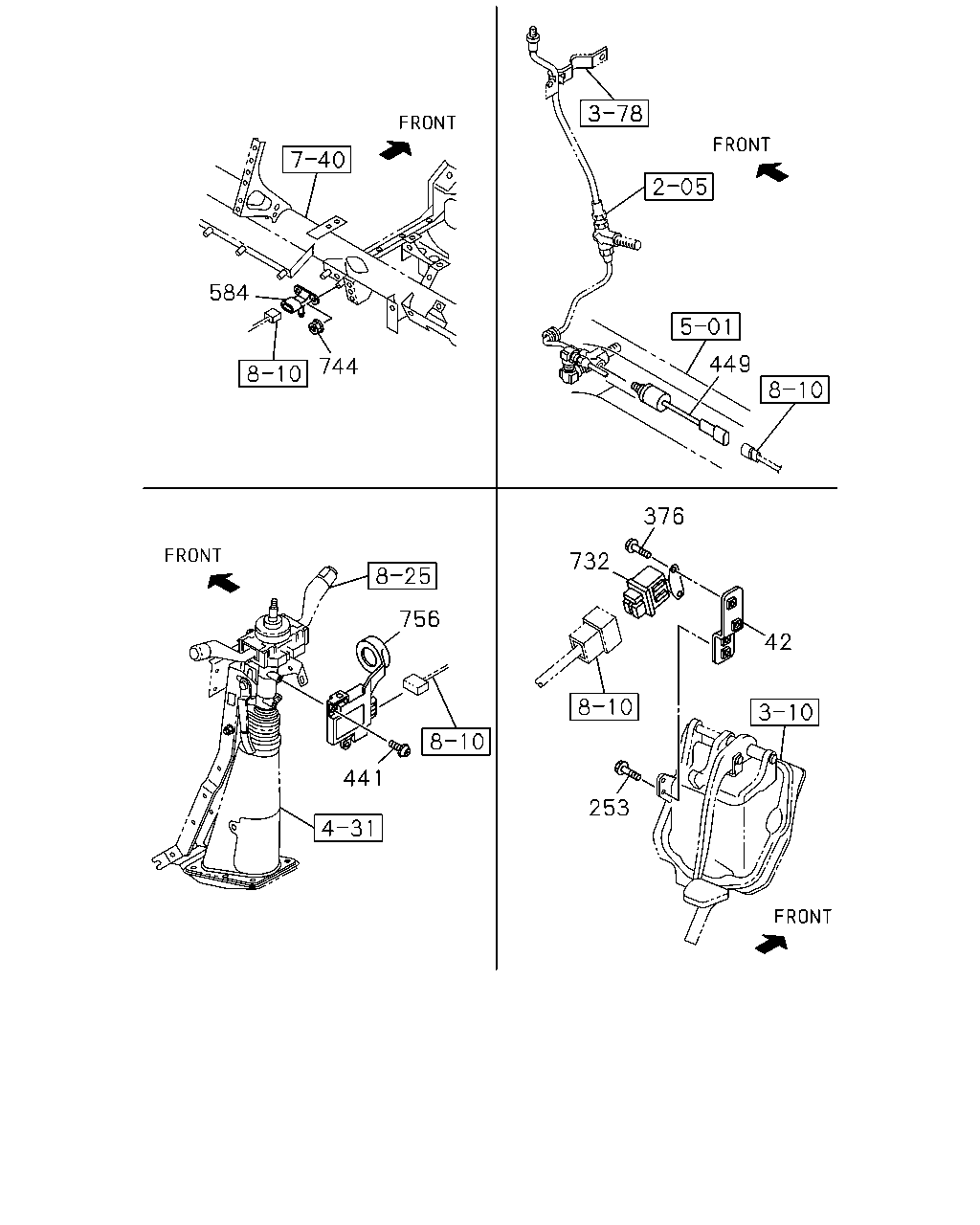

584 744 756 441 732 376 253 449 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	BRACKET; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-051-2	01	1	1010-	●	●
253	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
376	BOLT; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1010-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1010-	●	●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	1010-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1010-	●	●
732	RELAY; EDS TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82550-337-1	01	1	1010-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1010-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1010-	●	●

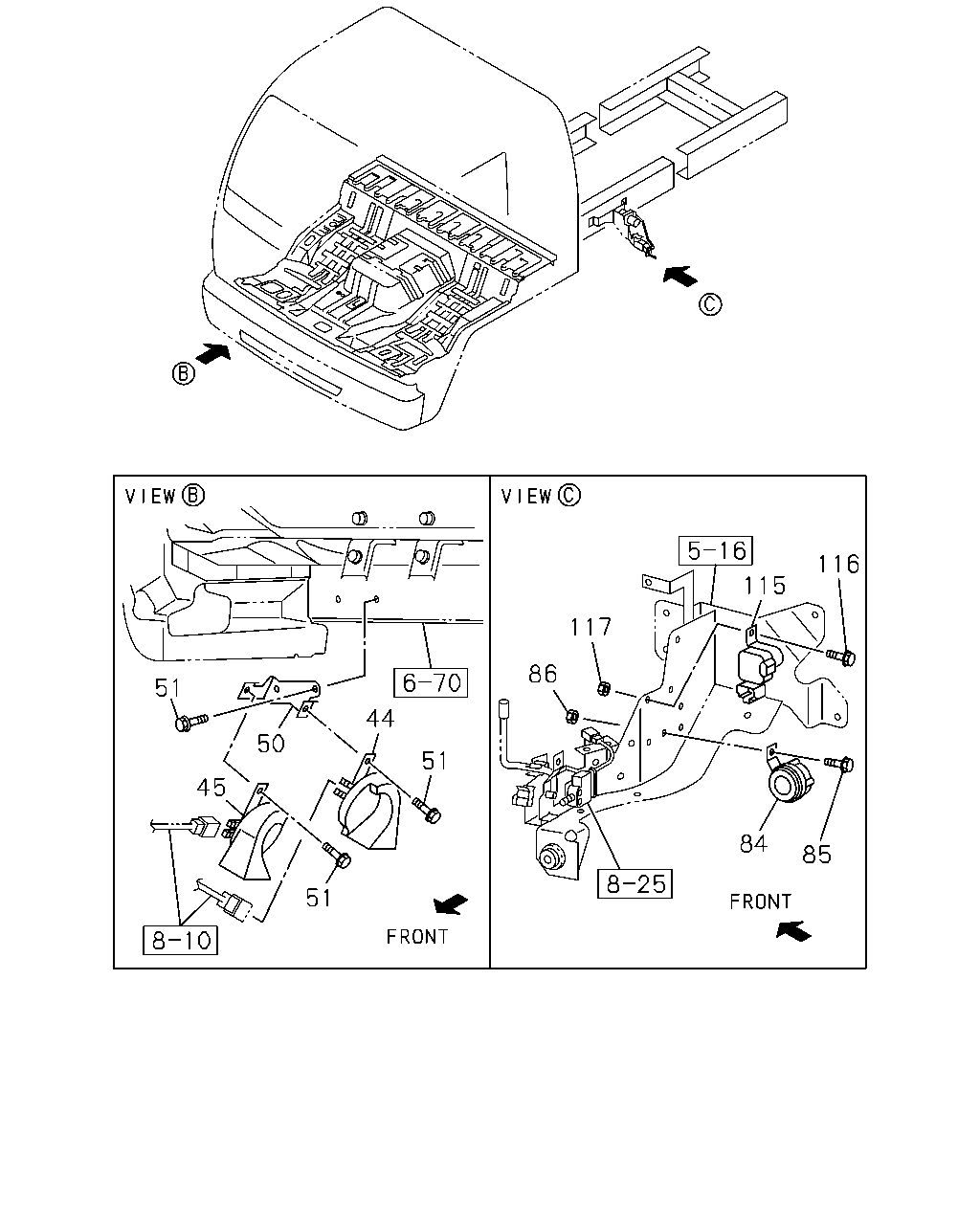

51 50 45 51 44 51 117 86 84 85 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1010-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1010-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1010-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1010-		●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1010-		●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1010-		●
115	RELAY; POWER CAB TILT UNIT 24V NIKKO	8-98005-631-1	01	1	1010-		●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1010-		●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1010-		●

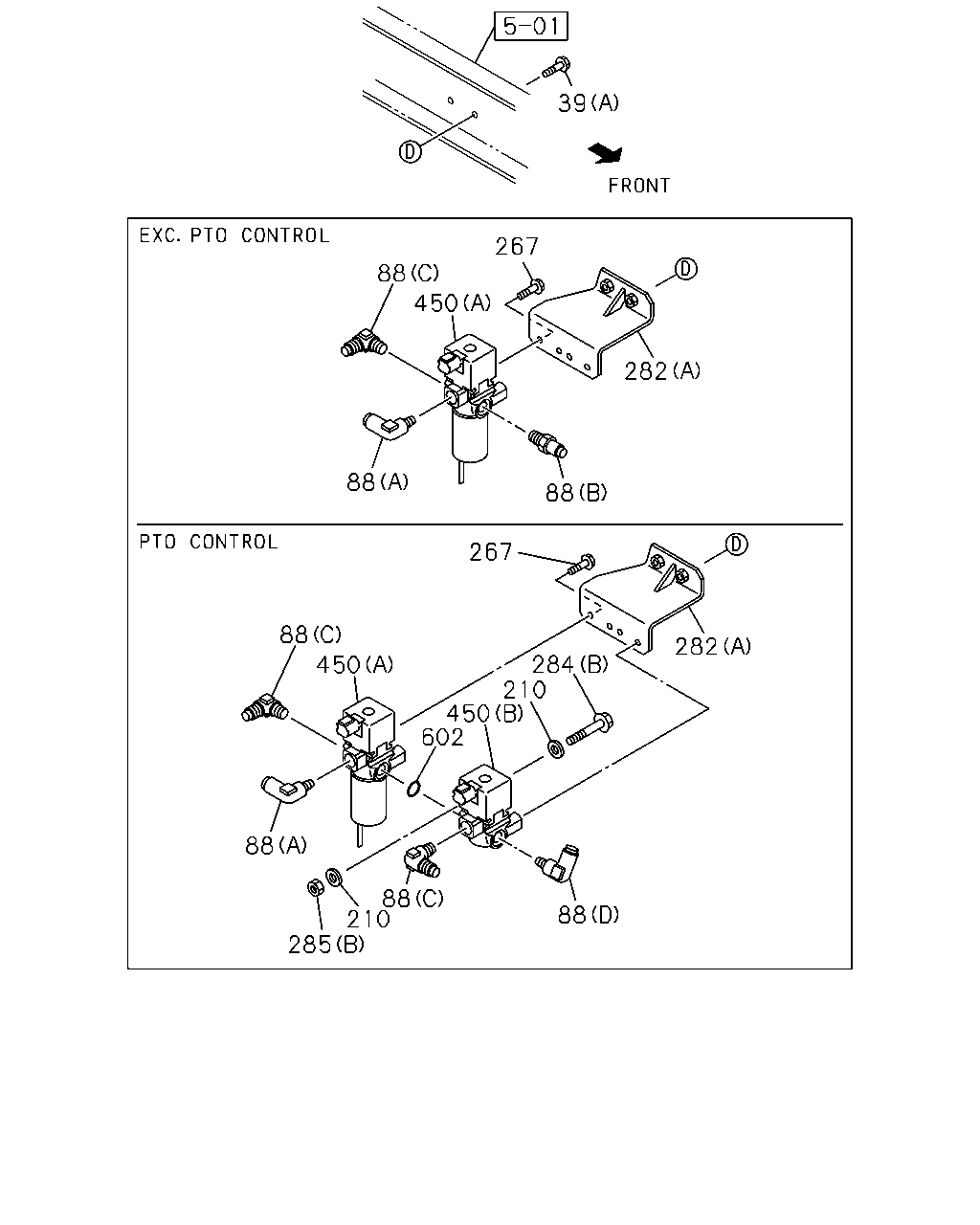

88 267 450 282 88 88 267 282 284 210 450 602 88 88 210 285 88 450 88 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1010-	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1010-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1102	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1102		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1103-	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1102	●
267	BOLT; VLV TO BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1010-1102		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	1103-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	1010-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	1010-	●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	1010-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1103-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	1010-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) (A)	8-97633-075-0	01	1	1010-1102		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1103-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1103-	●	●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	1010-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1102	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1102		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1103-	●	●

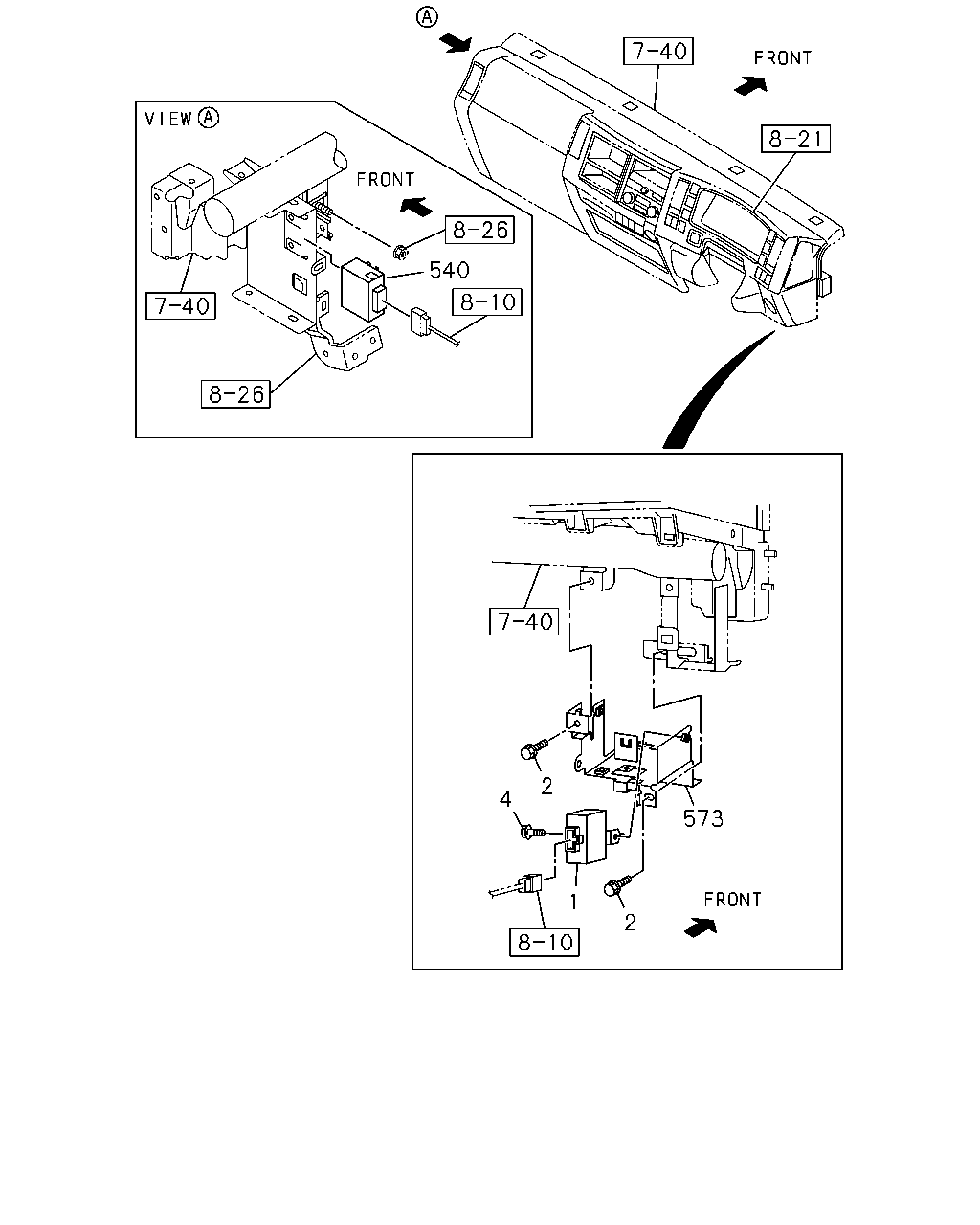

540 4 2 1 2 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1010-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1010-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1010-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1010-	●	●

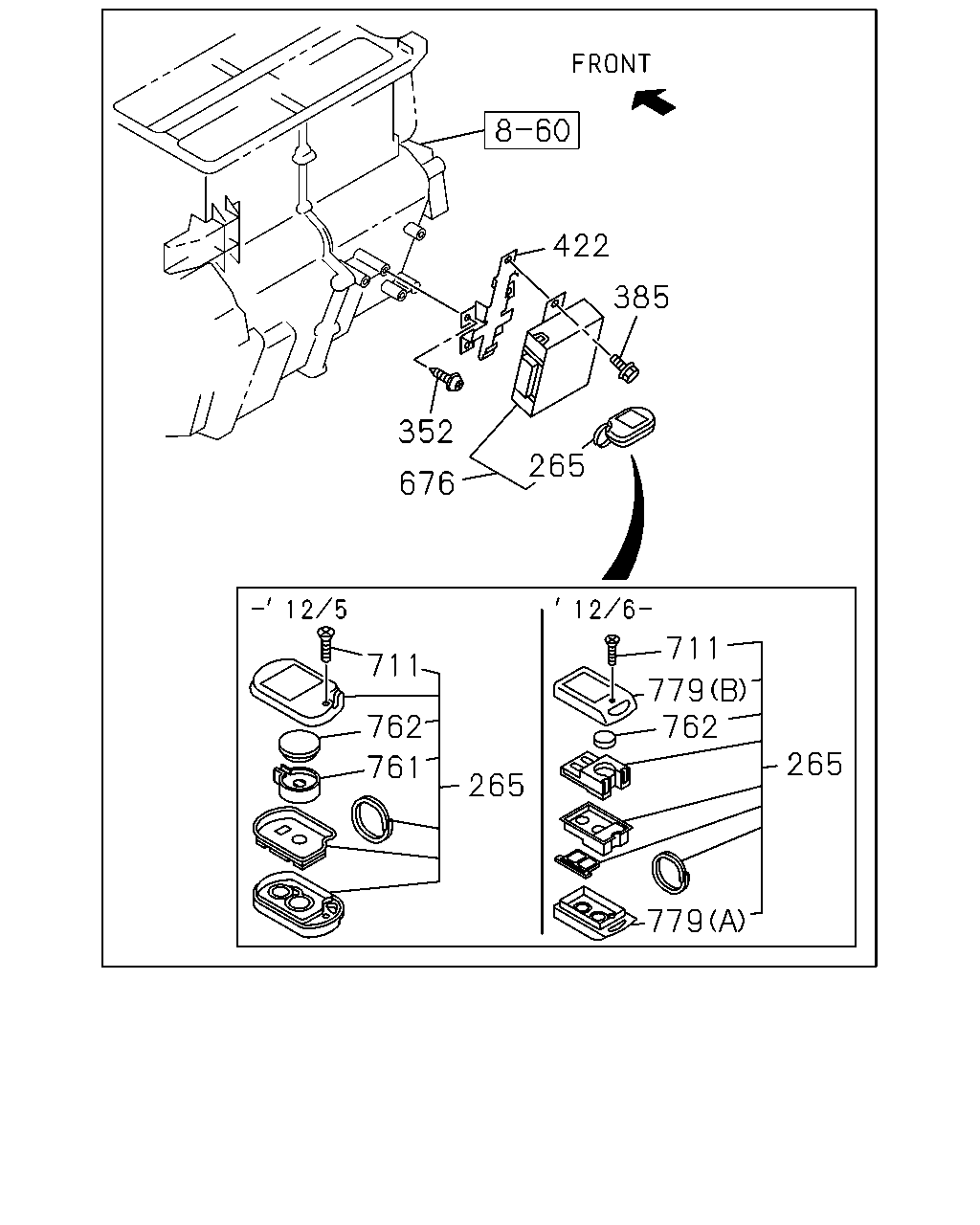

422 385 265 352 676 711 762 761 265 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	1010-1012	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1010-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1010-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	1010-1012	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1010-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1010-1012	●	●
762	BATTERY	8-98078-061-0	02	1	1010-	●	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-	●	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

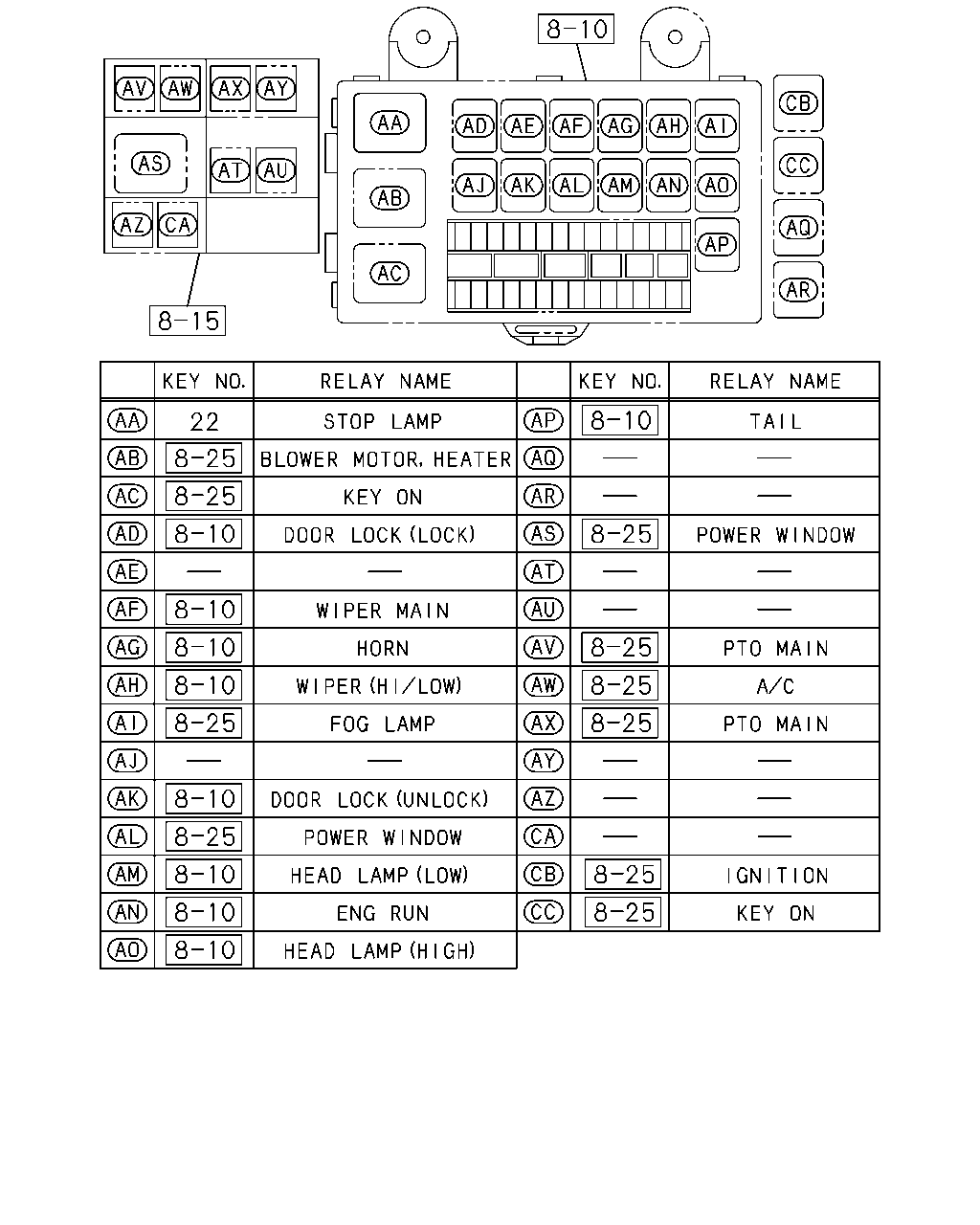

	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1010-	●	●

41 88 282 267 450 88 88 39 267 39 282 284 210 450 602 88 88 210 285 88 88 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1010-	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-		●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	1010-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV 4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1103-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-1102		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-	●
88	CONNECTOR; MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1010-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1010-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1102	●
210	WASHER; PL,BRKT 6HK1-TCN ENG(82L) PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1102		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1103-	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1102	●
267	BOLT; VLV TO BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1010-1102		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
282	BRACKET; MAG VLV 4HK1-TCS ENG(RJS) (D)	1-47479-799-0	01	1	1103-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	1010-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	1010-	●
282	BRACKET; MAG VLV 6HK1-TCN ENG(82L) (C)	8-98103-026-1	01	1	1010-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102	●
284	BOLT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1010-1102		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1103-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	1010-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102	●
285	NUT; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1010-1102		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) (A)	8-97633-075-0	01	1	1010-1102		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1103-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102	●
450	VALVE; MAG 6HK1-TCN ENG(82L) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1102		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1103-	●	●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	1010-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1102	●
602	GASKET; MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1102		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1103-	●	●

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1010-1402	●	●
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
