Sayfa 8-27 - Isuzu EPC

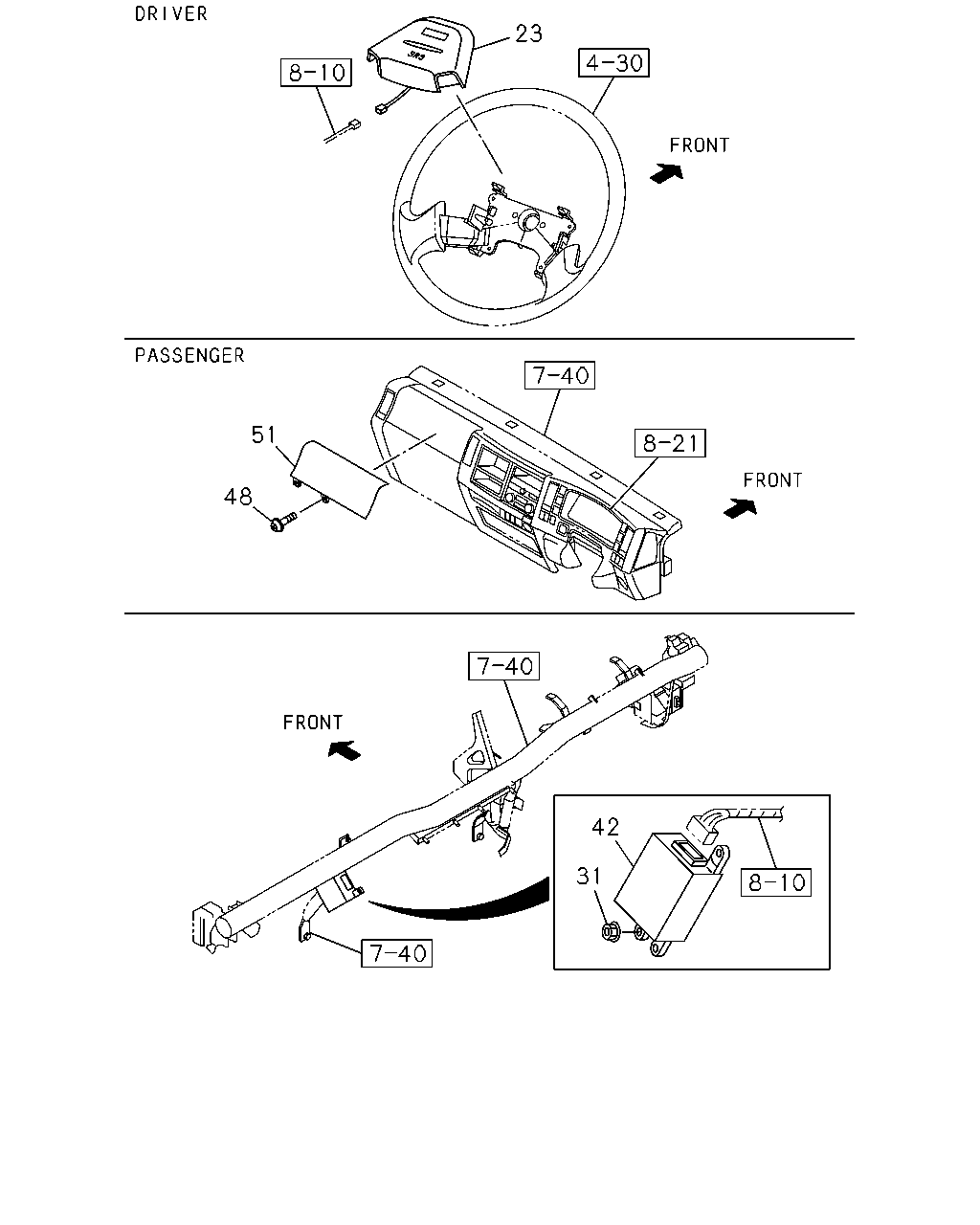

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#72146) — 7 parça

23 51 48 42 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	AIR BAG UNIT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97418-100-0	01	1	1010-1210	●	●
23	AIR BAG UNIT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97423-999-1	01	1	1211-	●	●
31	NUT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE	0-91180-106-0	03	1	1010-	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98120-071-2	01	1	1010-	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER(AJ3)	8-98120-070-2	01	1	1010-	●	●
48	BOLT; INST PNL AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	1010-	●	●
51	AIR BAG ASM; P/S AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97405-266-4	01	1	1010-	●	●
