Sayfa 8-15 - Isuzu EPC

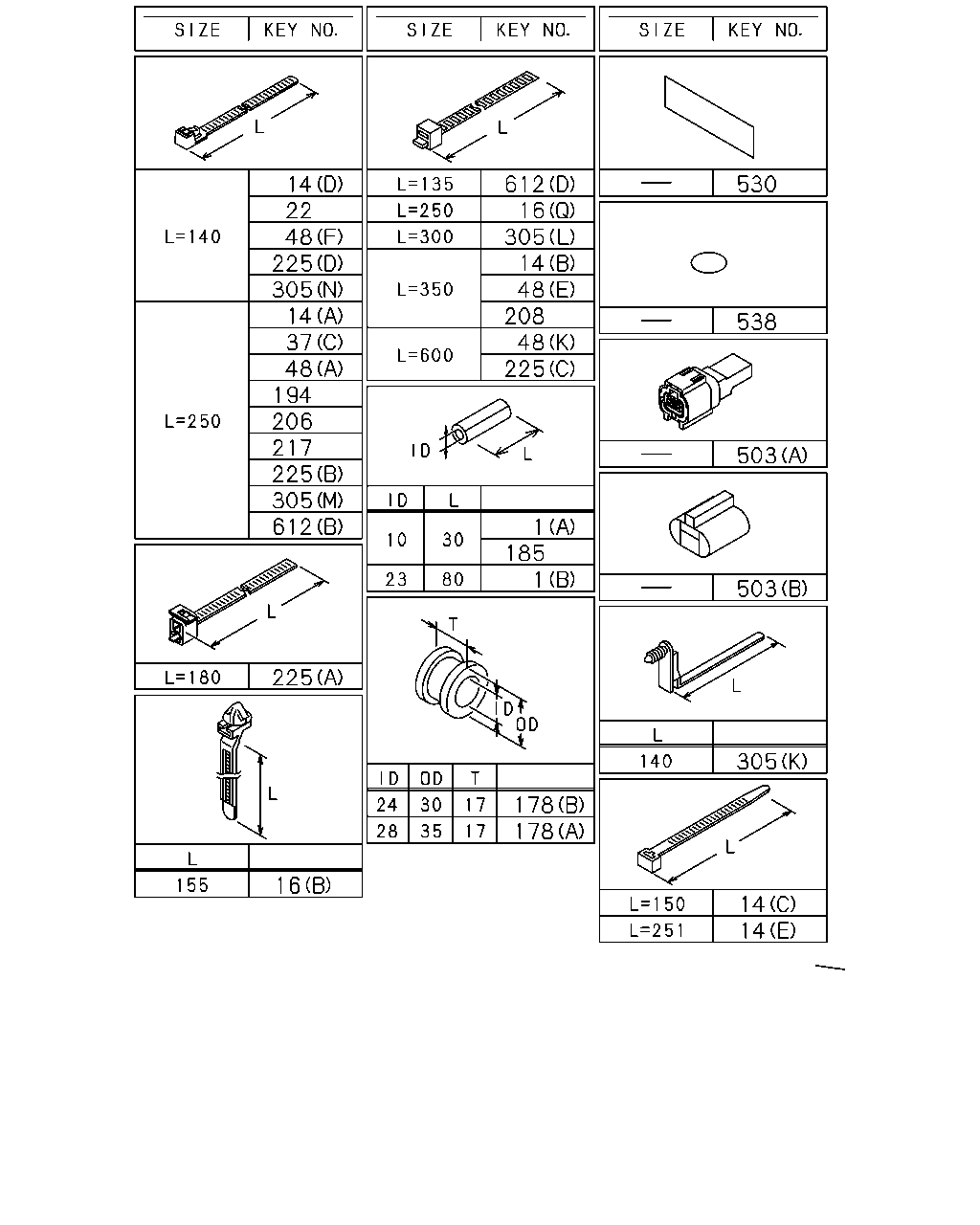

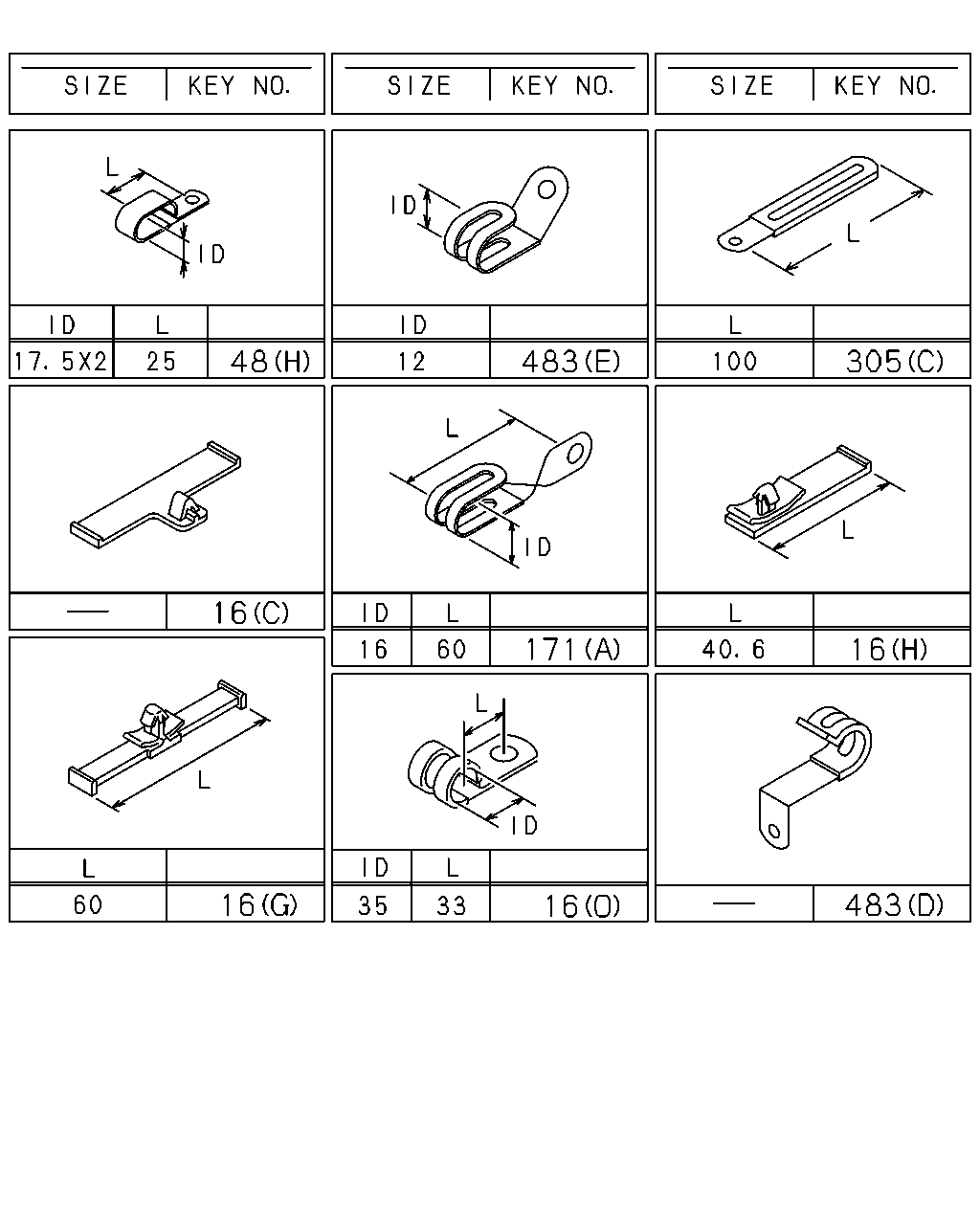

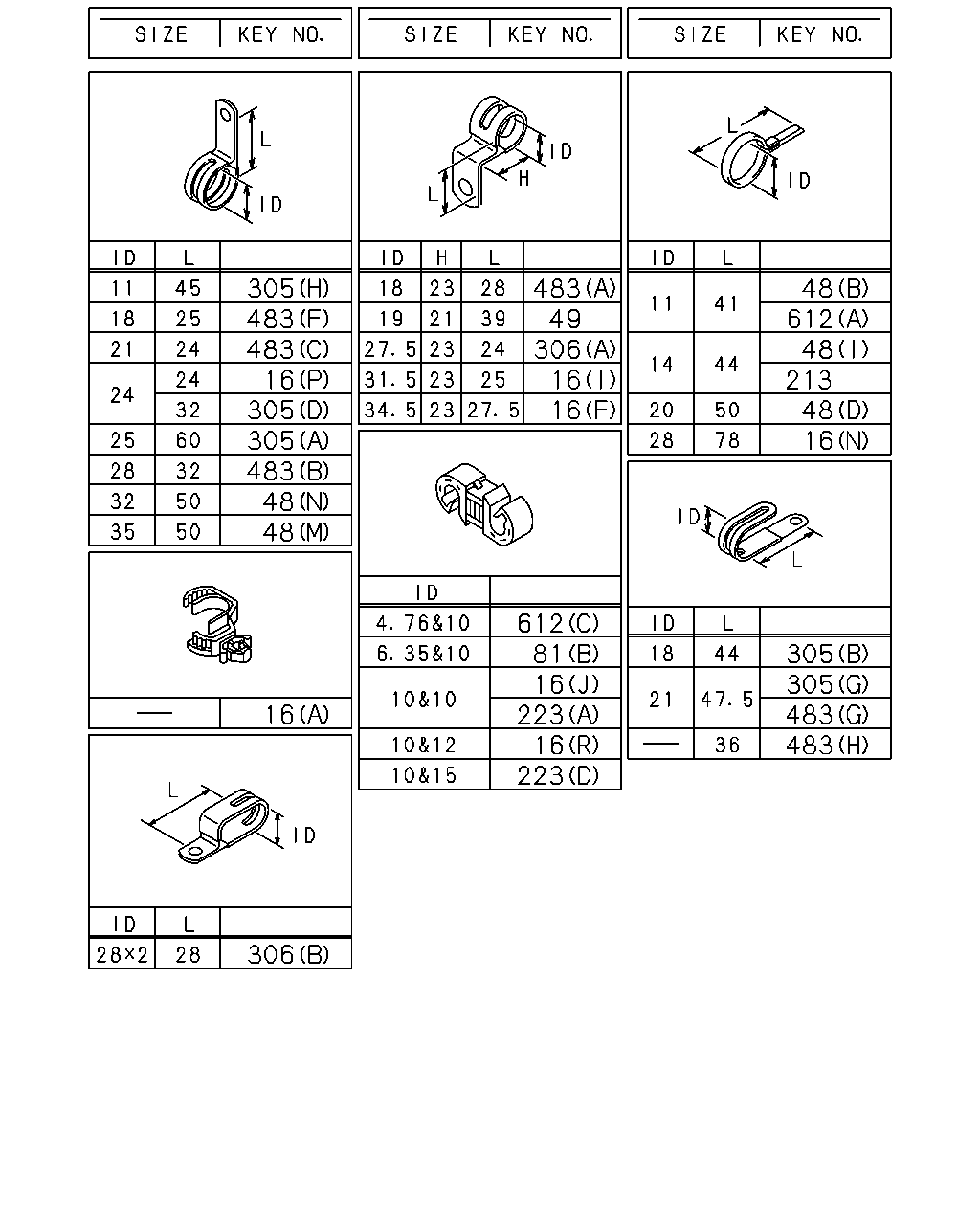

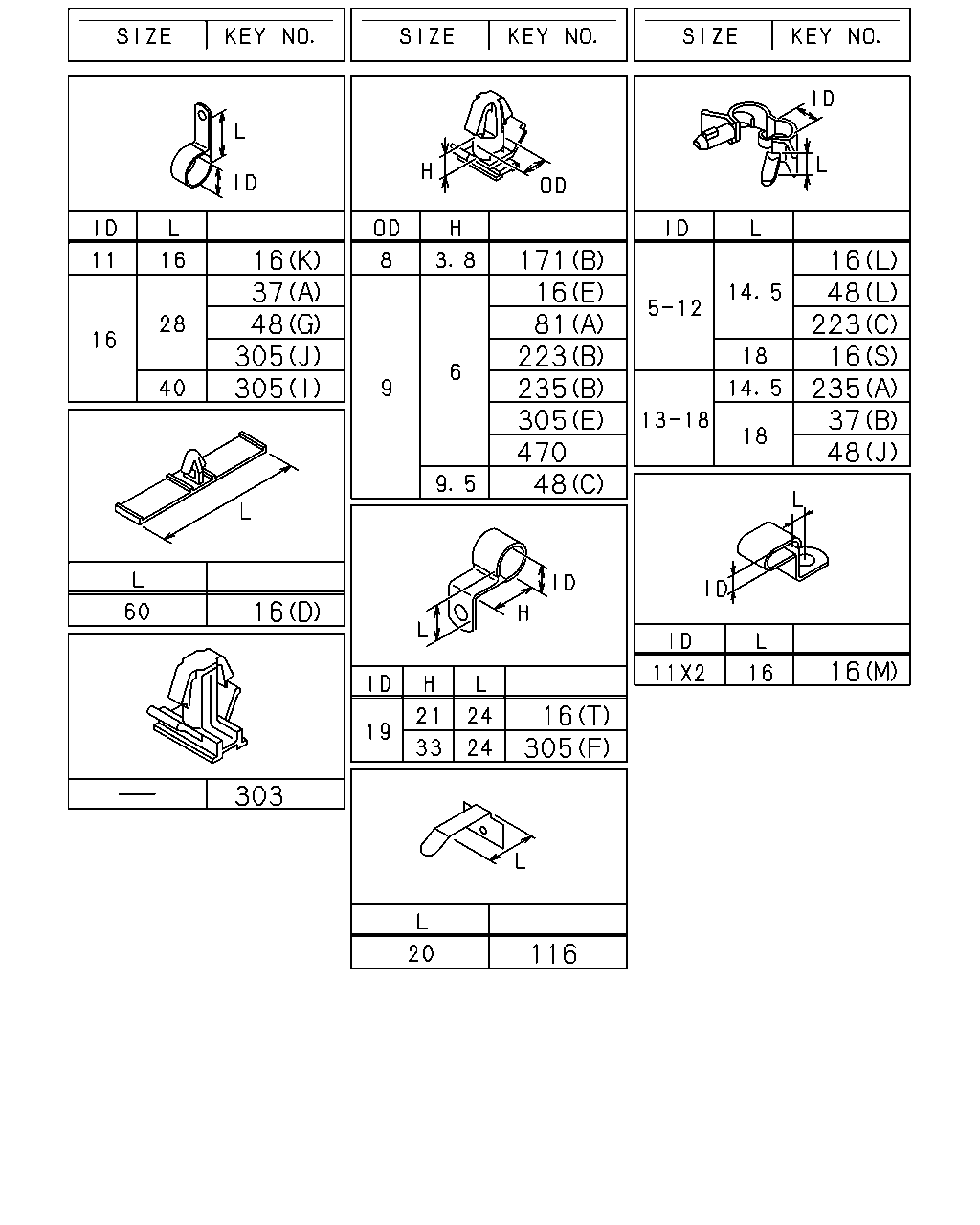

8-15 — FIXING PARTS; WIRING HARNESS (#72141) — 473 parça

48 483 305 16 171 16 483 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=28 L=78	1-09700-858-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=35 L=33	1-09700-945-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=24 L=24	1-09701-001-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) L=250	1-09707-126-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=10 & 10	1-09709-277-1	03	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) ID=10 & 12	1-09709-278-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=10 & 10	1-09709-277-1	04	1	1010-	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1010-	●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (I) ID=14 L=44	9-09917-427-0	13	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (I) ID=14 L=44	9-09917-427-0	16	1	1010-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1010-		●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1010-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-		●
48	CLIP; FRAME HARNESS (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=14 L=44	9-09917-427-0	19	1	1010-		●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	1010-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=16 L=28	0-95235-556-0	01	1	1010-	●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	1103-	●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=300	1-09707-001-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1103-	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1010-1102		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1103-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=28 L=32	1-09701-107-1	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=21 L=24	1-09701-201-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D)	1-09987-281-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=18 L=25	8-94121-004-1	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H) L=36	8-94224-891-1	01	1	1103-	●

305 483 483 16 305 305 483 48 48 483 49 306 16 16 48 612 48 213 48 16 612 81 16 223 16 223 305 305 483 483 16 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=28 L=78	1-09700-858-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=35 L=33	1-09700-945-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=24 L=24	1-09701-001-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) L=250	1-09707-126-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=10 & 10	1-09709-277-1	03	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) ID=10 & 12	1-09709-278-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=10 & 10	1-09709-277-1	04	1	1010-	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1010-	●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (I) ID=14 L=44	9-09917-427-0	13	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (I) ID=14 L=44	9-09917-427-0	16	1	1010-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1010-		●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1010-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-		●
48	CLIP; FRAME HARNESS (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=14 L=44	9-09917-427-0	19	1	1010-		●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	1010-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=16 L=28	0-95235-556-0	01	1	1010-	●
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1010-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1010-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1010-		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1010-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	03	1	1010-	●
223	CLIP; AIR TANK HARNESS (D) ID=10 & 15	1-09709-279-1	01	1	1010-	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1010-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=300	1-09707-001-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1103-	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1010-1102		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1103-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1103-	●	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1010-	●	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=28 L=32	1-09701-107-1	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=21 L=24	1-09701-201-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D)	1-09987-281-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=18 L=25	8-94121-004-1	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H) L=36	8-94224-891-1	01	1	1103-	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	1010-	●	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	1010-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1010-	●	●

16 37 48 305 305 171 16 81 223 235 305 470 48 16 48 223 16 235 37 48 16 16 16 305 303 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=28 L=78	1-09700-858-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=35 L=33	1-09700-945-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=24 L=24	1-09701-001-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) L=250	1-09707-126-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=10 & 10	1-09709-277-1	03	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) ID=10 & 12	1-09709-278-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=10 & 10	1-09709-277-1	04	1	1010-	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1010-	●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1010-	●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	1010-	●
37	CLIP; HARNESS,POWER TILT (B) ID=13-18 L=18	1-09709-291-0	02	1	1010-	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (I) ID=14 L=44	9-09917-427-0	13	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (I) ID=14 L=44	9-09917-427-0	16	1	1010-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1010-		●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1010-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-		●
48	CLIP; FRAME HARNESS (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=14 L=44	9-09917-427-0	19	1	1010-		●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	1010-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=16 L=28	0-95235-556-0	01	1	1010-	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1010-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	02	1	1112-	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1010-	●	●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A)	8-97101-436-0	01	1	1103-	●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1010-		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1010-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	03	1	1010-	●
223	CLIP; AIR TANK HARNESS (D) ID=10 & 15	1-09709-279-1	01	1	1010-	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1010-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) (B) OD=9 H=6	1-09709-178-0	02	1	1103-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	1010-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) (B) OD=9 H=6	1-09709-178-0	01	1	1010-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1010-	●	●
303	CLIP; HARNESS POWER TILT RELAY OD=8.95 H=6.25	8-97375-754-0	01	1	1010-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=300	1-09707-001-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1103-	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1010-1102		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1103-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1103-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1010-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-		●

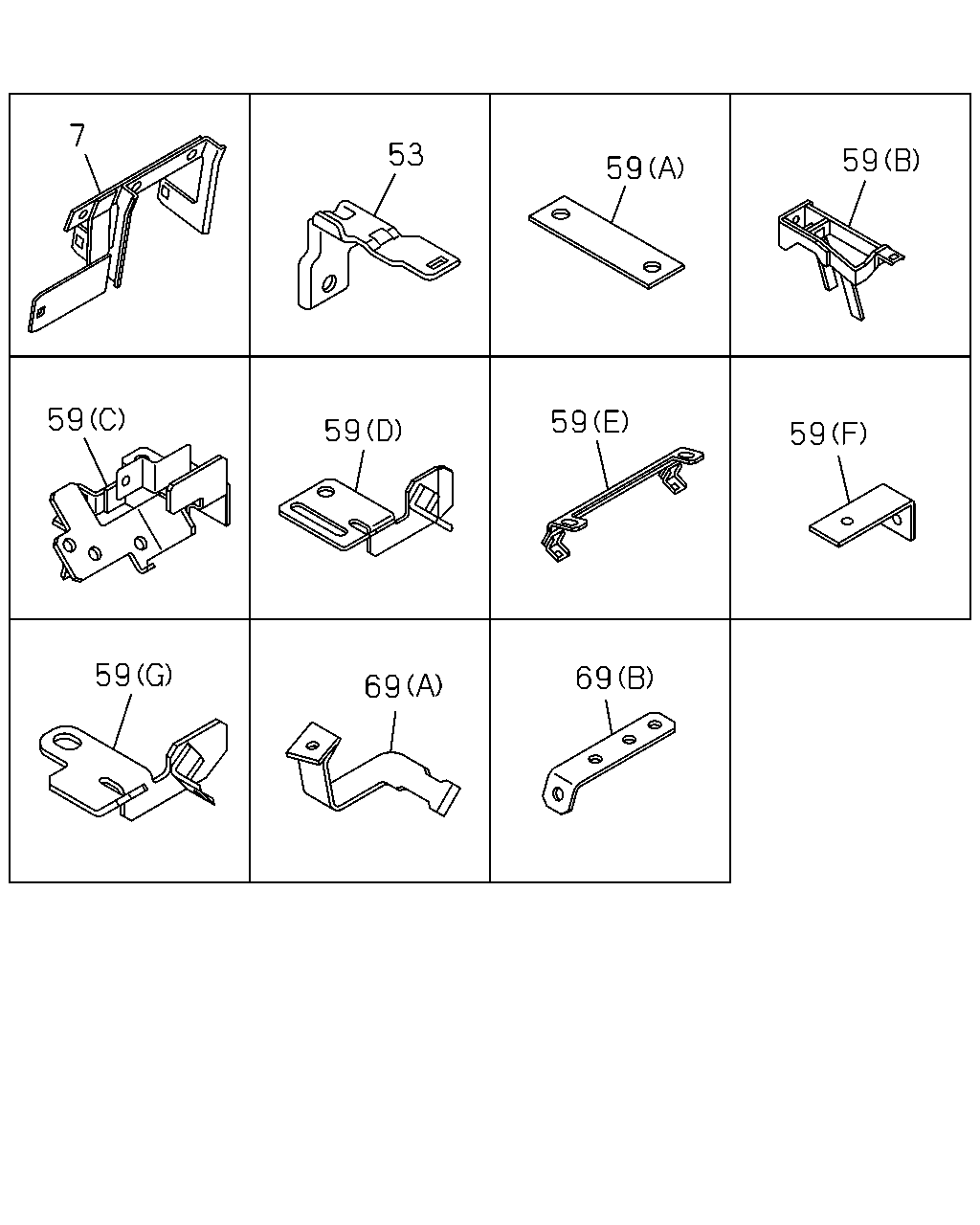

7 53 59 59 59 59 59 59 59 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1010-	●	●
53	BRACKET; HARNESS	8-98052-458-0	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-97619-535-0	01	1	1103-	●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (B)	8-98099-963-0	01	1	1103-	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (B)	8-97609-264-2	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1010-		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-97619-534-0	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1010-1502	●	●
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-	●	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=75	1-47478-323-0	01	1	1010-	●
69	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97616-357-3	01	1	1010-	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-82698-167-0	01	1	1010-	●	●

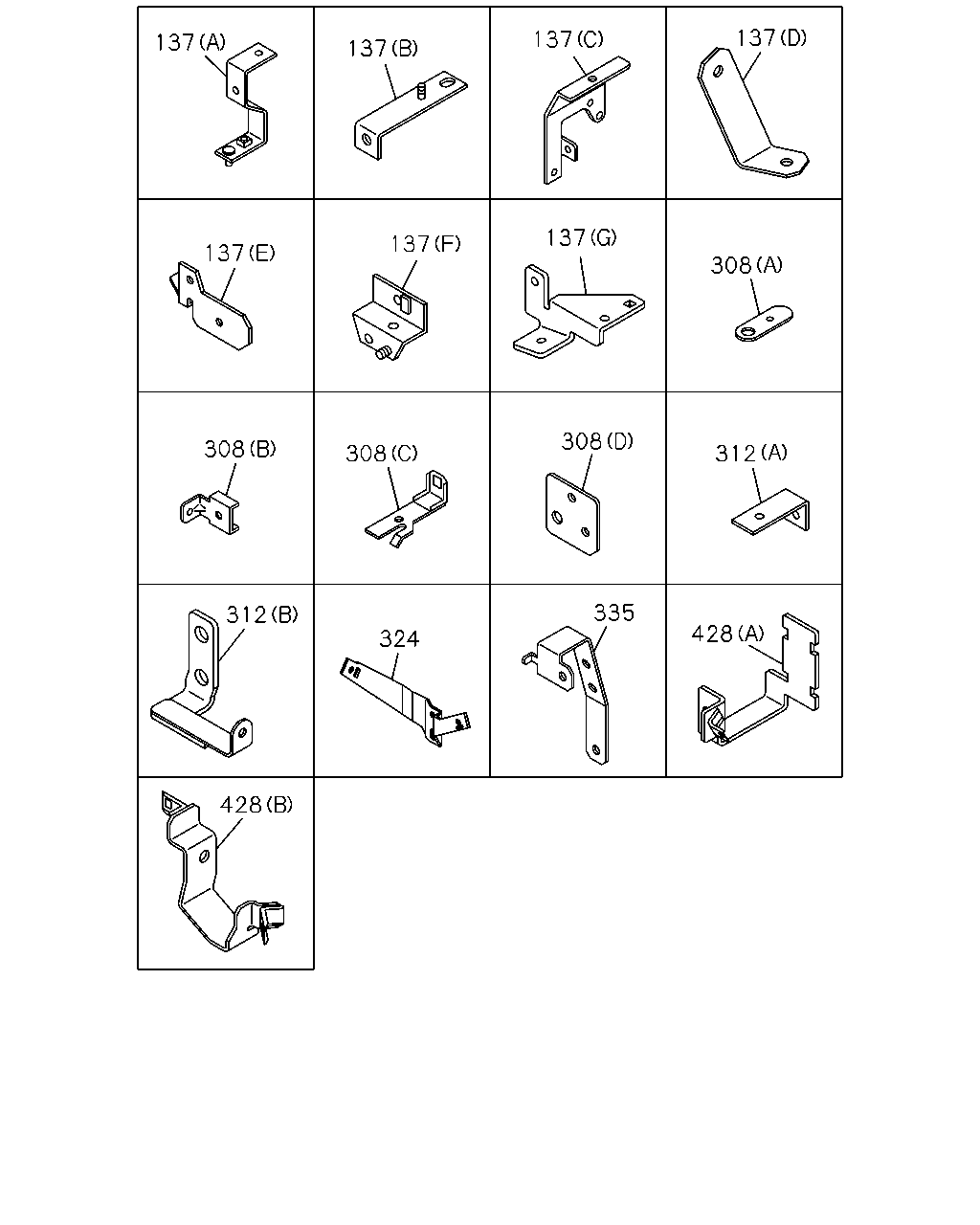

137 137 137 137 137 137 137 308 308 308 308 335 312 428 324 428 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (F)	8-98058-354-1	01	1	1103-	●
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (G)	8-98085-819-0	01	1	1103-	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (D)	8-97614-728-1	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97624-013-0	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (E)	8-98059-231-1	01	1	1010-		●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-98059-231-1	01	1	1010-	●
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1010-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-1102	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1103-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1010-1102	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-97614-078-0	01	1	1103-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1010-1102	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98021-291-2	01	1	1103-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1010-1102	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1103-	●	●
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (B)	8-98094-804-0	01	1	1103-	●
312	BRACKET; CLIP HARNESS (A) L=55	1-47475-304-0	01	1	1010-	●	●
324	BRACKET; CLIP	8-98061-654-2	01	1	1010-	●	●
324	BRACKET; CLIP	8-98061-653-2	01	1	1010-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1010-	●	●
428	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98116-461-0	01	1	1103-	●
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98090-952-0	01	1	1010-	●	●

14 22 48 225 305 14 37 48 194 206 217 225 305 612 612 16 305 14 48 208 48 225 530 538 503 1 185 1 503 225 305 178 178 16 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1010-1102	●	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1103-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1010-1102	●	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1103-	●	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=251	8-97619-917-0	01	1	1103-	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (D) L=140	5-09707-031-1	02	1	1103-1107	●
14	CLIP; BAND,HARNESS (D) L=140	5-09707-031-1	02	1	1103-1107	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=140	5-09707-031-1	02	1	1108-	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=140	5-09707-031-1	02	1	1108-	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=150	8-97355-273-0	02	1	1103-	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=350	1-09707-183-0	01	1	1010-	●	●
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	13	1	1010-1102	●	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (A) L=250	5-09707-030-1	13	1	1103-1205	●	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (A) L=250	8-98216-430-0	13	1	1206-	●	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=28 L=78	1-09700-858-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=35 L=33	1-09700-945-0	01	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (P) ID=24 L=24	1-09701-001-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (Q) L=250	1-09707-126-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=10 & 10	1-09709-277-1	03	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (R) ID=10 & 12	1-09709-278-1	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (S) ID=5-12 L=18	1-09709-287-0	02	1	1103-	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=10 & 10	1-09709-277-1	04	1	1010-	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1010-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1010-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1010-	●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1010-	●
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1103-	●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	1010-	●
37	CLIP; HARNESS,POWER TILT (B) ID=13-18 L=18	1-09709-291-0	02	1	1010-	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (I) ID=14 L=44	9-09917-427-0	13	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (I) ID=14 L=44	9-09917-427-0	16	1	1010-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1010-		●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1010-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-		●
48	CLIP; FRAME HARNESS (J) ID=13-18 L=18	1-09709-291-0	01	1	1010-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=14 L=44	9-09917-427-0	19	1	1010-		●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (I) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	1010-	●	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=16 L=28	0-95235-556-0	01	1	1010-	●
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1103-	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1010-	●	●
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1010-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	1010-	●	●
185	SLEEVE; RUBBER 4HK1-TCS ENG(RJS) ID=10 OD=14 L=30	9-09956-682-0	01	1	1103-	●
194	CLIP; BAND 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	1010-	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1010-	●	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1010-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1010-	●	●
225	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) (C) L=600	1-09707-107-1	02	1	1103-	●
225	CLIP; AIR TANK HARNESS 4HK1-TCS ENG(RJS) (D) L=140	5-09707-031-1	01	1	1103-	●
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	1010-1012		●
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=300	1-09707-001-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=250	5-09707-030-1	01	1	1103-	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140	5-09707-031-1	02	1	1103-	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1010-1102		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1103-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1103-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-1102	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1103-	●	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1010-	●	●
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	1010-1102	●	●
503	CONNECTOR 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	1103-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1306-	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1010-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1010-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1010-	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1010-	●	●
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	1010-	●	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	1010-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1010-	●	●

304 150 304 139 150 304 38 304 304 139 524 219 294 525 294 524 150 38 38 139 139 150 313 139 38 139 313 38 386 516 358 377 38 386 184 84 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1010-	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1010-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1102	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1102	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1102	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1010-1201	●	●
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1010-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1010-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1010-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1010-	●	●
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1010-	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M6X20 FLANGE	0-28050-620-0	02	1	1103-	●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M6X16 FLANGE	0-28650-616-0	01	1	1103-	●
150	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1010-1107		●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	06	1	1010-1107	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	05	1	1108-	●	●
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1102	●	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	01	1	1010-1102	●	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	01	1	1010-1102	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	01	1	1103-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1102	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	1010-1102	●	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (E) M6X12 FLANGE	0-28050-612-0	01	1	1103-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	1010-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1010-1102	●	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	02	1	1103-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1010-1102	●	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1010-1102	●	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	01	1	1103-	●	●
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-1102	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●	●
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1010-	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1010-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1010-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1010-1102	●	●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1103-	●	●
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1103-	●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1010-1102	●	●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.5 M8 FLANGE	5-09440-010-0	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
