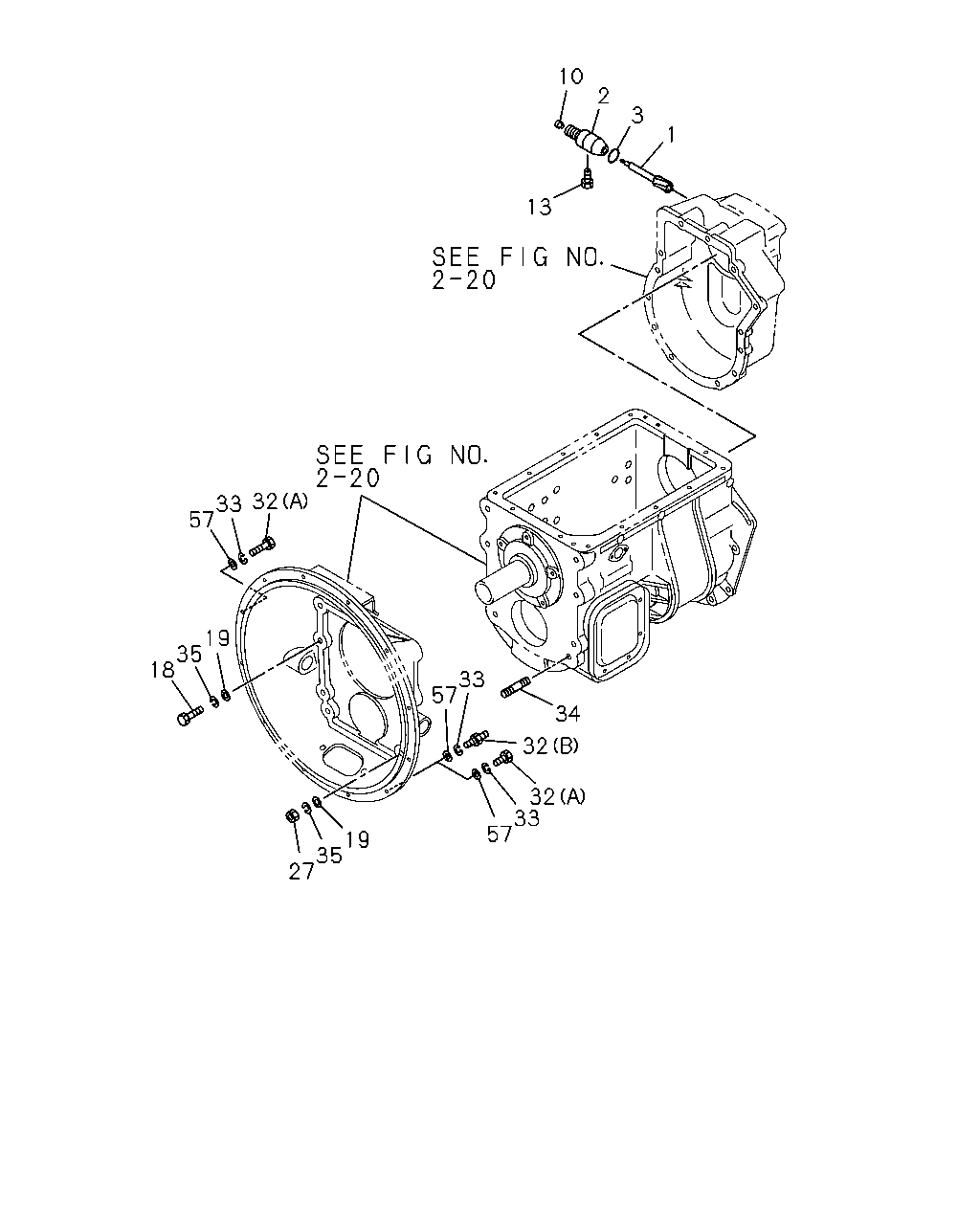

2-25 — SPEEDOMETER DRIVEN GEAR (#7214) — 64 parça

10 13 2 1 3 32 33 57 19 35 18 19 35 27 57 33 32 34 32 33 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9906-9906	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9907-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9906-9906	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9907-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9906-9906	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9907-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9906-9906	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9907-	●	●
13	SCREW; BUSHING,DRIVEN GEAR	1-09044-063-0	01	1	9906-9906	●
13	SCREW; BUSHING,DRIVEN GEAR	1-09044-063-0	01	1	9907-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9906-9906	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9907-	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9906-9906	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9907-	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9906-9906	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9907-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	06	1	9906-9906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	06	1	9907-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	06	1	9906-9906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	06	1	9907-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	9907-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	9907-		●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	06	1	9906-9906	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	06	1	9907-	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	9907-		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9906-9906	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9907-	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9906-9906	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9907-	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	06	1	9906-9906	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	06	1	9907-	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	9907-		●

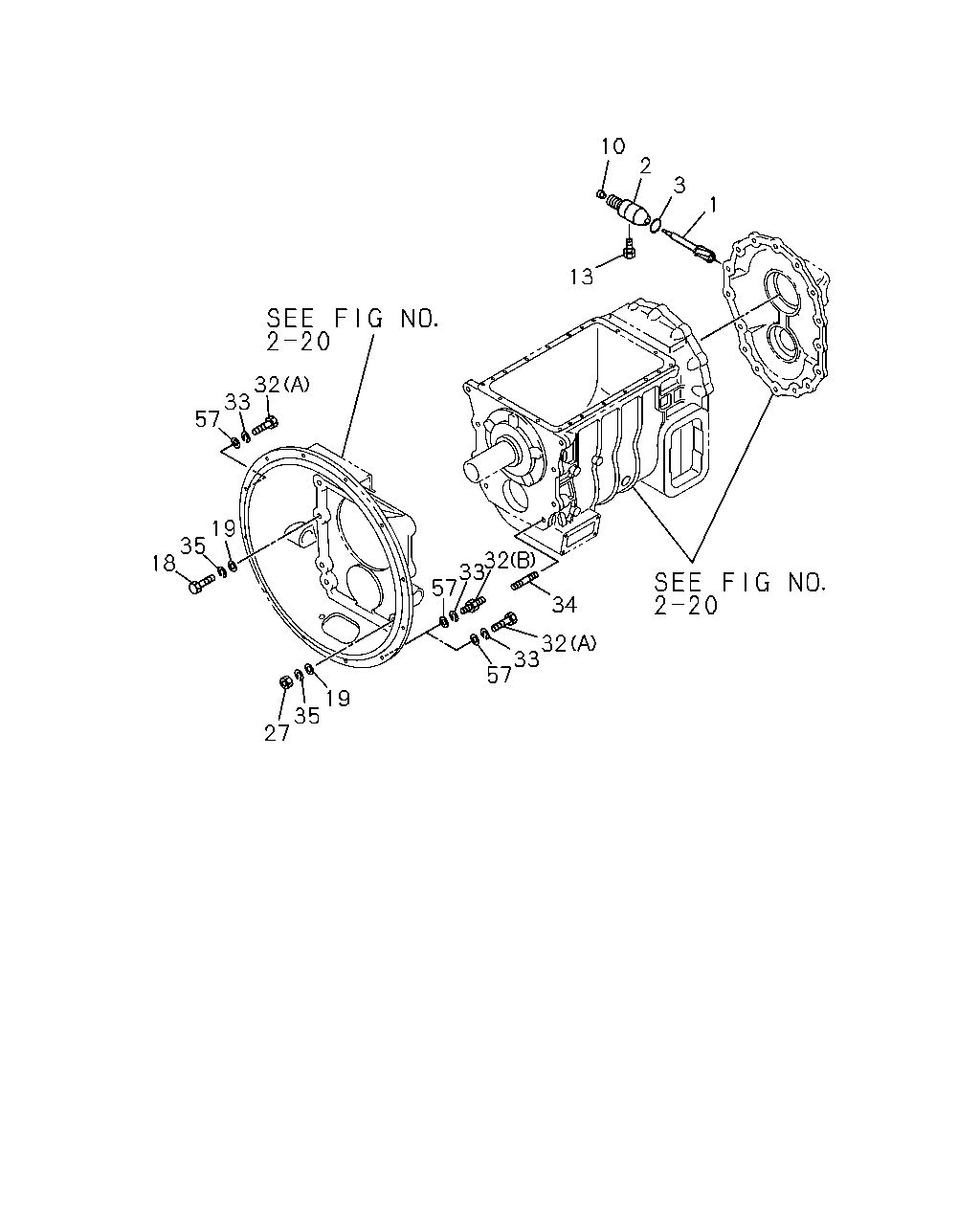

57 19 35 27 33 32 32 34 33 57 19 35 18 57 33 32 13 10 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9906-9906	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9907-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9906-9906	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9907-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9906-9906	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9907-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9906-9906	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9907-	●	●
13	SCREW; BUSHING,DRIVEN GEAR	1-09044-063-0	01	1	9906-9906	●
13	SCREW; BUSHING,DRIVEN GEAR	1-09044-063-0	01	1	9907-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9906-9906	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9907-	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9906-9906	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9907-	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9906-9906	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9907-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	06	1	9906-9906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	06	1	9907-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	06	1	9906-9906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	06	1	9907-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	9907-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	9907-		●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	06	1	9906-9906	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	06	1	9907-	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	9907-		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9906-9906	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9907-	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9906-9906	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9907-	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	06	1	9906-9906	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	06	1	9907-	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	9907-		●
