11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#72137) — 119 parça
Tümü
A - FCR5MS
B - FCR5WS
◀

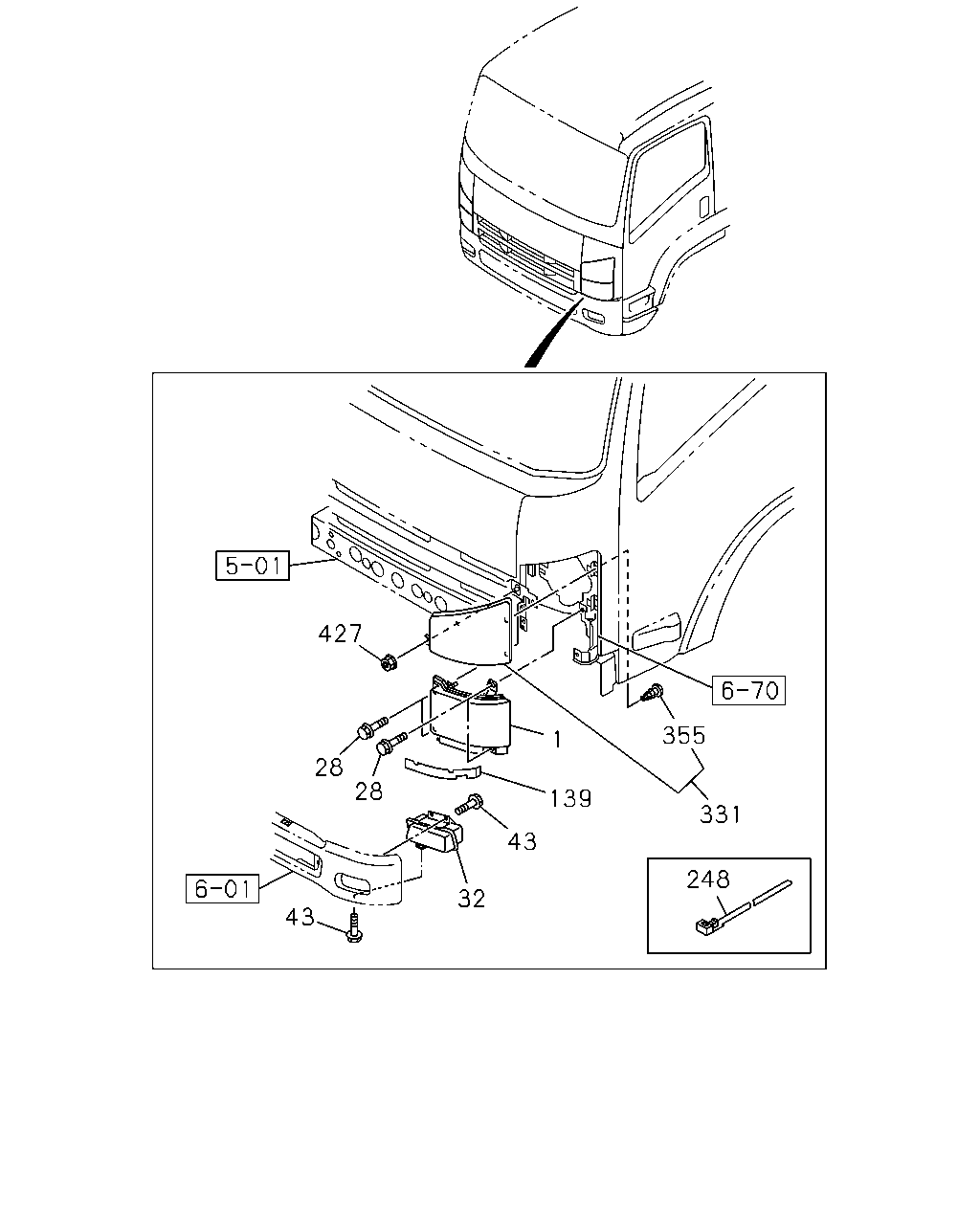

[801A] FIXING;FRONT LAMP (32 parça)
[801A] COMPONENT;HEADLAMP (36 parça)

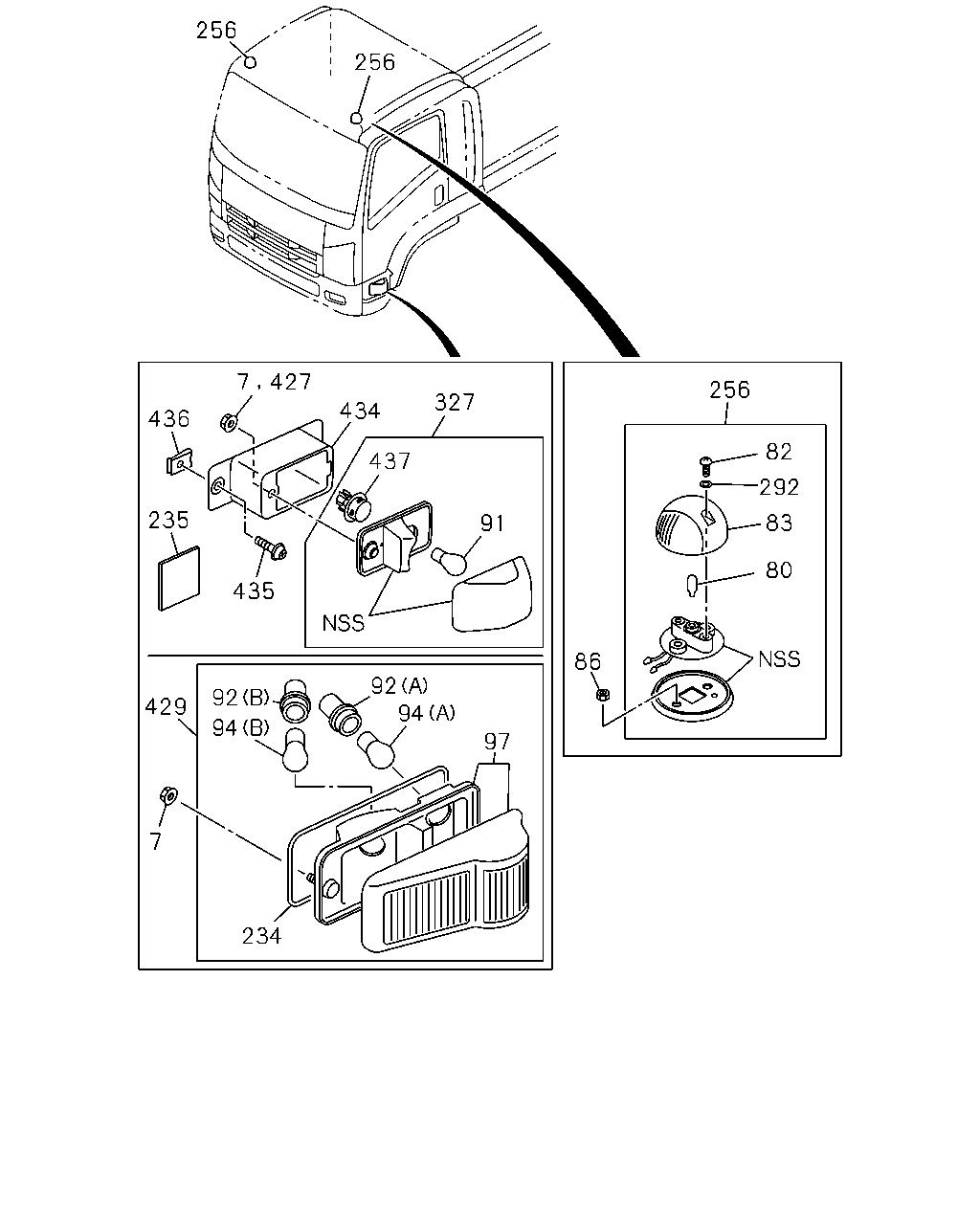

[801A] MARKER AND SIDE TURN SIGNAL LAMP (32 parça)
[801A] COMPONENT;TURN SIGNAL,FOG LAMP (19 parça)
▶
427
355
1
28
28
139
331
43
248
32
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-478-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-592-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-635-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-320-0
01
1
1306-
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-477-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-591-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-634-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-319-0
01
1
1306-
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-480-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-600-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-641-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-326-0
01
1
1306-
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-479-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-599-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-640-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-325-0
01
1
1306-
●
●
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1010-
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-144-1
01
1
1010-1301
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1302-
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-143-1
01
1
1010-1301
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1302-
●
●
43
BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1010-
●
●
139
COVER; HEADLAMP
8-98054-342-0
02
1
1010-
●
●
248
CLIP; HARNESS
EXC. FOG LAMP<T96> L=140
5-09707-031-1
02
1
1010-
●
●
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1010-
●
●
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1010-
●
●
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1010-
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1010
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1209
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1209
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
427
NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
1
4
338
339
408
420
20
5
23
457
382
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-478-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-592-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-635-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-320-0
01
1
1306-
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-477-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-591-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-634-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-319-0
01
1
1306-
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-480-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-600-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-641-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-326-0
01
1
1306-
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98098-479-1
01
1
1010-1208
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-599-0
01
1
1209-1301
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98225-640-0
01
1
1302-1305
●
●
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-325-0
01
1
1306-
●
●
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98051-399-0
01
1
1010-1301
●
●
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-181-0
01
1
1302-
●
●
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98051-398-0
01
1
1010-1301
●
●
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-180-0
01
1
1302-
●
●
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98051-401-0
01
1
1010-1301
●
●
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-183-0
01
1
1302-
●
●
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98051-400-0
01
1
1010-1301
●
●
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-182-0
01
1
1302-
●
●
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1010-
●
●
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1010-
●
●
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1010-
●
●
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1010-
●
●
338
LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98010-256-0
02
1
1209-
●
●
339
GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
1-86830-158-0
02
1
1209-
●
●
382
PLUG; SOCKET,HEADLAMP
8-98069-364-0
02
1
1010-1208
●
●
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1209-
●
●
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1010-
●
●
420
SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
1010-1301
●
●
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1302-
●
●
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
●
●
256
256
7
427
436
434
327
235
437
435
91
256
82
292
83
80
86
92
94
97
92
94
429
7
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
NUT; FRT COMB LAMP
CORNERING LAMP<T87> M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
7
NUT; FRT COMB LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1010
●
●
80
BULB; MARKER LAMP
24V 5W
8-94135-397-0
02
1
1010-
●
●
82
SCREW; MARKER LAMP
1-82219-011-0
04
1
1010-
●
●
83
LENS; MARKER LAMP
8-98057-958-0
02
1
1010-
●
●
86
NUT; MARKER LAMP
M6 FLANGE
0-91180-106-0
04
1
1010-
●
●
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1010-
●
●
92
SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (B)
8-97172-959-0
02
1
1210-
●
●
92
SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A)
8-98051-390-0
02
1
1210-
●
●
94
BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W
8-98051-495-0
02
1
1210-
●
●
94
BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W
8-98051-496-0
02
1
1210-
●
●
97
LAMP UNIT; COMB
CORNERING LAMP<T87>
8-98051-419-0
01
1
1210-
●
●
97
LAMP UNIT; COMB
CORNERING LAMP<T87>
8-98051-420-0
01
1
1210-
●
●
234
GASKET; SIDE COMB LAMP
CORNERING LAMP<T87>
8-98051-432-0
02
1
1210-
●
●
235
PROTECTOR; CORNERING LAMP
CORNERING LAMP<T87>
1-82699-922-0
02
1
1210-
●
●
256
LAMP; MARKER
8-98097-467-3
01
1
1010-
●
●
256
LAMP; MARKER
8-98097-466-3
01
1
1010-
●
●
292
WASHER; MARKER LAMP
1-82219-012-0
04
1
1010-
●
●
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1010-
●
●
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1010-
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1010
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1209
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1010-1209
●
●
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
427
NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
429
LAMP ASM; SIDE COMB
CORNERING LAMP<T87>
8-98039-776-2
01
1
1210-
●
●
429
LAMP ASM; SIDE COMB
CORNERING LAMP<T87>
8-98039-777-2
01
1
1210-
●
●
434
BASE; LAMP,SIDE TURN SIGNAL
8-98063-727-1
01
1
1010-
●
●
434
BASE; LAMP,SIDE TURN SIGNAL
8-98063-726-1
01
1
1010-
●
●
435
SCREW; BASE,SIDE TURN
CORNERING LAMP<T87> M6X20 W/PL WASHER
0-36210-620-0
02
1
1210-
●
●
436
NUT; SPIRE,BASE SIDE TURN
CORNERING LAMP<T87>
8-94279-501-0
02
1
1210-
●
●
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1010-
●
●
331
431
357
399
355
432
32
47
49
44
15
448
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
BULB; FOG LAMP
FOG LAMP<T96> 24V 70W
1-82194-106-0
02
1
1010-
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-144-1
01
1
1010-1301
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1302-
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-143-1
01
1
1010-1301
●
●
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1302-
●
●
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-016-0
01
1
1010-
●
●
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-015-0
01
1
1010-
●
●
44
NUT; FOG LAMP
FOG LAMP<T96> M6
8-98217-430-0
02
1
1205-
●
●
47
WASHER; PL,FOG LAMP
FOG LAMP<T96>
8-98217-429-0
02
1
1205-
●
●
49
BRACKET; LAMP
FOG LAMP<T96>
8-98051-435-0
01
1
1010-
●
●
49
BRACKET; LAMP
FOG LAMP<T96>
8-98051-436-0
01
1
1010-
●
●
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1010-
●
●
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1010-
●
●
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1010-
●
●
357
BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1010-
●
●
399
SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1010-
●
●
431
CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1010-
●
●
432
FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1010-
●
●
448
CAP ASM; LAMP
FOG LAMP<T96>
8-97378-874-0
02
1
1010-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
