◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#72135) — 36 parça
çizim 135900
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1010- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1010- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 1010- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 1010-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 1010-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 1010- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 1010- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1010- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1010- ●
çizim 190038
123 88 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1010- ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 1010-1508 ● ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 1010-1508 ● ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1010- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1010- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 		8-94271-620-1 02 1 1010- ●

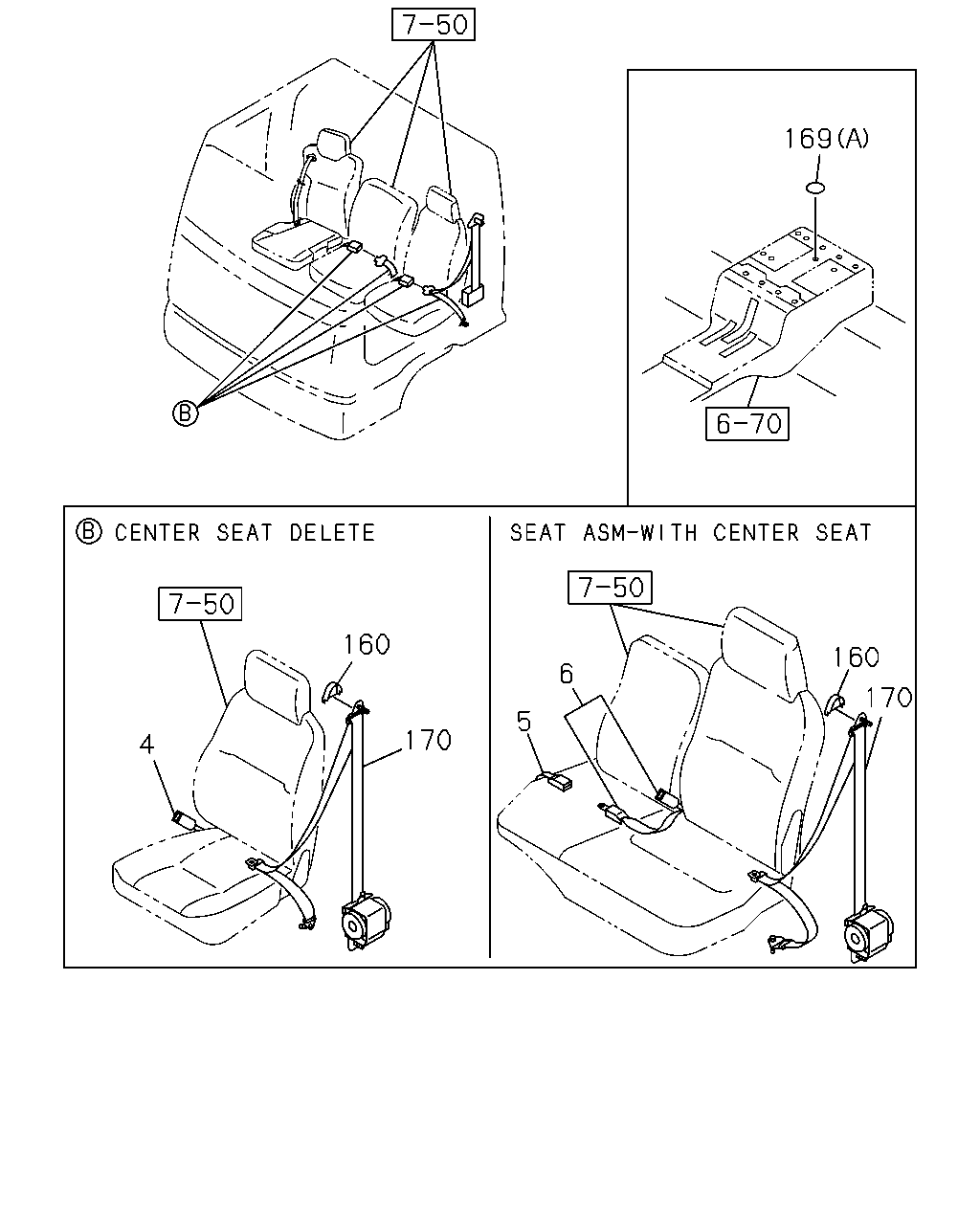

çizim 190044
169 160 160 6 170 5 170 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-1 01 1 1010-1310 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1311- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1010- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1010- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1010-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 1010-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1010- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1010- ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1010- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1010- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 		8-94271-620-1 02 1 1010- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-771-5 01 1 1010-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-770-4 01 1 1010-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
