7-50 — FRONT SEAT (#72133) — 176 parça

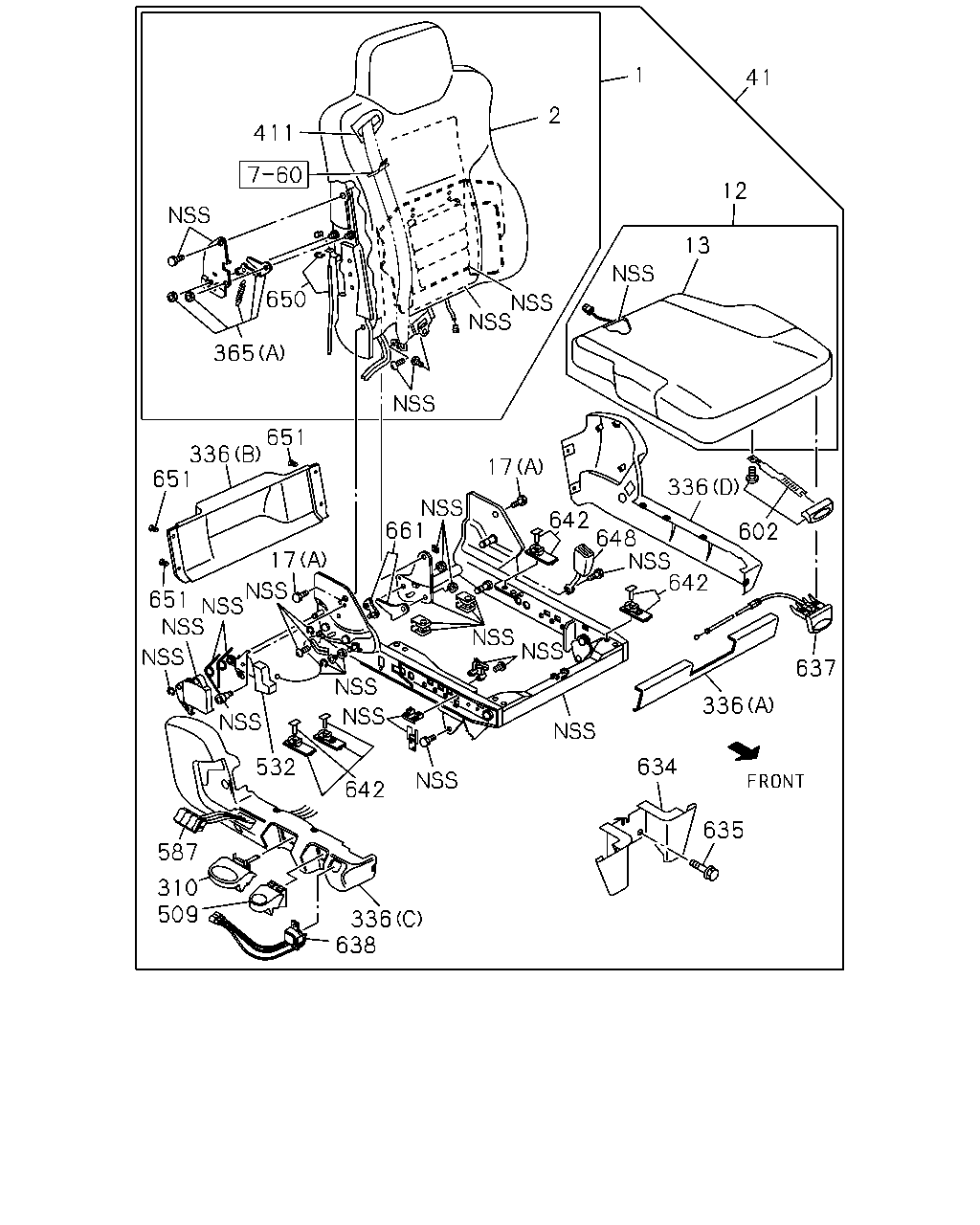

411 650 365 651 336 651 17 651 532 642 587 310 509 638 336 635 634 336 637 642 648 642 17 661 602 336 13 12 41 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-964-0	01	1	1010-1508	●	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-963-0	01	1	1010-1508	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98097-966-0	01	1	1010-1212	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98232-353-0	01	1	1301-1508	●	●
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1010-1508	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1010-1508	●	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1010-1508	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1010-	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1010-1212	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1010-1212	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	1010-1508	●	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	1010-1508	●	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1010-1508	●	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1010-1508	●	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1010-1508	●	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1010-1508	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1010-	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1010-		●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1010-1508	●	●
509	LEVER; DAMPER	8-98097-988-0	01	1	1010-1508	●	●
532	LEVER ASM; TILT	8-98097-982-0	01	1	1010-1508	●	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	1010-1508	●	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1010-1508	●	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	1010-	●	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	1010-	●	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1010-1508	●	●
638	VALVE; LOWERING	8-98097-994-0	01	1	1010-1508	●	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	1010-1508	●	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1010-1508	●	●
650	CABLE	8-98097-973-0	01	1	1010-1212	●	●
650	CABLE	8-98232-354-0	01	1	1301-1508	●	●
651	RIVET	8-98194-075-0	04	1	1010-1508	●	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	1010-1508	●	●

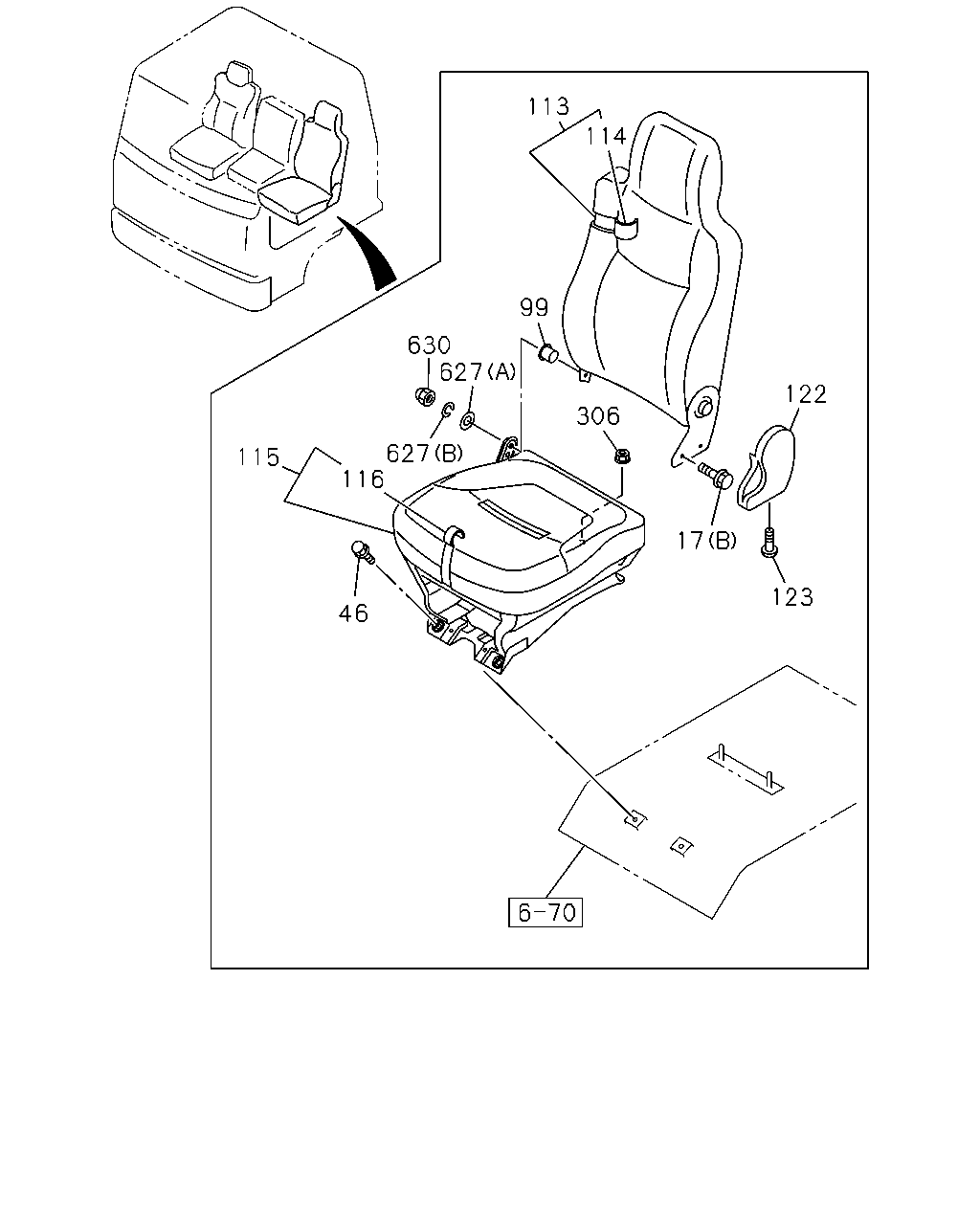

113 114 122 99 123 17 306 627 630 627 116 46 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1010-1508	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1010-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1010-	●	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	1010-1010	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
113	BACK ASM; SEAT DARK GRAY	8-97416-221-0	01	1	1010-1010	●	●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1010-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-223-0	01	1	1010-1010	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1010-	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-225-0	01	1	1010-1010	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1010-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-227-0	01	1	1010-1010	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1010-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1010-	●	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1010-	●	●
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	1010-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1010-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1010-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	1010-	●	●

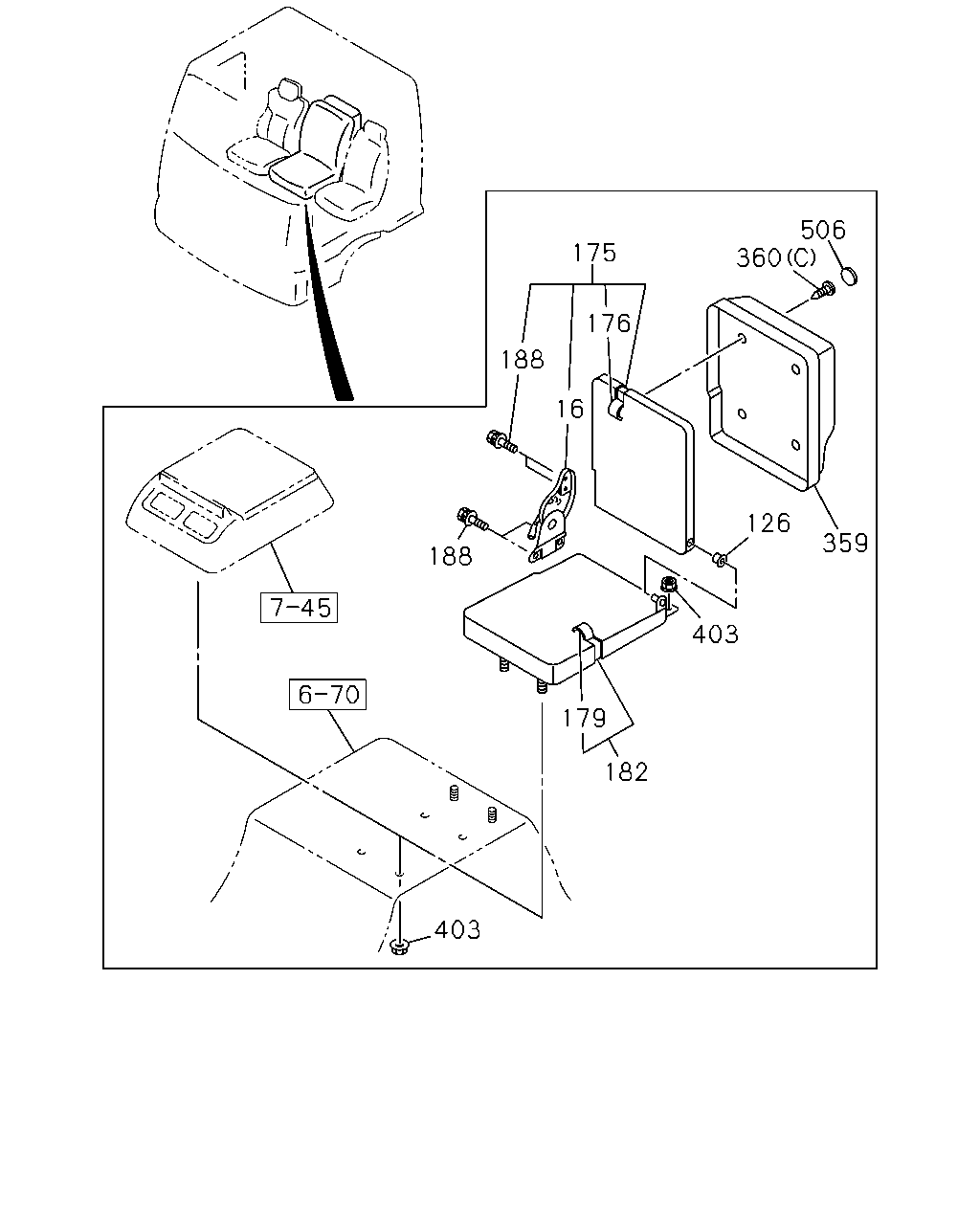

506 360 175 176 188 16 188 403 179 182 403 126 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1010-	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	1010-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	8-97854-900-0	01	1	1010-	●
126	BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	1010-		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-233-0	01	1	1010-1010	●
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97416-233-0	01	1	1010-1010		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1010-	●
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97421-434-1	01	1	1010-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-234-0	01	1	1010-1010	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97416-234-0	01	1	1010-1010		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1010-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97421-435-1	01	1	1010-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-237-0	01	1	1010-1010	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97416-237-0	01	1	1010-1010		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-1	01	1	1010-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97421-432-1	01	1	1010-		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-235-0	01	1	1010-1010	●
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97416-235-0	01	1	1010-1010		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-3	01	1	1010-	●
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97421-430-3	01	1	1010-		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1010-	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	1010-		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1010-	●
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1010-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1010-1010	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1010-1010		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1010-	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1010-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1010-1110	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1010-1110		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1111-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	1010-1010	●
360	SCREW; PARCEL (D) M5X20	9-09829-324-1	02	1	1010-1010		●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1010-	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	1010-		●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1010-	●
506	CAP; PARCEL BOX GRAY	8-97409-980-1	02	1	1010-		●

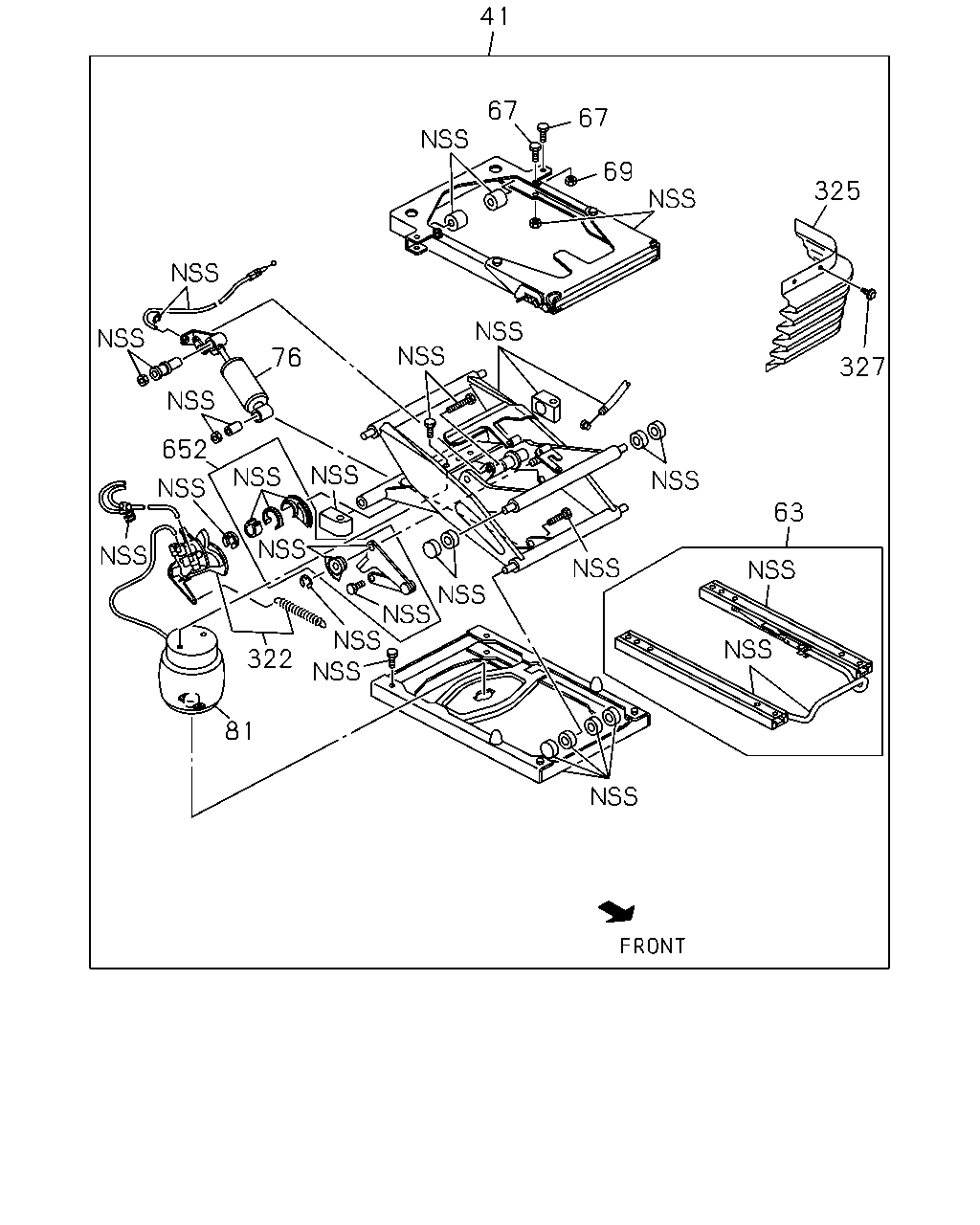

41 67 67 69 325 327 63 81 322 652 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1010-1212	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1010-1212	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508	●	●
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1010-1508	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1010-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1010-	●	●
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1010-1508	●	●
81	SPRING; AIR	8-98098-000-0	01	1	1010-1508	●	●
322	VALVE; AIR SPRING	8-98098-001-0	01	1	1010-1508	●	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1010-1508	●	●
327	CLIP; COVER	8-98098-004-0	01	1	1010-1508	●	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1010-1508	●	●

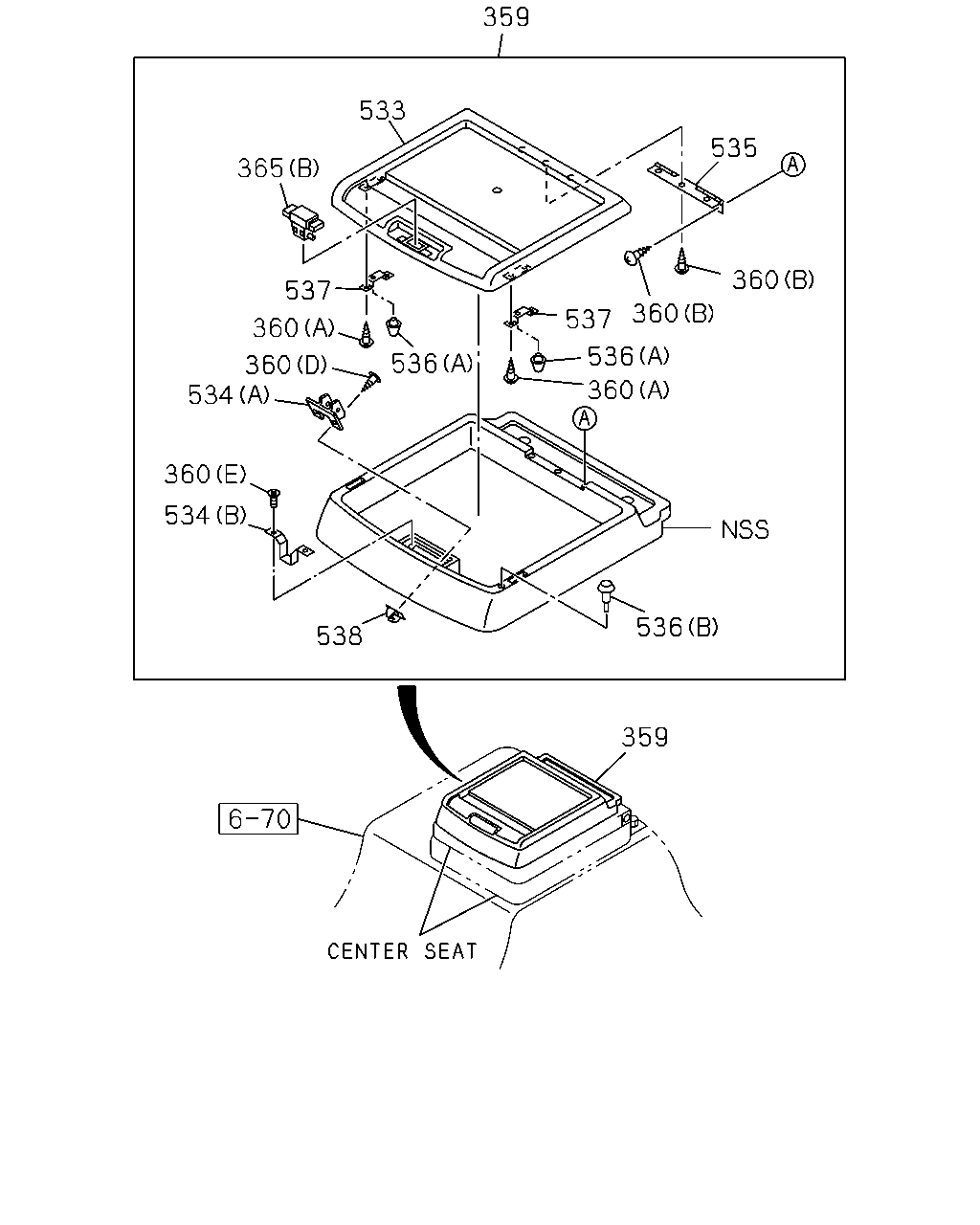

359 533 365 537 360 360 534 360 534 538 536 360 536 537 360 360 535 359 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1010-	●
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1010-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1010-1010	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1010-1010		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1010-	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1010-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1010-1110	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1010-1110		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1111-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	1010-1010	●
360	SCREW; PARCEL (D) M5X20	9-09829-324-1	02	1	1010-1010		●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1010-1508	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1010-	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1010-		●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1010-	●
533	LID; PARCEL BOX GRAY	8-97417-263-0	01	1	1010-		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	1010-1010	●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	1010-1010		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-	●
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1010-		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1010-	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	1010-		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	1010-1010	●
536	RUBBER; CUSHION (A)	5-09983-002-1	02	1	1010-1010		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-	●
536	RUBBER; CUSHION (B)	1-72538-187-0	02	1	1010-		●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	1010-1010	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	1010-1010		●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	1010-1010	●
538	GROMMET; SCREW	1-09983-165-0	02	1	1010-1010		●

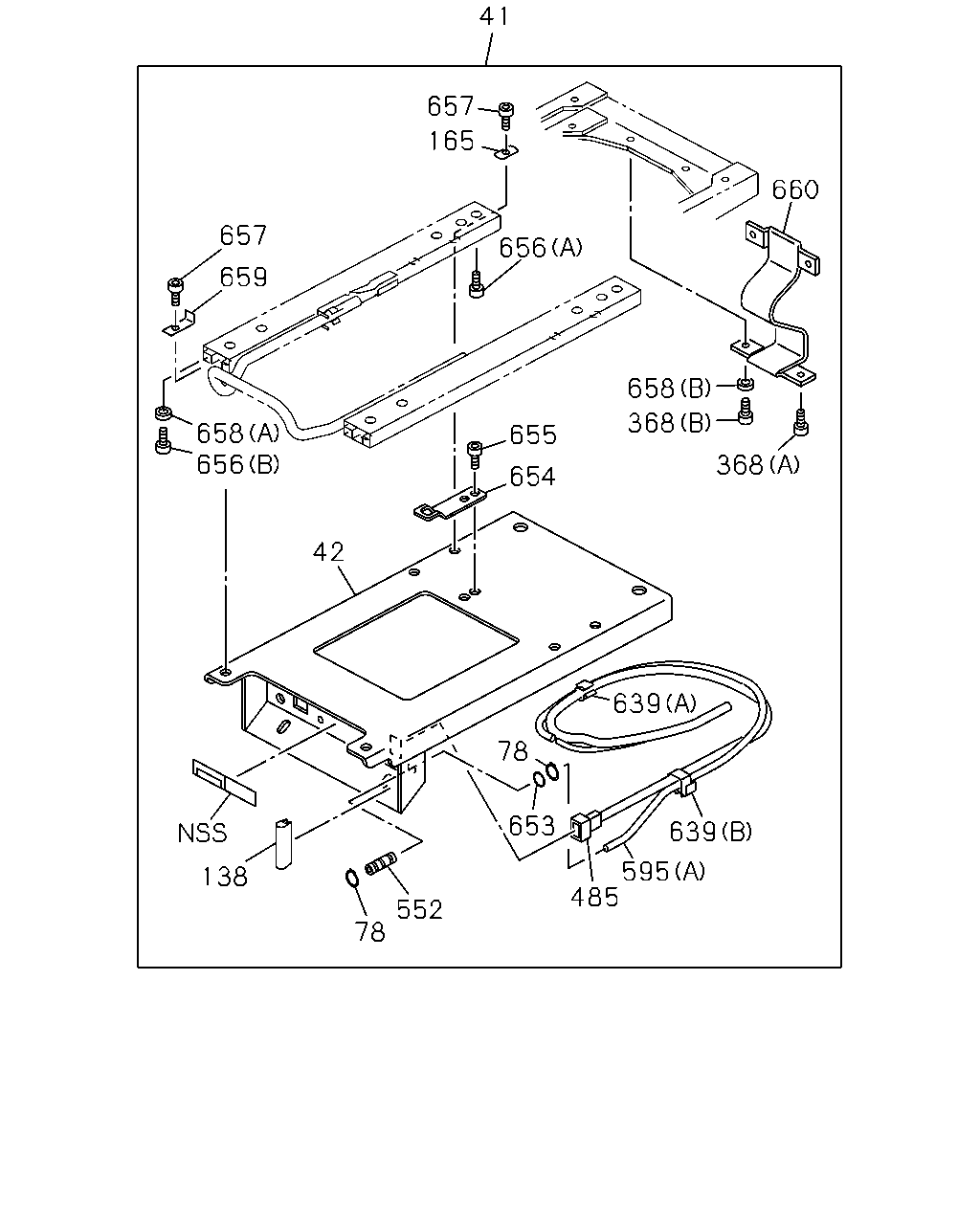

41 657 165 657 659 658 656 42 138 78 552 78 653 485 595 639 639 654 655 368 368 658 660 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1010-1212	●	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1010-1212	●	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508	●	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	1010-1508	●	●
78	RING; SNAP	8-98101-900-0	02	1	1010-1508	●	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1010-1508	●	●
165	WASHER; PL	1-75590-086-0	04	1	1010-1508	●	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1010-1508	●	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1010-1508	●	●
485	HARNESS; FRT SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	1010-1508	●	●
485	HARNESS; FRT SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	1010-1508	●	●
552	CONNECTOR	8-98101-902-0	01	1	1010-1508	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1010-1508	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1010-	●	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	1010-1508	●	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	1010-1508	●	●
653	GASKET	8-98101-901-0	01	1	1010-1508	●	●
654	HOOK; STOPPER	8-98106-352-0	01	1	1010-1508	●	●
655	BOLT; HOOK	8-98106-353-0	02	1	1010-1508	●	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1010-1508	●	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1010-1508	●	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1010-1508	●	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1010-1508	●	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1010-1508	●	●
659	STOPPER	8-98106-356-0	02	1	1010-1508	●	●
660	BELT; TETHER	8-98106-357-0	01	1	1010-1508	●	●

595 339 400 401 641 400 581

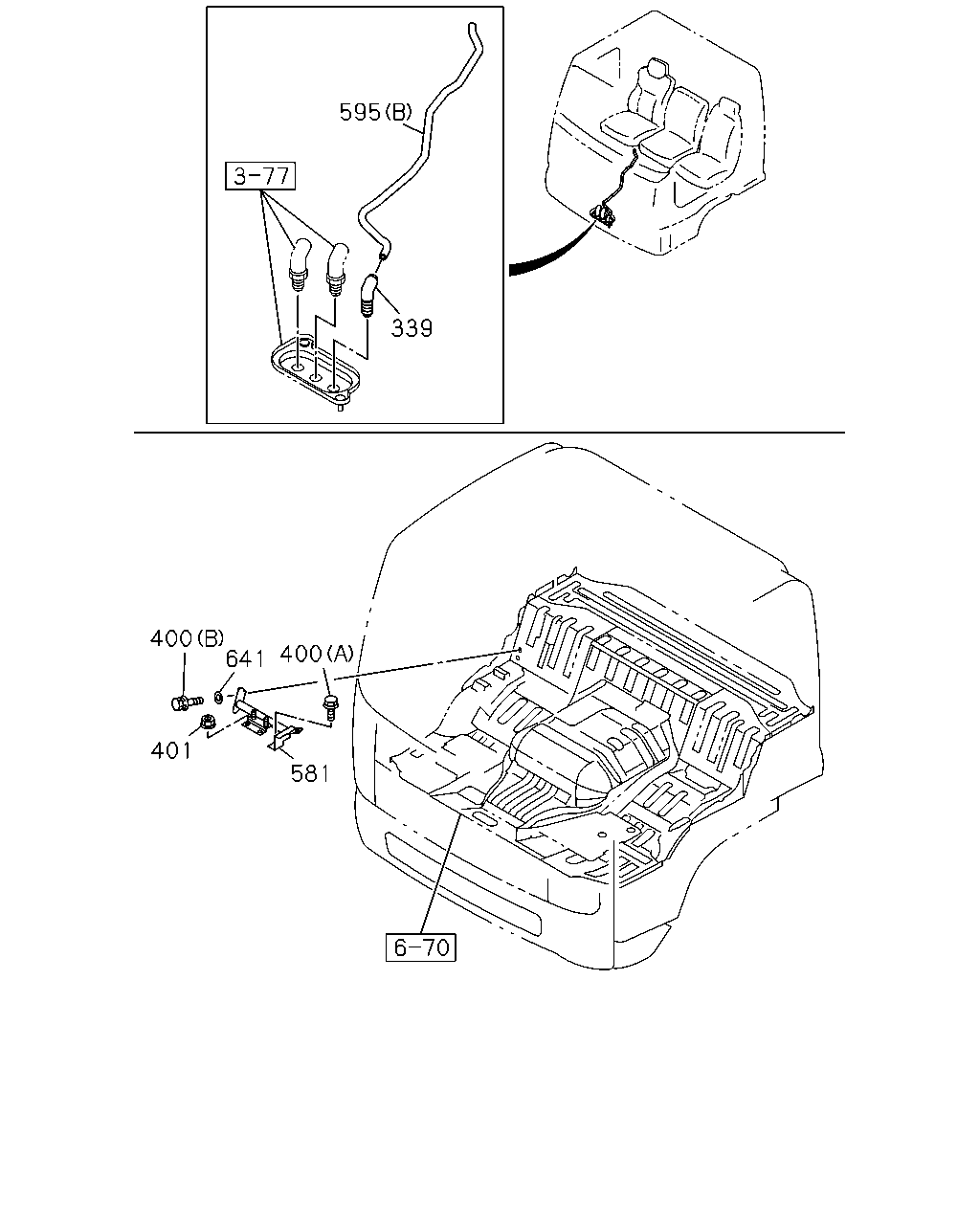

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	1010-	●	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	1010-	●	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	1010-	●	●
581	PIPE; SEAT	8-97589-692-3	01	1	1010-	●
581	PIPE; SEAT	8-98051-067-2	01	1	1010-		●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1010-1508	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1010-	●	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
