7-43 — SUN VISOR AND ASSIST GRIP (#72131) — 100 parça

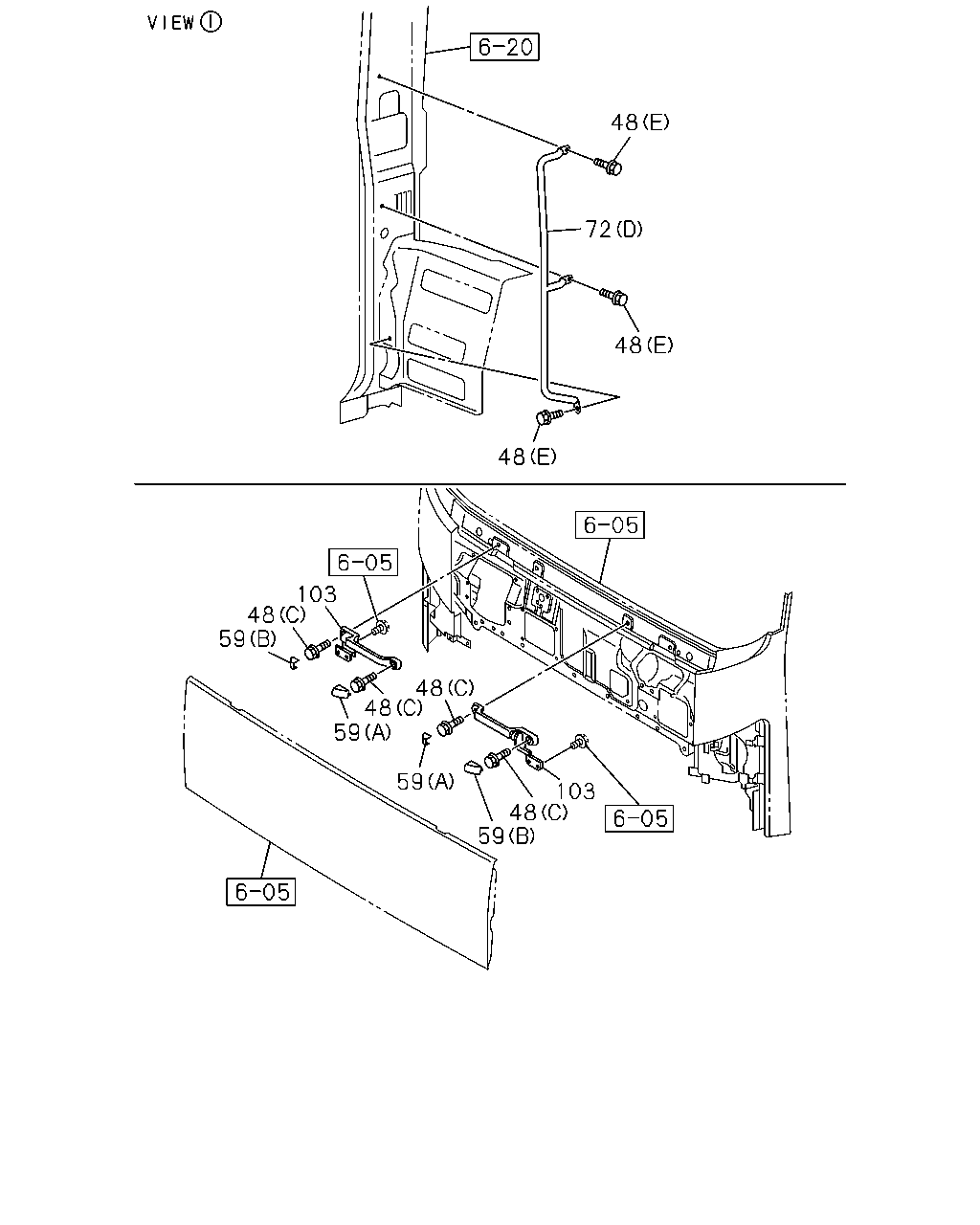

48 72 48 48 103 48 59 48 48 59 59 103 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (D) M8X16 FLANGE	0-28060-816-0	04	1	1010-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 FLANGE	0-28660-830-0	04	1	1010-	●	●
48	BOLT; ASSIST GRIP (B) M6X10 FLANGE	0-28050-610-0	04	1	1010-		●
48	BOLT; ASSIST GRIP (A) M6X20 FLANGE	0-28650-620-0	01	1	1010-		●
48	BOLT; ASSIST GRIP (E) M8X20 FLANGE	0-28650-820-0	06	1	1010-		●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1010-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1010-	●	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	1010-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK (A)	8-97386-939-0	02	1	1010-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK (B)	8-97583-744-3	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (C)	8-98080-429-0	04	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (D)	8-98080-432-0	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (D)	8-98080-431-0	01	1	1010-		●
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1010-	●	●
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1010-	●	●

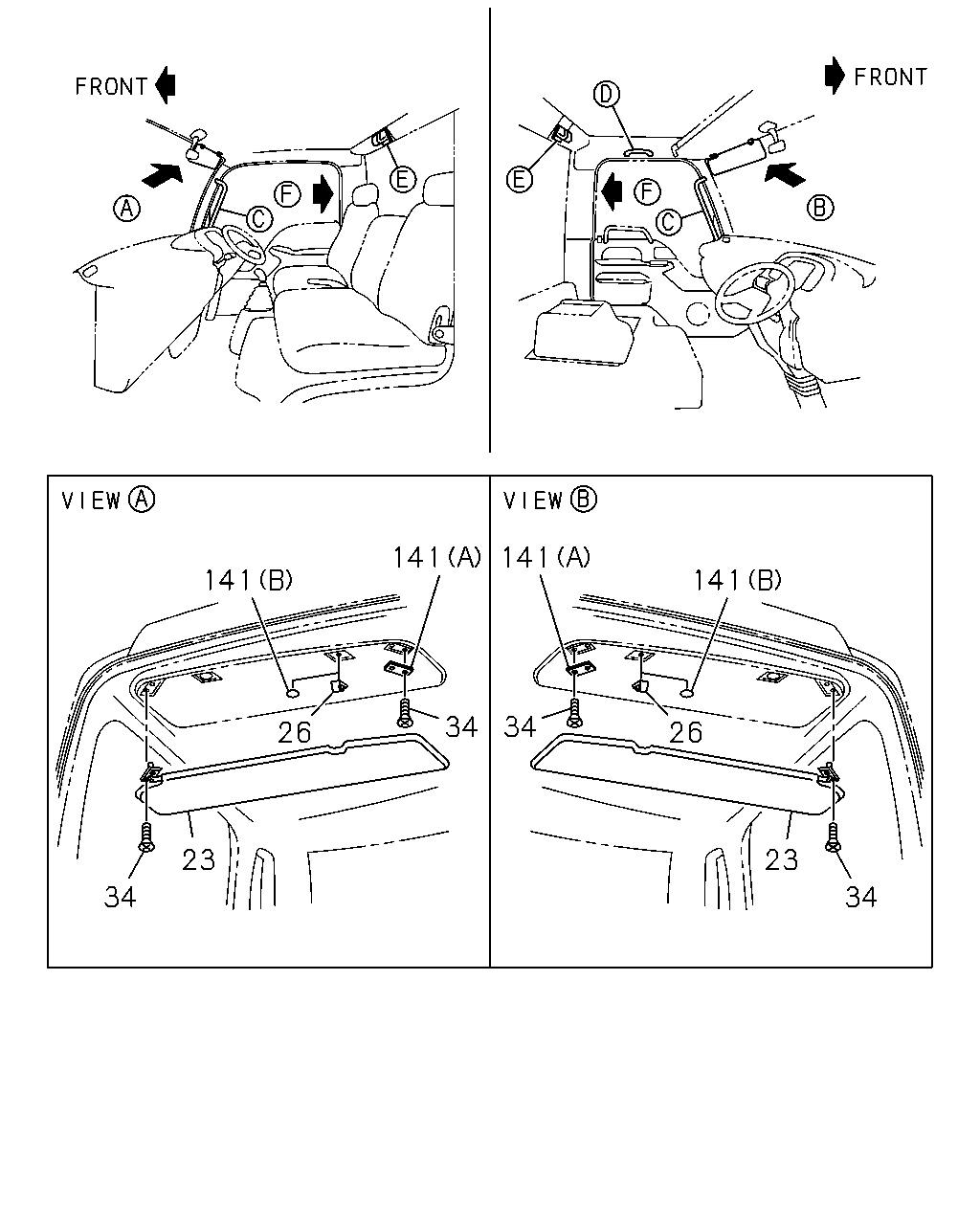

141 141 141 141 34 34 26 26 23 23 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR DARK GRAY	8-97413-097-1	01	1	1010-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-170-3	01	1	1010-	●	●
26	HOLDER; SUN VISOR DARK GRAY	8-97405-171-0	01	1	1010-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY	8-97405-171-0	01	1	1010-	●	●
34	SCREW; SUN VISOR M6X26	8-98033-674-0	04	1	1010-	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X26	8-98033-674-0	02	1	1010-	●	●
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26	8-98033-674-0	02	1	1010-	●	●
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1010-	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1010-	●	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1010-1401	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1010-1401	●	●
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-	●	●
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-	●	●

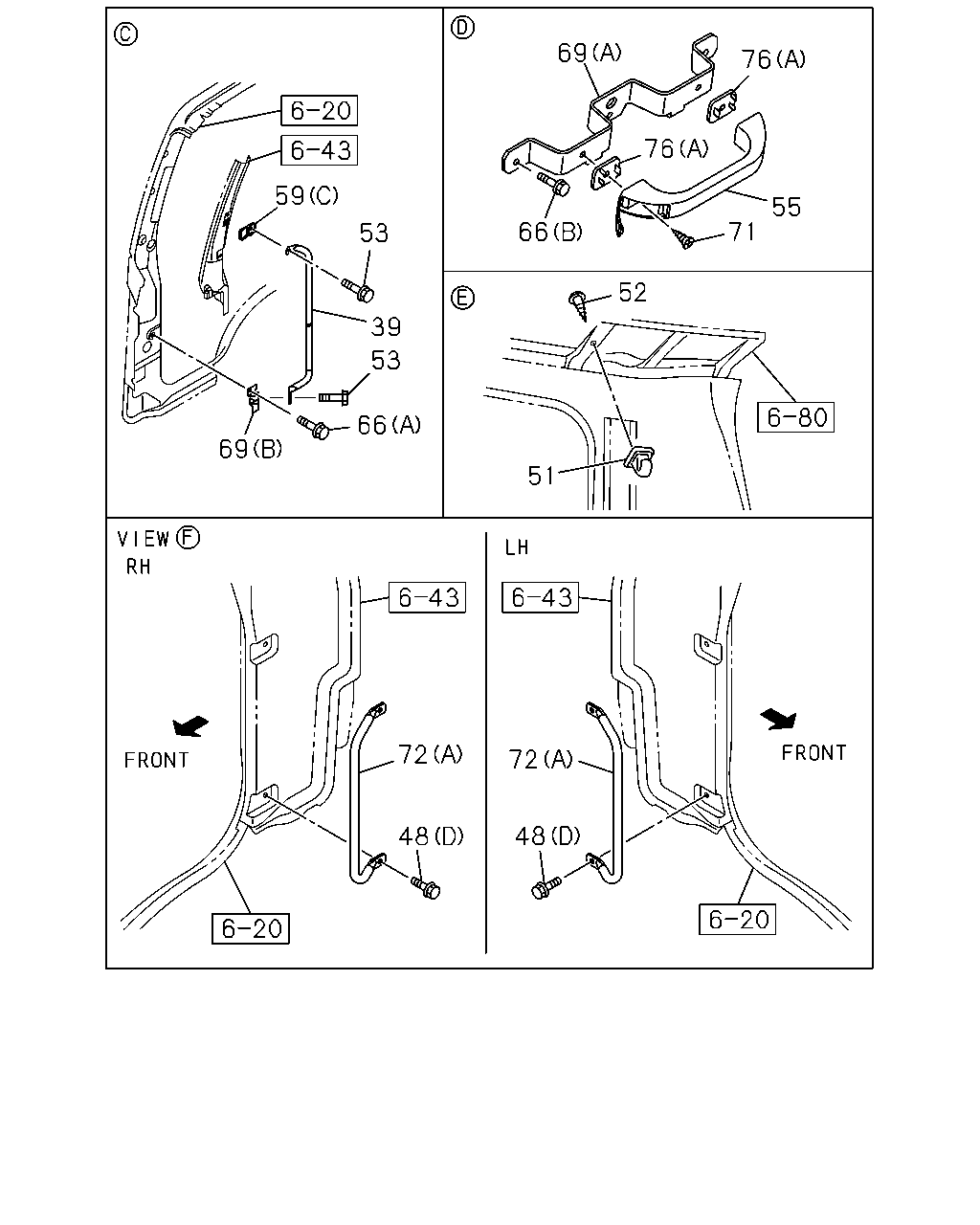

69 76 76 59 55 71 66 53 52 39 53 66 69 51 72 72 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97407-943-2	01	1	1010-	●	●
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97407-942-2	01	1	1010-	●	●
48	BOLT; ASSIST GRIP (D) M8X16 FLANGE	0-28060-816-0	04	1	1010-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 FLANGE	0-28660-830-0	04	1	1010-	●	●
48	BOLT; ASSIST GRIP (B) M6X10 FLANGE	0-28050-610-0	04	1	1010-		●
48	BOLT; ASSIST GRIP (A) M6X20 FLANGE	0-28650-620-0	01	1	1010-		●
48	BOLT; ASSIST GRIP (E) M8X20 FLANGE	0-28650-820-0	06	1	1010-		●
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1010-	●
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	1010-	●
53	SCREW; ASSIST HANDLE M8X20 FLANGE	0-28650-820-0	04	1	1010-	●	●
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1010-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1010-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1010-	●	●
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	02	1	1010-	●	●
66	BOLT; ASSIST GRIP BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1010-1108	●	●
66	BOLT; ASSIST GRIP BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	1109-	●	●
66	BOLT; ASSIST GRIP BRKT (B) M6X12 FLANGE	8-97108-669-0	06	1	1010-	●	●
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	02	1	1010-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1010-	●	●
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1010-	●	●
71	SCREW M6X28	8-98004-344-0	02	1	1010-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK (A)	8-97386-939-0	02	1	1010-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK (B)	8-97583-744-3	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (C)	8-98080-429-0	04	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (D)	8-98080-432-0	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (D)	8-98080-431-0	01	1	1010-		●
76	SPACER; ASSIST GRIP (A) DARK GRAY	8-97405-286-0	02	1	1010-	●	●
76	SPACER; ASSIST GRIP (B)	8-98081-584-0	02	1	1010-		●

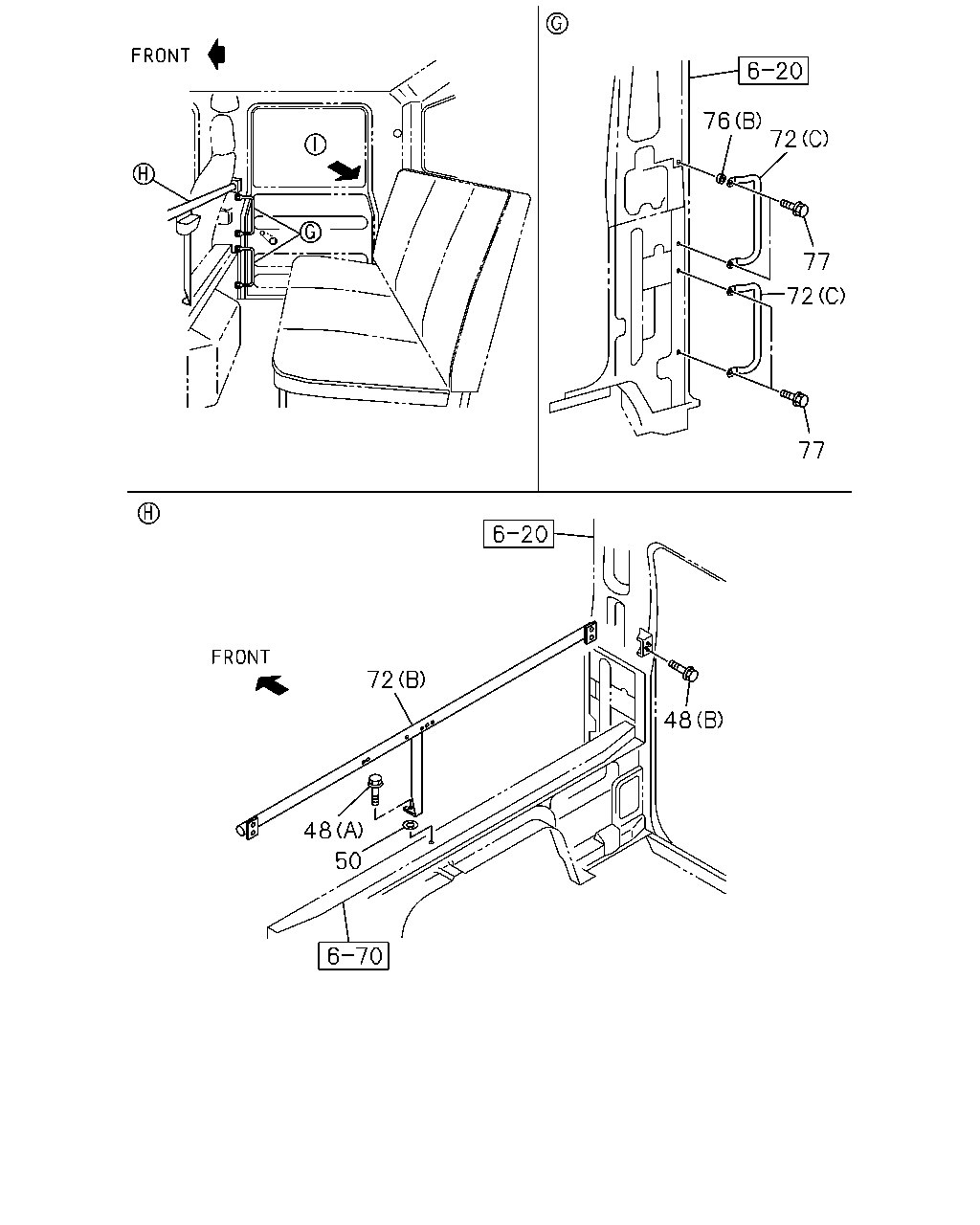

76 72 77 72 77 72 48 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (D) M8X16 FLANGE	0-28060-816-0	04	1	1010-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 FLANGE	0-28660-830-0	04	1	1010-	●	●
48	BOLT; ASSIST GRIP (B) M6X10 FLANGE	0-28050-610-0	04	1	1010-		●
48	BOLT; ASSIST GRIP (A) M6X20 FLANGE	0-28650-620-0	01	1	1010-		●
48	BOLT; ASSIST GRIP (E) M8X20 FLANGE	0-28650-820-0	06	1	1010-		●
50	WASHER; PL,ASSIST GRIP ID=8.4 OD=16	0-91610-508-0	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (A)	8-97386-939-0	02	1	1010-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK (B)	8-97583-744-3	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (C)	8-98080-429-0	04	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (D)	8-98080-432-0	01	1	1010-		●
72	GRIP; ASSIST,CAB ENTRY,BACK (D)	8-98080-431-0	01	1	1010-		●
76	SPACER; ASSIST GRIP (A) DARK GRAY	8-97405-286-0	02	1	1010-	●	●
76	SPACER; ASSIST GRIP (B)	8-98081-584-0	02	1	1010-		●
77	SCREW; ASSIST GRIP M6X25 W/LK&PL WASHER	0-50640-625-0	08	1	1010-		●

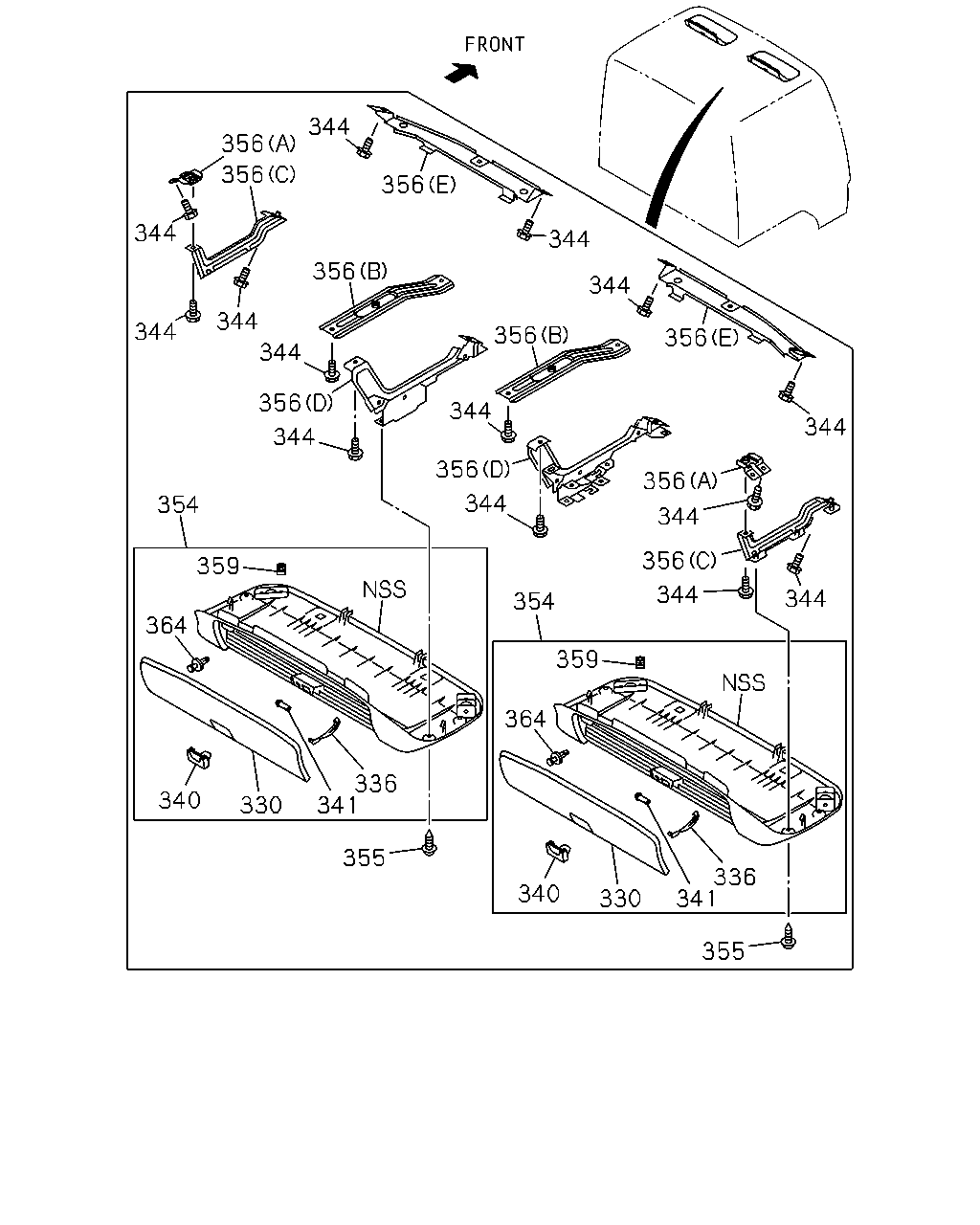

344 356 356 356 344 344 356 344 344 344 356 356 344 356 344 344 344 356 356 344 354 344 356 359 344 344 354 364 359 364 336 341 340 330 355 336 341 340 330 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1010-	●	●
330	LID; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-834-1	01	1	1010-	●	●
336	STAY; LID	1-72448-379-3	02	1	1010-	●	●
336	STAY; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-379-3	02	1	1010-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1010-	●	●
340	LOCK; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	1-72448-376-0	01	1	1010-	●	●
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1010-	●	●
341	HINGE; LID,HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98025-428-2	02	1	1010-	●	●
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	12	1	1010-	●	●
344	BOLT; BRKT,FRT HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE	8-97108-669-0	08	1	1010-	●	●
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1010-1401	●	●
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97407-386-5	01	1	1010-1401	●	●
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-	●	●
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97428-821-0	01	1	1402-	●	●
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1010-	●	●
355	SCREW; TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1010-	●	●
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1010-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-97386-874-1	01	1	1010-	●	●
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1010-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98010-059-0	01	1	1010-	●	●
356	BRACKET; ROOF OUTER (E)	8-98042-016-3	01	1	1010-	●	●
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1010-	●	●
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1010-	●	●
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1010-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)	8-98016-871-3	01	1	1010-	●	●
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)	8-98042-009-2	01	1	1010-	●	●
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1010-	●	●
359	HOLDER; HEADER TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98041-754-0	04	1	1010-	●	●
364	STOPPER; LID	8-98010-867-1	03	1	1010-	●	●
364	STOPPER; LID HEADER CONSOLE DRIVER & PASSENGER<EDG>	8-98010-867-1	03	1	1010-	●	●
