2-20 — MANUAL TRANSMISSION ASM AND CASE (#7213) — 187 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL	1-33041-305-0	01	1	9906-	●
	1	TRANSMISSION ASM; MANUAL	1-33041-420-0	01	1	9907-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL	1-33041-305-0	01	1	9906-	●
	1	TRANSMISSION ASM; MANUAL	1-33041-420-0	01	1	9907-		●

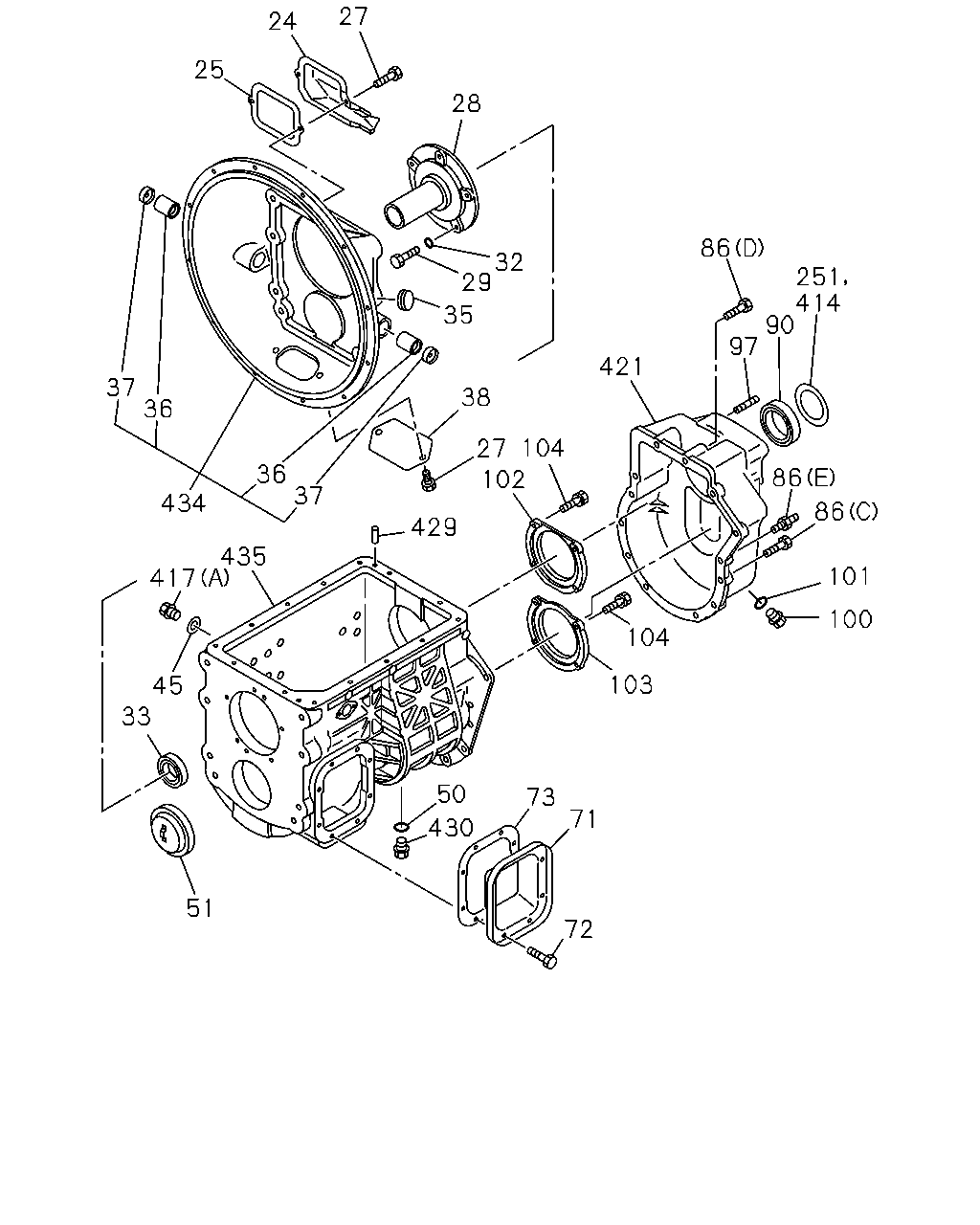

27 24 25 28 86 32 29 251 414 90 97 35 421 37 36 38 104 27 86 36 37 102 434 86 429 435 101 417 100 104 103 45 33 50 73 71 430 51 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9906-9906	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9907-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9906-9906	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9907-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9906-9906	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9907-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	9906-0007	●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9907-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	9906-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9907-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	9906-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9907-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9906-9906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9907-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9906-9906	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9907-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9906-9906	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9907-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9906-9906	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9907-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9907-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9906-9906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9907-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9906-9906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9907-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9907-		●
71	COVER; SIDE,TRANS CASE	1-33141-045-0	01	1	9906-9911	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	9907-		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	04	1	9906-9911	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9907-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-042-0	01	1	9906-9911	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	9907-		●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	9906-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9906-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	9907-		●
86	BOLT; RR COVER (D) M12X65	1-09044-077-0	02	1	9907-0011		●
86	BOLT; RR COVER (D) M12X65 FLANGE	1-09044-113-0	02	1	0012-		●
86	BOLT; RR COVER (E) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9907-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9906-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9907-		●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	9906-9906	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	9907-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9906-9906	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9907-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9907-		●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9907-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9907-		●
103	RETAINER; BRG	1-33151-052-0	01	1	9906-0101	●
103	RETAINER; BRG	1-33151-059-0	01	1	0102-	●
103	RETAINER; BRG	9-33151-014-0	01	1	9907-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-0	08	1	9906-0001	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0002-	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0002-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9907-		●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	9912-		●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9907-9911		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9906-9906	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9907-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	9912-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	9906-	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9907-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	9906-	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9907-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9906-9906	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9907-	●	●
434	HOUSING; CLU	1-31110-178-1	01	1	9906-	●
434	HOUSING; CLU	1-31110-179-2	01	1	9907-		●
435	CASE; TRANS	1-33111-298-1	01	1	9906-9911	●
435	CASE; TRANS	1-33111-299-3	01	1	9912-9912	●
435	CASE; TRANS	1-33111-314-0	01	1	0001-0007	●
435	CASE; TRANS	1-33111-321-0	01	1	0008-	●
435	CASE; TRANS	1-33111-260-0	01	1	9907-0202		●
435	CASE; TRANS	1-33111-330-0	01	1	0203-		●

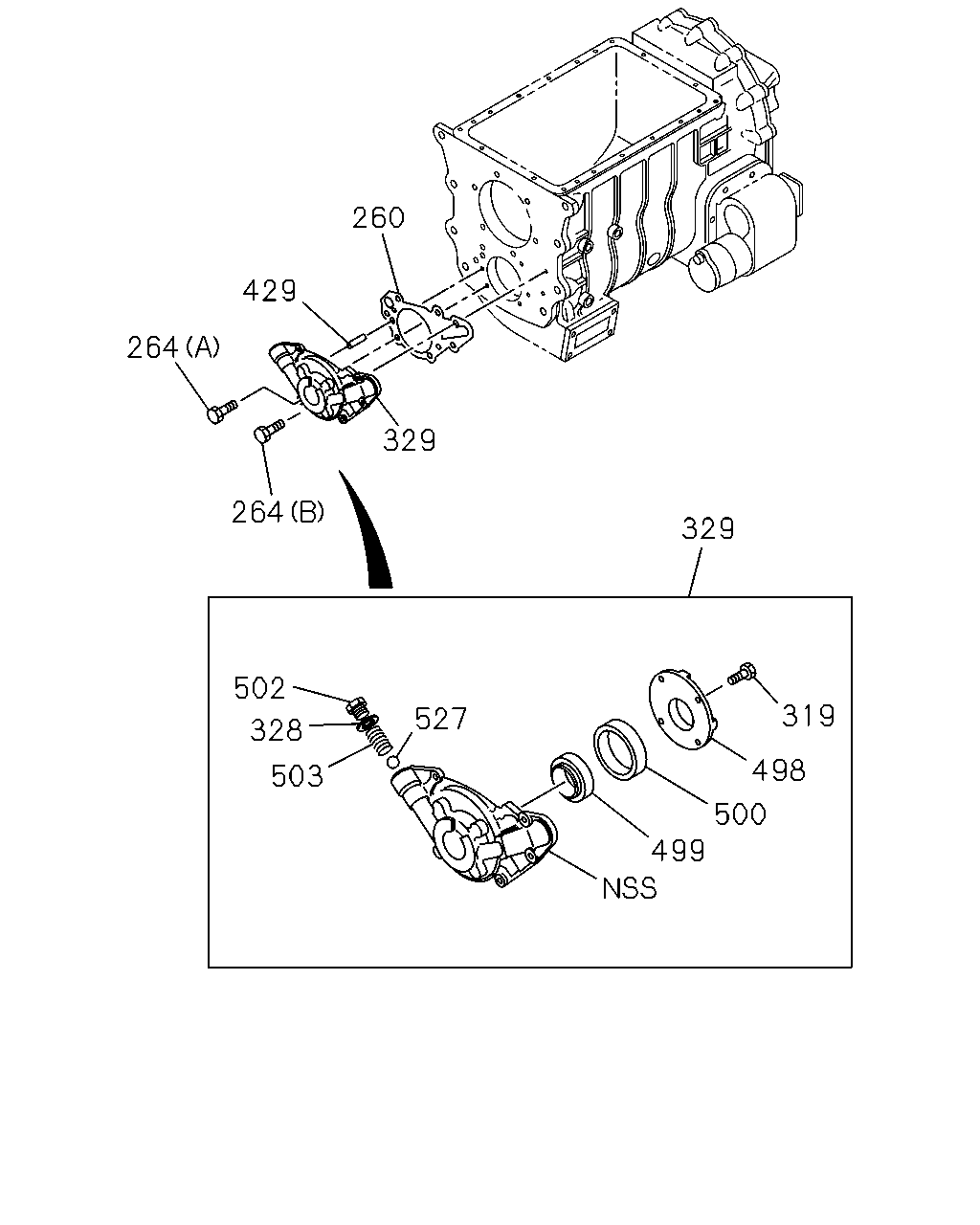

260 429 264 329 264 329 502 319 527 328 498 503 499 500

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
260	GASKET; OIL PUMP	1-34142-026-0	01	1	9906-	●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	9906-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	9906-	●
319	BOLT; COVER	1-34159-075-0	04	1	9906-	●
328	GASKET; PLUG	8-94244-656-0	01	1	9906-	●
329	PUMP ASM; OIL	1-34150-099-0	01	1	9906-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	9906-	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9907-		●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	9906-	●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	9906-	●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	9906-	●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	9906-	●
503	SPRING; OIL PUMP	1-34159-083-0	01	1	9906-	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	9906-	●

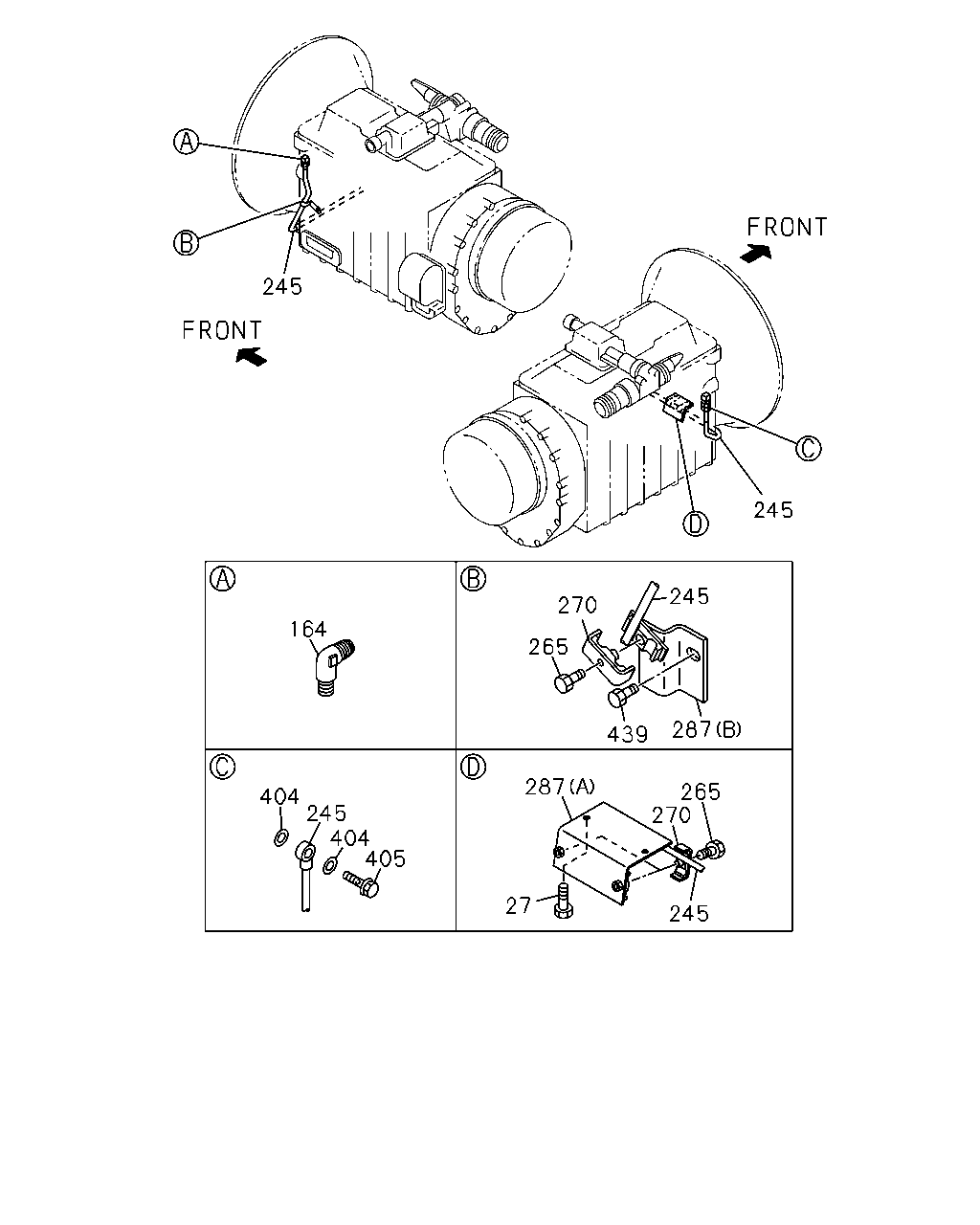

245 245 245 270 265 439 287 265 270 245 287 27 405 404 245 404 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9906-9906	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9907-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●
164	CONNECTOR; ELBOW M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9906-	●
245	PIPE; OIL L=749	1-32571-149-0	01	1	9906-9912	●
245	PIPE; OIL L=753	1-32571-160-0	01	1	0001-	●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	9906-	●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-1	03	1	9906-	●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	9906-	●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	9906-	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-	●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9906-	●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9906-	●

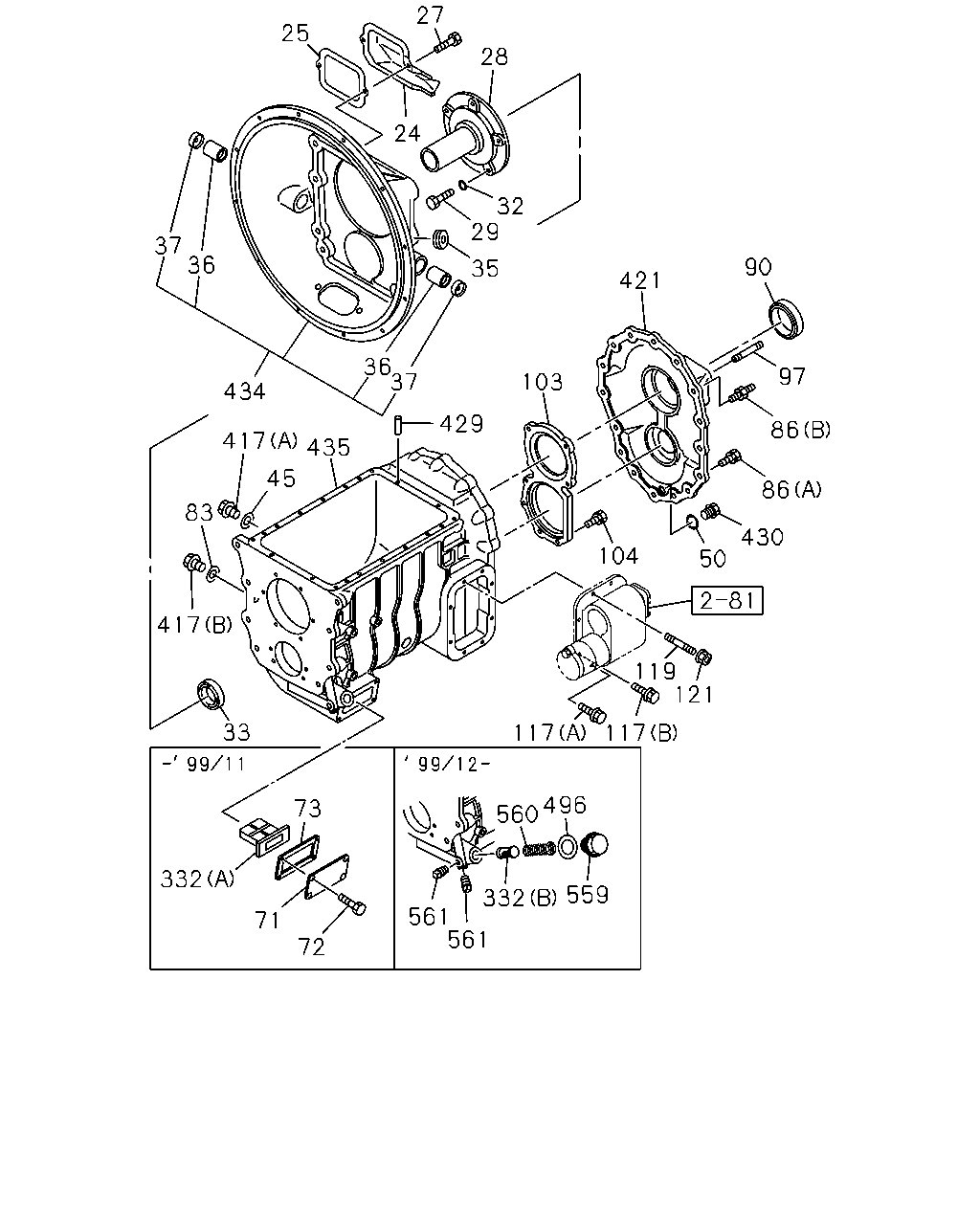

27 25 28 24 32 29 37 36 90 35 421 36 37 97 103 434 429 86 417 435 45 86 83 430 104 50 417 119 121 33 117 117 496 560 73 332 332 559 561 561 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9906-9906	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9907-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9906-9906	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9907-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9906-9906	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9907-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0105-	●	●
28	COVER; FRT,TRANS CASE	1-33121-115-2	01	1	9906-0007	●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0008-	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9907-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	9906-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9907-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	9906-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9907-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9906-9906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9907-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9906-9906	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9907-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9906-9906	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9907-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9906-9906	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9906-9906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9907-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9906-9906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9907-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-045-0	01	1	9906-9911	●
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	9907-		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	04	1	9906-9911	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9907-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-042-0	01	1	9906-9911	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	9907-		●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	9912-0106	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	9906-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9906-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	9907-		●
86	BOLT; RR COVER (D) M12X65	1-09044-077-0	02	1	9907-0011		●
86	BOLT; RR COVER (D) M12X65 FLANGE	1-09044-113-0	02	1	0012-		●
86	BOLT; RR COVER (E) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9907-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9906-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9907-		●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	9906-9906	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	9907-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9906-9906	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9907-	●	●
103	RETAINER; BRG	1-33151-052-0	01	1	9906-0101	●
103	RETAINER; BRG	1-33151-059-0	01	1	0102-	●
103	RETAINER; BRG	9-33151-014-0	01	1	9907-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-0	08	1	9906-0001	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0002-	●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0002-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9907-		●
117	BOLT; PTO FIX (A) M12X25 FLANGE	0-28181-225-0	02	1	9906-	●
117	BOLT; PTO FIX (B) M12X120 FLANGE	0-28186-212-0	02	1	9906-	●
119	STUD; PTO FIX M12X25 L=43	9-94411-225-0	04	1	9906-	●
121	NUT; PTO FIX M12 FLANGE	0-91150-212-0	04	1	9906-	●
332	FILTER; OIL (A)	1-34159-051-0	01	1	9906-9911	●
332	FILTER; OIL (B)	1-41383-003-0	01	1	9912-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9906-9906	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	9907-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	9912-	●
421	COVER; RR,TRANS	1-33131-201-1	01	1	9906-	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9907-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	9906-	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9907-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9906-9906	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9907-	●	●
434	HOUSING; CLU	1-31110-178-1	01	1	9906-	●
434	HOUSING; CLU	1-31110-179-2	01	1	9907-		●
435	CASE; TRANS	1-33111-298-1	01	1	9906-9911	●
435	CASE; TRANS	1-33111-299-3	01	1	9912-9912	●
435	CASE; TRANS	1-33111-314-0	01	1	0001-0007	●
435	CASE; TRANS	1-33111-321-0	01	1	0008-	●
435	CASE; TRANS	1-33111-260-0	01	1	9907-0202		●
435	CASE; TRANS	1-33111-330-0	01	1	0203-		●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	9912-	●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	9912-	●
560	SPRING; OIL	1-09580-504-0	01	1	9912-	●
561	PLUG PT1/4	9-99204-513-0	02	1	9912-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
