◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#72127) — 66 parça

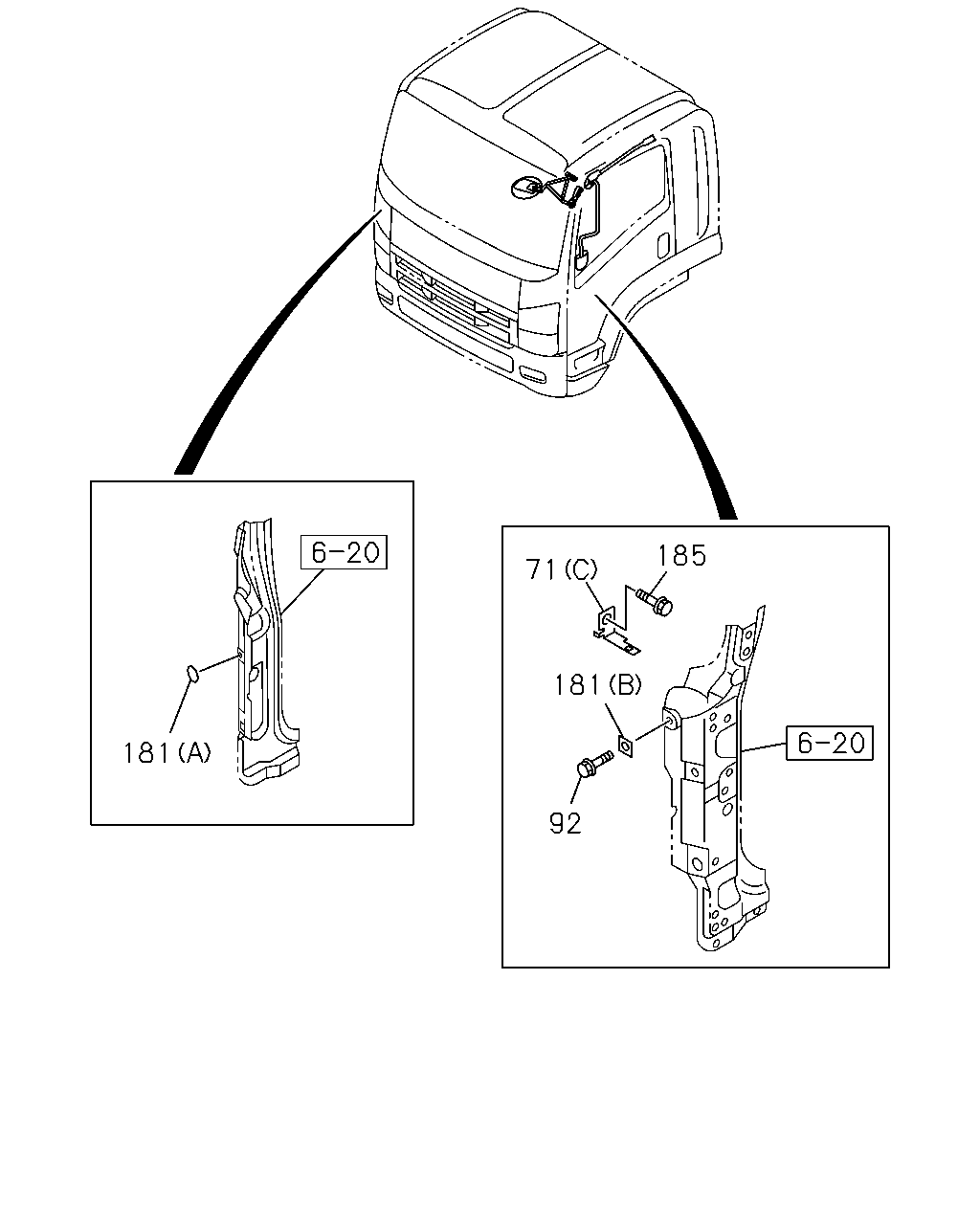

çizim 133018
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1010- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1010- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1010- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1010-1202 ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●

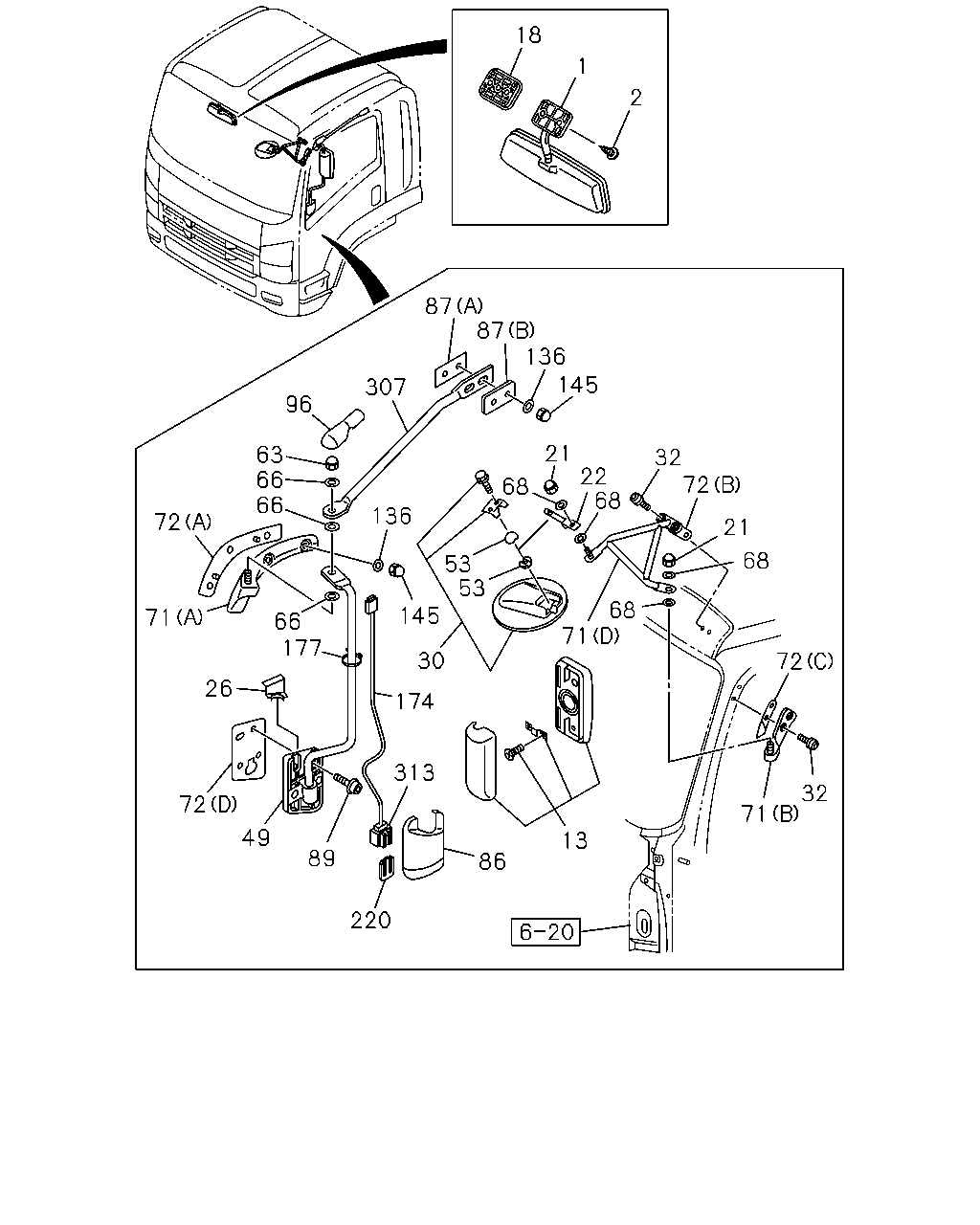

çizim 190043
87 87 136 145 307 96 63 66 66 72 71 66 177 26 72 49 89 220 86 13 71 32 72 68 21 72 32 68 22 21 68 53 53 71 68 30 174 313 145 136 18 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1010- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1010- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1010- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1010- ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1010- ● ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1010- ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98055-994-0 01 1 1010-1504 ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1010- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1010- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1010- ● ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1010- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1010- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1010- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1010- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1010- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1010- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1010- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1010- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1010- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1010- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1010- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1010- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1010- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1010- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1010- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1010- ● ●
