◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#72126) — 9 parça

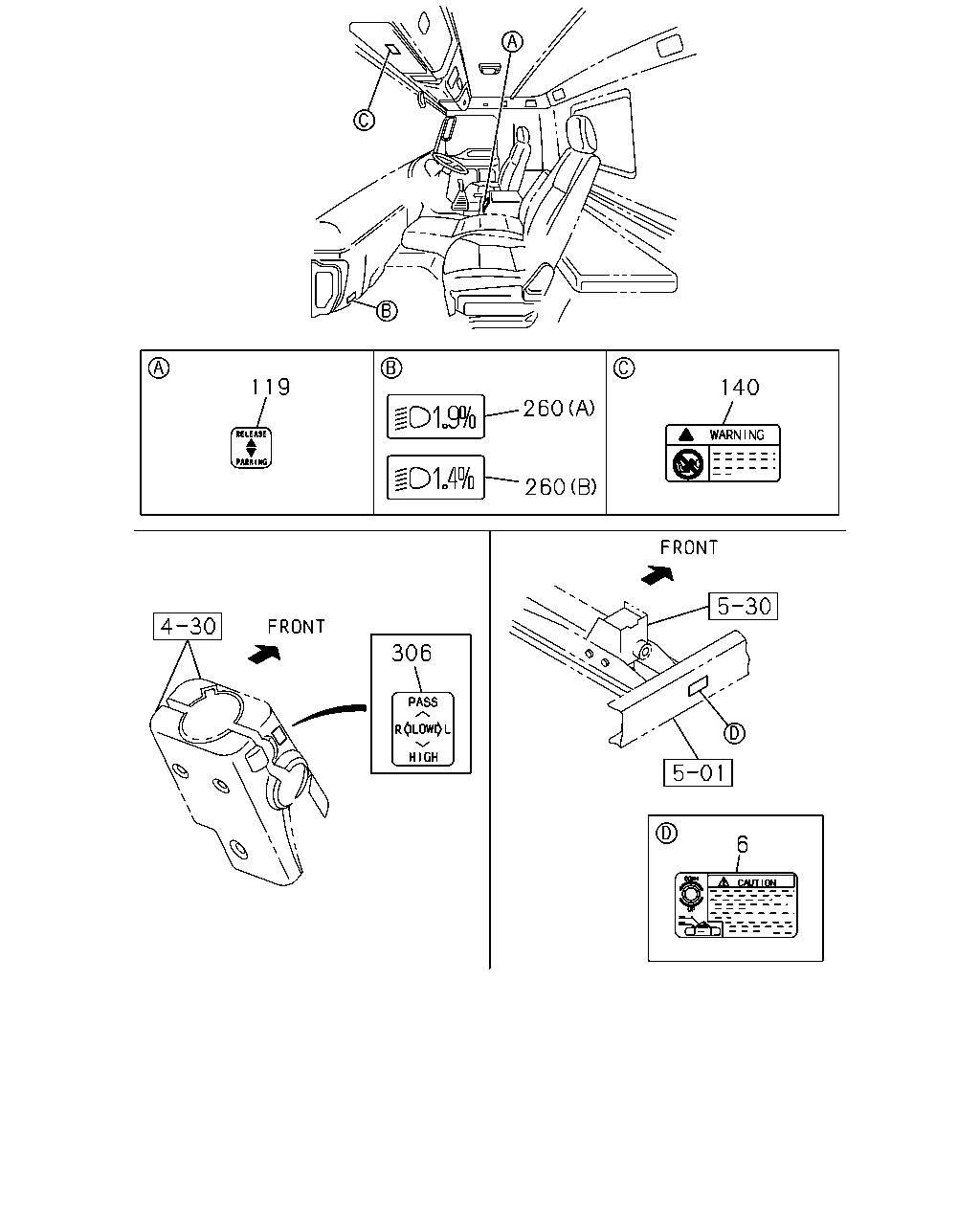

çizim 132608
119 140 260 260 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1010- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1010- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1010- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
4HK1-TCS ENG(RJS) (A) 		8-98008-779-0 01 1 1103- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
6HK1-TCN ENG(82L) (B) 		1-85878-501-1 01 1 1010- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1010- ● ●

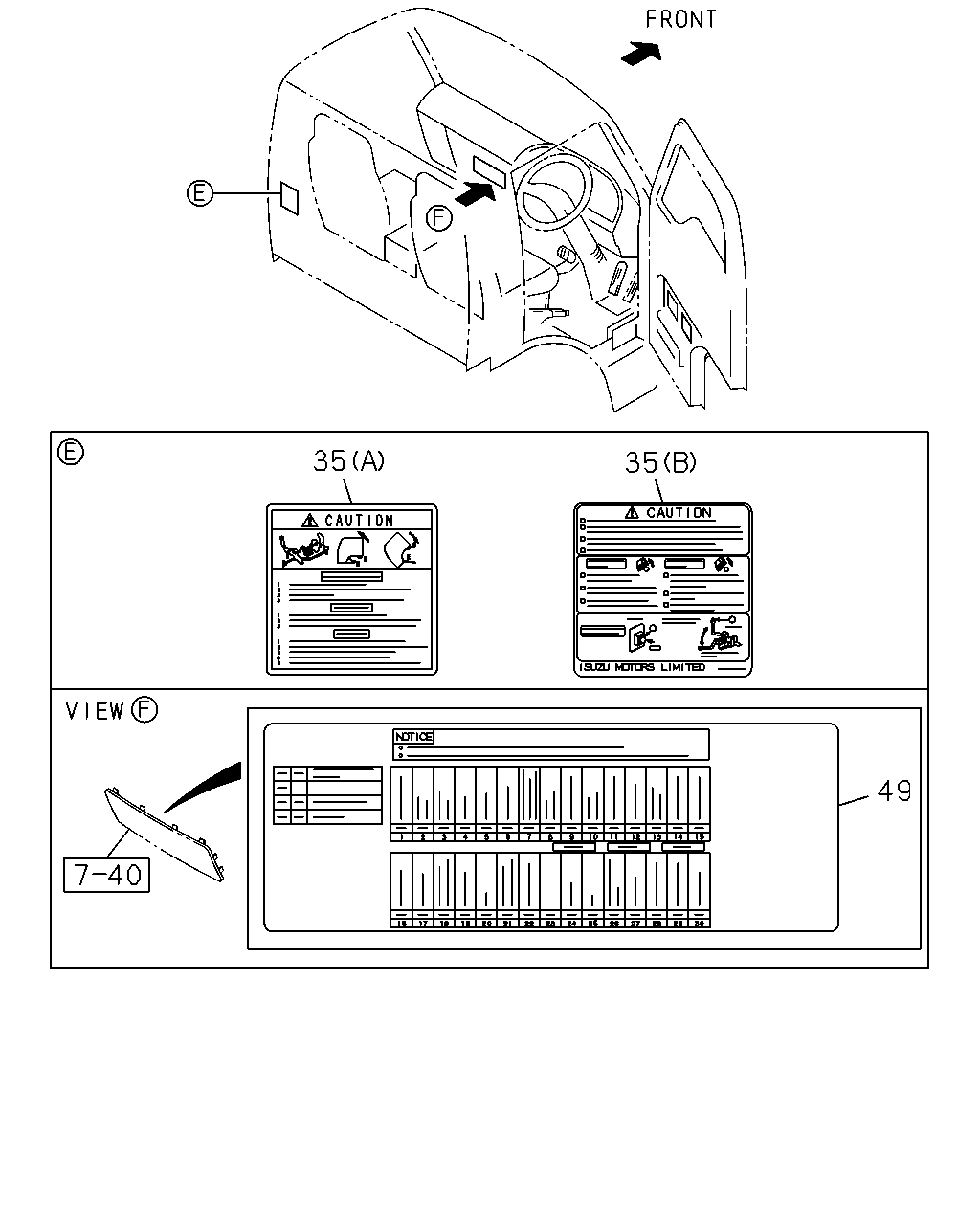

çizim 190030
35 35 49
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1010- ●
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 1010- ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1010- ● ●
