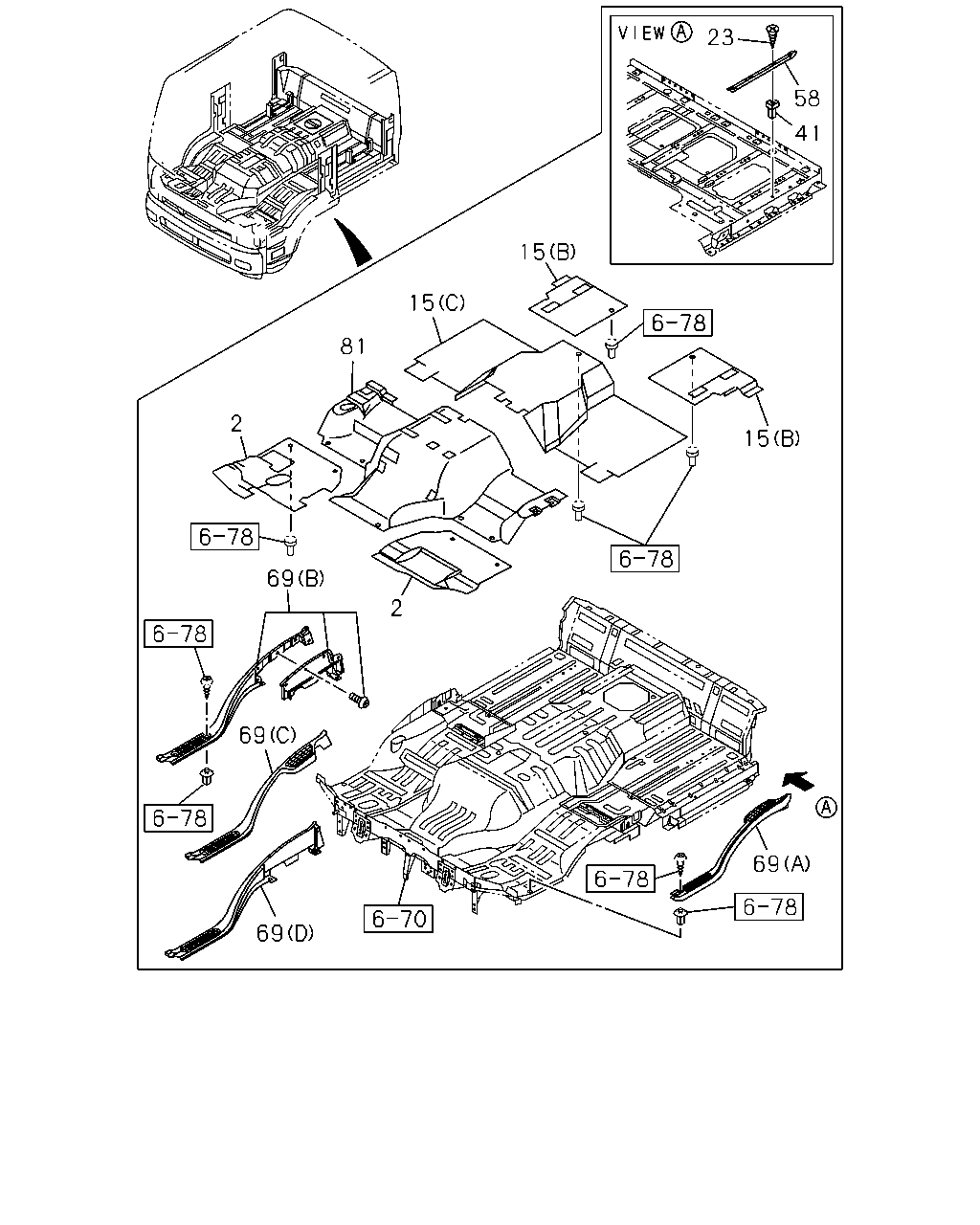

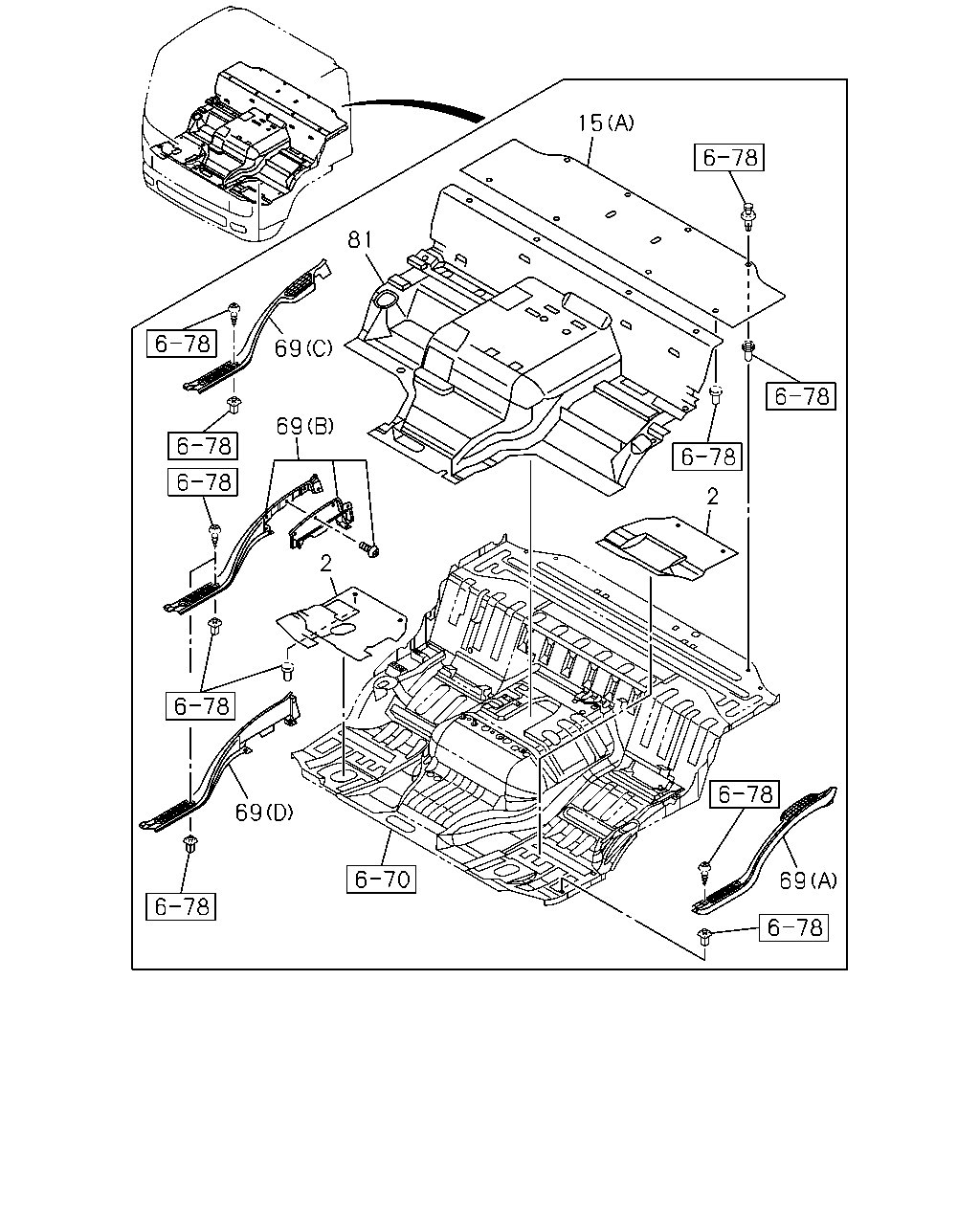

6-75 — MAT AND CARPET (#72118) — 43 parça

23 58 41 15 69 69 69 2 69 81 2 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1010-	●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1010-		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1010-	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1010-		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-946-0	01	1	1010-	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-948-0	01	1	1010-	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1010-1402	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> (A) DARK GRAY	8-97418-950-0	01	1	1403-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-403-1	01	1	1010-1402	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> (A) GRAY	8-97407-403-1	01	1	1403-	●
15	MAT; FLOOR REAR (C) GRAY	8-97411-891-1	01	1	1010-		●
15	MAT; FLOOR REAR (B) GRAY	8-97411-890-1	01	1	1010-		●
15	MAT; FLOOR REAR (B) GRAY	8-97411-892-2	01	1	1010-		●
23	SCREW; SILL PLATE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1010-		●
41	GROMMET; SCREW,SILL PLATE D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	1010-		●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1010-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1010-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1010-1503	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (D) GRAY	8-97465-138-0	01	1	1504-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	1010-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-791-3	01	1	1010-	●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-937-0	01	1	1010-	●
81	MAT; FLOOR,CENTER GRAY	8-97407-409-2	01	1	1010-		●

15 2 69 69 2 69 69 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1010-	●
2	MAT; FLOOR GRAY	8-97407-744-4	01	1	1010-		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1010-	●
2	MAT; FLOOR GRAY	8-97407-745-2	01	1	1010-		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-946-0	01	1	1010-	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-948-0	01	1	1010-	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-950-0	01	1	1010-1402	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> (A) DARK GRAY	8-97418-950-0	01	1	1403-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-403-1	01	1	1010-1402	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> (A) GRAY	8-97407-403-1	01	1	1403-	●
15	MAT; FLOOR REAR (C) GRAY	8-97411-891-1	01	1	1010-		●
15	MAT; FLOOR REAR (B) GRAY	8-97411-890-1	01	1	1010-		●
15	MAT; FLOOR REAR (B) GRAY	8-97411-892-2	01	1	1010-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1010-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1010-1503	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (D) GRAY	8-97465-138-0	01	1	1504-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	1010-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-791-3	01	1	1010-	●
81	MAT; FLOOR,CENTER EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-937-0	01	1	1010-	●
81	MAT; FLOOR,CENTER GRAY	8-97407-409-2	01	1	1010-		●
