◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#72108) — 22 parça

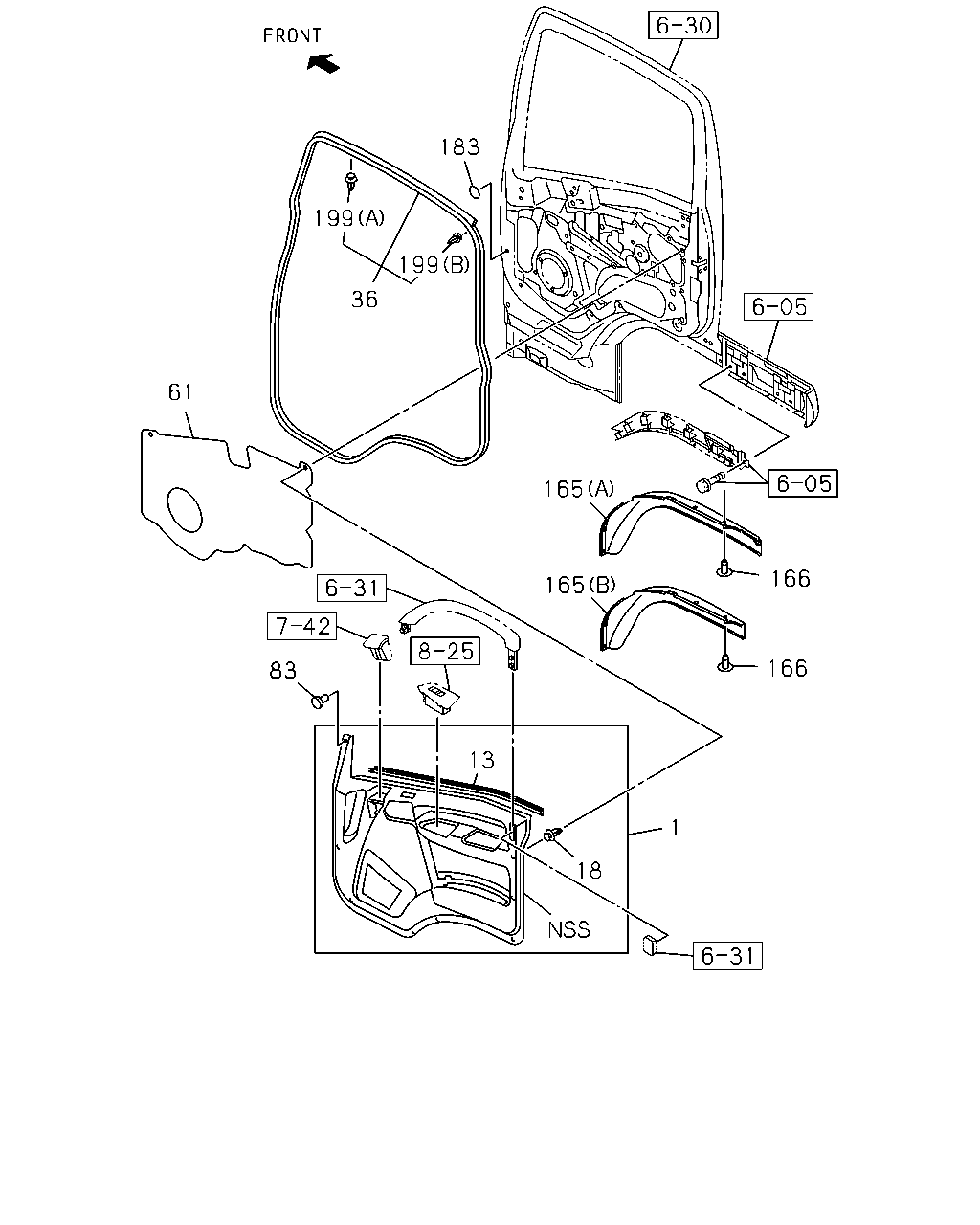

çizim 131039
183 199 199 36 61 165 166 165 166 83 13 1 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 1010- ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 1010- ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 1010- ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 1010- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 1010- ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 1010- ● ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 1010- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1010- ● ●
165 LINER; DOOR LWR
(A) 		8-98038-286-1 01 1 1010-1412 ●
165 LINER; DOOR LWR
(A) 		8-98299-436-0 01 1 1501- ●
165 LINER; DOOR LWR
(A) 		8-98038-285-1 01 1 1010-1412 ●
165 LINER; DOOR LWR
(A) 		8-98299-434-0 01 1 1501- ●
165 LINER; DOOR LWR
(B) 		8-97584-591-0 01 1 1010- ●
165 LINER; DOOR LWR
(B) 		8-97584-590-0 01 1 1010- ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 10 1 1010- ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 08 1 1010- ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1010- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1010- ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1010- ● ●
