2-07 — CLUTCH BOOSTER; MINIPACK (#7210) — 137 parça

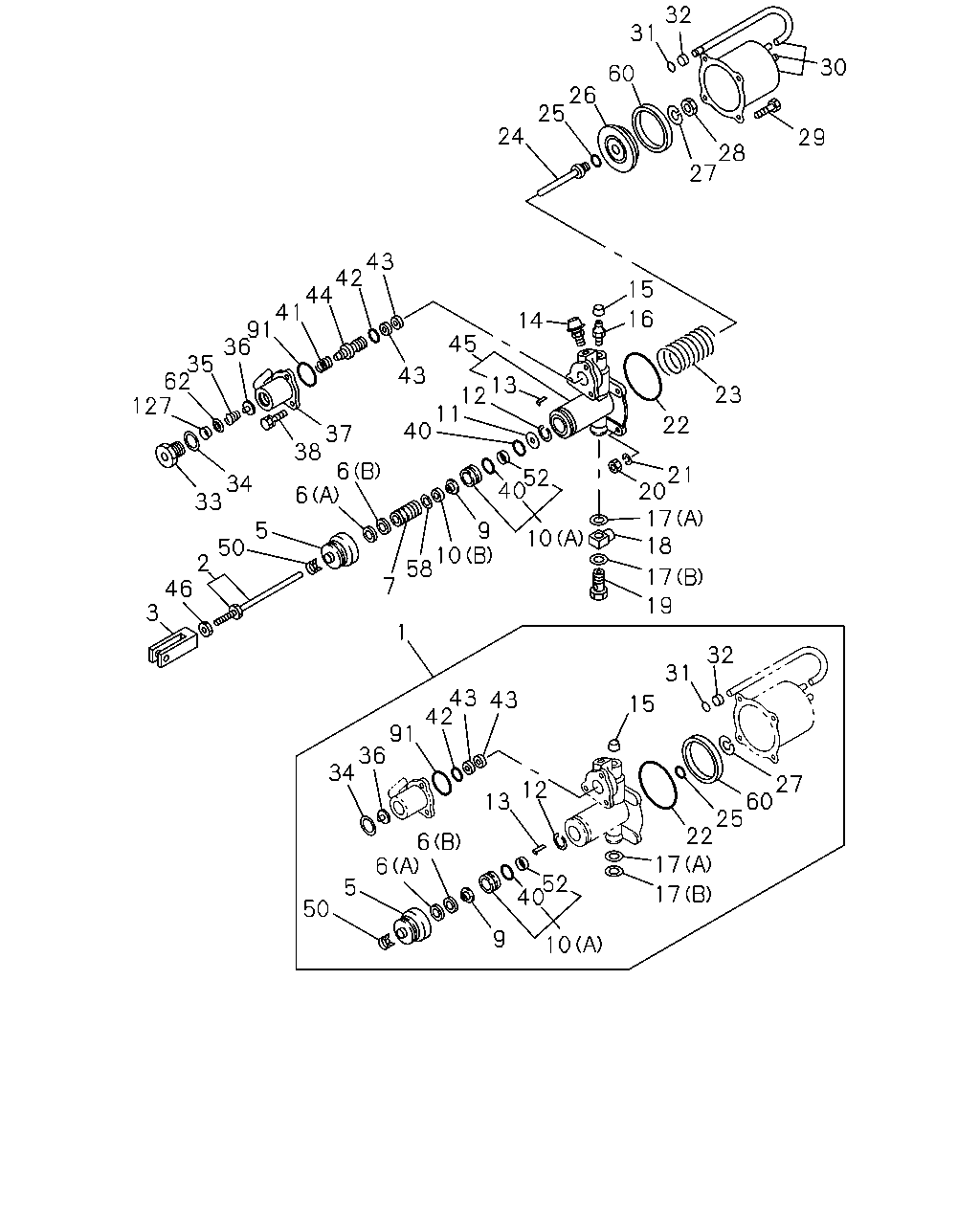

çizim 7119
32 31 30 60 26 25 24 29 28 27 43 42 44 41 91 36 15 16 14 45 35 62 127 43 13 12 11 40 23 22 37 38 6 21 20 17 18 52 40 34 33 6 5 9 10 58 10 50 2 46 3 17 7 19 1 32 31 43 42 43 15 91 36 34 12 27 60 25 22 17 13 6 6 52 40 5 17 50 9 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-354-0 01 1 9906-0011 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-500-0 01 1 0012- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-355-0 01 1 9907-0203 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-571-0 01 1 0204- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-159-0 01 1 9906-9906 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-159-0 01 1 9907-0011 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-159-0 01 1 0012- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0012- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 9906-9906 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 9907- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9906-9906 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9907-0011 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0012- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0012- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9906-9906 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9907- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9906-9906 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9907- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 9906-0203 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0204- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9907-0203 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9906-9906 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9907- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9906-9906 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 9907- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 9906-0011 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0012-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-300-0 01 1 9907-0203 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9906-9906 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9907- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9906-9906 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9907- ● ●
13 PIN; SPR 1-31829-109-0 01 1 9906-9906 ●
13 PIN; SPR 1-31829-109-0 01 1 9907- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9906-9906 ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9907-0011 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 0012-0203 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0204- ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0012- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9906-9906 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9907- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9906-9906 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9907- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9906-9906 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9907- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9906-9906 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9907- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9906-9906 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9907- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9906-9906 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9907- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9906-9906 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9907- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9906-9906 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9907- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 9906- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9907- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 9906- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9907-0203 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0204- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 9906- ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9907- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 9906- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9907- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 9906-0011 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0012- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 9907-0203 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0204- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 9906- ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9907- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 9906- ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9907- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9906-9906 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9907- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-076-0 01 1 9906-0011 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0012- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 9907-0203 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0204- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9906-9906 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9907- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9906-9906 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9907- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9906-9906 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9907- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9906-9906 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9907- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9906-9906 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9907-0011 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0012-0203 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0012- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9906-9906 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9907-0011 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0012-0203 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0012- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 9906-9906 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 9907-0005 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-066-0 01 1 0006-0011 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-066-0 01 1 0012-0203 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0012-0203 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0204- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9906-9906 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9907- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9906-9906 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9907- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9906-0005 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0006- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-299-0 01 1 9907- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 9906-9906 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 9907- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9906-9906 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9907- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 9906-9906 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 9907- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 9906- ●
45 PLATE; END,CLU BOOSTER 1-31811-057-1 01 1 9907- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9906-9906 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9907-0011 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0012- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 01 1 0012- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9906-9906 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9907-0011 ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0012- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0012- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0204- ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9906-0011 ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-301-0 01 1 9907-0203 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 9906-0011 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0012- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9907-0203 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0204- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0006- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9906-9906 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9907- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0006- ● ●
