Isuzu WW
▶
TRUCKS
▶
FRR
▶
11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

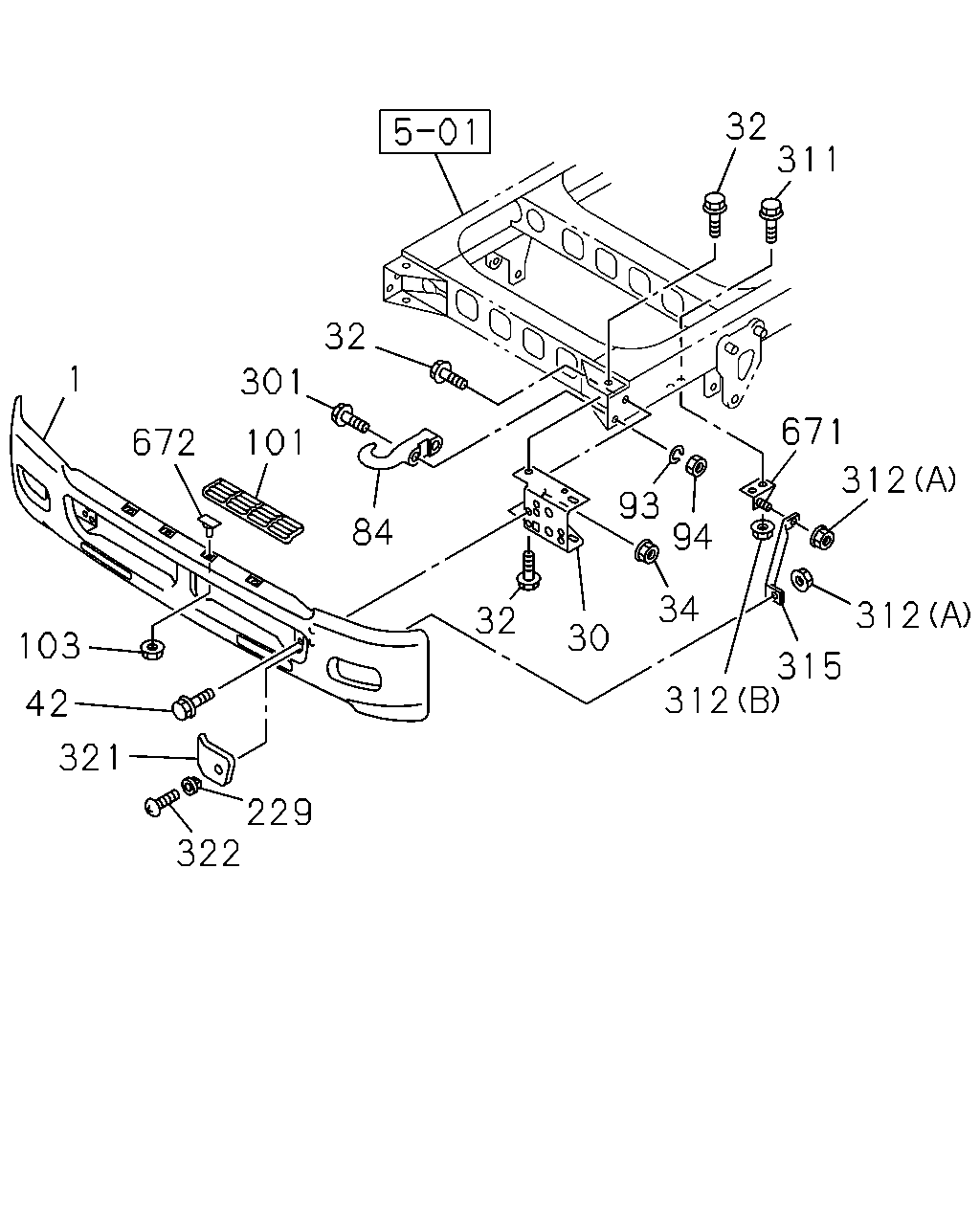

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#72099) — 26 parça
Tümü
A - FCR5MS
B - FCR5WS
32
311
32
1
301
671
672
101
312
93
94
84
34
312
32
30
103
315
312
42
321
229
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE
8-97407-728-3
01
1
1010-1301
●
●
1
BUMPER ASM; FRT
WHITE
8-97425-839-0
01
1
1302-
●
●
30
BRACKET; FRT BUMPER
8-97611-518-4
01
1
1010-
●
●
30
BRACKET; FRT BUMPER
8-97611-517-5
01
1
1010-
●
●
32
BOLT; BRKT,BUMPER
M10X35 FLANGE
0-28651-035-0
06
1
1010-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1010-
●
●
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1010-
●
●
84
HOOK
1-57181-003-5
01
1
1010-
●
●
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1010-
●
●
94
NUT; HOOK
M14
0-91110-514-0
02
1
1010-
●
●
101
STEP; BUMPER
8-97611-541-0
01
1
1010-
●
●
101
STEP; BUMPER
8-97611-540-0
01
1
1010-
●
●
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1010-
●
●
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1010-
●
●
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
1010-
●
●
311
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
04
1
1010-
●
●
312
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
04
1
1010-
●
●
312
NUT; BRKT
(B) M14 FLANGE
0-91180-214-0
04
1
1010-
●
●
315
STAY; BUMPER
8-97611-500-2
01
1
1010-
●
●
315
STAY; BUMPER
8-97611-499-2
01
1
1010-
●
●
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1010-
●
●
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1010-
●
●
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1010-
●
●
671
BRACKET; STAY
8-97614-063-0
01
1
1010-
●
●
671
BRACKET; STAY
8-97614-062-0
01
1
1010-
●
●
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1010-
●
●
