Isuzu WW
▶
TRUCKS
▶
FRR
▶
11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#72095) — 56 parça
◀

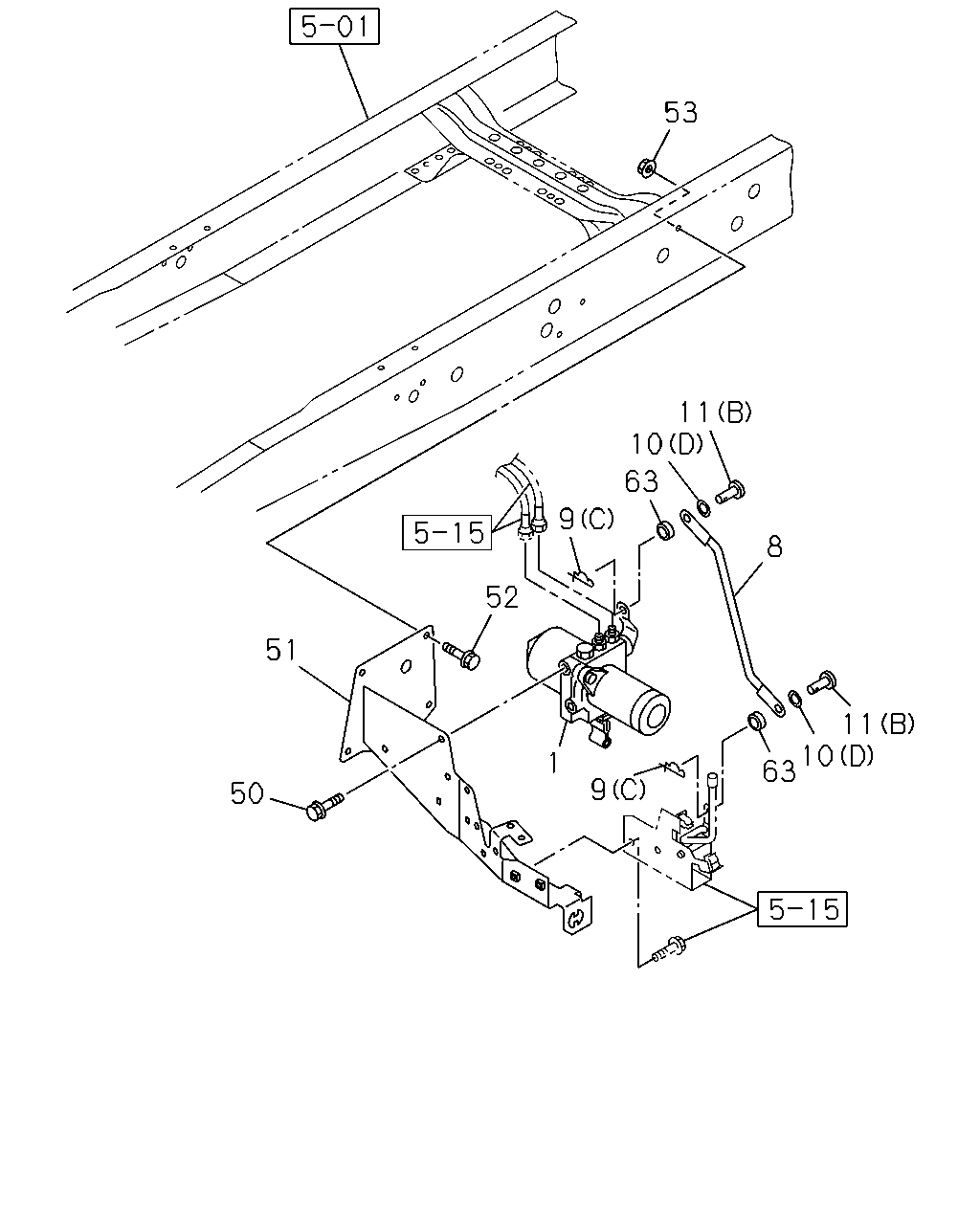

[516A] FIXING (17 parça)
[516A] REPAIR KIT (2 parça)
[516A] COMPONENT (37 parça)
▶
53
11
10
63
9
8
52
51
11
10
63
1
9
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
8-98037-753-1
01
1
1010-
8
LINK; OIL PUMP
8-98022-480-0
01
1
1010-
9
PIN; OIL PUMP
(C) L=27.7
1-09987-141-0
02
1
1010-
9
PIN; OIL PUMP
(A)
1-53458-057-0
01
1
1010-
9
PIN; OIL PUMP
(B)
1-53458-060-0
01
1
1010-
10
WASHER; OIL PUMP
(D) ID=8.4 OD=22
0-91610-708-0
02
1
1010-
10
WASHER; OIL PUMP
(A)
1-53457-208-0
01
1
1010-
10
WASHER; OIL PUMP
(B)
1-53457-211-0
01
1
1010-
10
WASHER; OIL PUMP
(C)
1-53458-013-0
01
1
1010-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1010-
11
PIN; SPLIT,OIL PUMP
(A)
1-53457-209-0
02
1
1010-
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
1010-
51
BRACKET; OIL PUMP
8-98043-945-3
01
1
1010-
52
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
1010-
53
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-1010
53
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1011-
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
1010-

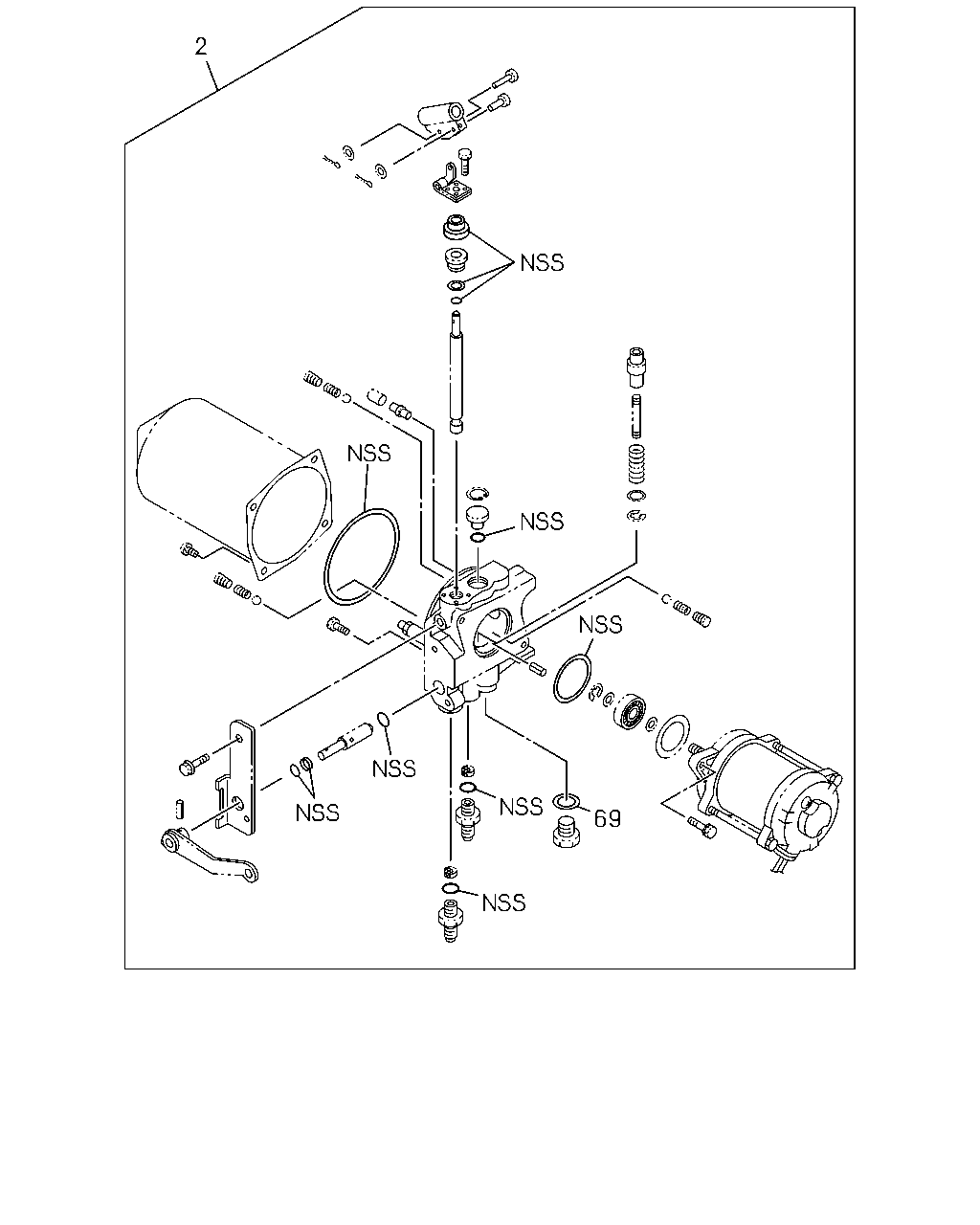

2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
1010-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1010-

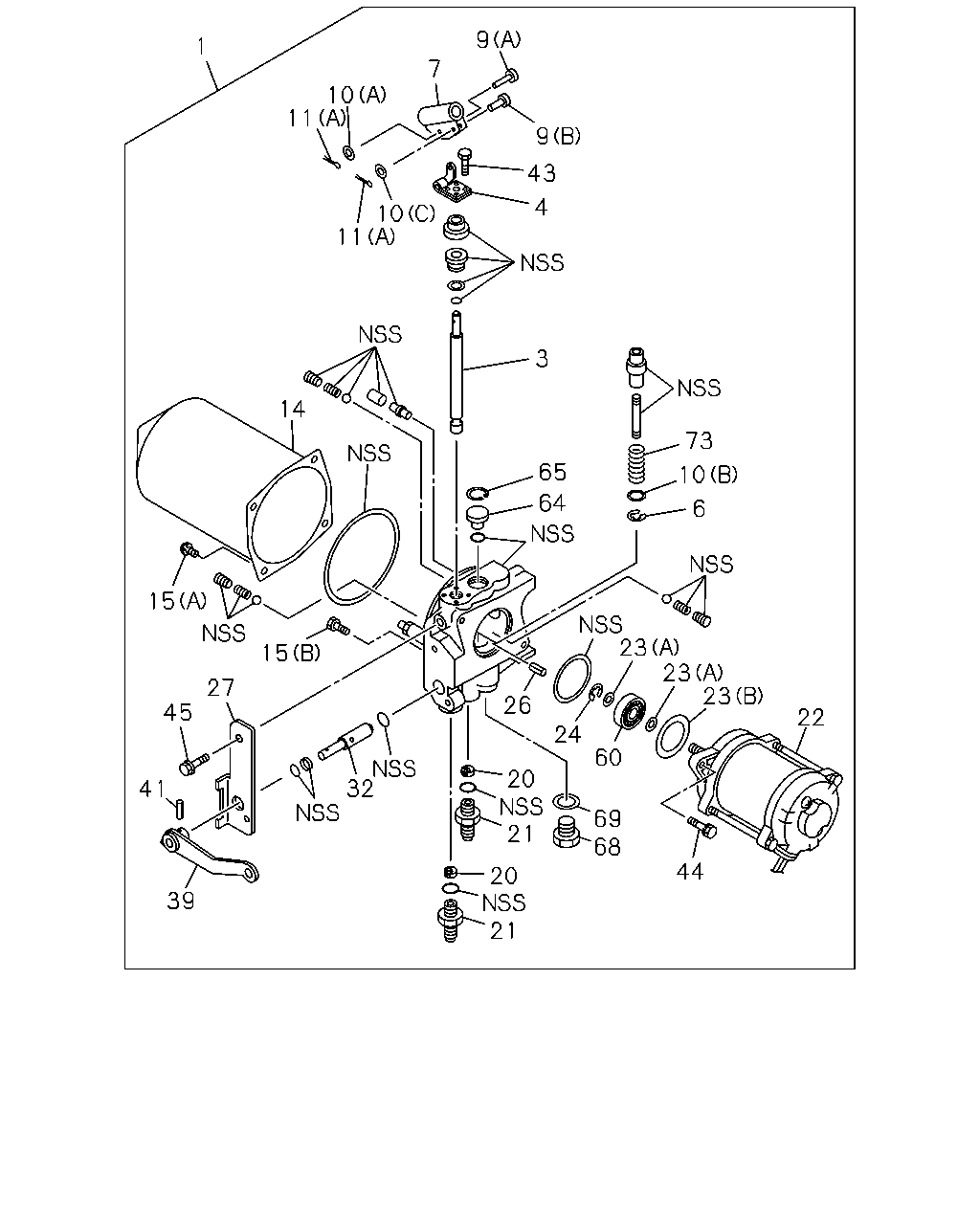

9
1
7
10
11
9
43
4
10
11
3
14
73
65
10
64
6
15
23
23
23
15
27
26
45
22
24
60
32
20
21
41
69
68
44
20
21
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
8-98037-753-1
01
1
1010-
3
PISTON; MANUAL
1-53457-204-0
01
1
1010-
4
BRACKET; OIL PUMP
1-53457-205-0
01
1
1010-
6
RING; SNAP
1-53457-210-0
01
1
1010-
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
1010-
9
PIN; OIL PUMP
(C) L=27.7
1-09987-141-0
02
1
1010-
9
PIN; OIL PUMP
(A)
1-53458-057-0
01
1
1010-
9
PIN; OIL PUMP
(B)
1-53458-060-0
01
1
1010-
10
WASHER; OIL PUMP
(D) ID=8.4 OD=22
0-91610-708-0
02
1
1010-
10
WASHER; OIL PUMP
(A)
1-53457-208-0
01
1
1010-
10
WASHER; OIL PUMP
(B)
1-53457-211-0
01
1
1010-
10
WASHER; OIL PUMP
(C)
1-53458-013-0
01
1
1010-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1010-
11
PIN; SPLIT,OIL PUMP
(A)
1-53457-209-0
02
1
1010-
14
RESERVOIR; OIL PUMP
1-53458-847-0
01
1
1010-
15
BOLT; RESERVOIR
(A) M5X8
1-53458-005-0
04
1
1010-
15
BOLT; RESERVOIR
(B) M5X8
1-53458-433-0
02
1
1010-
20
FILTER; OIL PUMP
1-53457-081-0
02
1
1010-
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
1010-
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
1010-
23
WASHER; MOTOR
(A)
1-53457-212-0
02
1
1010-
23
WASHER; MOTOR
(B)
1-53458-018-0
01
1
1010-
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
1010-
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
1010-
27
COVER; OIL PUMP
1-53458-568-0
01
1
1010-
32
VALVE; OIL PUMP
1-53458-569-0
01
1
1010-
39
LEVER; OIL PUMP
1-53458-567-0
01
1
1010-
41
PIN; SPR,LEVER
1-53458-019-0
01
1
1010-
43
BOLT; LEVER
M5X16
1-53457-206-0
03
1
1010-
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
1010-
45
BOLT; COVER
M6X8
1-53458-004-0
02
1
1010-
60
BEARING; OIL PUMP
1-53458-423-0
01
1
1010-
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
1010-
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
1010-
68
PLUG; FILLER
1-53458-428-0
01
1
1010-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1010-
73
SPRING; PISTON
1-53458-040-0
01
1
1010-
