Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#7209) — 70 parça

106 153 131 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2980 SERVICED BY L=3000	1-47428-773-0	01	1	9906-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9906-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE L=861 SERVICED BY L=900	1-49115-484-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=406	1-47428-974-0	01	1	9906-	●	●

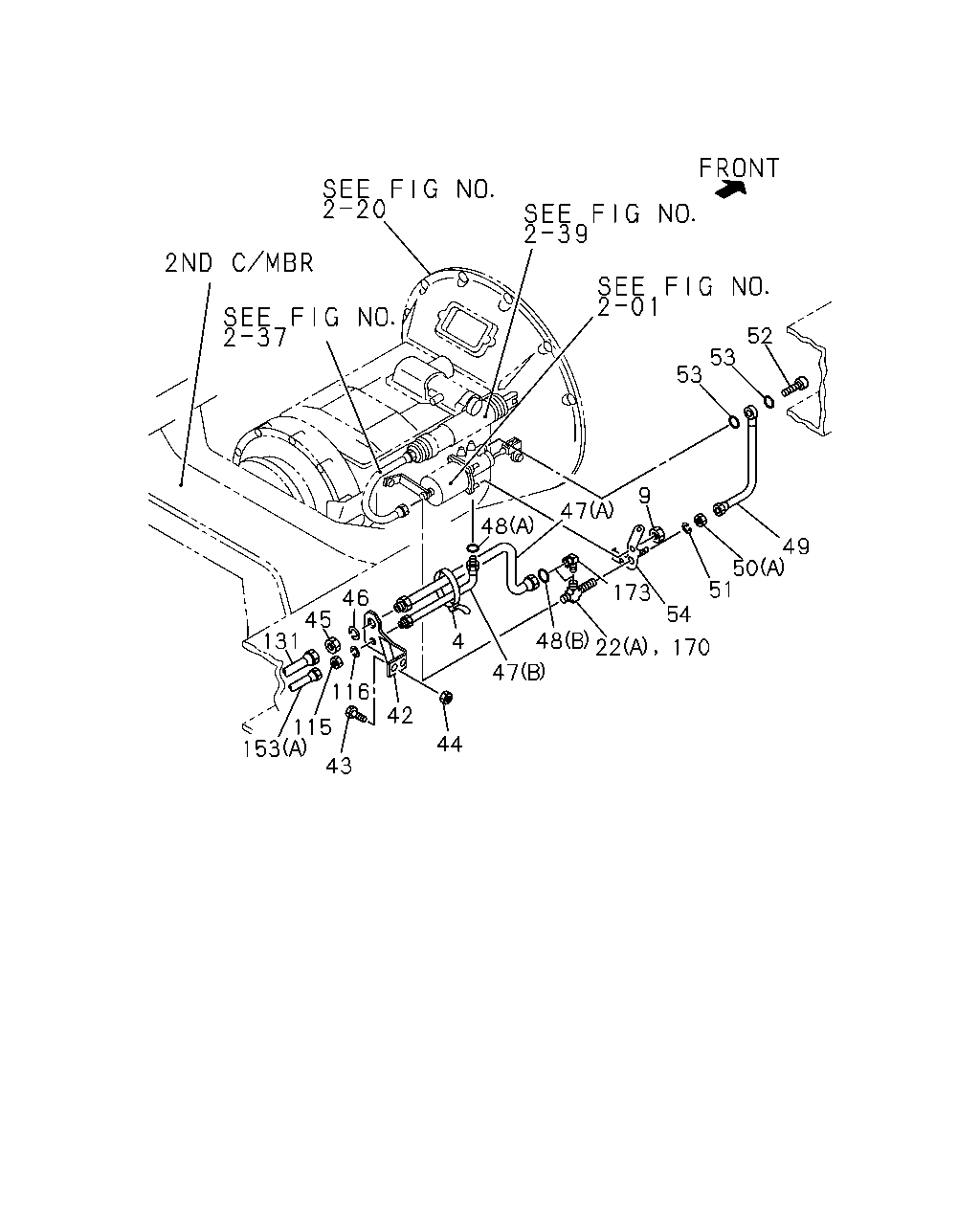

49 54 51 50 170 173 47 48 9 53 53 52 22 48 47 4 44 42 116 115 153 43 46 45 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-1	01	1	9906-	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9906-9906		●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9907-	●	●
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	9906-	●	●
22	UNION; CLU PIPE (A)	1-09656-181-1	01	1	9907-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	9906-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-	●	●
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	9906-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	9906-	●	●
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	9906-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9906-	●	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.2 OD=16.0	9-09571-410-0	01	1	9906-	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=11 OD=18	9-09572-510-0	01	1	9906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9906-0006	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	0007-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MIXER TRUCK<RA2> L=245	1-49117-733-0	01	1	0007-	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-	●	●
50	NUT; UNION (A) M20	9-99111-420-0	01	1	9906-	●	●
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	9906-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9906-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9906-9906		●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9907-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE L=861 SERVICED BY L=900	1-49115-484-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=406	1-47428-974-0	01	1	9906-	●	●
170	UNION; AIR PIPE	1-09656-640-0	01	1	9906-		●
173	CONNECTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9906-		●

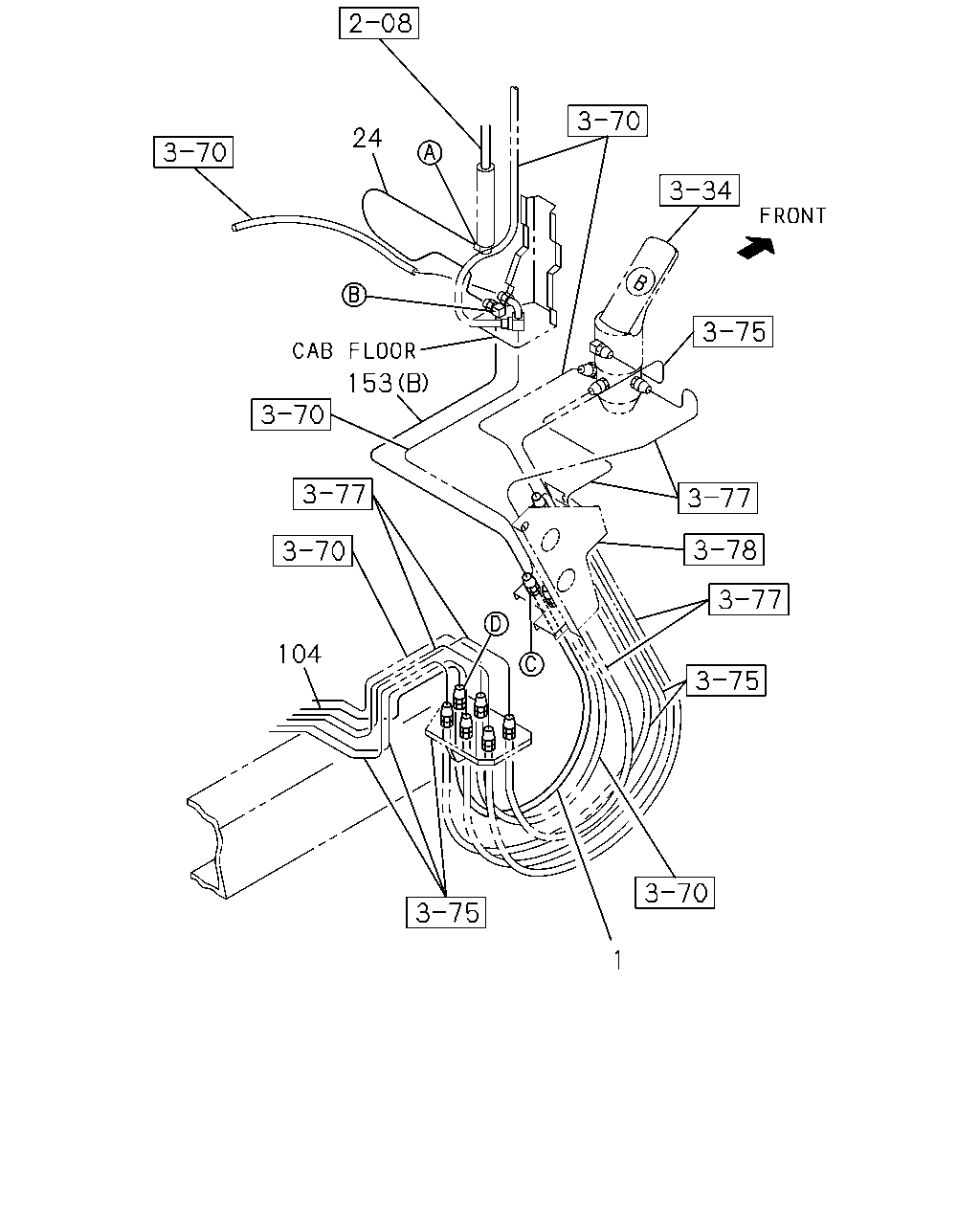

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	9906-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2980 SERVICED BY L=3000	1-47428-773-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=406	1-47428-974-0	01	1	9906-	●	●

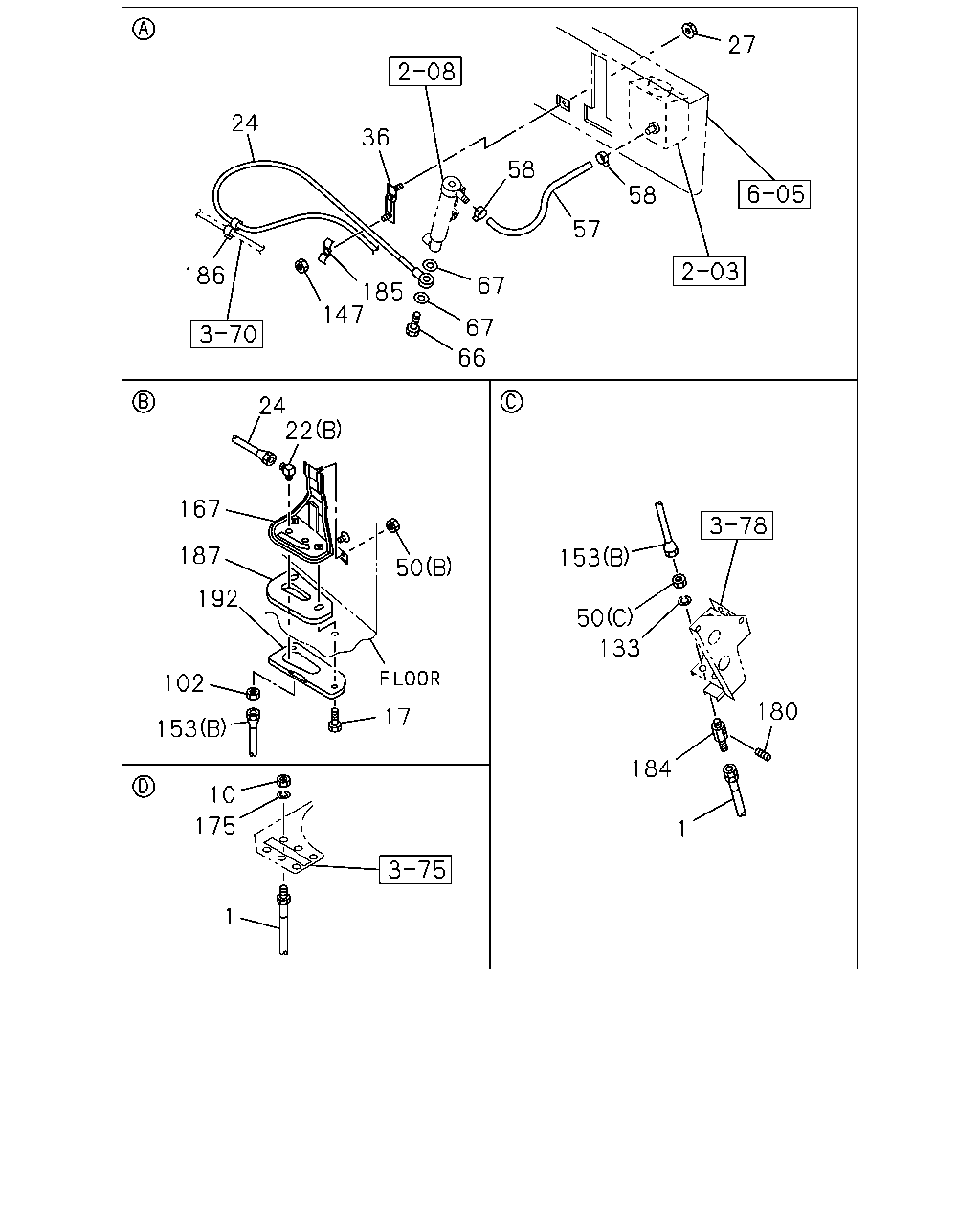

27 24 36 58 58 57 186 67 185 147 67 66 24 22 167 187 153 50 192 50 133 102 180 17 153 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	9906-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9906-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9906-	●	●
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	9906-	●	●
22	UNION; CLU PIPE (A)	1-09656-181-1	01	1	9907-	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9906-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9906-	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	9906-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-	●	●
50	NUT; UNION (A) M20	9-99111-420-0	01	1	9906-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9906-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9906-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 FLANGE	1-09675-146-0	01	1	9906-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9906-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=406	1-47428-974-0	01	1	9906-	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	9906-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9906-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9906-	●	●
184	UNION; FLEX HOSE	1-09656-679-0	01	1	9906-	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9906-	●	●
186	HOLDER; CLIP	8-94107-710-0	02	1	9906-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	9906-	●	●
192	PLATE	1-71117-221-0	01	1	9906-	●	●
