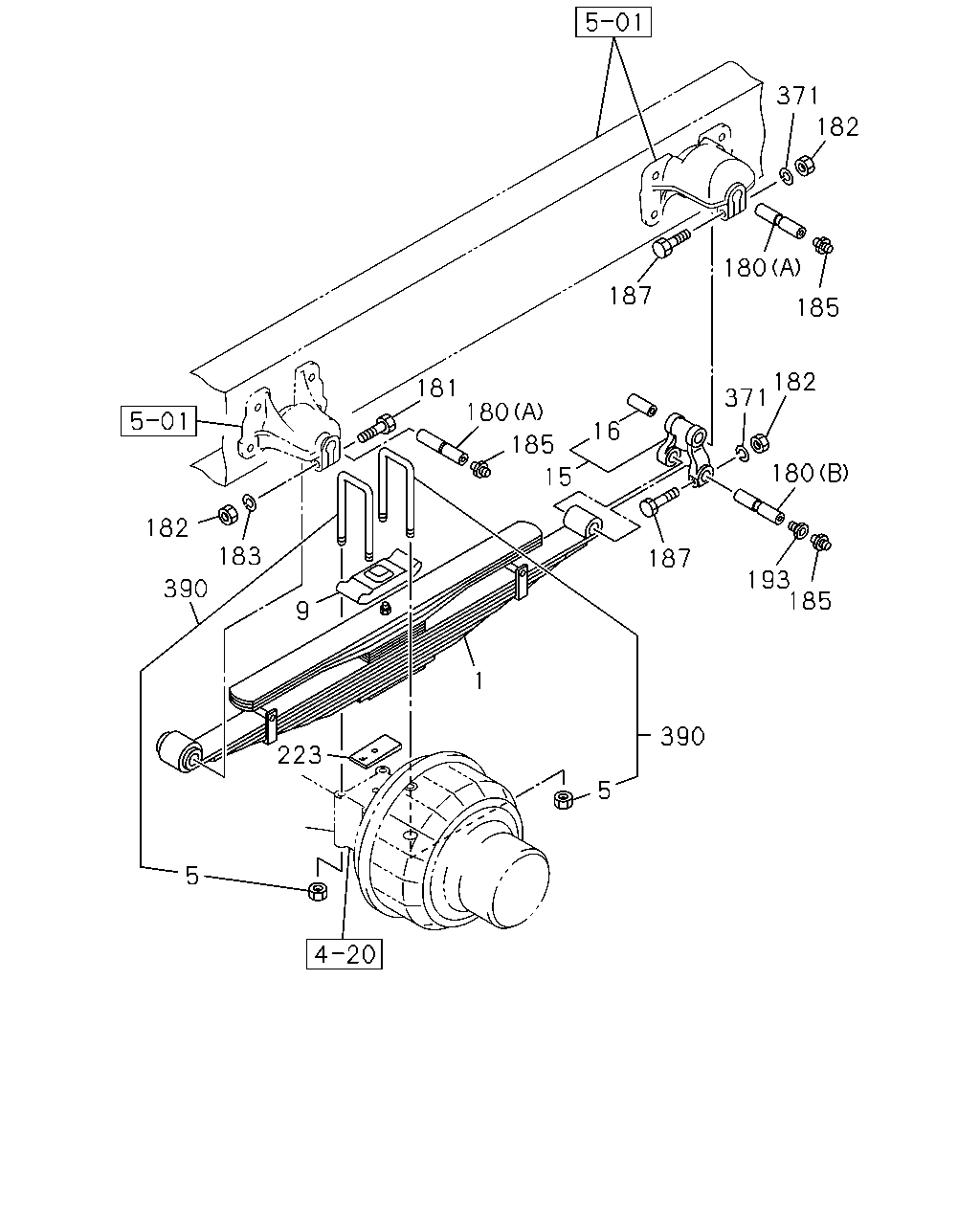

4-60 — REAR SUSPENSION (#72089) — 17 parça

371 182 180 187 185 182 371 181 180 16 185 180 15 182 183 187 193 185 390 9 1 390 223 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF	8-98064-449-0	02	1	1010-	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF	8-98079-006-0	02	1	1010-	●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	1010-	●	●
9	PAD; U BOLT,RR SPR	1-51372-059-0	02	1	1010-	●	●
15	SHACKLE; RR SPR	1-51362-038-2	02	1	1010-	●	●
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	1010-	●	●
180	PIN; RR SPR (A) DO=25 L=115 PT1/8	1-51361-016-0	04	1	1010-	●	●
180	PIN; RR SPR (B) DO=25 L=115 M12	1-51361-017-0	02	1	1010-	●	●
181	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	02	1	1010-	●	●
182	NUT; PIN,RR SPR M12	0-91110-512-0	06	1	1010-	●	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	1010-	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	06	1	1010-	●	●
187	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	04	1	1010-	●	●
193	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	02	1	1010-	●	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4300MM(43W)	8-98043-891-0	02	1	1010-	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	1010-	●	●
390	U-BOLT SET; RR SPRING L=390	1-87870-399-0	04	1	1010-	●	●
