◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#72088) — 14 parça

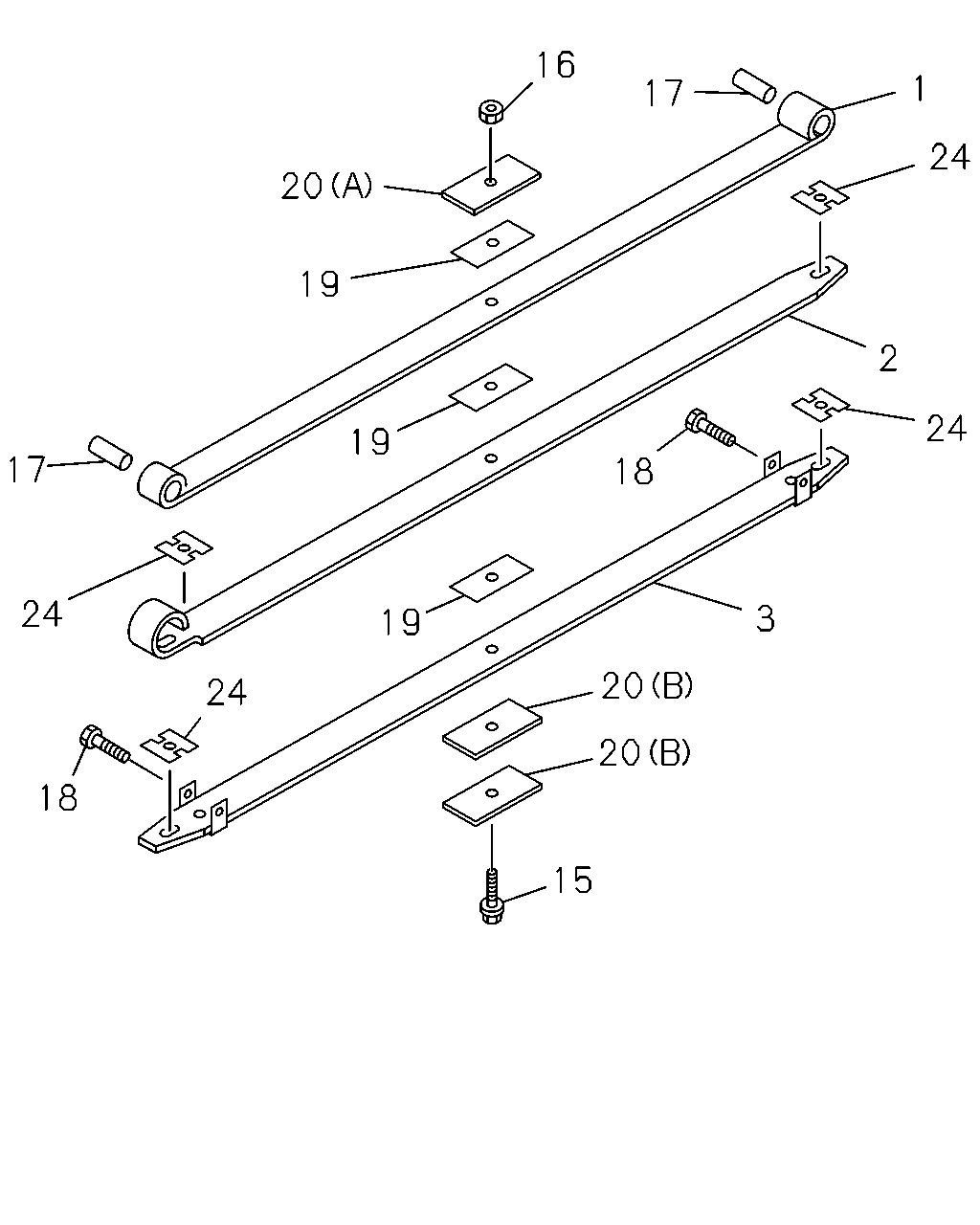

çizim 124789
16 1 17 24 20 1 2 24 19 17 18 24 3 19 20 24 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98111-360-0 		8-98124-850-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98111-361-0 		8-98124-853-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98111-360-0 		8-98124-851-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98111-361-0 		8-98124-855-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98111-360-0 		8-98124-852-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98111-361-0 		8-98124-856-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		1-51156-416-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X93.5 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		8-94407-134-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		1-51177-287-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		1-51177-285-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		8-98124-862-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98111-360-0, B = 8-98111-361-0 		1-51159-025-0 04 1 -
