4-50 — FRONT SUSPENSION
(#72087) — 42 parça
Tümü
A - FCR5MS
B - FCR5WS
◀

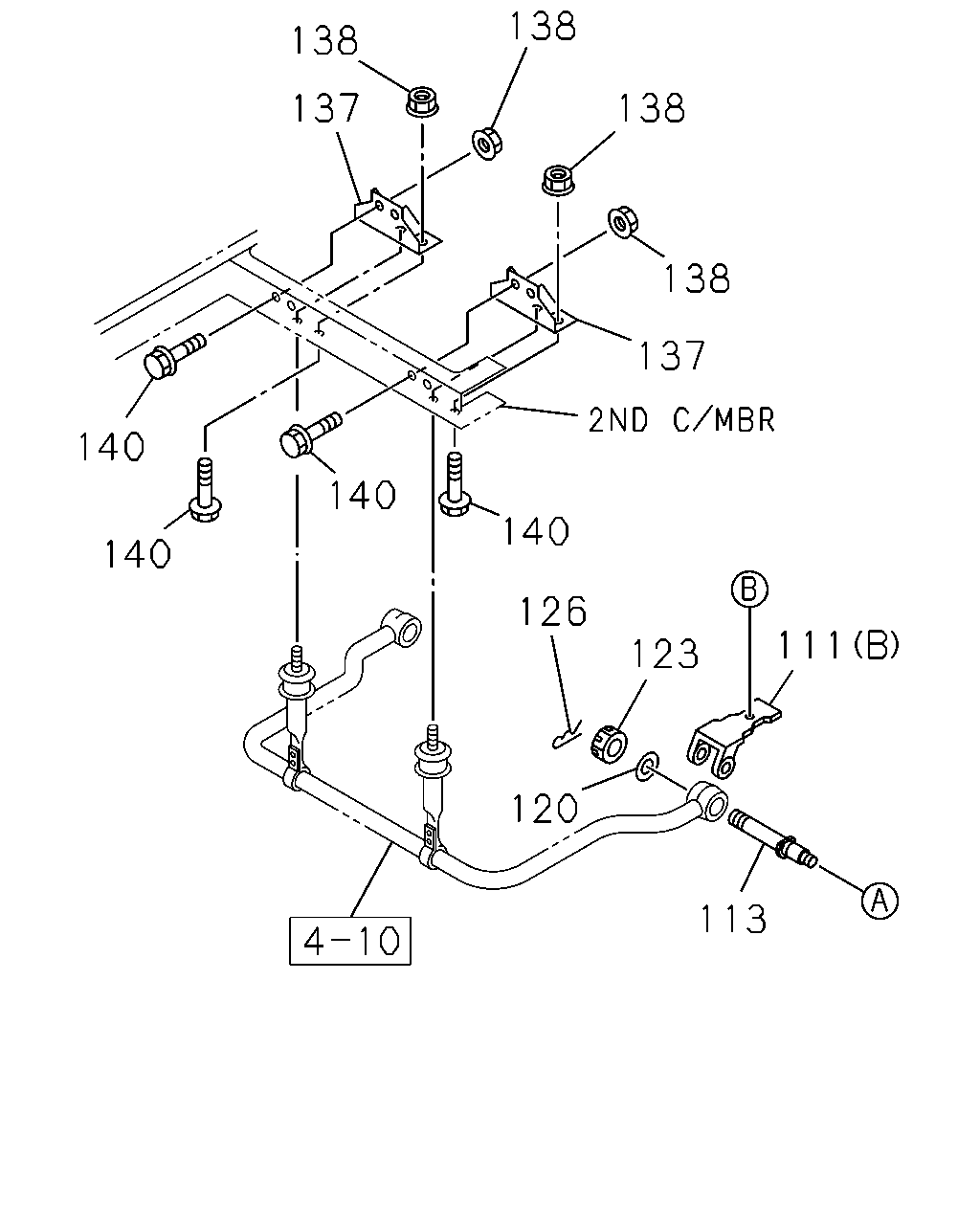

[450A] FRONT STABILIZER SHAFT (11 parça)

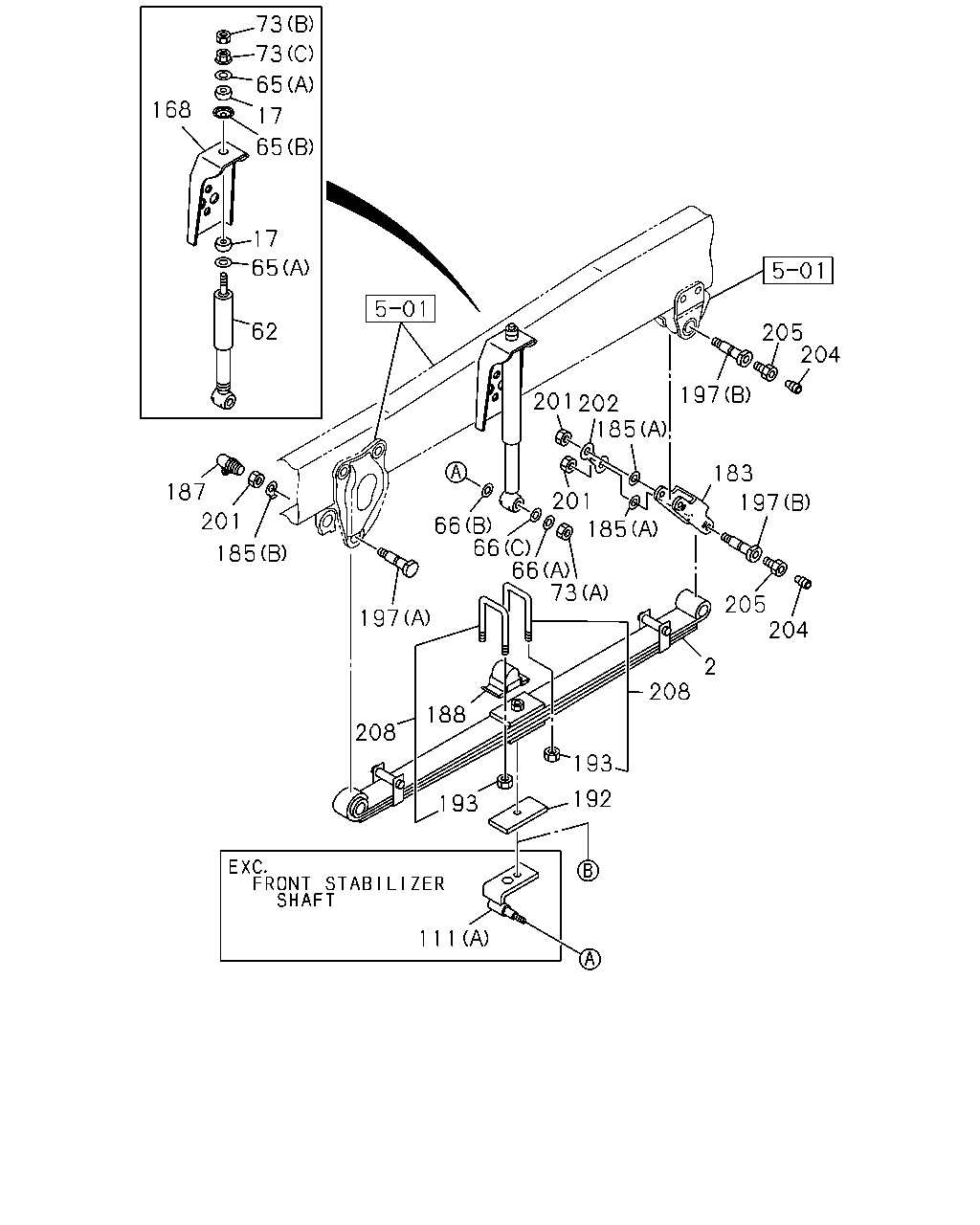

[450A] LEAF SPRING AND SHOCK ABSORBER (31 parça)
▶
138
138
138
137
138
137
140
140
140
140
126
111
123
120
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B)
1-51681-591-1
01
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B)
1-51681-590-1
01
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A)
1-51681-587-4
01
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A)
1-51681-586-4
01
1
1010-
●
●
113
PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59>
8-98010-654-0
02
1
1010-
●
●
120
WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> ID=23
0-91614-522-0
02
1
1010-
●
●
123
NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M22
0-91116-522-0
02
1
1010-
●
●
126
PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45
0-81125-045-0
02
1
1010-
●
●
137
BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59>
1-51781-060-2
02
1
1010-
●
●
138
NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE
0-91180-210-0
08
1
1010-
●
●
140
BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE
0-28651-025-0
08
1
1010-
●
●
73
73
65
168
17
65
17
65
62
205
204
197
201
202
185
183
187
201
197
201
66
66
66
73
185
185
205
204
197
2
208
188
208
193
192
193
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98111-360-0
01
1
1010-
●
●
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98111-361-0
01
1
1010-
●
●
17
BUSHING; RUBBER,S/ABS
1-51631-004-0
04
1
1010-
●
●
62
ABSORBER ASM; SHOCK,FRT
8-98060-332-0
02
1
1010-
●
●
65
WASHER; S/ABS
(B)
1-51631-023-0
02
1
1010-
●
●
65
WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2
8-98010-405-0
04
1
1010-
●
●
66
WASHER; LK,S/ABS SETTING
(A) ID=12.2
0-91510-812-0
02
1
1010-
●
●
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1010-
●
●
66
WASHER; LK,S/ABS SETTING
(C) ID=12.5
1-09503-171-0
02
1
1010-
●
●
73
NUT; BRKT,SHOCK
(A) M12
0-91110-512-0
02
1
1010-
●
●
73
NUT; BRKT,SHOCK
(B) M10
0-91111-510-0
02
1
1010-
●
●
73
NUT; BRKT,SHOCK
(C) M10 FLANGE
0-91180-210-0
02
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B)
1-51681-591-1
01
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B)
1-51681-590-1
01
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A)
1-51681-587-4
01
1
1010-
●
●
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A)
1-51681-586-4
01
1
1010-
●
●
168
BRACKET; S/ABS,FRT SUSP
8-98060-258-0
02
1
1010-
●
●
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1010-
●
●
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1010-
●
●
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1010-
●
●
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1010-
●
●
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-112-0
02
1
1010-
●
●
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1010-
●
●
193
NUT; U BOLT
M16
8-97360-121-0
08
1
1010-
●
●
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1010-
●
●
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1010-
●
●
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1010-
●
●
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1010-
●
●
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1010-
●
●
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1010-
●
●
208
U-BOLT SET; FRT SPRING
L=150
1-87870-466-0
04
1
1010-
●
●
